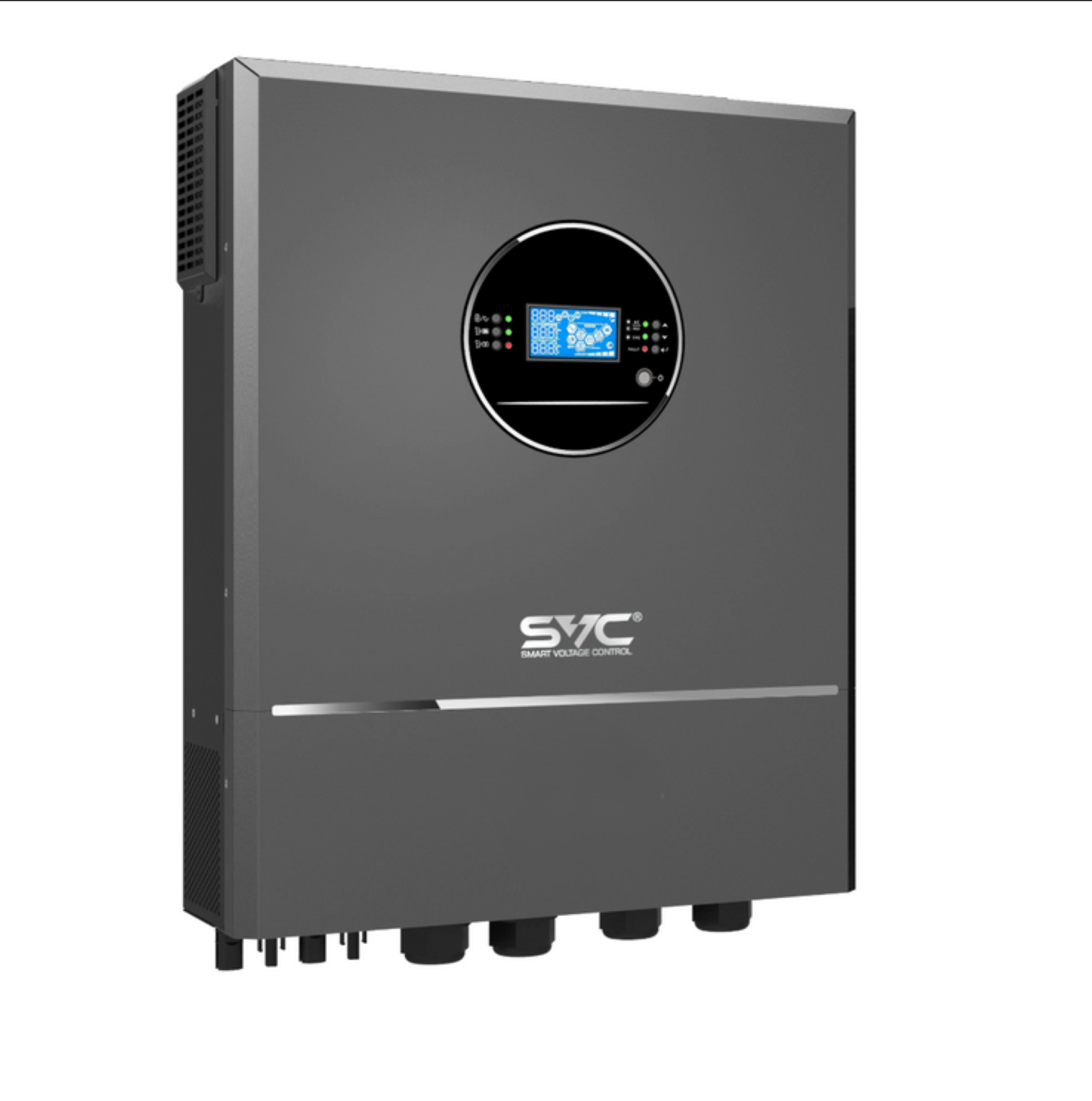

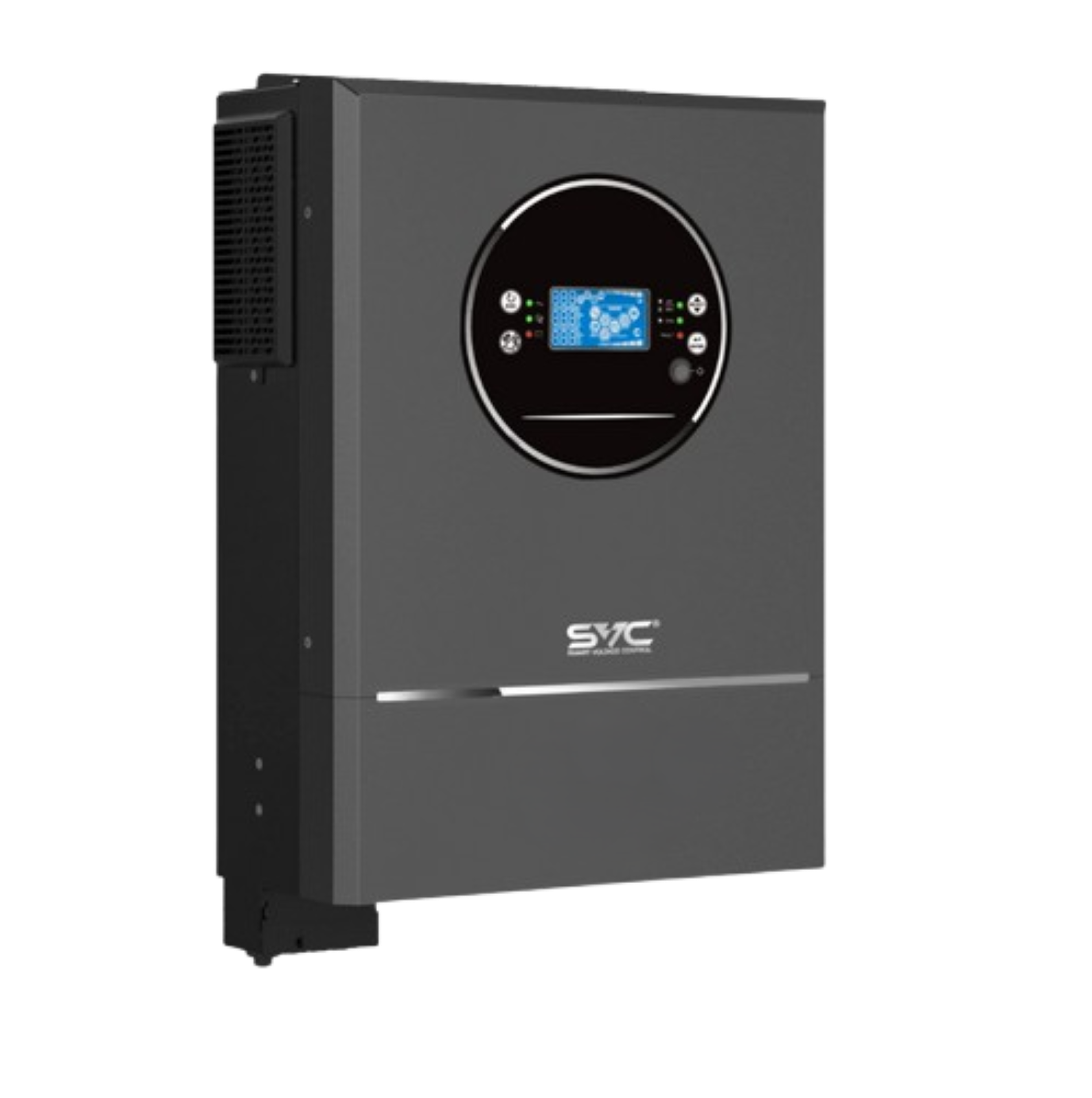

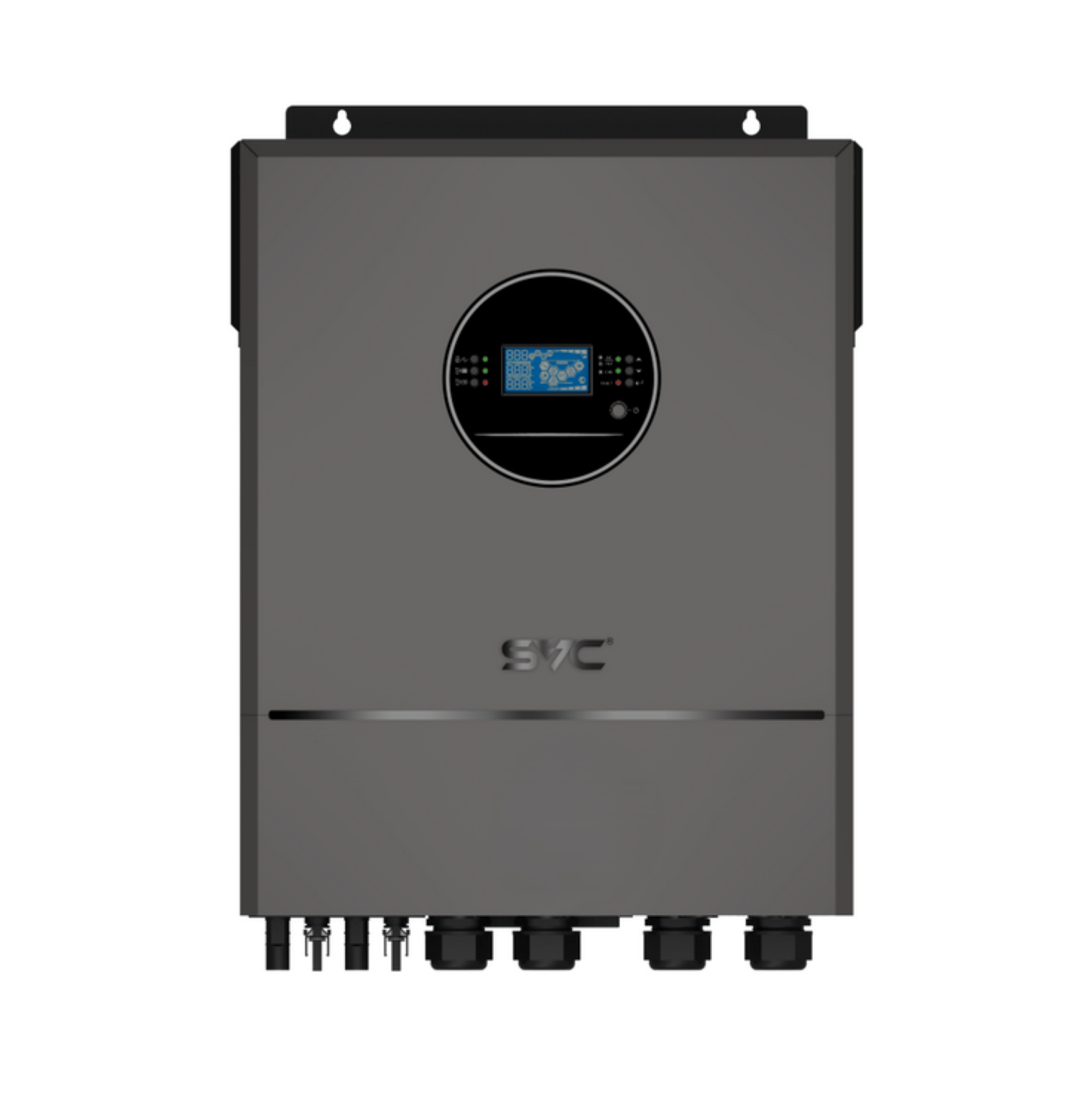

1.2kw 12v SVC Hybrid Solar Inverter – 1200w 100A MPPT – Intuitive LCD Display

🔋 1.2kW 12V SVC Hybrid Solar Inverter – 1200W 100A MPPT – Intuitive LCD 🌞

🔎 Overview

The 1.2kW 12V SVC Hybrid Solar Inverter is a versatile and efficient power solution for off-grid and backup power applications. Designed with a high-performance 100A MPPT charge controller ⚡, this inverter maximizes solar energy utilization while ensuring stable power conversion. The intuitive LCD display 🖥️ provides real-time monitoring and easy configuration, making it user-friendly and highly functional.

⚙️ Technical Specifications

🔌 Electrical Characteristics:

• Rated Power: 1200W (1.2kW) ⚡
• DC Input Voltage: 12V DC 🔋
• Output Voltage: 230V AC ± 5% ⚡
• Waveform: Pure Sine Wave 🌊
• Surge Power: 2400W ⚡
• Efficiency: ≥ 90% 🚀
• Frequency: 50Hz / 60Hz (auto-sensing) 🔄

☀️ Solar Charging Parameters:

• MPPT Charge Controller: 100A ⚡
• PV Input Voltage Range: 15V – 100V DC 🌞
• Max PV Array Power: Up to 1200W 🌱
• Charging Current: Adjustable (up to 100A) 🔄
• Conversion Efficiency: > 98% ⚙️

🔋 Battery Parameters:

• Battery Voltage: 12V DC 🔋
• Battery Type Compatibility: Lead-Acid, Gel, AGM, LiFePO4 (Lithium Iron Phosphate) 🔄
• Battery Charging Current: Programmable, max 100A ⚡

🛠️ Inverter Features:

• Hybrid Functionality: Can be powered by solar, battery, or grid 🔄
• LCD Display: Provides real-time information on power status, battery level, and load conditions 📊
• Communication Interface: RS232, USB (optional WiFi/GSM monitoring module) 📡
• Protection Features: Overload ⚠️, Short Circuit 🚫, Overvoltage ⚠️, Low Voltage ⛔, Over-Temperature 🌡️, Reverse Polarity 🔄

🏗️ Physical and Environmental Characteristics:

• Cooling Mechanism: Intelligent temperature-controlled fan 🌀
• Operating Temperature: -10°C to 50°C 🌡️
• Storage Temperature: -15°C to 60°C 📦
• Humidity: 0% – 95% (non-condensing) 💧
• Enclosure: Rugged metal body with durable powder coating 🏗️
• Weight: Approx. 6-8 kg ⚖️
• Dimensions: Typically around 400mm x 250mm x 150mm 📏

📌 Applications

The 1.2kW 12V SVC Hybrid Solar Inverter is designed for various applications, including:

1. 🏡 Off-Grid Solar Power Systems: Ideal for powering homes, cabins, and small businesses without access to grid electricity.
2. ⚡ Backup Power for Homes: Provides uninterrupted power supply during outages.
3. 🚐 RV and Marine Applications: Perfect for mobile solar energy solutions in recreational vehicles and boats.
4. 📡 Telecommunications: Can be used to power remote communication stations.
5. 🌾 Agricultural Use: Powers water pumps, lighting, and small appliances in remote farms.
6. 🏢 Small Commercial Applications: Suitable for small shops and offices requiring backup or solar-powered energy.

🛠️ Maintenance Guidelines

Proper maintenance ensures the longevity and efficiency of the inverter. Here are some key maintenance tips:

🔍 Regular Inspection

• Visual Checks: Inspect the unit for dust accumulation, corrosion, or any signs of damage 🔦.
• Wiring Inspection: Ensure all connections are secure and cables are free from wear and tear 🔧.

🌀 Cooling System Maintenance

• Fan Cleaning: Dust off the cooling fans regularly to prevent overheating 🏭.
• Ventilation: Ensure the inverter is installed in a well-ventilated area to allow proper heat dissipation 🌬️.

🔋 Battery Maintenance

• Check Battery Terminals: Keep terminals clean and free from corrosion ⚡.
• Voltage Monitoring: Regularly check battery voltage to prevent deep discharge 🔍.
• Water Levels (Lead-Acid Batteries): If using lead-acid batteries, maintain proper water levels as per manufacturer recommendations 💧.

📟 Firmware and Settings

• Software Updates: If the inverter supports firmware updates, keep it updated for improved efficiency and new features 🔄.
• Parameter Adjustments: Periodically review and adjust charge settings based on battery health and solar panel performance ⚙️.

⚡ Protection and Safety

• Surge Protection: Use a surge protector to safeguard against voltage spikes ⚡.
• Lightning Protection: Install external lightning arrestors for areas prone to lightning strikes ⛈️.
• Shutdown During Maintenance: Always turn off the inverter and disconnect the power sources before performing any maintenance tasks 🔌.

The 1.2kW 12V SVC Hybrid Solar Inverter is a highly efficient, reliable, and user-friendly power solution for small to medium off-grid and backup applications. With its advanced 100A MPPT charge controller ⚡, intelligent LCD display 🖥️, and comprehensive protection features 🛡️, it ensures optimal performance and long-term sustainability. By following proper installation and maintenance practices, users can maximize the inverter’s lifespan and efficiency for years to come 🚀.
