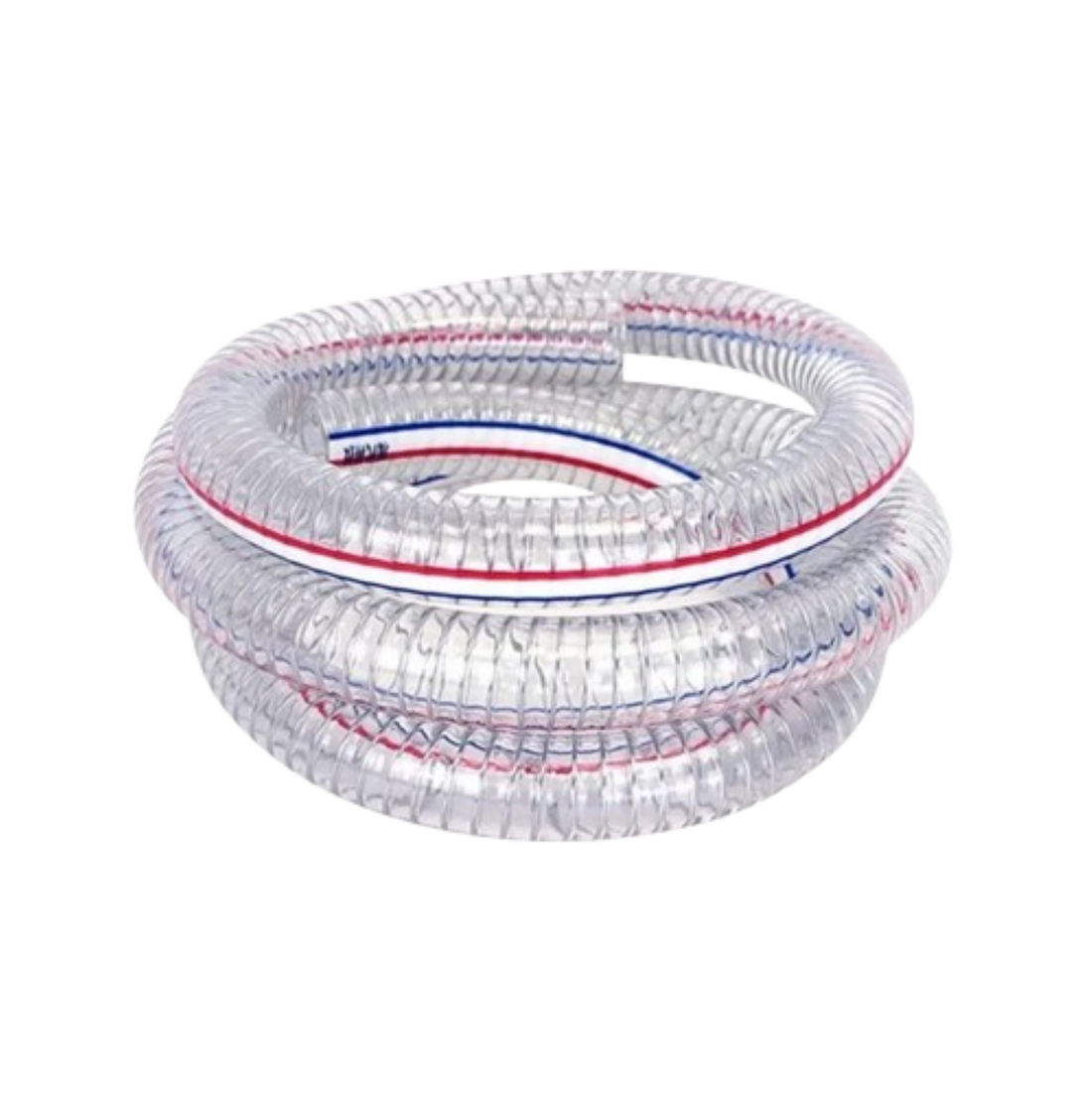

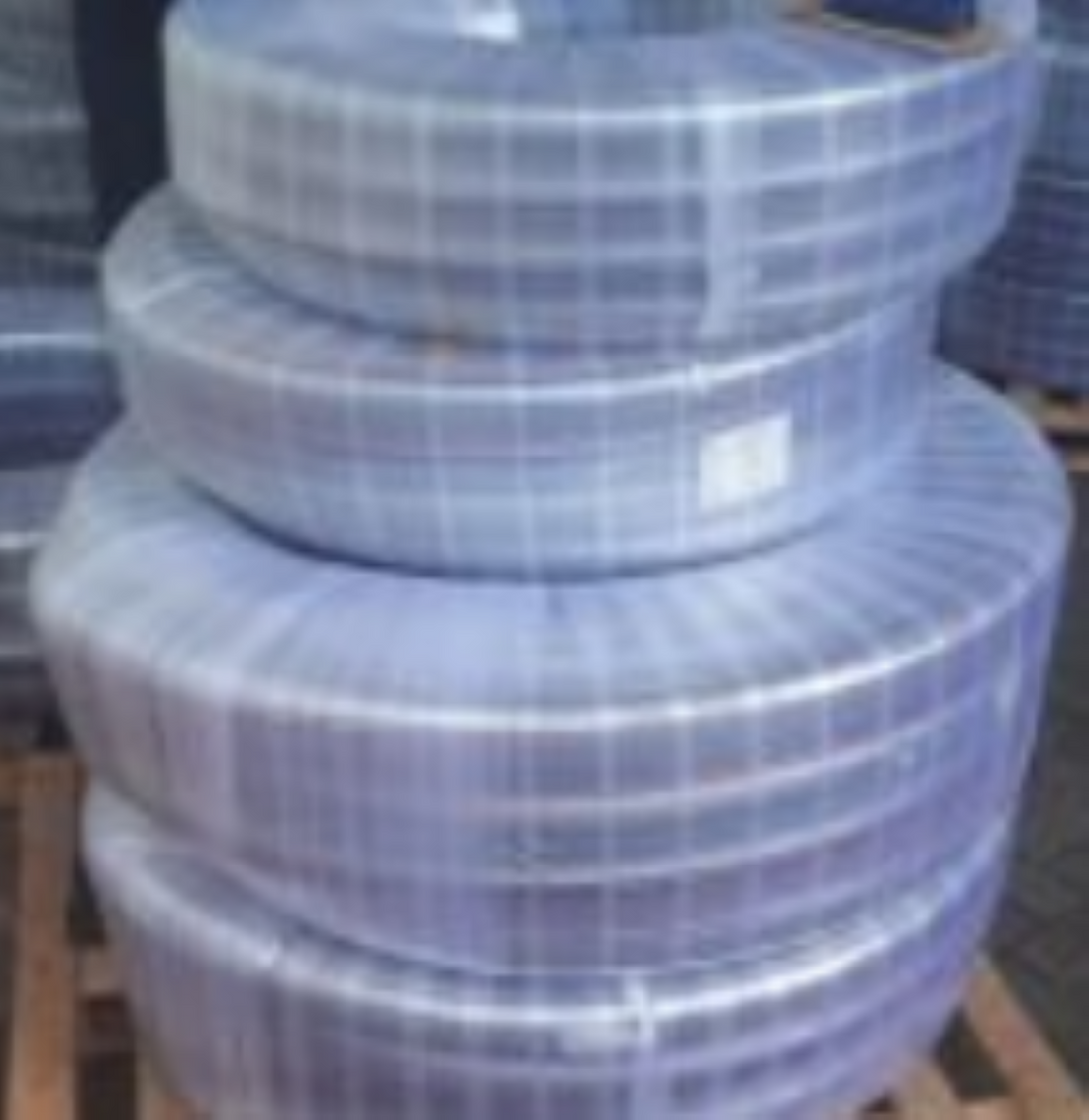

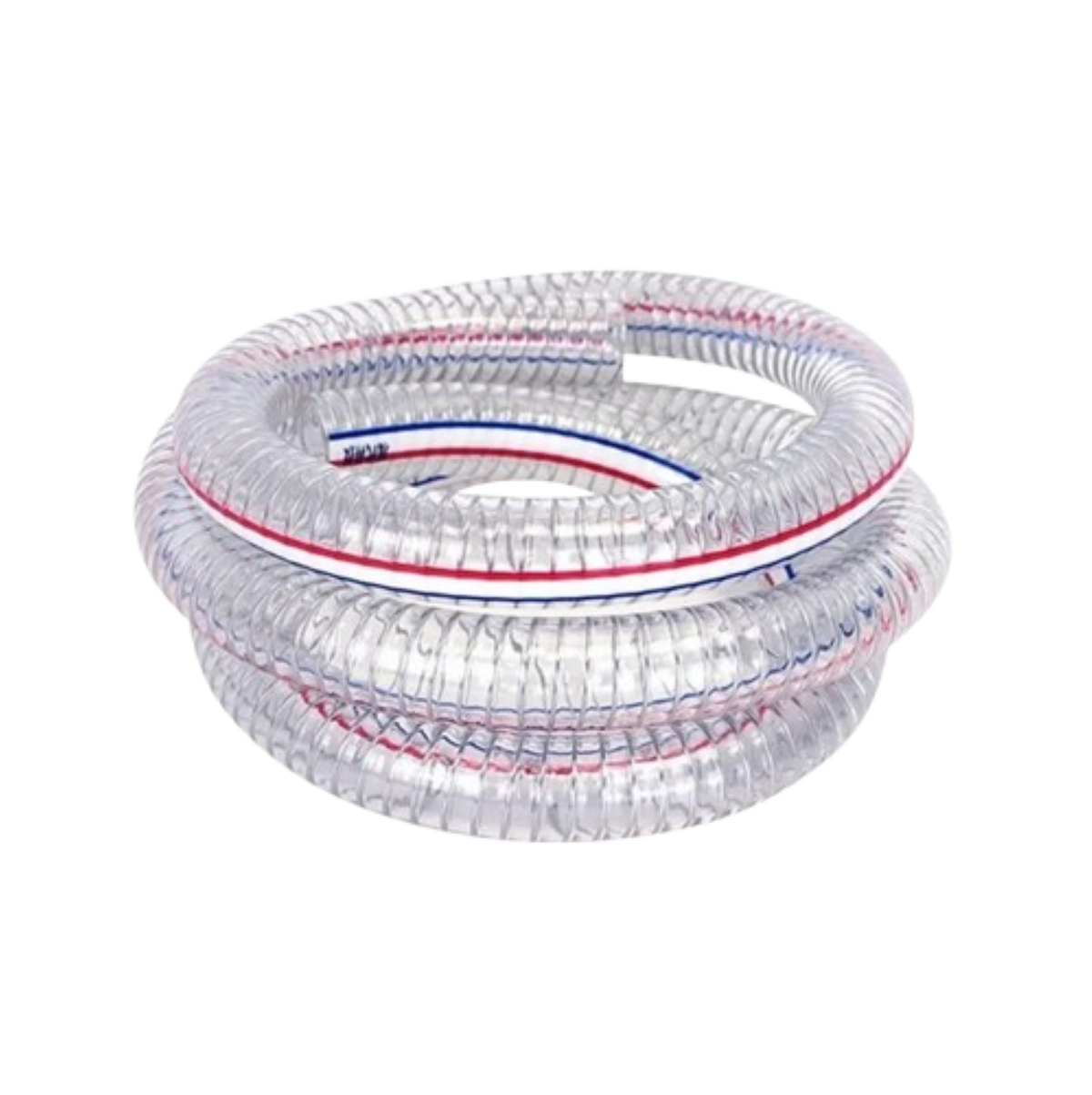

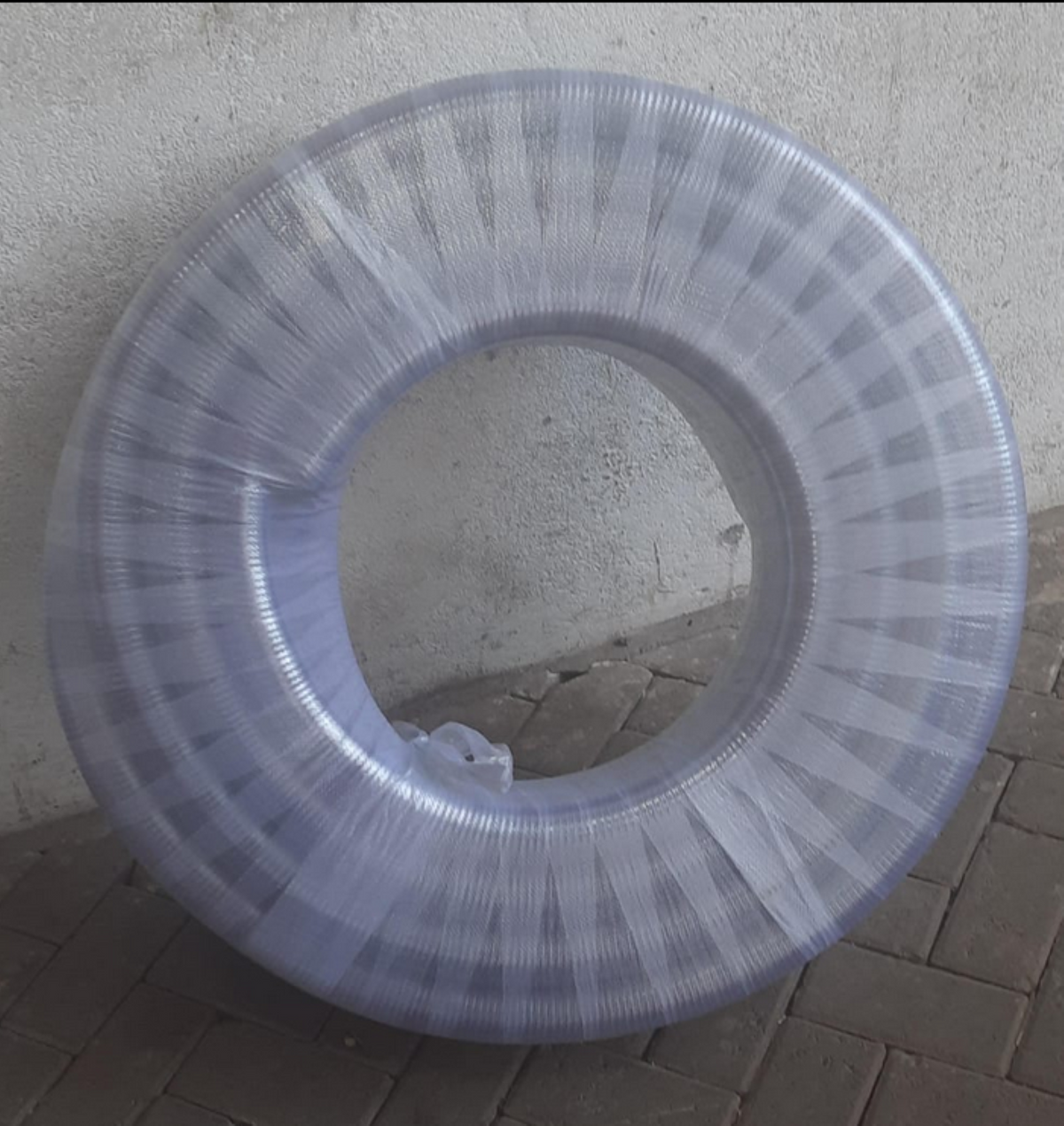

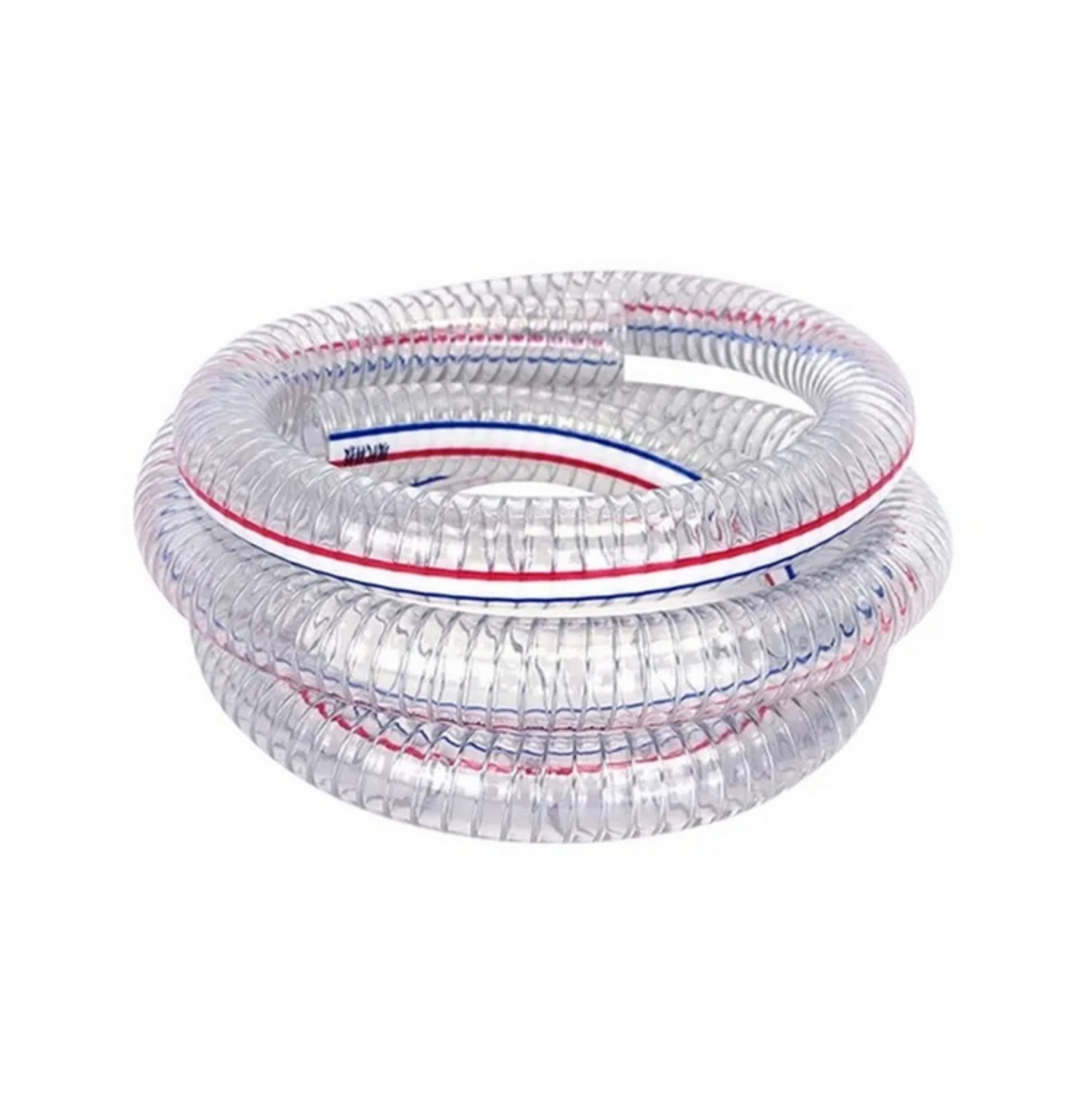

1.5" 30m Clear Steel Wire Braided Suction Pipe

🌟 1.5" (38mm) 30m Clear Steel Wire Braided Suction Pipe

• 🔍 Transparent PVC Body – Easy to monitor fluid flow

• 🦾 Steel Wire Reinforced – Excellent strength for suction & pressure

• 🔄 Highly Flexible – Easy to handle and install in tight spaces

• 💧 Chemical & Abrasion Resistant – Suitable for a wide range of fluids

• 🔥 Crush & Kink Resistant – Maintains shape under heavy use

• ⚙️ Multipurpose Use – Compatible with water, air, oil, and chemicals

• 🧊 Wide Temperature Range – Performs in hot and cold conditions

• 🧼 Smooth Inner Wall – Reduces friction and prevents residue buildup

• ☀️ Optional UV Protection – Suitable for outdoor applications

• 🧯 Vacuum-Ready – Can handle full suction without collapsing

🌟 Product Description:

1.5" (38mm) 30m Clear Steel Wire Braided Suction Pipe is a high-performance, flexible hose engineered for both suction and delivery of fluids. The pipe features a transparent PVC (Polyvinyl Chloride) body reinforced with a high-tensile steel wire helix, providing strength, flexibility, and excellent visibility of the fluid flow. Ideal for industrial, commercial, and agricultural applications where durability and pressure resistance are essential.

📐 Technical Specifications:

• Inner Diameter (ID): 1.5 inches (38 mm)

• Length: 30 meters (98.4 feet)

• Construction:

  • Inner and outer layers: Clear, flexible PVC

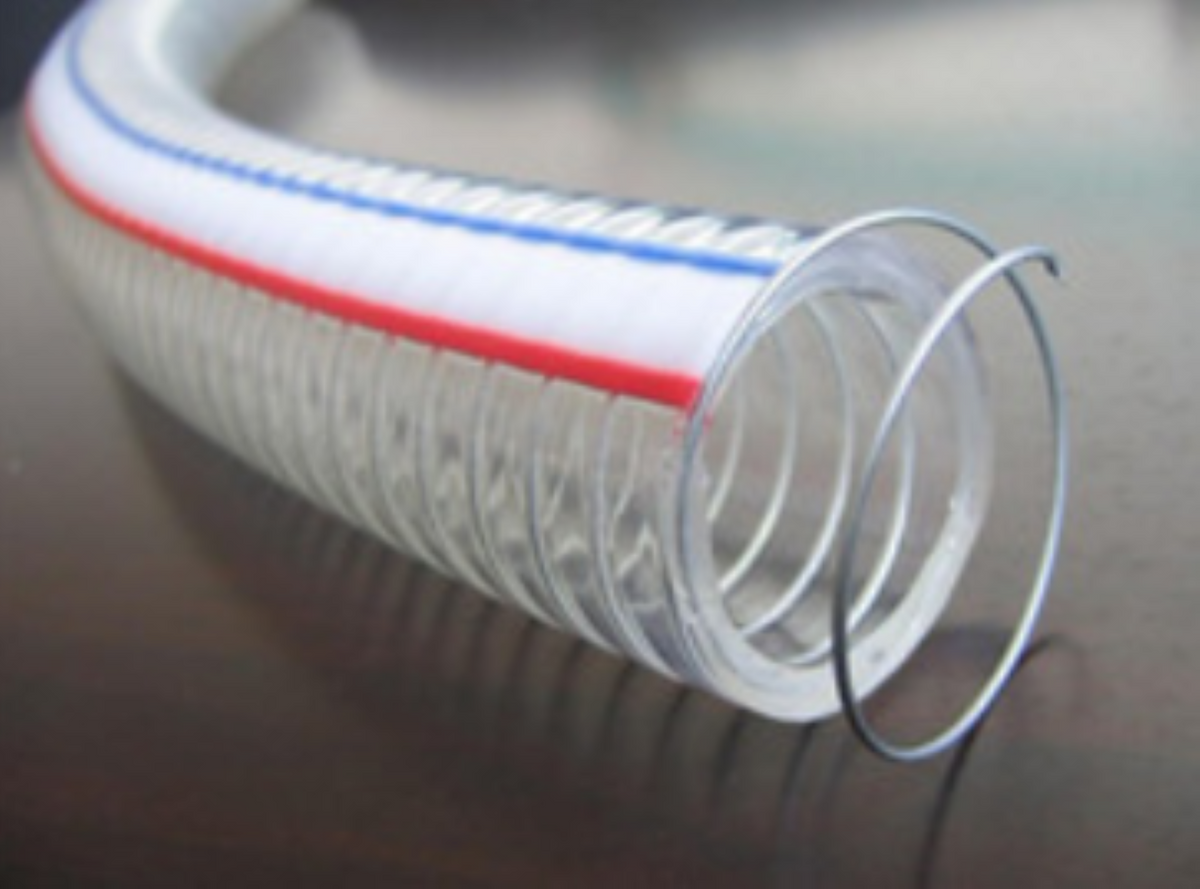

  • Reinforcement: Embedded high-tensile steel wire helix

• Wall Thickness: Typically 4.5 - 6 mm (varies slightly by manufacturer)

• Temperature Range: -10°C to +65°C (14°F to 149°F) 🌡️

• Working Pressure: ~5-10 bar (varies by operating temperature)

• Burst Pressure: Typically ≥3x working pressure

• Vacuum Rating: Suitable for full vacuum (9.4m water column) 💨

• Weight: Approximately 0.6-0.9 kg/m

• Bend Radius: ~120 mm

🛠️ Key Features:

• 🔍 Transparent Body – Easy visual inspection of media flow

• 🔄 High Flexibility – Easy to maneuver in tight spaces

• 🦾 Steel Wire Reinforcement – Withstands suction and positive pressure

• 💧 Chemical & Abrasion Resistant – Suitable for a wide range of fluids

• ☀️ UV Stabilized (optional) – For outdoor use

• 🔥 Crush & Kink Resistant – Durable under rough conditions

🧪 Applications:

• 🚜 Agriculture – Irrigation, pesticide spraying, and water delivery

• 🏭 Industry – Transfer of chemicals, oils, air, and gases

• 🧼 Sanitation – Water suction for cleaning systems

• 🛥️ Marine – Bilge pumping and general fluid transfer

• 🧱 Construction – Concrete, slurry, and sand-water mix handling

• 🧯 Firefighting (light-duty) – Temporary water transfer

🧹 Maintenance Tips:

1. Flush Regularly – Clean the hose with water or compatible solvent after use 🧽

2. Store Properly – Keep in a cool, shaded place away from direct sunlight 🌤️

3. Avoid Sharp Bends – Prevent kinks to prolong hose life 🔄

4. Inspect Before Use – Check for cracks, hardening, or wire corrosion 🔍

5. Use Correct Fittings – Ensure compatibility and secure clamps firmly 🔧

6. Pressure Control – Do not exceed the rated working pressure 📏

📦 Storage & Handling:

• Coil Gently – Avoid sharp folds or tight knots

• Hang or Lay Flat – Store in a dry area, preferably hung on hose racks

• Label by Use – If used for chemicals, clearly tag for safety 🧷
