10.5kva Pulsar Silent Diesel Generator Three Phase Equal Output

• Power Output: The generator delivers 10.5 kVA maximum power (9.5 kVA rated), suitable for medium-scale applications requiring three-phase electricity.

• Engine Type: Air-cooled, 4-stroke diesel engine with direct injection and electric start, designed for durability and efficiency.

• Voltage and Frequency: Provides 230/400 V at 50 Hz or 240/416 V at 60 Hz with a power factor of 0.8, ensuring stable output for sensitive equipment.

• Alternator and AVR: Equipped with a brushless, self-excited alternator and an automatic voltage regulator (AVR) for consistent voltage across all three phases.

• Fuel and Consumption: Operates on diesel with a 25-liter tank, offering several hours of operation under load and fuel consumption under 340 g/kWh.

• Noise and Enclosure: Features a silent, weather-resistant canopy with an approximate noise level of 72 dB at 7 meters, suitable for residential and commercial environments.

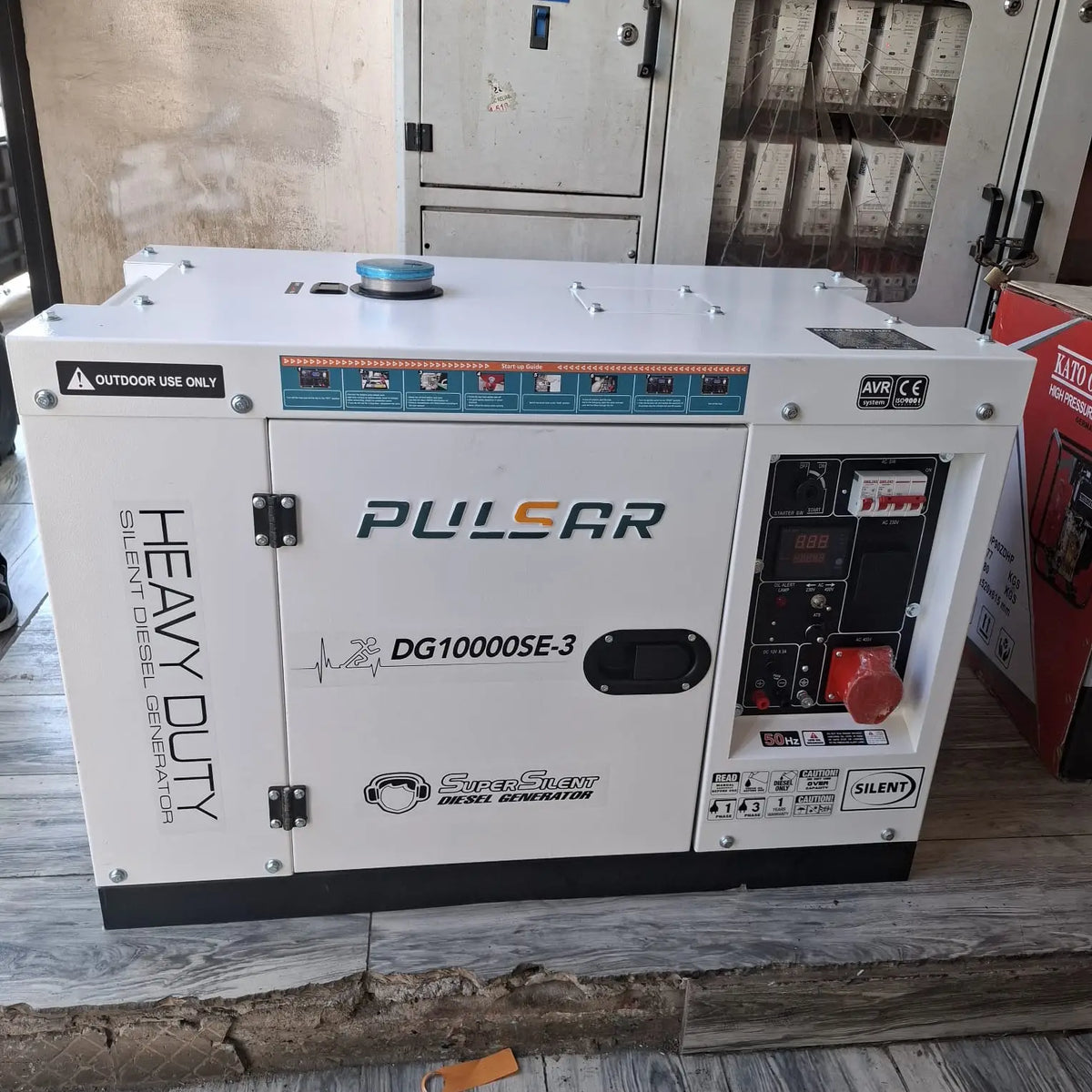

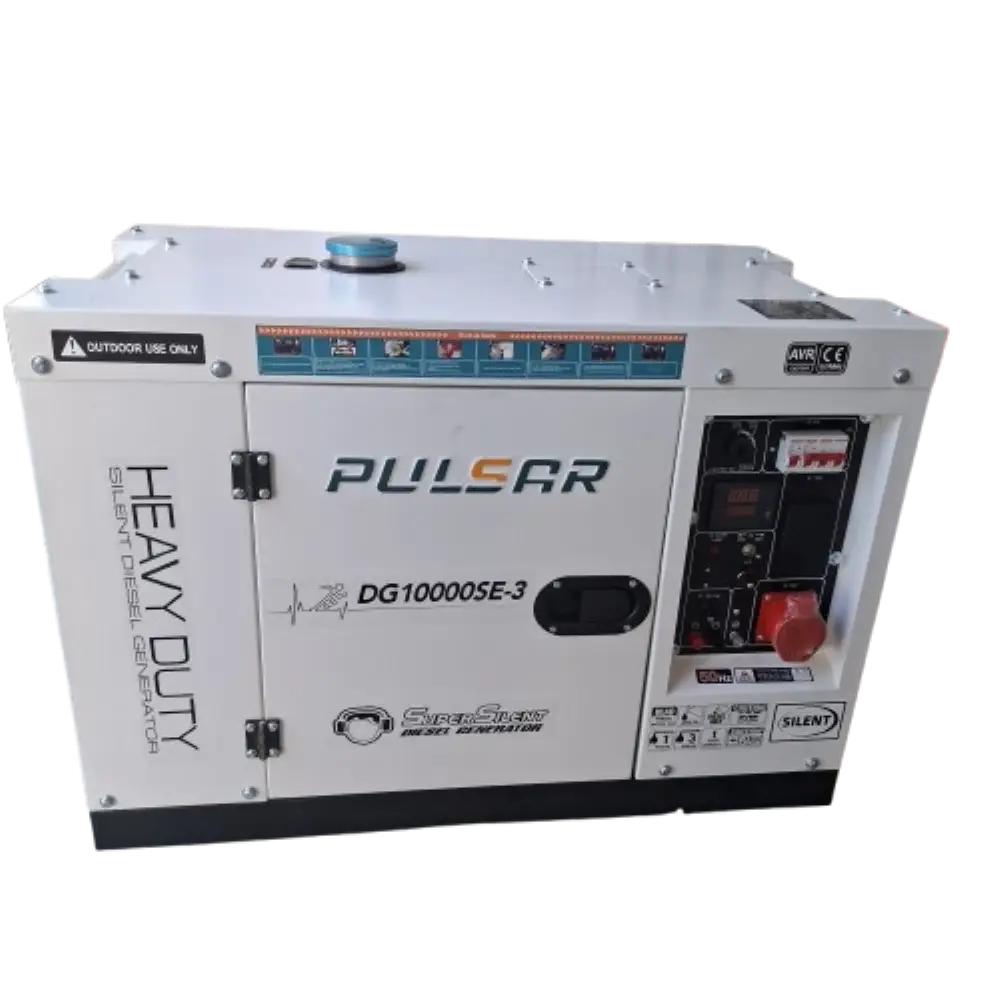

the 10.5 kVA Pulsar Silent Diesel Generator – Three Phase Equal Output Generator

Generator Overview

The Pulsar 10.5 kVA Silent Diesel Generator is a robust three-phase generator designed for industrial, commercial, or backup residential use. It features a quiet, weather-resistant enclosure and is capable of delivering balanced output across all three phases.

Technical Specifications

Electrical Output

• Rated Power Output: 9.5 kVA (at 50 Hz), 10.5 kVA (at 60 Hz)

• Maximum Power Output: 10.5 kVA (50 Hz), 11.5 kVA (60 Hz)

• Voltage Output: 230/400 V (50 Hz) or 240/416 V (60 Hz)

• Phase Configuration: Three-phase (balanced)

• Frequency: 50 Hz or 60 Hz

• Power Factor: 0.8

• Current: Approx. 13.7 A (50 Hz), 14.6 A (60 Hz)

• Voltage Regulation: Automatic Voltage Regulator (AVR) for stable output

• Alternator Type: Brushless, self-excited, synchronous

Engine Details

• Engine Type: 4-stroke, single-cylinder, air-cooled diesel engine

• Engine Model: KA840 (or equivalent depending on regional branding)

• Rated Speed: 3,000 rpm (50 Hz) or 3,600 rpm (60 Hz)

• Displacement: 0.836 liters

• Bore × Stroke: 86 mm × 72 mm

• Engine Output: Approx. 11.3 kW at 3,600 rpm

• Fuel Type: Diesel (0# for summer, -10# for winter)

• Fuel Consumption: ≤ 340 g/kWh under full load

• Fuel Tank Capacity: 25 liters

• Lubrication Oil Capacity: 1.65 liters

• Cooling System: Forced air cooling

• Starting System: Electric start (battery-powered, 12 V/36 Ah)

Structural and Acoustic Features

• Enclosure Type: Soundproof, weather-resistant canopy

• Noise Level: Approx. 72 dB at 7 meters

• Dimensions (L × W × H): 1,180 mm × 720 mm × 820 mm

• Dry Weight: Approx. 265 kg

• Mobility: May include wheels or lifting hooks (model dependent)

Control Panel and Safety

• Control Features:

  • Electric start switch

  • Analog/digital voltmeter and ammeter

  • Circuit breakers for overload protection

  • Emergency stop button

• Protection Systems:

  • Low oil pressure shutdown

  • Over/under voltage protection

  • Overload protection

  • Circuit breakers

  • Oil warning indicator

Compliance and Certifications

• Compliant with CE, ISO 9001, ISO 14001, and OHSAS 18001 standards

• Manufactured under quality standards verified by SGS or BV (depending on supplier)

Key Benefits

• Equal Phase Output: Designed to deliver stable, balanced power across all three phases—important for motors and balanced loads.

• Silent Operation: Fully enclosed to minimize noise, suitable for residential or low-noise environments.

• Reliable Diesel Engine: Efficient, low-maintenance, and capable of long continuous runtime.

• Compact and Durable: Small footprint with durable steel enclosure suitable for outdoor installation.

• AVR Equipped: Maintains consistent voltage output, protecting connected equipment.
