130m 1.5kw 2hp Borehole Submersible AC Pump 3000L/h Premier 4SDM 3/18

📌130m 1.5kW 2HP Borehole Submersible AC Pump (Premier 4SDM 3/18)

• 🔹 Model: 4SDM 3/18
• ⚡ Power: 1.5kW (2HP)
• 🔌 Voltage: 220V-240V (Single-phase) / 380V-415V (Three-phase)
• 💧 Max Flow Rate: 3000 L/h (50 L/min)
• 📏 Max Head (Lift Height): 130 meters
• 📐 Pump Diameter: 4 inches (100mm)
• 🚰 Outlet Diameter: 1.25 inches
• 🔄 Number of Stages: 18 (Multi-stage centrifugal impellers)
• 🛠️ Material: Stainless steel (pump body, motor casing, and impellers)
• 💨 Cooling Type: Water-cooled
• 🛡️ Protection Class: IP68 (Fully submersible)
• 🔥 Thermal Protection: Built-in overload protection
• 🕳️ Minimum Borehole Diameter: 110mm
• ⚖️ Weight: Approx. 25-30 kg

🔹 130m 1.5kW 2HP Borehole Submersible AC Pump - 3000L/h Premier 4SDM 3/18 🔹

🔧 Overview

The Premier 4SDM 3/18 is a high-performance 🌊 borehole submersible AC pump, designed for deep-well water extraction. With a 1.5kW (2HP) motor ⚙️, it efficiently delivers up to 3000 liters per hour (L/h) 💦, reaching a maximum head of 130 meters ⬆️. This makes it ideal for various residential 🏡, agricultural 🚜, and industrial 🏭 applications.

📌 Technical Specifications

🌍 Applications

✅ Domestic Water Supply 🏡 – Ideal for supplying water to homes, especially in areas with deep wells.
✅ Agricultural Irrigation 🚜 – Suitable for irrigation systems, including drip and sprinkler systems.
✅ Livestock Farming 🐄 – Ensures a consistent water supply for animals.
✅ Industrial Water Extraction 🏭 – Used in factories and industrial settings requiring deep-well water sourcing.
✅ Water Distribution Systems 🚰 – Supports municipal and rural water supply projects.
✅ Rainwater Harvesting & Groundwater Extraction 🌧️ – Helps in sustainable water management.
✅ Geothermal Applications 🌡️ – Can be used in geothermal heating and cooling systems.

🛠️ Maintenance & Care

To ensure optimal performance 🏆 and longevity 🕰️ of the 4SDM 3/18 borehole pump, follow these maintenance guidelines:

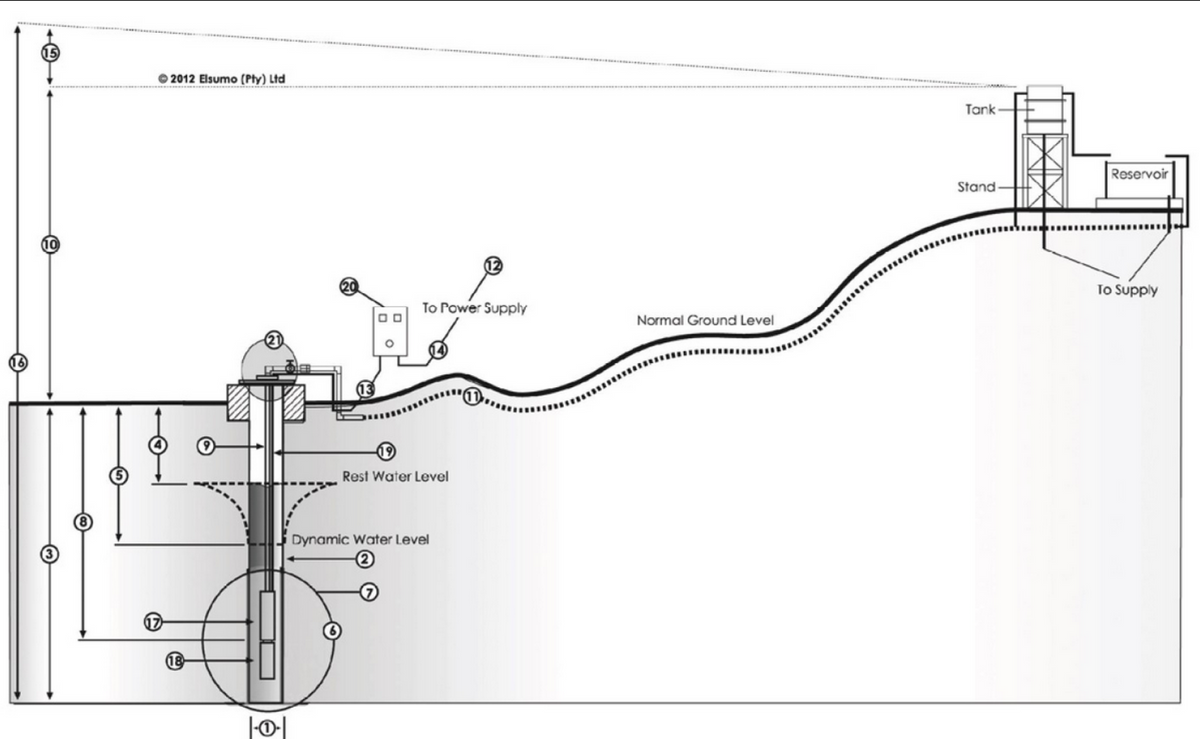

📌 Installation & Initial Setup

🔹 Ensure the borehole diameter is at least 110mm for easy fitting.

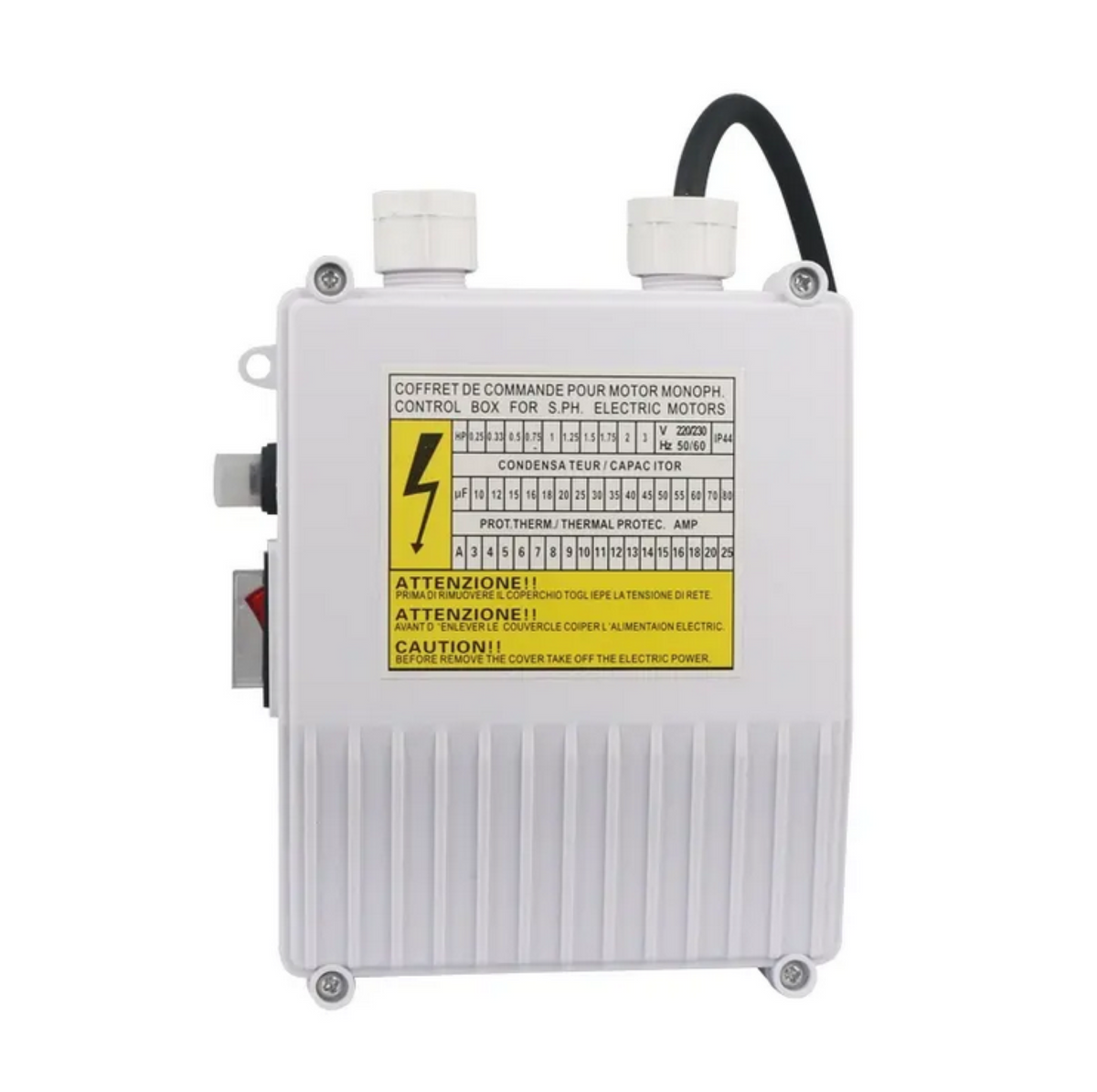

🔹 Use a proper control box 📦 for single-phase models to regulate power.
🔹 Always install a non-return valve ✅ to prevent backflow damage.
🔹 Secure the pump cable properly 🛠️ to avoid twisting or damage during operation.

🔄 Routine Maintenance

🔹 Inspect Electrical Components ⚡ – Check wiring and connections for damage or wear.
🔹 Check Water Flow & Pressure 🚿 – Any reduction may indicate a clog or mechanical issue.
🔹 Clean Intake Screen 🧼 – Prevents debris from entering and damaging internal components.
🔹 Monitor Motor Temperature 🌡️ – Overheating could indicate low water levels or electrical faults.
🔹 Check for Leaks 💧 – Ensure seals and joints remain intact to prevent water ingress into the motor.

⚠️ Troubleshooting Common Issues

❌ Low Water Flow – Could be due to clogged filters, airlocks, or impeller wear.
❌ Pump Not Starting – Check power supply, capacitor (for single-phase), and thermal overload.
❌ Unusual Noises 🔊 – Could indicate cavitation, a faulty bearing, or debris in the impellers.
❌ Overheating Motor 🔥 – Possible causes include dry running, excessive sediment, or incorrect voltage.

📦 Storage & Long-Term Care

🛑 If the pump is not used for an extended period, remove and store it in a dry place.
🔄 Flush the system before reinstallation to remove sediment buildup.
🛠️ Lubricate moving parts if recommended by the manufacturer.

🌟 Why Choose the Premier 4SDM 3/18?

✔ High Efficiency 🚀 – Multi-stage centrifugal impellers ensure maximum water delivery.
✔ Durable Construction 🏗️ – Stainless steel housing resists corrosion.
✔ Deep-Well Capability 🌊 – Pumps water from depths of up to 130m.
✔ Energy-Efficient ⚡ – Optimized for low power consumption.
✔ Versatile Applications 🔄 – Ideal for domestic, agricultural, and industrial use.
