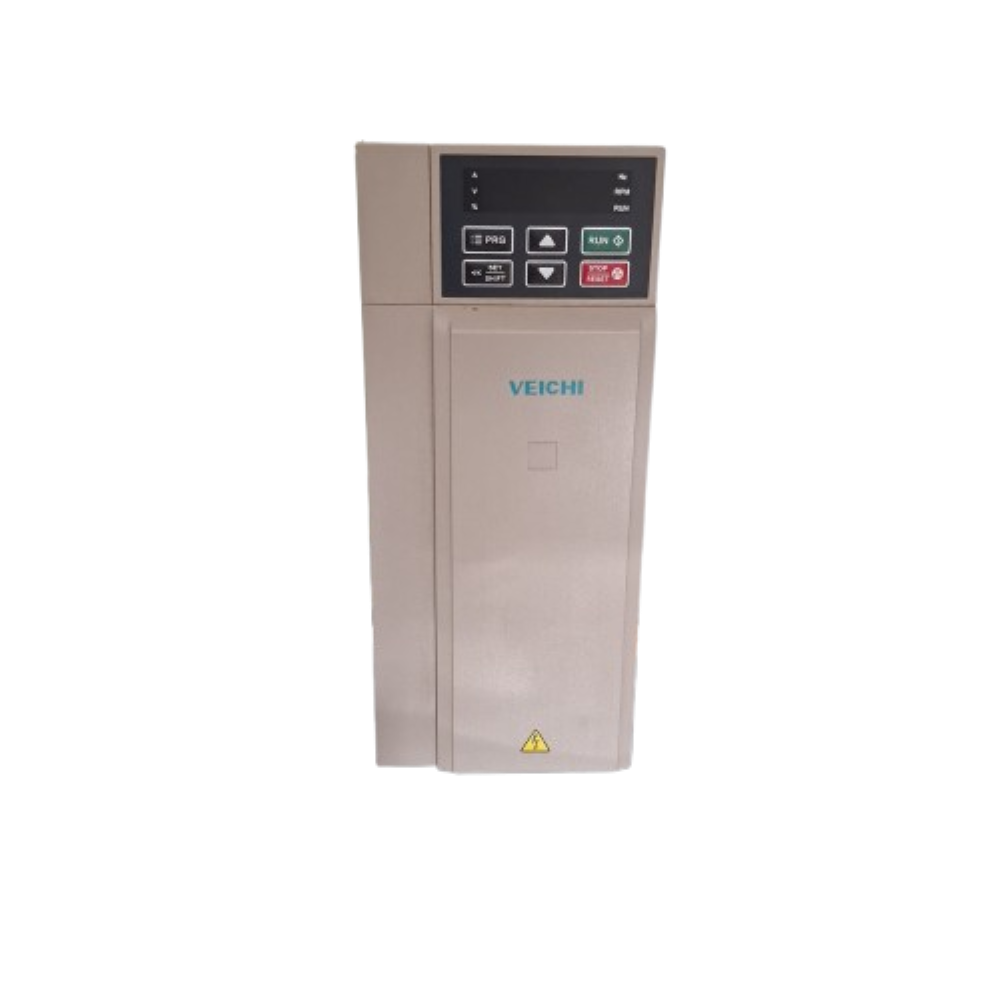

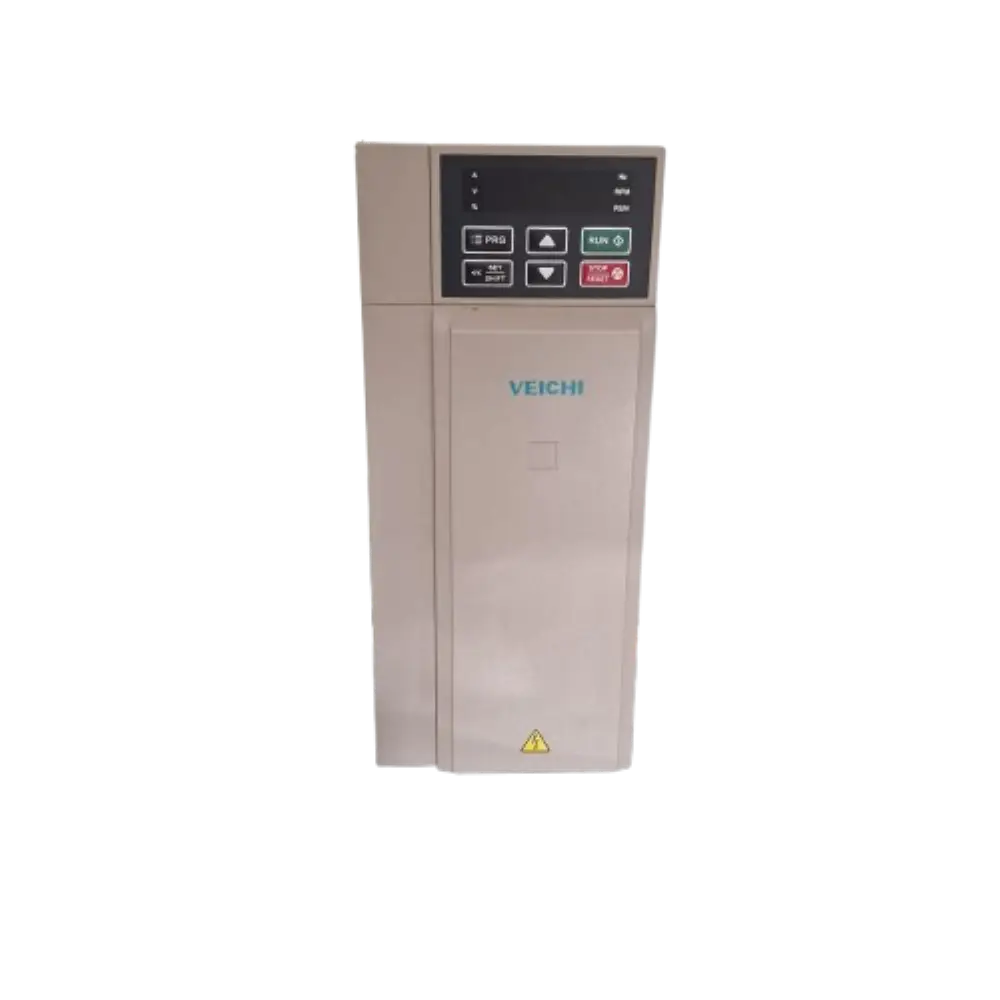

4kw 3ph Veichi Solar Pumping Hybrid Inverter Sunverter

portable pumps & solar equipment

4kw 3ph Veichi Solar Pumping Hybrid Inverter Sunverter

Name: 4kw 3ph Veichi Solar Pumping Hybrid Inverter Sunverter
Brand: Ruevan
Price: 39890.00 KES
Availability: InStock

KSh39,890.00 ~~KSh59,980.00~~

Product details

Veichi 4 kW 3-phase Solar Pumping Hybrid Inverter (Sunverter SI23-D5-004G-A):

Rated power of 4 kW with a three-phase 380 V AC output and output frequency range from 0 to 320 Hz
DC input voltage range from 250 V to 780 V, with a maximum input voltage of 850 V and MPPT efficiency of ≥99.9%
Supports asynchronous, PMSM, and BLDC motor types up to 5.5 kW
Hybrid input capability allowing both solar DC and grid/generator AC input with automatic switching
Built-in protections including dry-run, over/under-voltage, over-current, short circuit, and thermal shutdown
Communication via RS-485 with Modbus RTU protocol and optional GPRS/Wi-Fi modules for remote monitoring

Veichi 4 kW, 3-phase Solar Pumping Hybrid Inverter (Sunverter series), specifically the SI23-D5-004G-A model:

Product Overview

The Veichi Sunverter SI23-D5-004G-A is a 4 kW, 3-phase hybrid solar inverter designed for solar water pumping systems. It supports both solar (DC) and grid/generator (AC) input and can drive a variety of motor types, making it ideal for agricultural irrigation and off-grid water supply systems.

Electrical Specifications

Parameter	Specification
Model	SI23-D5-004G-A
Rated Power	4 kW
DC Input Voltage Range	250 V to 780 V DC
Recommended MPPT Range	250 V to 750 V DC
Maximum DC Input Voltage	850 V DC
AC Output Voltage	3-phase, 380 V AC ±15%
Output Frequency	0 to 320 Hz
Rated Output Current	~10 A
Overload Capacity	150% for 60s, 180% for 10s, 200% for 0.5s
Efficiency (Inverter)	≥96%
MPPT Tracking Efficiency	≥99.9%
