Solar Water Heaters

🔧 200L Aquaheat Stainless Coil Vacuum Tube Solar Water Heater (AH-N-T200L) 🔥

✅ Model: AH-N-T200L 🏷
✅ Capacity: 200 Liters 🛢♨️
✅ Type: Pressurized Vacuum Tube Solar Water Heater 🌞
✅ Heat Exchange System: Stainless Steel Coil 🔄🔧
✅ Inner Tank Material: Stainless Steel 🏗
✅ Outer Tank Material: Stainless Steel / Coated Steel 🏠
✅ Vacuum Tube Type: High-Efficiency Borosilicate Glass Tubes 🔆🔵
✅ Installation Type: Roof-Mounted 🏡🔩
✅ Max. Operating Pressure: [Not specified] ⚙️
✅ Working Temperature: Up to [Not specified] °C 🌡🔥
✅ Warranty: [Not specified] 📜✔️

This system is durable, energy-efficient, and eco-friendly 🌍♻️—perfect for homes, businesses, and off-grid locations! 🏠🏕🚿

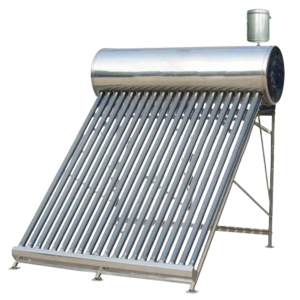

200L non-pressurized solar heater with SS tank, PU insulation, 58×1800mm tubes (18–20), 92–96% efficiency, 50–90°C, adjustable frame, 15–20yr life.

⚙️ Main Specifications – 250L Solar Water Heater Non-Pressurized Seven SS

✅ Capacity: 250 Liters 💧
✅ System Type: Non-Pressurized, Thermosiphon ♨️
✅ Collector Type: Vacuum Tube Collector 🌞
✅ Number of Tubes: 20–30 tubes 🔵
✅ Tube Material: Borosilicate Glass with Selective Coating 🔬
✅ Tube Size: ~58mm diameter, 1800mm length 📏
✅ Absorption Efficiency: ~92% ⚡
✅ Tank Material: Stainless Steel (SS 304/316) 🛢️
✅ Tank Insulation: Polyurethane Foam (PUF) (~50mm thick) 🏗️
✅ Frame Material: Stainless Steel or Aluminum Alloy 🔩
✅ Operating Temperature: 50°C – 95°C 🌡️
✅ Heat Retention: ~72 hours ⏳
✅ Mounting Angle: 20°-45° (depends on location) 📐
✅ Water Inlet Pressure: Gravity-fed (0 bar) 🚰
✅ Lifespan: 15+ years ⏲️
✅ Warranty: 5-10 years 🛠️

🔹 Main Specifications – 300L Galvanized Solar Water Heater 🔹

✅ 🛢️ Tank Capacity: 300 Liters
✅ 🔩 Inner Tank Material: Sevens SS Stainless Steel
✅ 🛡️ Outer Tank Material: Galvanized Steel
✅ 🧊 Insulation: High-density polyurethane foam
✅ 🚿 Pressure Type: Pressurized (0.6 MPa / 6 bar)
✅ 🌞 Collector Type: Evacuated Tube / Flat Plate (varies by model)
✅ 🔬 Tube Material: Borosilicate glass (3-layer coating)
✅ ⚡ Collector Efficiency: 92-96%
✅ 🔥 Maximum Temperature: 90°C
✅ 🔄 Heat Transfer Mode: Direct / Indirect (with heat exchanger)
✅ ❄️ Anti-freeze Protection: Available for cold regions
✅ 🛠️ Mounting Frame: Galvanized Steel / Aluminum Alloy
✅ 🚰 Pipe Connections: ¾ inch or 1 inch (varies by model)
✅ 🔌 Power Backup: Optional electric heating element
✅ 📜 Certifications: CE, ISO 9001, Solar Keymark (varies)

300L Solar Water Heater Non-Pressurized Seven SS with emojis:

⚙️ Main Specifications

• 🌊 Type: Non-pressurized, Thermosiphon
• 💧 Capacity: 300 liters
• 🔵 Number of Vacuum Tubes: 30–36 tubes
• 🔬 Tube Material: Borosilicate glass
• 📏 Tube Size: 58mm diameter, 1800mm length
• 🛢️ Inner Tank Material: Stainless Steel (SS 304 or SS 316)
• 🛡️ Outer Tank Material: Stainless Steel / Galvanized Steel (powder coated)
• 🧊 Insulation: 50mm Polyurethane foam (PUF)
• ⚡ Backup Heater (Optional): 1.5-2 kW electric heating element
• 🌡️ Hot Water Temperature: Up to 60-80°C on sunny days
• 🚰 Water Inlet Pressure: Atmospheric (gravity-fed)
• 🛠️ Frame Material: Stainless steel or aluminum alloy
