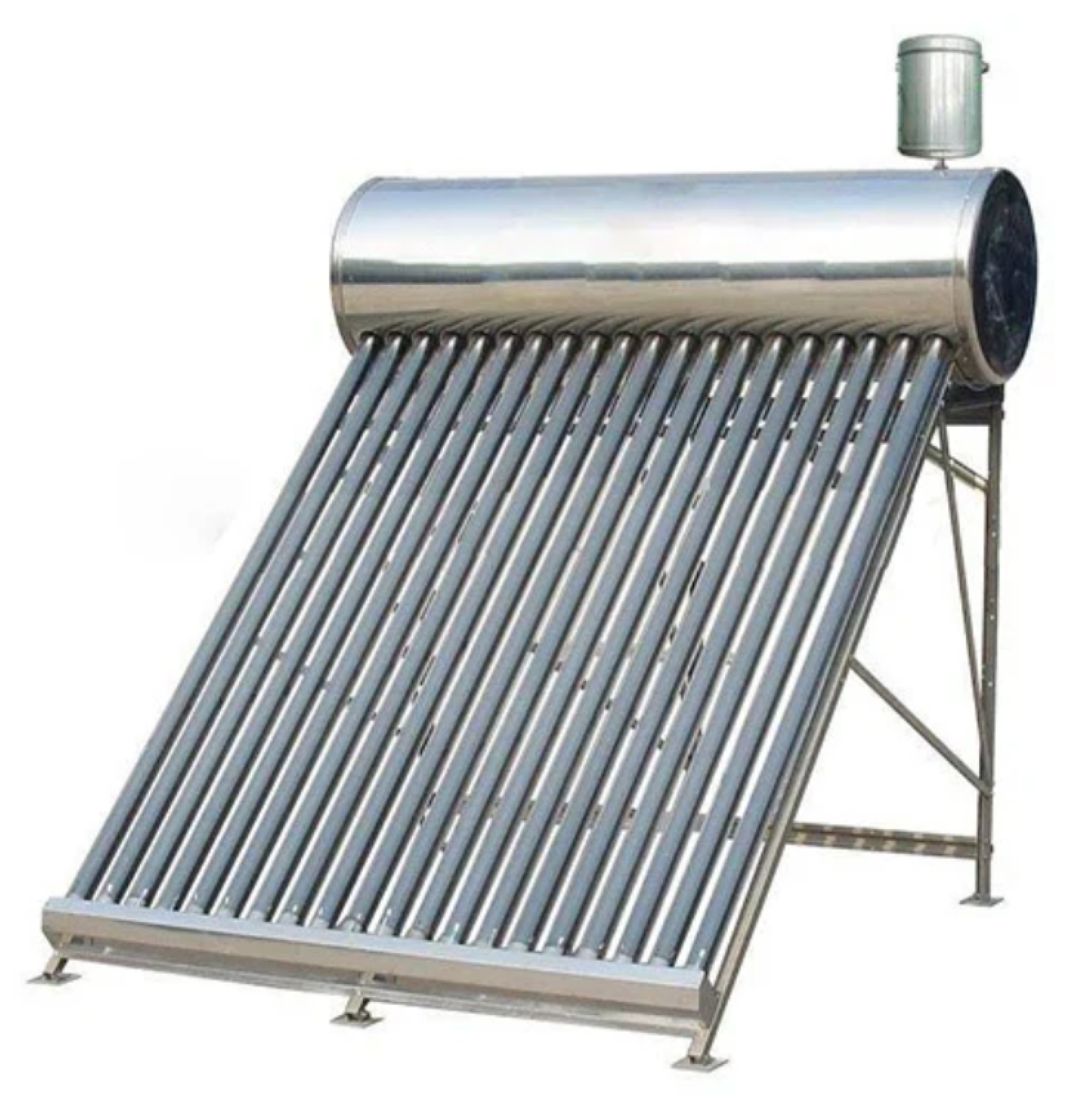

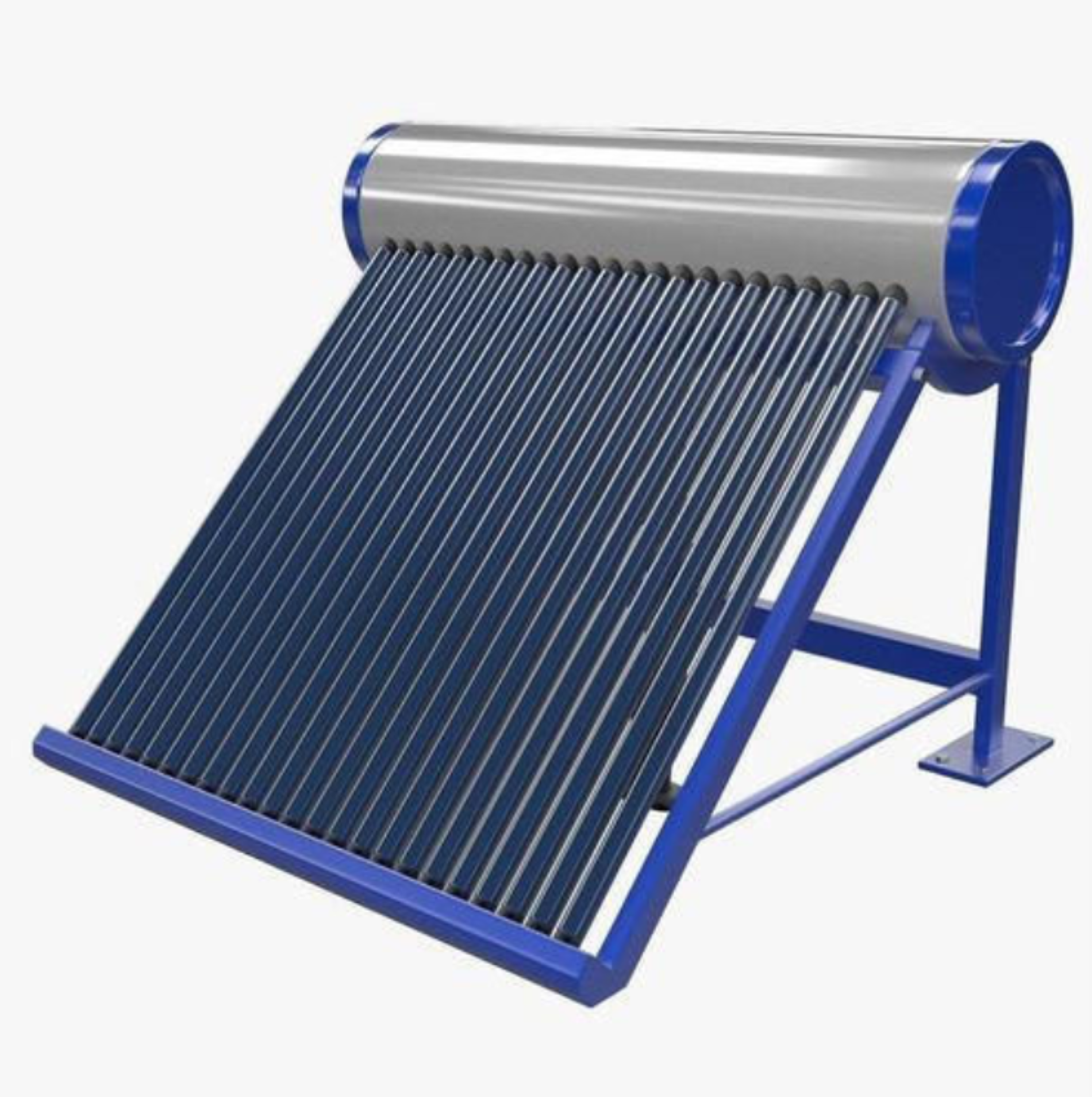

200L Solar Water Heater Non Pressurized Stainless Phoenix

200L Solar Water Heater Non-Pressurized Stainless Phoenix 🌞🚿

The 200L Solar Water Heater Non-Pressurized Stainless Phoenix is an eco-friendly 🌱, cost-effective 💰, and highly efficient 🔥 solution for household hot water needs. By harnessing solar energy, it reduces electricity consumption ⚡, lowering utility bills and minimizing environmental impact. 🌍♻️

🔧 Technical Specifications:

• Capacity: 200 liters 🛢️
• Inner Tank Material: 0.50mm thick Stainless Steel 316L grade 🏗️
• Outer Tank Material: 0.35mm thick Stainless Steel 304 grade 🏗️
• Insulation: 50mm thick Polyurethane Foam (PUF) for excellent heat retention ❄️🔥
• Vacuum Tubes: Three-layer blue tubes (58mm diameter, 1800mm length) 🔵🔆
• Bracket (Stand): Aluminum alloy (2.5mm thickness) for strong support 🏗️
• Additional Features:
  ✅ Compatible with an electrical heater 🔌🔥
  ✅ Inlet and outlet: 3/4 inch Male BSP threading 🚰
  ✅ Operational lifespan: ~20 years ⏳
  ✅ Warranty: 5 years for TDS up to 400 ppm (for soft water areas) 📜

🔗 More details at Phoenix Solar

🔍 Applications:

The Phoenix 200L Solar Water Heater is perfect for residential use 🏡 and other applications, including:

• Bathing and showering 🚿🛁
• Laundry and dishwashing 🧺🍽️
• Cleaning tasks requiring warm water 🧽💦

🛠️ Maintenance Guidelines:

To keep your solar water heater running efficiently for years, follow these maintenance tips:

1️⃣ Regular Cleaning 🧼

• Wipe vacuum tubes regularly to remove dust and dirt. 🏖️

2️⃣ Inspect for Leaks 🚰🔍

• Check inlet and outlet connections for drips and tighten fittings. 🔩

3️⃣ Monitor Insulation ❄️🔥

• Ensure the PUF insulation is intact to prevent heat loss. 🛠️

4️⃣ Check Structural Integrity 🔧

• Inspect the stand and frame for any corrosion or wear. 🔎

5️⃣ Water Quality Management 💦

• Use a water softener if your area has hard water (high TDS). ⚠️

6️⃣ Professional Servicing 🛠️

• Schedule routine inspections by a technician for long-term performance. 🏠

By following these easy maintenance steps, your Phoenix 200L Solar Water Heater will provide reliable and cost-effective hot water for years to come. ☀️♻️💧
