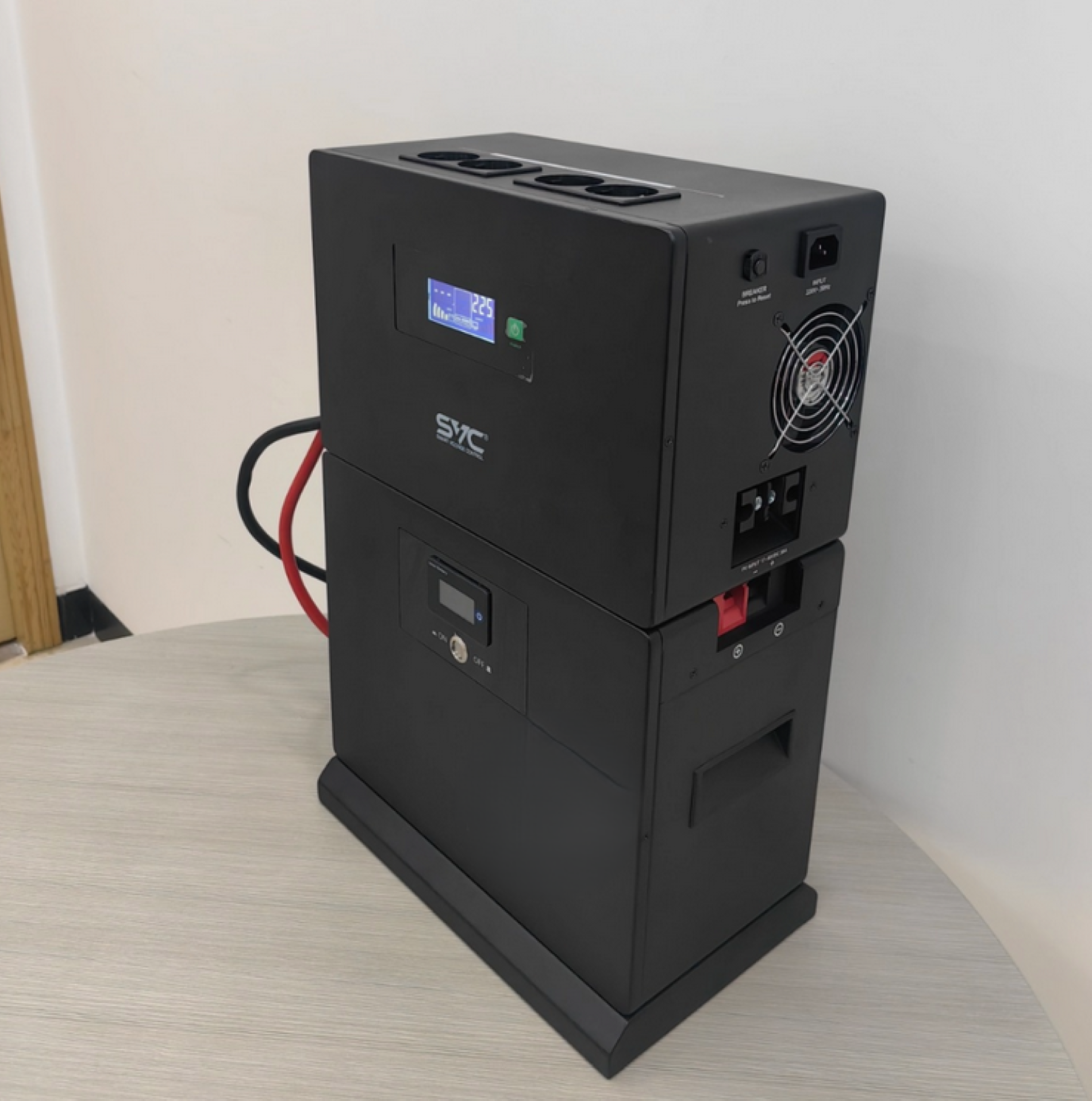

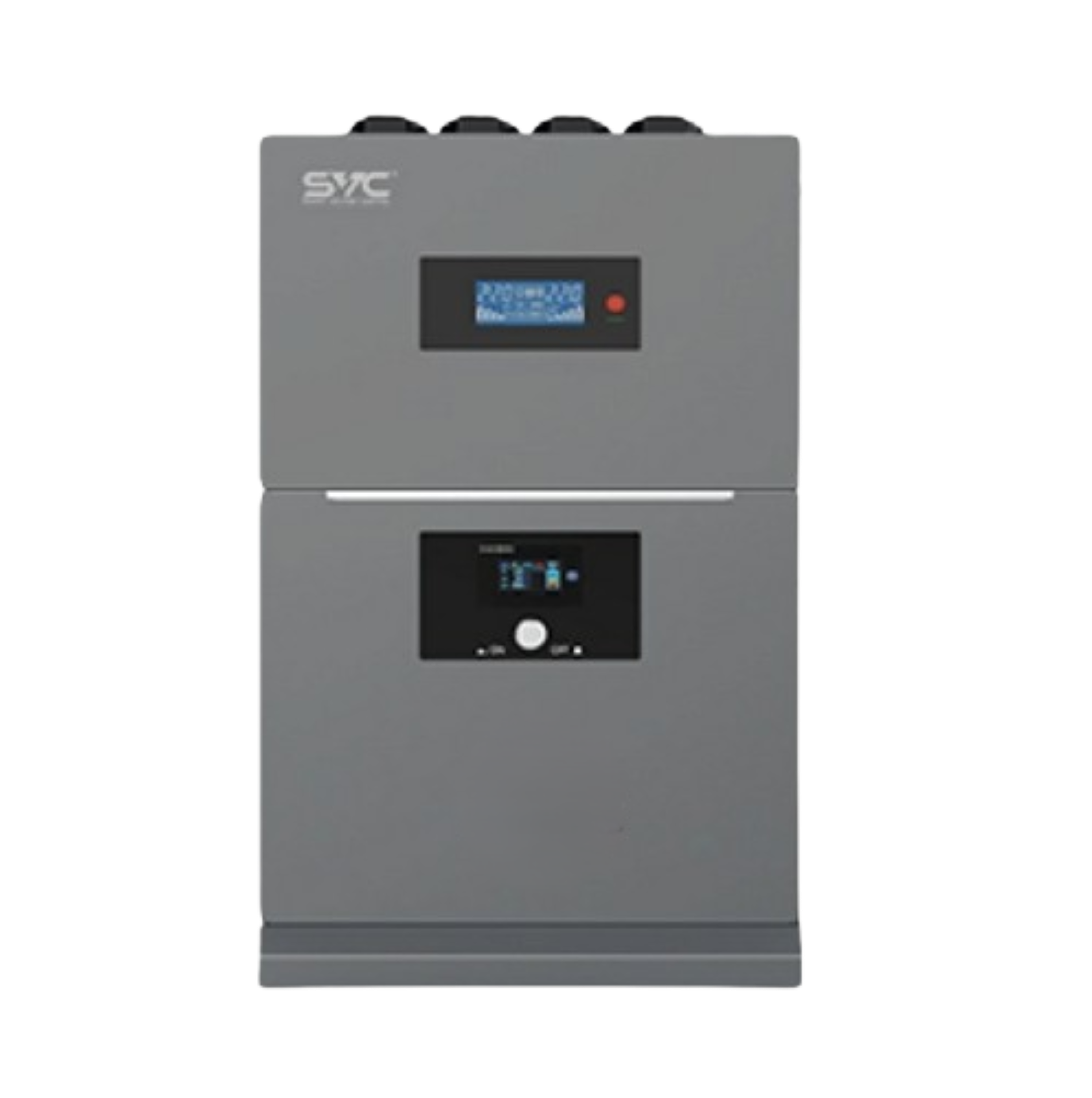

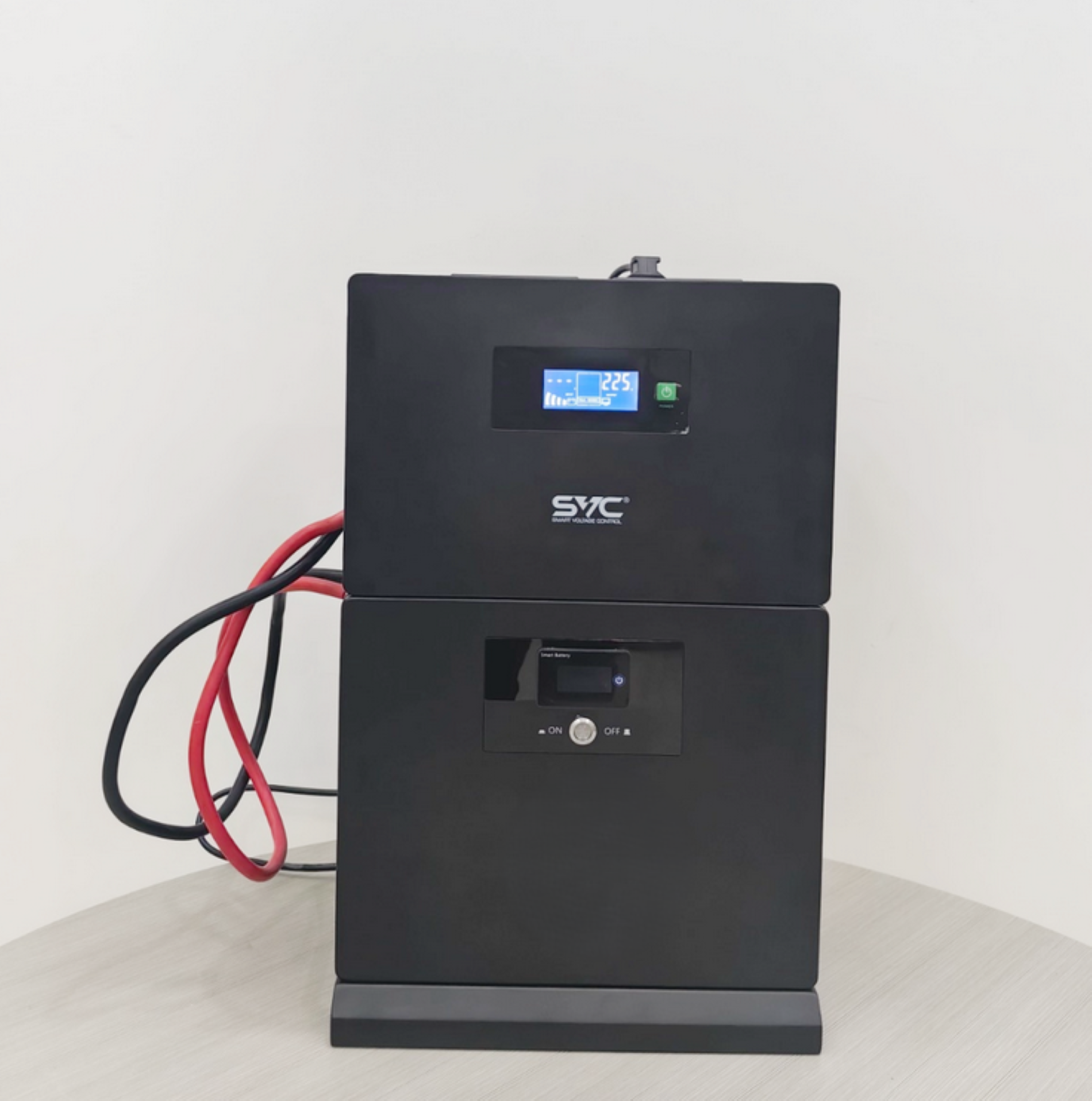

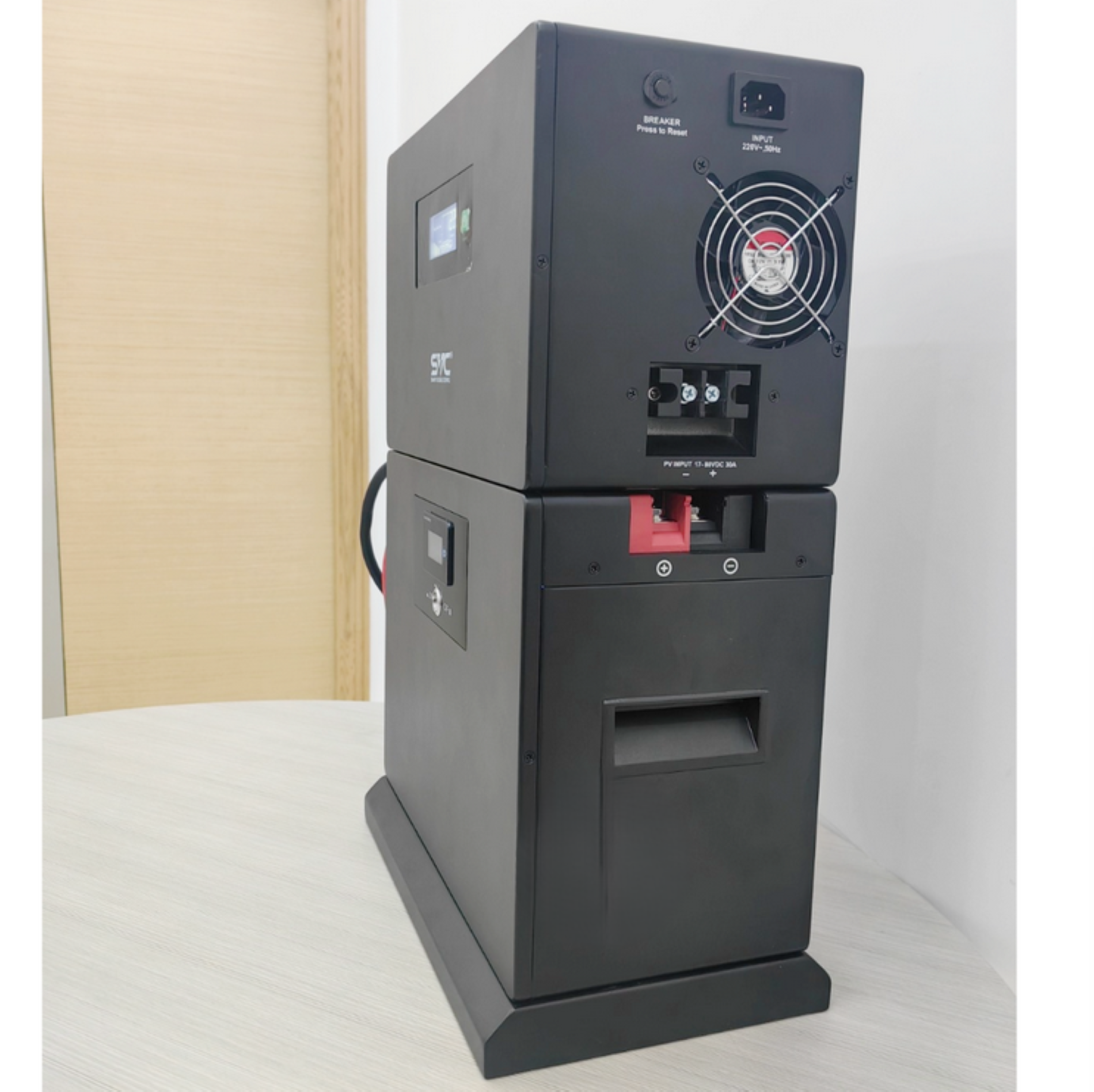

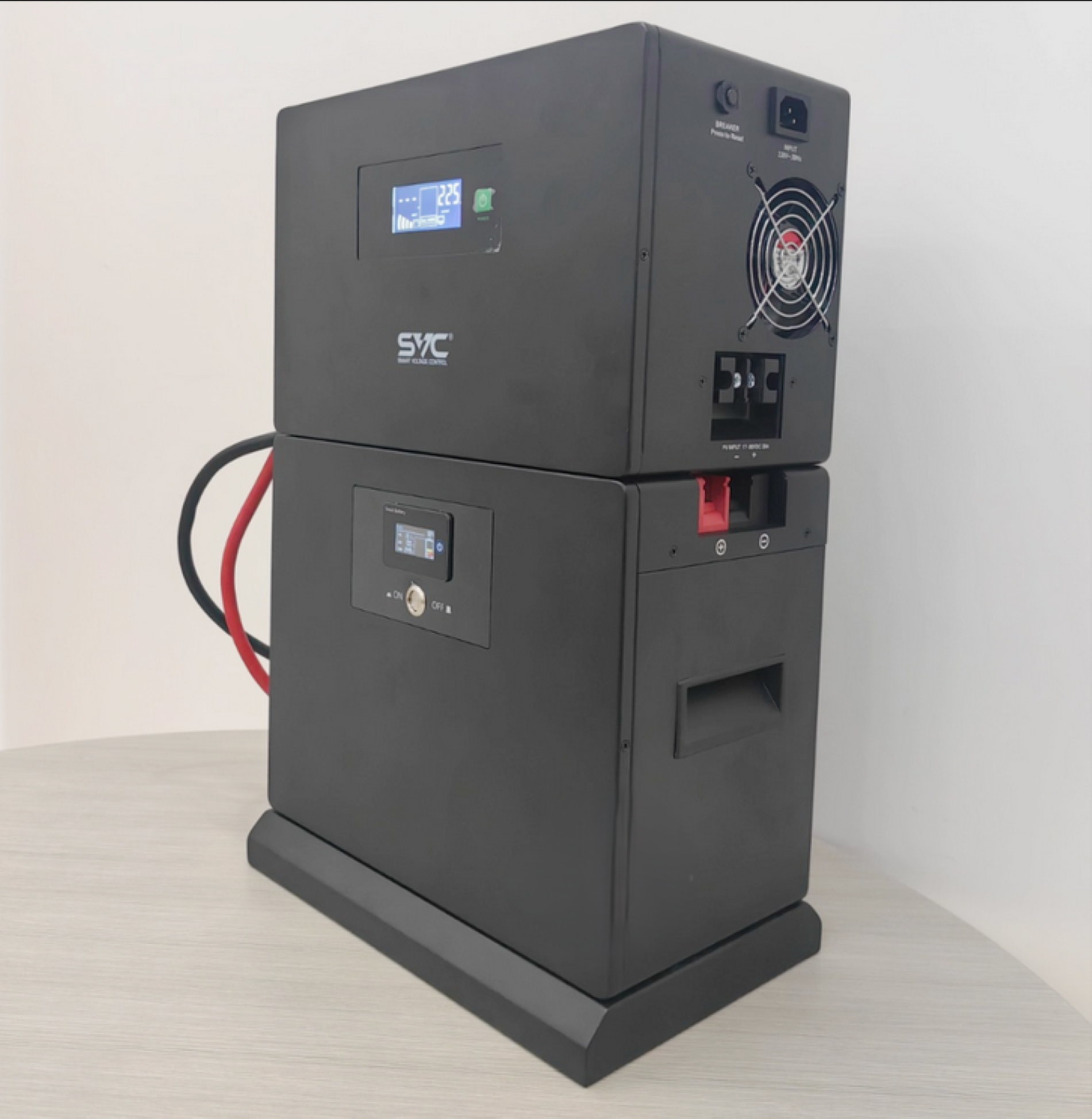

🔆 1.2kW SVC Solar All-in-One Kit (1200W) – 1kW Lithium Battery + 1.2kW Inverter ⚡

The 1.2kW SVC Solar All-in-One Kit is a compact and efficient renewable energy solution designed for homes 🏡, small businesses 🏢, and off-grid applications 🌍. It integrates a solar inverter, lithium battery 🔋, and charge controller into a single, easy-to-install package. This system is ideal for powering essential appliances, providing backup power, or serving as a primary power source in remote areas.

🔧 Technical Specifications

☀️ Solar Panels (Not always included, but compatible)

• Power Output: Compatible with 1.2kW (1200W) solar panels
• Voltage Range: 18V – 50V DC input range
• Panel Type: Monocrystalline or Polycrystalline
• Efficiency: 18–22% (depending on panel type)

⚡ Inverter

• Capacity: 1.2kW (1200W)
• Output Voltage: 220V AC (±10%), 50Hz/60Hz (configurable)
• Waveform: Pure Sine Wave 🔄
• Input Voltage: 12V or 24V DC (depending on model)
• Efficiency: ≥90% ✅
• Overload Protection: Yes 🚨
• Cooling System: Smart Cooling Fans ❄️

🔋 Lithium Battery

• Capacity: 1kWh (1000Wh)
• Battery Type: Lithium-ion (LiFePO4) for extended lifespan and safety
• Voltage: 12V/24V DC (depending on system configuration)
• Depth of Discharge (DoD): 80–90%
• Cycle Life: 2000–5000 cycles (10+ years under normal use) 🔄
• Battery Management System (BMS): Yes (Overcharge, Over-discharge, Short Circuit Protection) ⚠️

⚙️ Solar Charge Controller

• Type: MPPT (Maximum Power Point Tracking) 🎯
• Efficiency: ≥98% 🔝
• Voltage Range: 12V/24V Auto Detection
• Current Rating: 40A – 60A (depending on system model)
• Protection: Overcharge, Over-discharge, Short Circuit, Reverse Polarity 🔄

🛠️ Additional Features

• Display: LCD screen 📺 for monitoring power generation, battery status, and load usage
• Connectivity: Some models include Bluetooth/Wi-Fi 📶 for remote monitoring
• Mounting: Wall-mountable or Portable
• Built-in AC Charger: Allows charging from grid power if needed 🔌

💡 Applications

• 🏡 Home Backup Power: Keeps essential devices (lights, fans, refrigerators, computers 💻) running during power outages.
• 🌿 Off-Grid Living: Perfect for remote cabins, farms, and rural locations.
• 🏢 Small Business: Supports small office setups, POS machines, and communication equipment.
• 🚐 Camping & RV Use: Powers appliances and electronics in recreational vehicles.
• 🚨 Emergency Power: Useful in disaster relief situations where grid power is unavailable.

🛠️ Maintenance & Care

🌞 Solar Panels

✅ Cleaning: Wipe solar panels every 1–2 months with a damp cloth to remove dust and debris.
✅ Inspection: Check for cracks or shading issues that may affect performance.
✅ Positioning: Adjust panel angle periodically to maximize sunlight absorption.

⚡ Inverter

✅ Ventilation: Ensure the inverter is installed in a well-ventilated space to prevent overheating.
✅ Check Connections: Inspect wiring regularly to ensure secure and corrosion-free connections.
✅ Firmware Updates: If applicable, update inverter firmware for performance improvements.

🔋 Lithium Battery

✅ Charge Management: Avoid deep discharges below 20% to extend battery lifespan.
✅ Temperature Control: Keep the battery within the recommended temperature range (0°C to 45°C) 🌡️.
✅ Storage: If not in use for long periods, charge to 50% and store in a cool, dry place.

⚙️ Charge Controller

✅ Check Settings: Ensure voltage settings match the battery type.
✅ Firmware Updates: Some advanced controllers offer software updates for better efficiency.
✅ Connections: Tighten and inspect for loose wires that could affect charging efficiency.

The 1.2kW SVC Solar All-in-One Kit is a versatile and efficient solution for anyone seeking reliable solar power ☀️. It integrates a 1.2kW inverter, 1kWh lithium battery, and an MPPT charge controller, making it ideal for home backup, off-grid living, small businesses, and recreational use. With proper maintenance, this system can provide sustainable and uninterrupted power 🔋⚡ for many years. ✅
