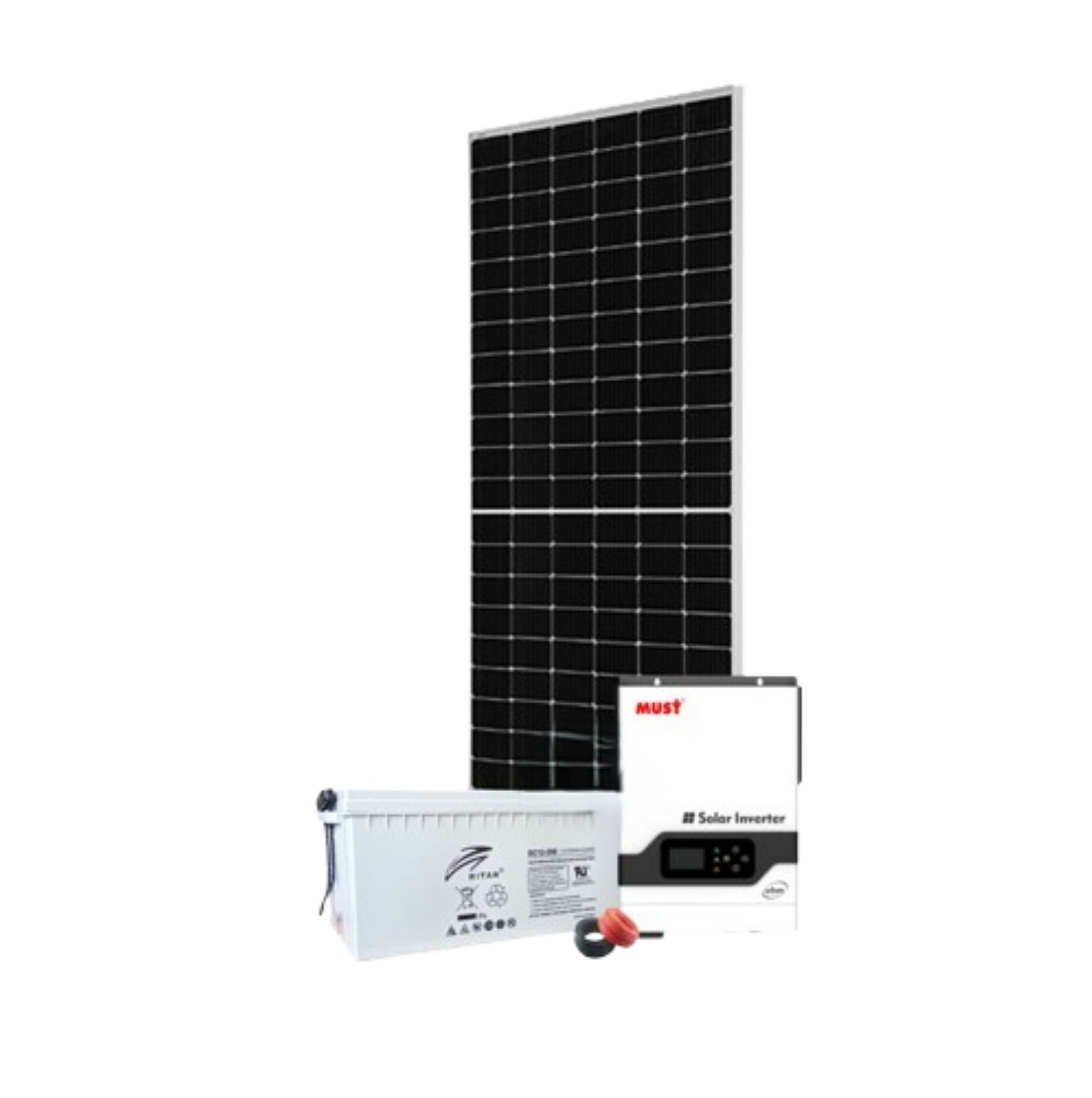

1.5kw Solar Kit 1500w 12v Solar Power System

☀️ 1. 1.5kW Must Hybrid Inverter ⚡

A hybrid inverter is a crucial component that manages solar power, battery storage, and grid/generator backup.

🔹 Key Features:

✅ Capacity: 1.5kW (1500W)
✅ Voltage: 12V DC input, standard AC output (110V/220V)
✅ Hybrid Functionality: Handles solar, battery, and grid power
✅ 🌞 MPPT/PWM Controller: Optimizes solar energy conversion
✅ 📊 LCD Display: Shows power output, battery status, and solar input
✅ ⚡ Pure Sine Wave Output: Stable and efficient for sensitive electronics
✅ 🔒 Safety Protections: Overload, short-circuit, overvoltage, and low voltage

🔋 2. 200Ah 12V Ritar Battery (1pc)

This deep-cycle battery stores energy for use at night or during low sunlight conditions.

🔹 Key Features:

✅ Type: Sealed Lead Acid (SLA) or AGM/Gel battery
✅ Capacity: 200Ah at 12V, providing long-lasting storage
✅ 🛡️ Durability: High cycle life & deep discharge recovery
✅ 🛠️ Maintenance-Free: No water refilling needed (AGM/Gel type)
✅ 🔄 Backup Power: Stores up to 2.4kWh of usable energy

⏳ Estimated Backup Time:

• Running a 500W load, the battery can last ~4-5 hours before needing a recharge.

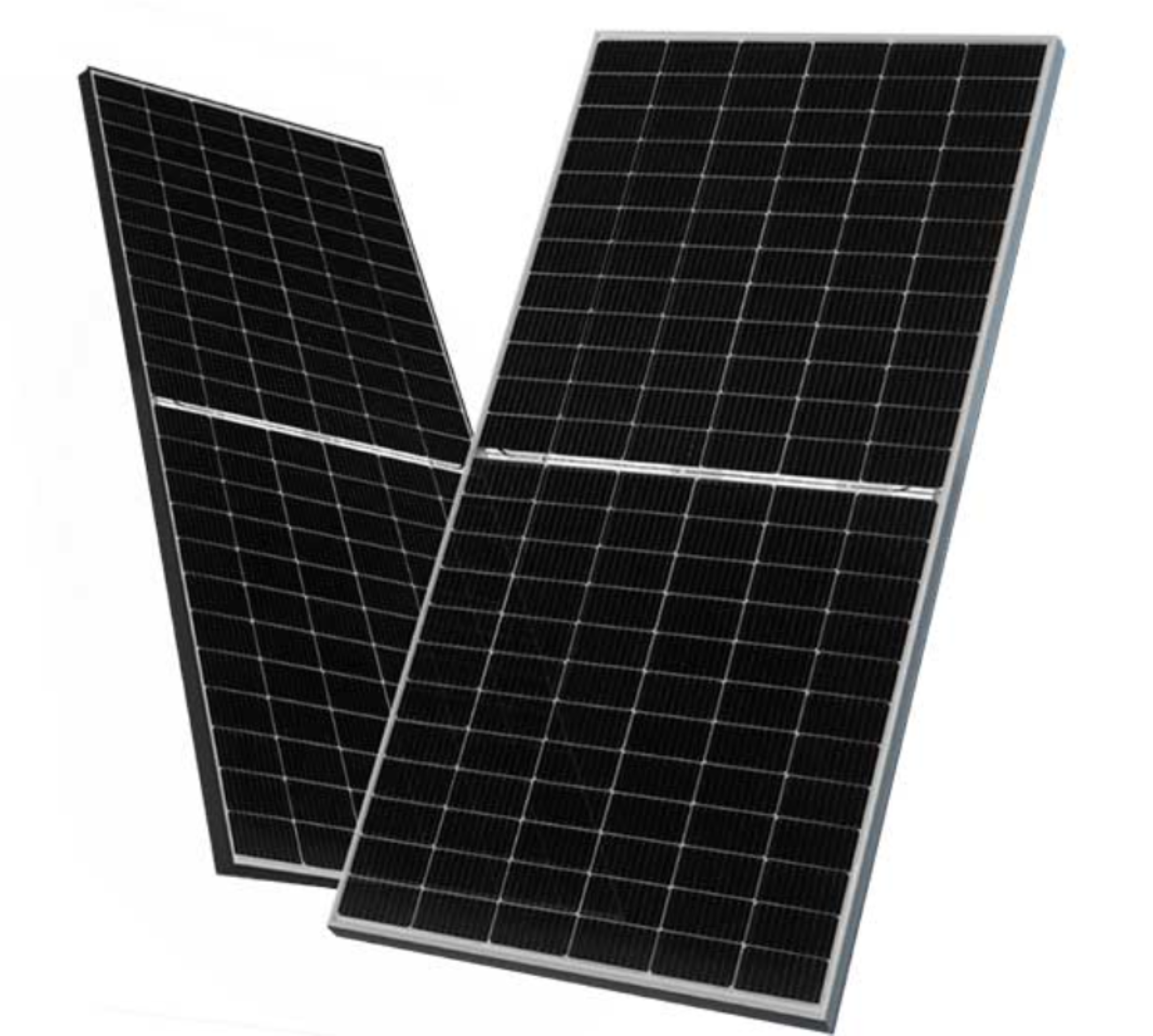

☀️ 3. 550W Monocrystalline Solar Panel (1pc) 🌿

The main energy source of the system, efficiently converting sunlight into electricity.

🔹 Key Features:

✅ Type: Monocrystalline (higher efficiency than polycrystalline)
✅ Power Output: 550W
✅ Voltage: ~36V (open-circuit voltage ~45V)
✅ ⚡ Efficiency: ~20-22% for better performance in low-light conditions
✅ 💪 Durability: Weather-resistant, tempered glass & aluminum frame
✅ ⏳ Lifespan: 25+ years with minimal degradation

📈 System Performance & Considerations

🔋 Energy Generation:

• A 550W solar panel generates ~2.2-2.75kWh per day (with 4-5 hours of sunlight).
• More panels may be required for full battery recharge daily.

⚠️ Limitations:
❌ A single 550W panel may not fully recharge a 200Ah battery daily.
❌ Additional panels & batteries are needed for high-power applications.

🏠 Ideal Uses:
✔️ Small homes, cabins, or RVs 🚐
✔️ Backup power for essential devices 🔦📺
✔️ Charging lights, fans, TVs, & small appliances ⚡

🔧 Recommended Upgrades

➡️ 🔆 More Solar Panels: At least 2× 550W for better battery charging.
➡️ 🔋 Bigger Battery Bank: Multiple batteries for longer backup time.
➡️ 🔌 Higher-Capacity Inverter: 2kW or 3kW for running additional loads.
