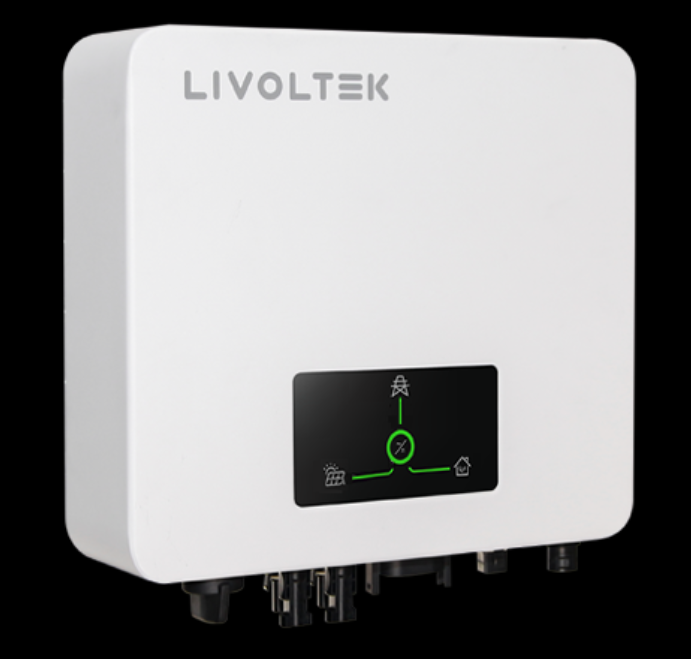

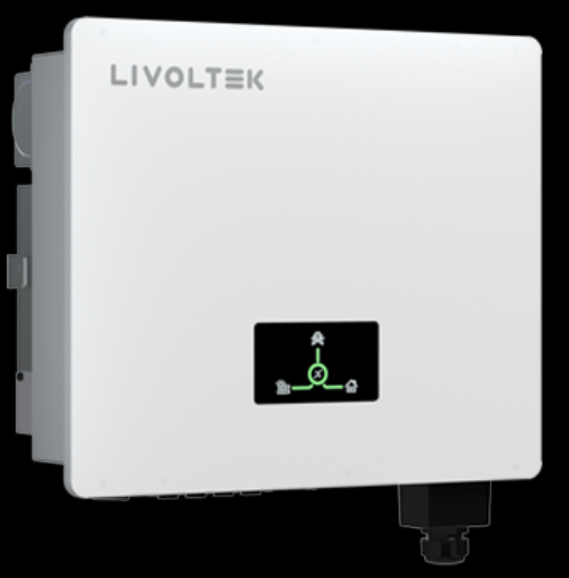

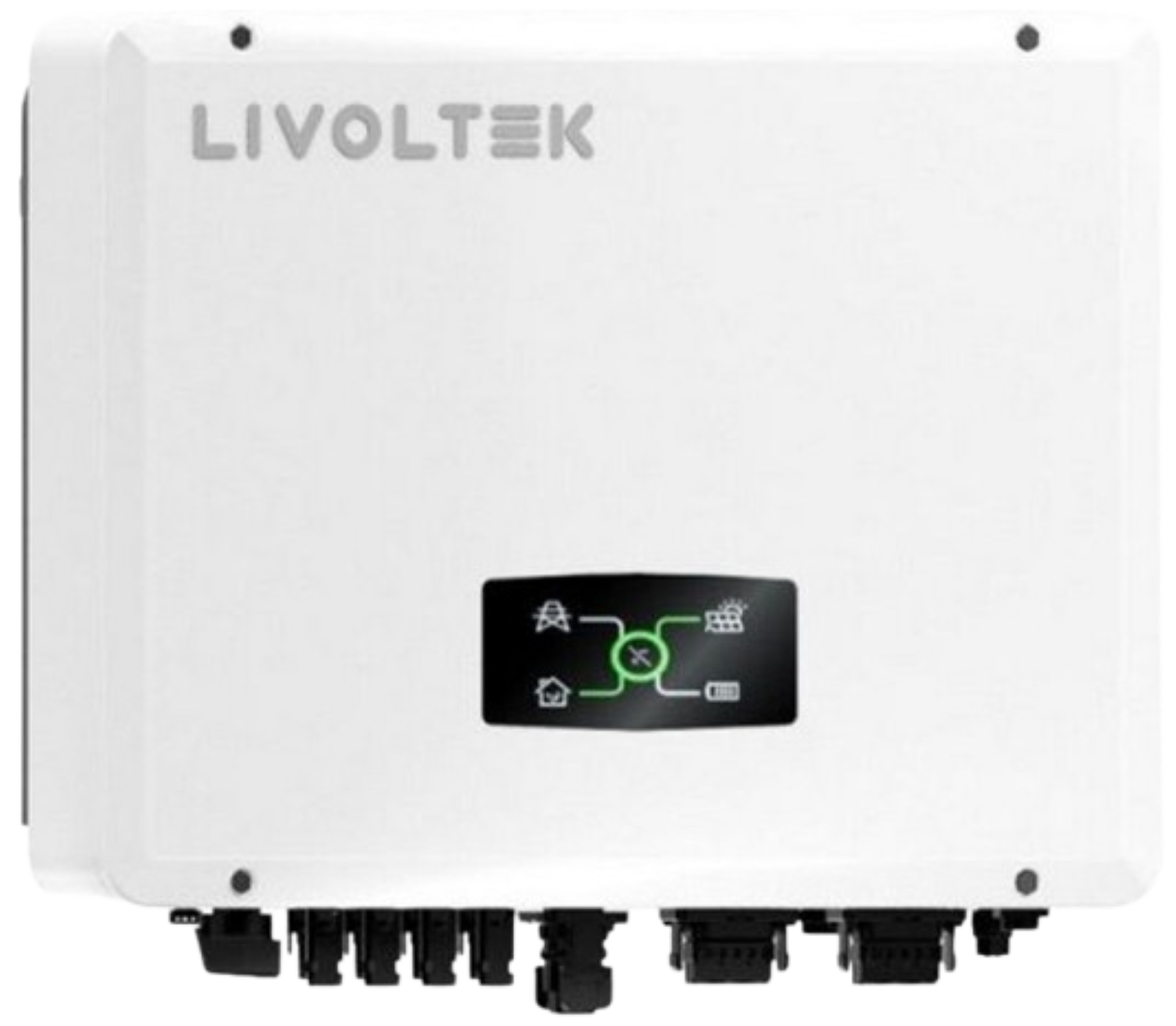

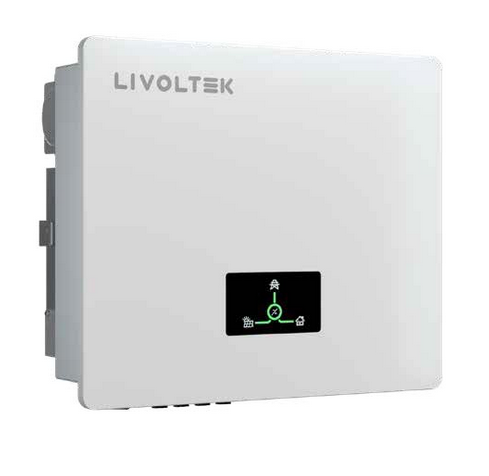

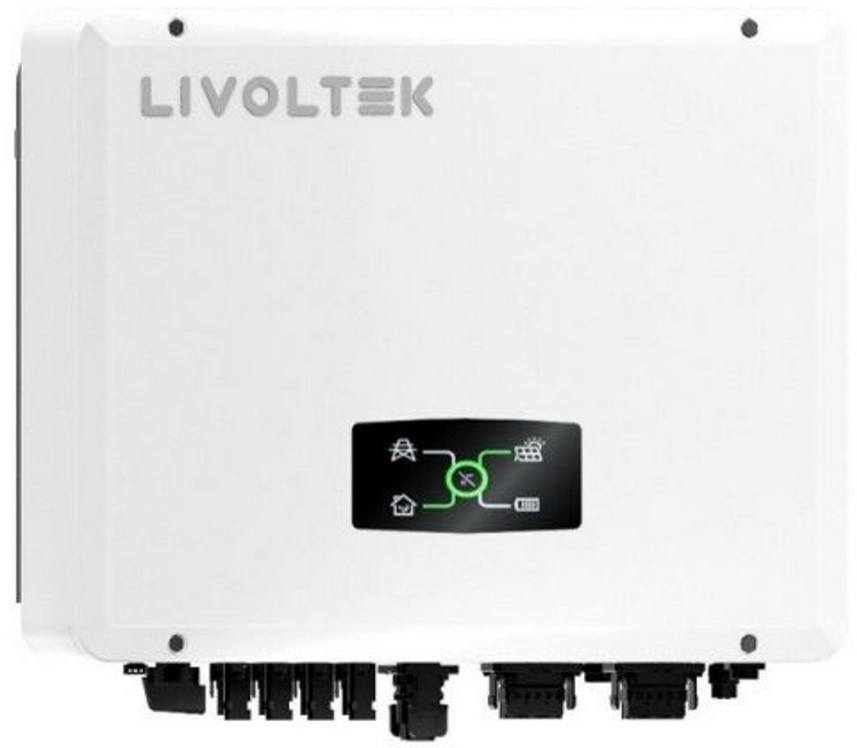

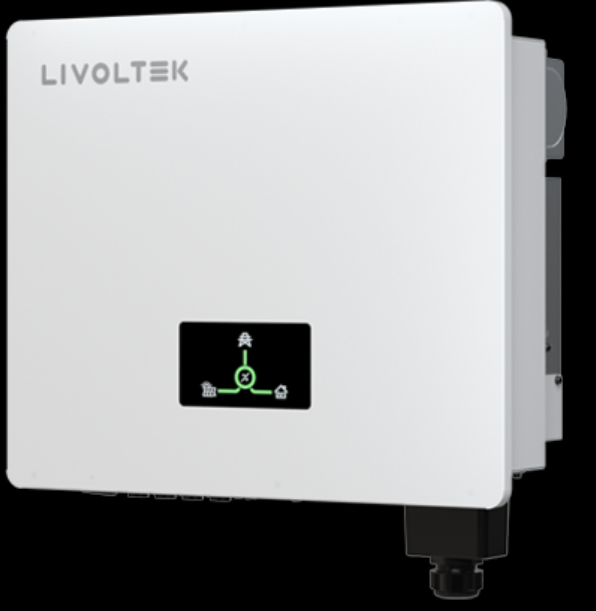

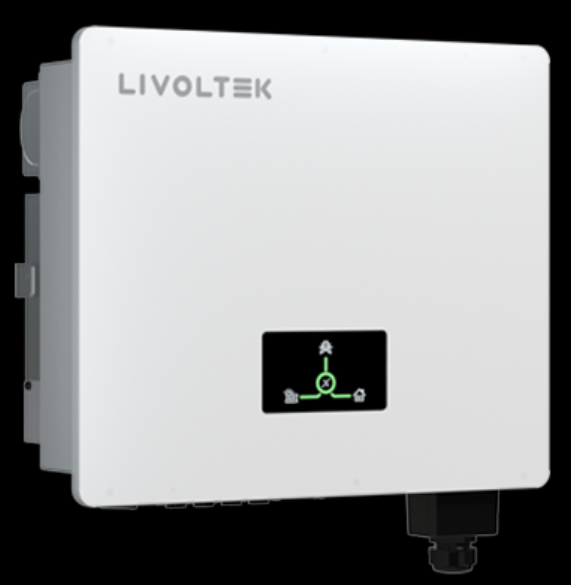

10kw Livoltek Hybrid Inverter 3 Phase HP3-10KD1W001012MPPT IP65 With WiFi

The Livoltek HP3-10KD1W001012MPPT is a robust 10kW three-phase hybrid inverter designed for both residential and commercial energy storage applications. It efficiently manages energy flow between solar panels, batteries, and the grid.

Key Features:

• High Yield: Supports 150% DC input oversizing and delivers up to 110% AC output, maximizing energy production.

• Intelligent Management: Equipped with a built-in Energy Management System (EMS) and WiFi-enabled online monitoring via a user-friendly app.

• Versatility: Operates in multiple modes and is compatible with both grid and generator inputs for flexible energy use.

• User-Friendly Design: Features touch-free, one-click communication for easy installation and maintenance.

Technical Specifications:

• Maximum PV Input Power: 15,000 Wp

• Maximum PV Input Voltage: 1,000 V

• MPPT Voltage Range: 150 V to 850 V

• Number of MPPTs/Strings per MPPT: 2/(1+1)

• Maximum PV Current: 20/20 A

• Nominal AC Output Power: 10,000 W

• Nominal AC Voltage: 3W+N+PE, 230/400 V

• AC Frequency: 50 Hz / 60 Hz

• Maximum Output Current: 17.0 A

• Battery Voltage Range: 150 V to 800 V

• Maximum Charge/Discharge Current: 30 A

• Communication with BMS: CAN

• Maximum Efficiency: 98.2%

• Protection Rating: IP65 (Dust & Water Resistant)

• Operating Temperature Range: -25°C to +60°C

• Dimensions (WHD): 560 x 430 x 250 mm

• Weight: 23 kg

With its IP65 rating, this inverter is built to withstand harsh environmental conditions. Its compact wall-mounted design ensures easy installation, while WiFi integration allows for remote monitoring and management via an intuitive app.

The Livoltek HP3-10KD1W001012MPPT is a high-performance, adaptable, and user-friendly hybrid inverter, perfect for efficient energy management in diverse applications.
