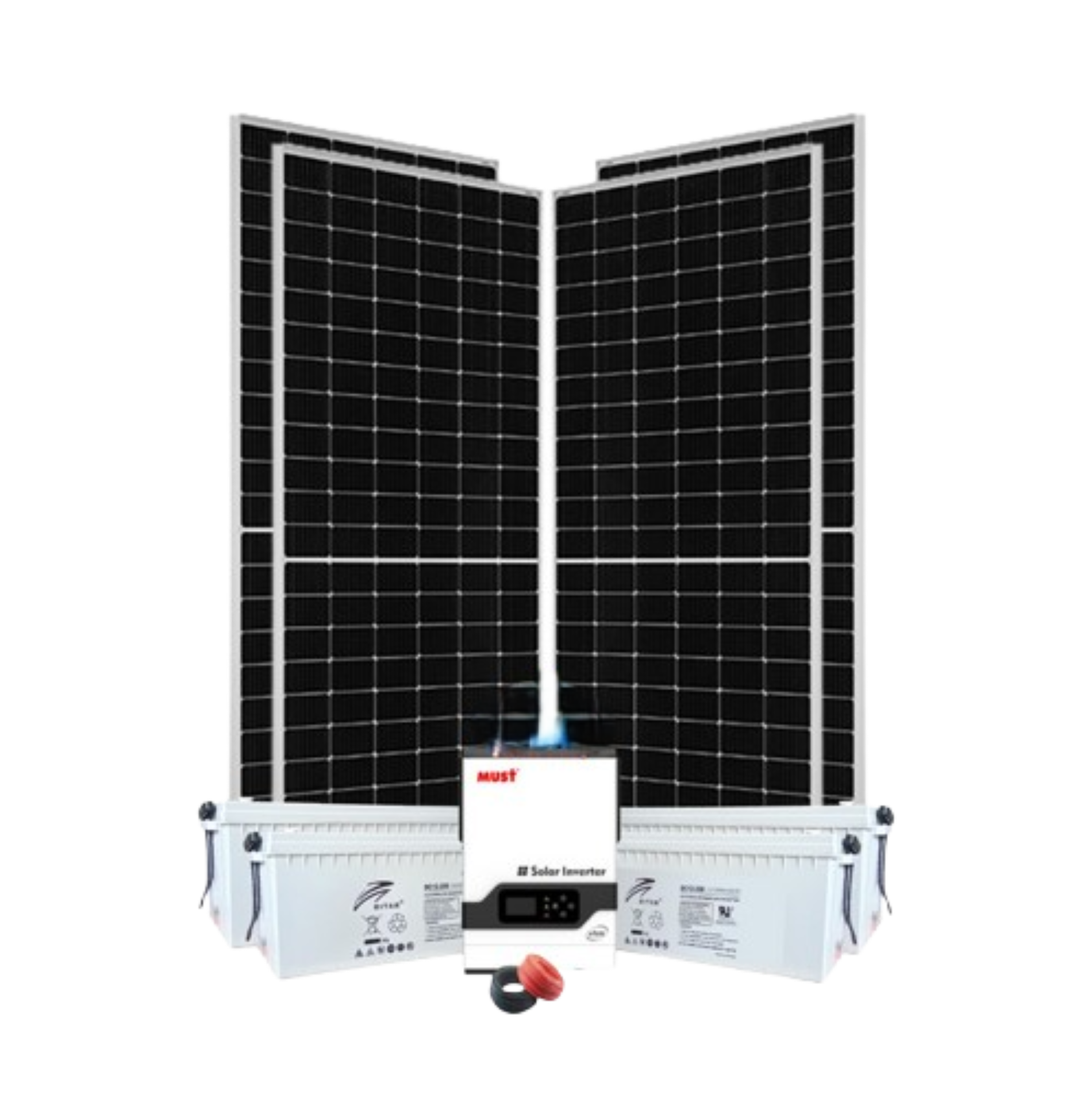

3.2Kw Solar Kit 3200watts 24v – Ritar Battery Must Inverter

3.2kW hybrid inverter ⚡, four 200Ah Ritar Gel batteries 🔋, and four 550W monocrystalline solar panels ☀️. Below is a detailed breakdown of each component and how they work together.

1. Hybrid Inverter (3.2kW) ⚡

A 3.2kW hybrid inverter is a critical component of your solar power system. It manages power flow between the solar panels, batteries, and appliances.

🔹 Key Features:

• Hybrid Functionality 🔄: Works with solar panels, batteries, and the grid (or generator) simultaneously.
• Rated Capacity ⚡: 3.2kW (3200W), meaning it can handle a load up to 3.2kW at a time.
• MPPT Charge Controller ⚙️: Ensures maximum efficiency when harvesting solar energy.
• Battery Charging Management 🔋: Protects and extends battery life.
• Pure Sine Wave Output 🔌: Safe for sensitive electronics.
• Grid Connectivity 🏠: Can switch between grid power and stored battery power automatically.
• Backup Mode 🔄: Provides power during grid outages.

2. Solar Panels (550W Monocrystalline) – 4 Pieces ☀️

Your system includes four 550W monocrystalline solar panels, which generate electricity from sunlight.

🔹 Key Features:

• Total Power Output 🔆: 550W × 4 = 2,200W (2.2kW)
• Monocrystalline Technology 🏅:
  • High efficiency (18–22% conversion rate).
  • Performs well in low-light conditions.
  • Long lifespan (25+ years).
• Weather Resistant 🌦️: Built for outdoor use, resistant to harsh weather.
• Voltage and Current Ratings 🔋: Typically 48V and 11–12A per panel.

🔹 Energy Production Calculation:

• Assuming 5 hours of peak sunlight per day, the total daily solar generation would be: $$2,200W\times 5\text{ hours}=11,000Wh\text{ (or 11kWh) per day}🔆$$

3. Battery Bank (4 × 200Ah Ritar Gel Batteries) 🔋

Your system includes four Ritar Gel batteries, each rated at 200Ah.

🔹 Key Features:

• Total Capacity ⚡:
  • Each battery: 12V, 200Ah
  • 4 batteries connected in series (for a 48V system): $$48V\times 200Ah=9,600Wh(or9.6kWh)ofstoragecapacity🔋$$
• Gel Battery Technology 🧪:
  • Maintenance-Free 🛠️: No need to add water.
  • Deep Cycle 🔄: Long-lasting charge-discharge cycles.
  • Long Lifespan ⏳: 5–10 years depending on usage.
  • Better Heat Tolerance 🌡️ than AGM batteries.
• Backup Power 🔦:
  • If running a 1kW load, the battery bank could last ~9.6 hours.
  • With a 2kW load, it would last ~4.8 hours.

4. System Functionality Overview 🔄

✅ Daytime 🌞: Solar panels generate electricity to power appliances and charge batteries.
✅ Nighttime/Cloudy Days 🌙☁️: Batteries provide stored energy.
✅ Seamless Switching 🔌: The hybrid inverter manages energy flow automatically.
✅ Grid Backup (Optional) 🏠⚡: The inverter can switch to grid or generator power if needed.

Expected Performance 📊

💡 Ideal for homes, offices, or small businesses needing reliable backup power.
🔌 Can run various appliances, such as:

• LED lights 💡
• Fans 🌬️
• TVs 📺
• Laptops 💻
• Small refrigerators 🧊
• Power tools (depending on load) 🔨
