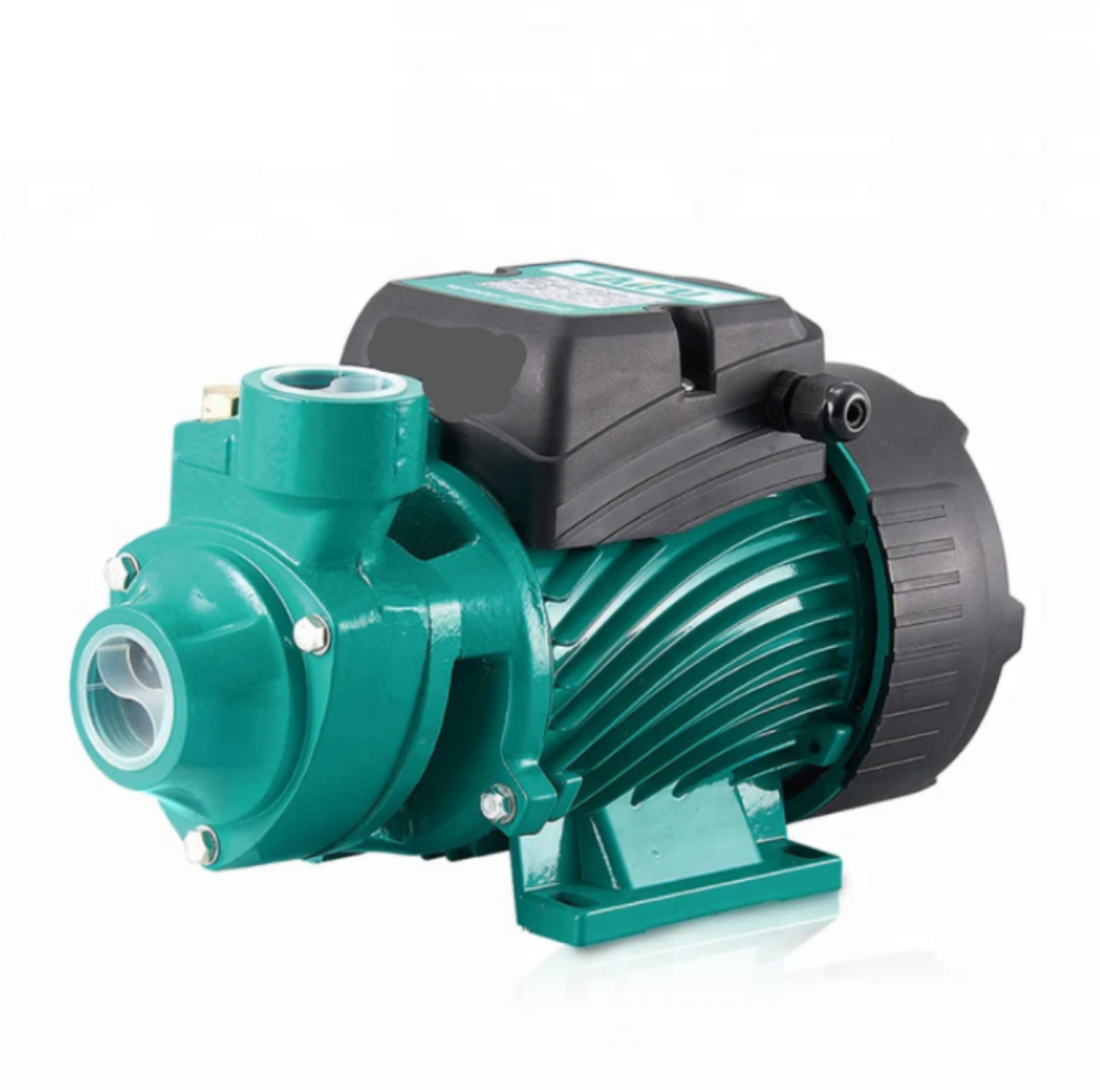

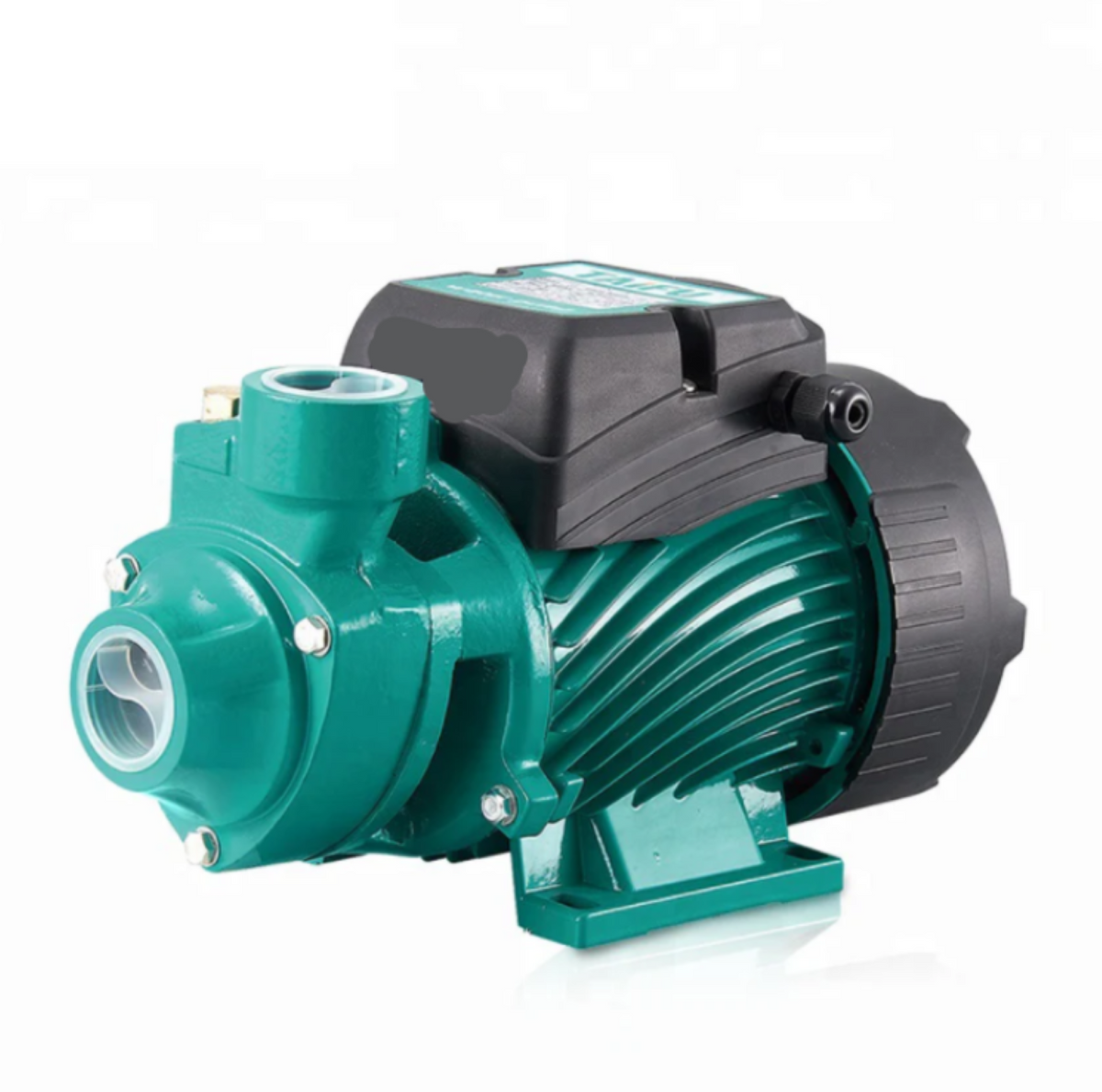

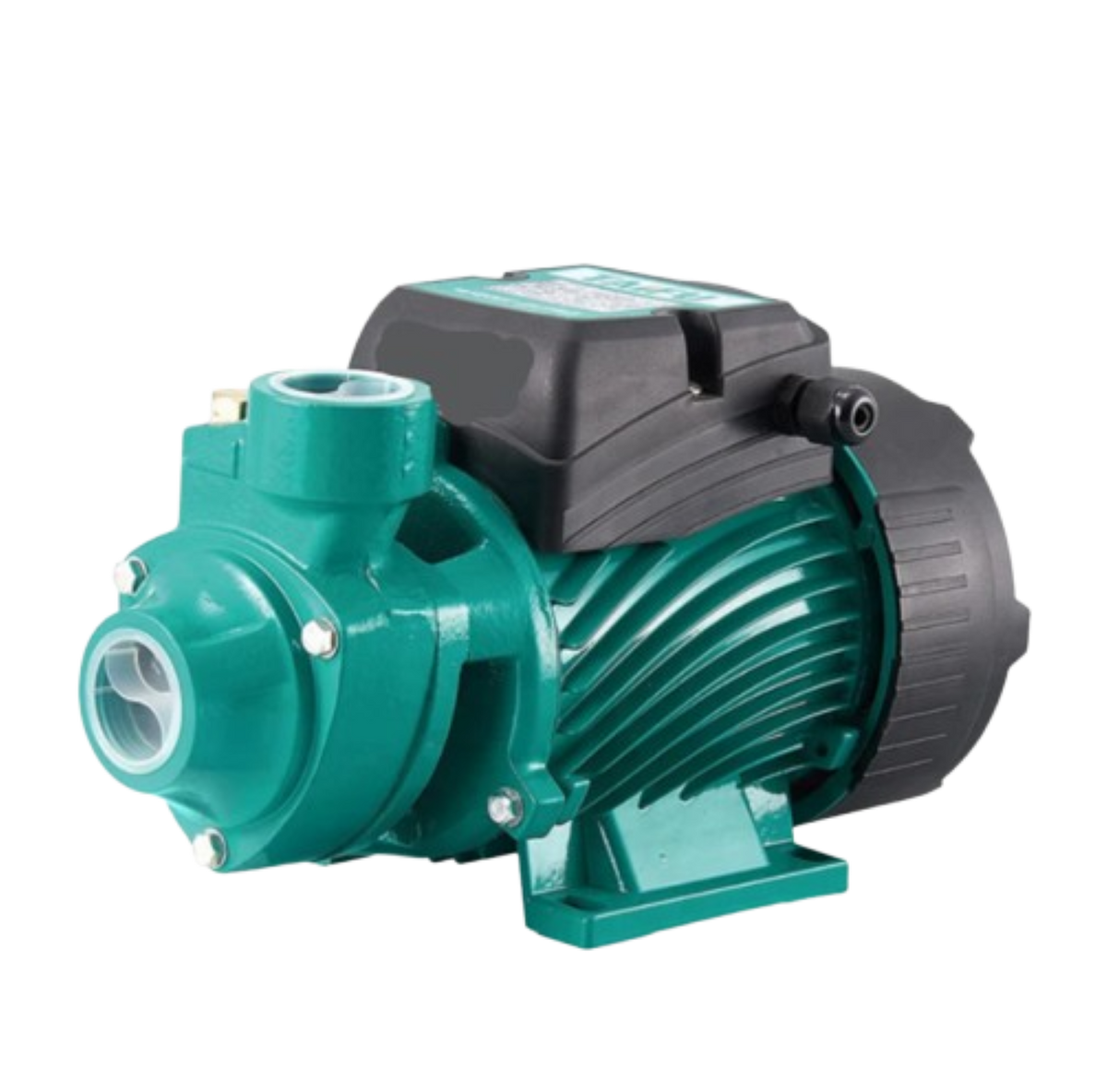

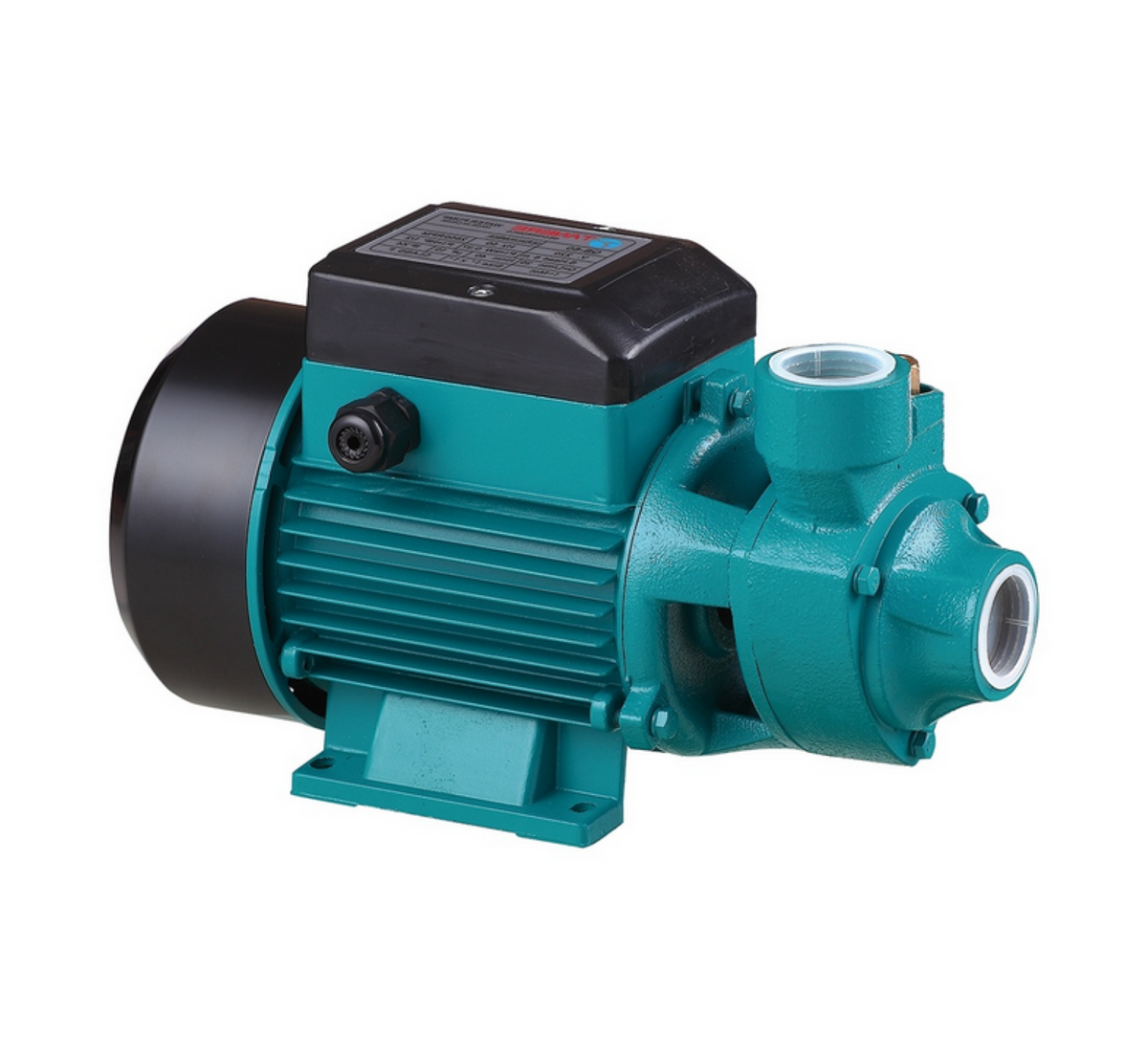

0.5hp 28m 1.8m3 Electric Booster Peripheral Water Pump Premier QB60

Main Specifications:

• Model: Premier QB60
• Power: 0.5 HP 💪
• Motor Type: Electric, Single-phase, Induction motor ⚡
• Voltage: 220-240V, 50Hz 🔌
• Flow Rate: 1.8 m³/h (1800 liters per hour) 💦
• Head (Max. Delivery Height): 28 meters ⬆️
• Suction Head: 8 meters (maximum suction) 🌊
• Inlet/Outlet Diameter: 1” (25 mm) 🔩
• Pump Type: Peripheral pump (booster pump) 🔄
• Dimensions: 270 x 250 x 200 mm 📏
• Weight: 7-8 kg ⚖️
• Protection Class: IP44 (splashproof) 🌧️
• Temperature Limit: Up to 40°C 🌡️

Premier QB60 0.5HP 28M 1.8M³ Electric Booster Peripheral Water Pump

1. Description:

The Premier QB60 is a compact, efficient, and reliable electric booster peripheral water pump 💧 designed for domestic and light commercial use 🏠🏢. It’s perfect for boosting water pressure, making it ideal for water supply systems, irrigation 🌱, and small industrial applications ⚙️. The 0.5HP motor pumps water up to 28 meters in height ⬆️, delivering a flow rate of 1.8 m³/h 🚰.

2. Technical Specifications:

• Model: Premier QB60
• Power: 0.5 HP 💪
• Motor Type: Electric, Single-phase, Induction motor ⚡
• Voltage: 220-240V, 50Hz 🔌
• Flow Rate: 1.8 m³/h (1800 liters per hour) 💦
• Head (Max. Delivery Height): 28 meters 🏔️
• Suction Head: 8 meters (maximum suction) 🌊
• Inlet/Outlet Diameter: 1” (25 mm) 🔩
• Pump Type: Peripheral pump (booster pump) 🔄
• Dimensions: Around 270 x 250 x 200 mm 📏
• Weight: Approx. 7-8 kg ⚖️
• Protection Class: IP44 (splashproof) 🌧️
• Temperature Limit: Up to 40°C 🌡️
• Applications: Water pressure boosting, irrigation, garden watering 🌳, etc.

3. Applications:

• Domestic Use:

  • Boosts water pressure in homes 🏡, especially for multi-story buildings 🏢.
  • Great for homes with low water pressure or for a constant water supply 🌊.

• Irrigation Systems:

  • Boosts water pressure for gardens 🌻, lawns 🌿, and small agricultural needs 🌾.
  • Ideal for drip irrigation 💧, sprinklers 🌱, or micro-irrigation setups.

• Water Supply Systems:

  • Enhances water flow in pressurized water systems 🏠.

• Water Circulation:

  • Can be used in heating systems 🔥 or solar heating systems 🌞.

• Industrial & Commercial Use:

  • Suitable for small factories ⚙️ or workshops needing water supply or circulation.

4. Maintenance:

• Regular Inspection:

  • Check for wear or damage to the pump casing and motor 🔍.
  • Inspect power cord for cuts or frays ⚡.

• Cleaning:

  • Clean the inlet filter to prevent blockages 🧹.
  • Wipe down the pump to prevent dust buildup ✨.

• Lubrication:

  • Ensure bearings are lubricated as per the manufacturer's instructions 🛢️.

• Check for Airlock:

  • Ensure there’s no trapped air inside the pump. If needed, prime the pump to get it started 🌬️.

• Motor & Electrical Checks:

  • Inspect electrical connections 🔌 for overheating.
  • Look for unusual vibrations or noises 🔊.

• Seal Inspection:

  • Check mechanical seals for any signs of leakage 🔒.

• Pump Priming:

  • Prime the pump when starting or after long periods of inactivity 🌀.

• Storage:

  • Store in a dry, cool area when not in use 🏠.

• Troubleshooting:

  • If there’s no pressure, check power, water source, and impeller for blockages 🔧.

By following these maintenance steps 🛠️, you can ensure that the Premier QB60 performs optimally for years! 🌟
