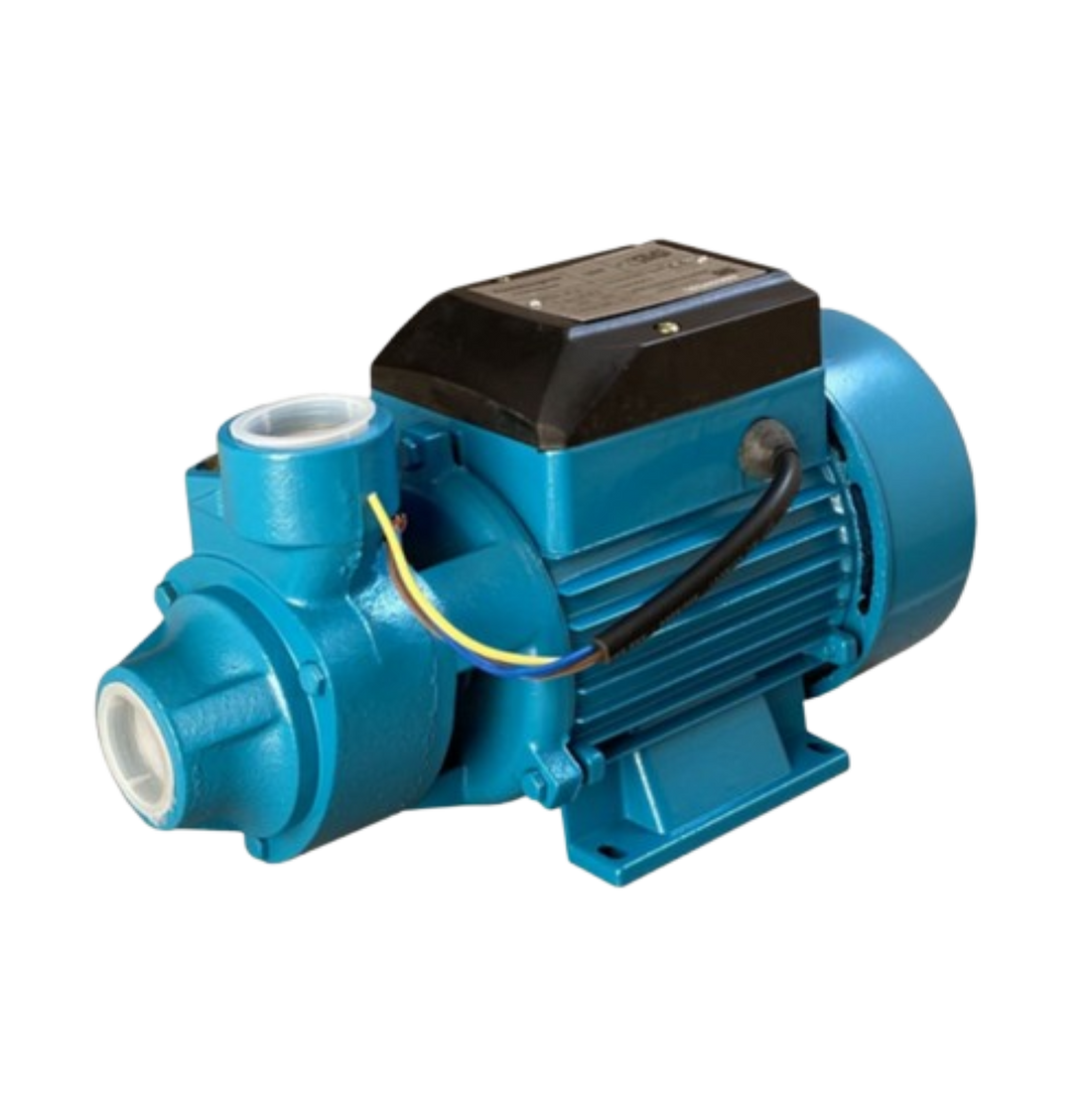

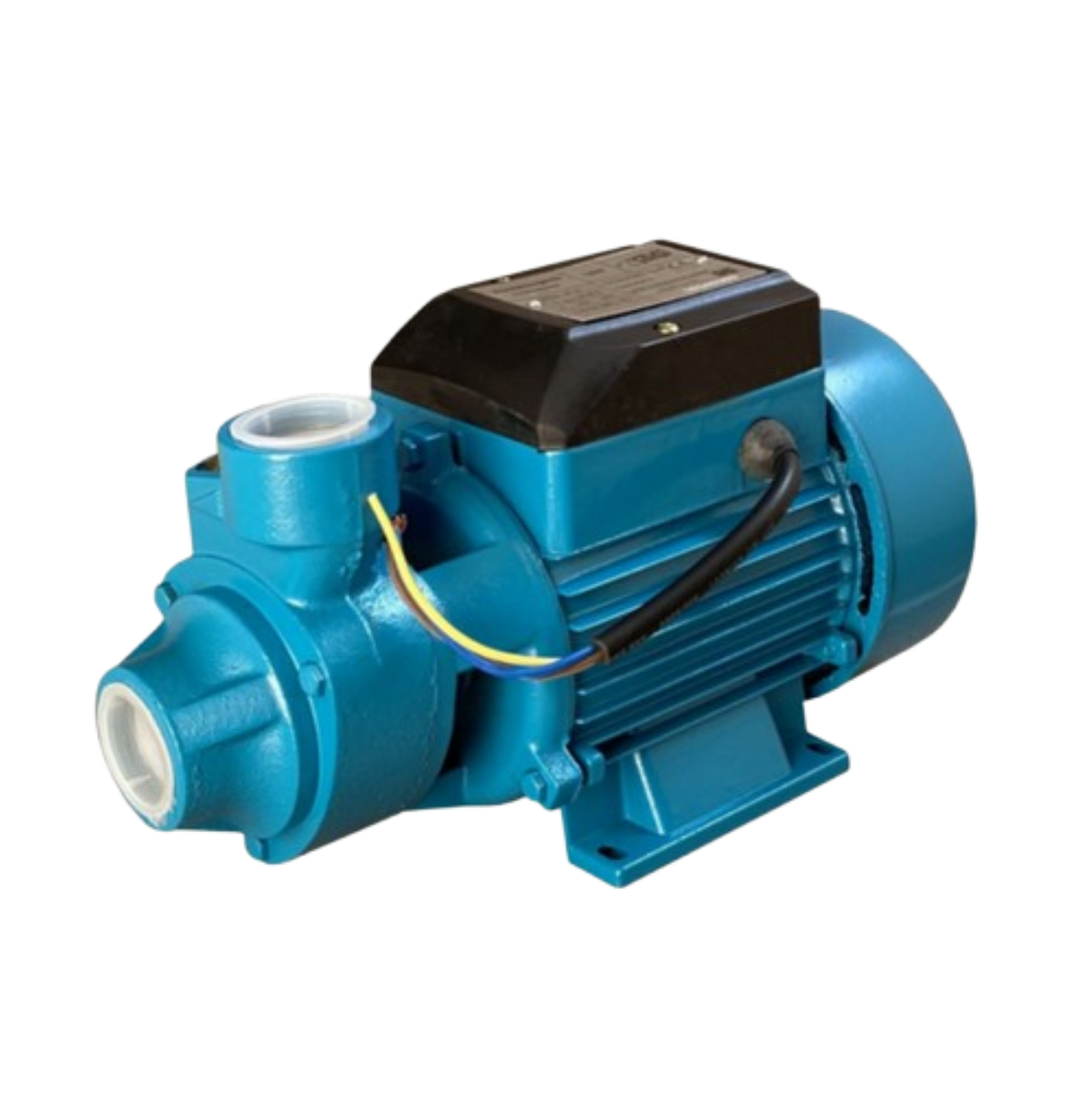

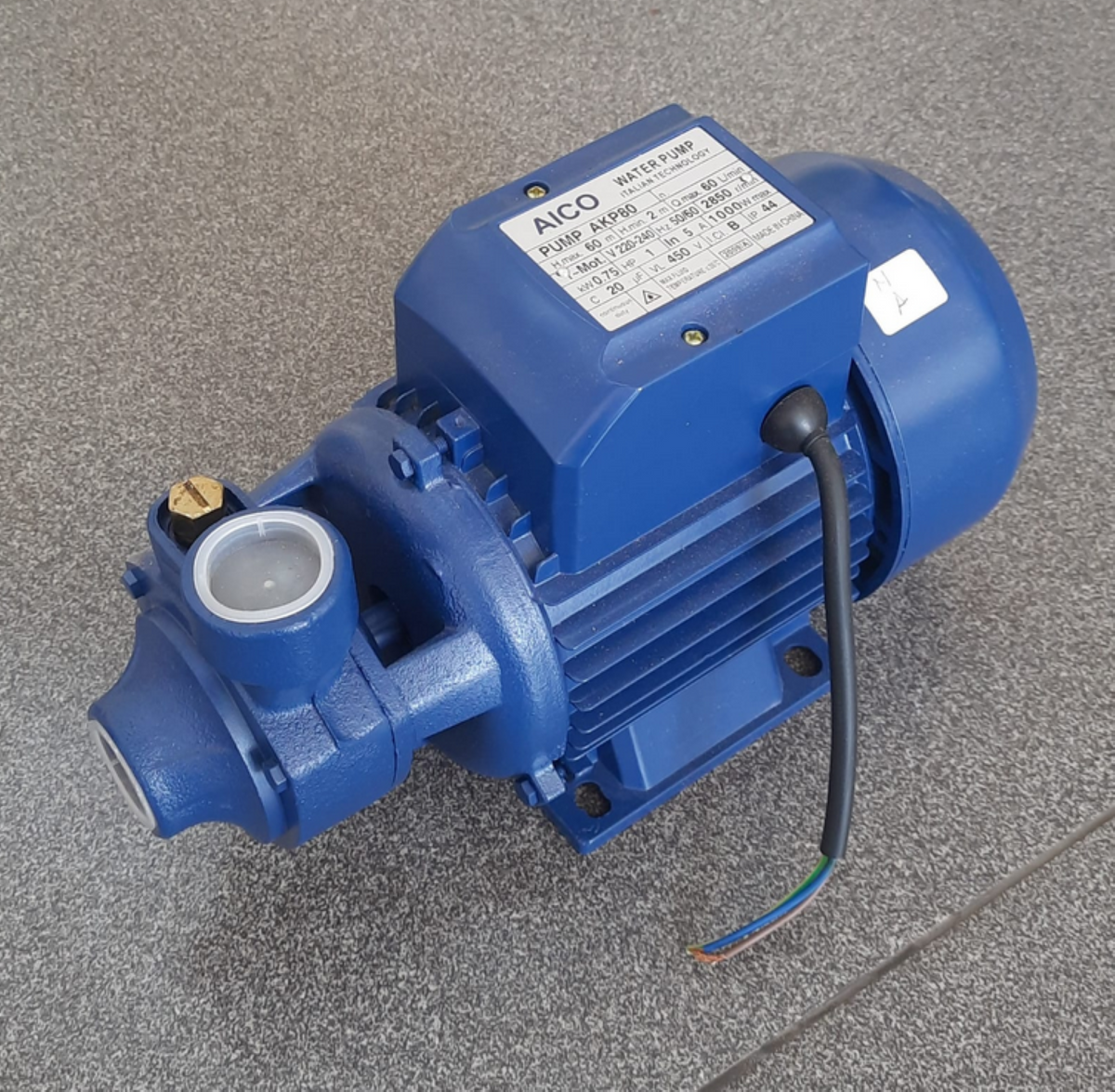

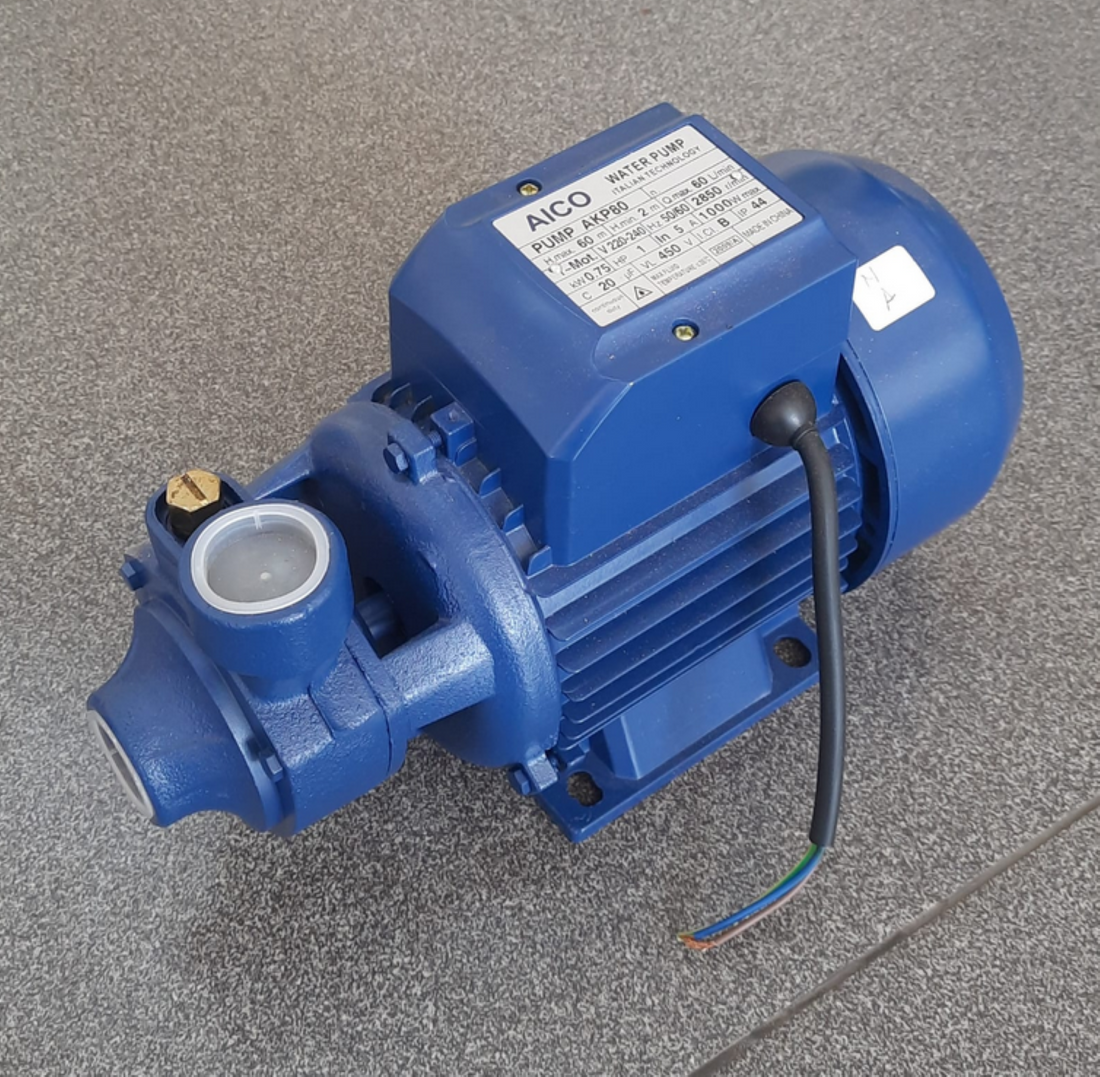

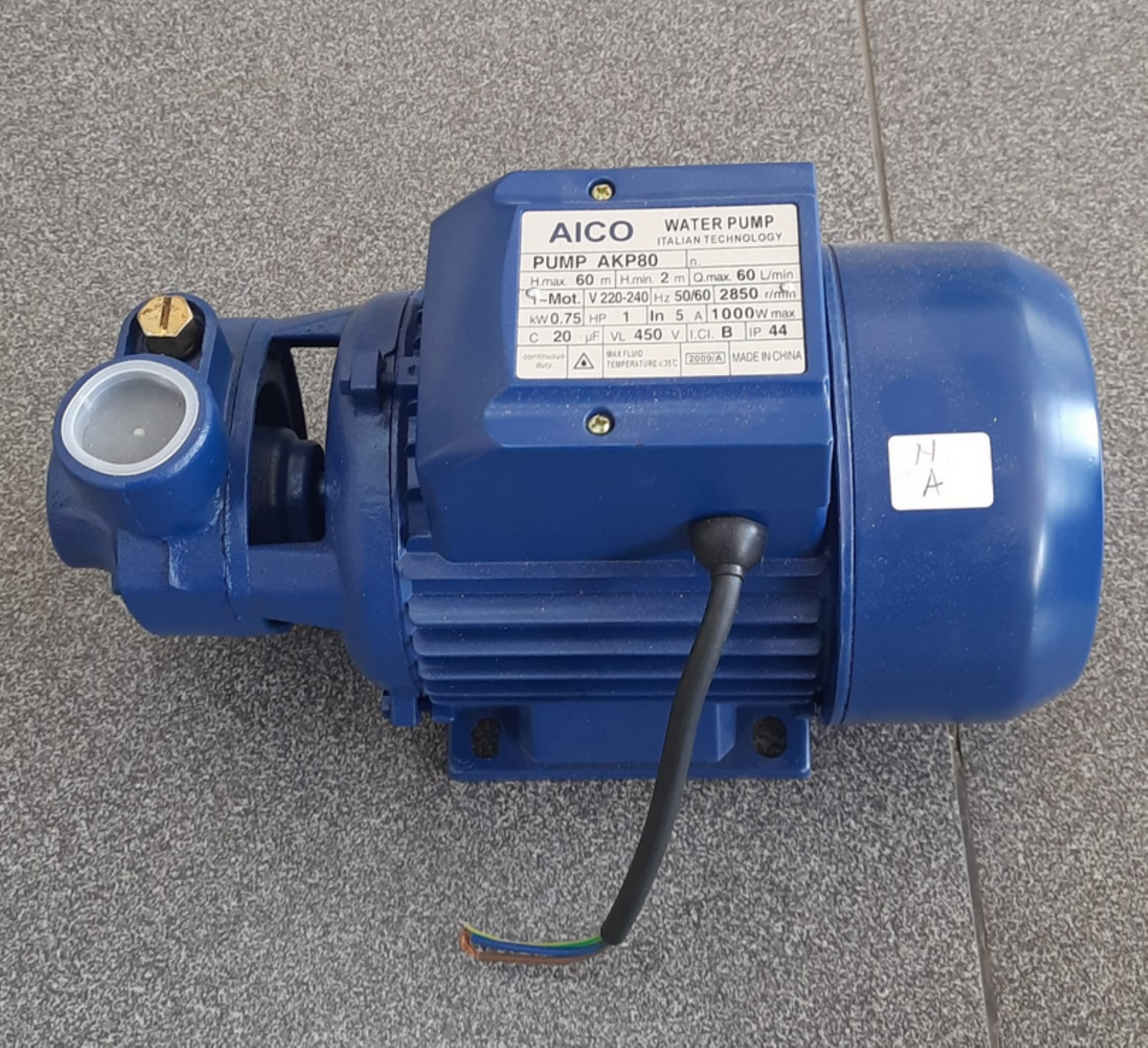

1hp 60m 50L/min Centrifugal Water Booster Pump 750w AKP80 Cast Iron 1ph Aico Japan

Main Specifications 🌟:

• Power: 1 HP 💪
• Flow Rate: 50 L/min 🌊
• Head Range: 60 meters 🚰
• Motor Power: 750W ⚡
• Motor Type: Single-phase 🔌
• Material: Cast Iron 🛠️
• Speed: 2900 RPM ⚙️
• Suction Capacity: 7 meters 🌀

The Aico Japan AKP80 is a robust 1-horsepower (HP) centrifugal water booster pump, designed to enhance water pressure and flow in various applications. 💧🔧 With a power rating of 750 watts (W), this single-phase pump is built with a durable cast iron body, ensuring longevity and reliability. 🏗️🛠️

Technical Specifications:

• Material: Cast Iron 🛠️
• Motor Speed: 2900 revolutions per minute (RPM) ⚡
• Head Range: 8 to 45 meters 🚰
• Motor Horsepower: 1 HP 💪
• Motor Phase: Single Phase 🔌
• Minimum Flow Rate: 500 liters per hour (LPH) 🌊
• Maximum Flow Rate: 4000 LPH 🌊
• Suction Capacity: 7 meters 🌀

Features:

• Thermal Overload Protector: Integrated imported thermal overload protection to prevent motor overheating 🔥
• Voltage Flexibility: Engineered to operate efficiently under wide voltage fluctuations ⚡
• Durable Finish: Powder-coated, multi-color stator body for enhanced durability and aesthetic appeal 🌈
• Compact Design: Sturdy and space-saving construction suitable for various installations 🏠
• Sealed Bearings: Equipped with double-sealed ball bearings for smooth operation and extended lifespan 🔧
• Extension Shaft Option: Available with an extension shaft to cater to specific installation requirements 🔩

Applications:

The AKP80 is versatile and suitable for: 🌍

• Domestic Water Supply: Boosting water pressure in residential settings to ensure consistent flow in taps, showers, and appliances 🚿🏠
• Irrigation Systems: Supplying water to gardens, lawns, and small-scale agricultural fields 🌱💧
• Industrial Use: Providing pressurized water in manufacturing processes and equipment cooling systems 🏭⚙️
• Water Transfer: Moving water between storage tanks or from wells and boreholes 💦🔄

Maintenance Guidelines:

To ensure optimal performance and longevity of the AKP80 pump:

1. Regular Inspection: Periodically check for leaks, unusual noises, or vibrations that may indicate wear or mechanical issues 👀
2. Cleaning: Keep the pump exterior free from dust and debris. Ensure the inlet and outlet are unobstructed to maintain proper flow 🧹
3. Lubrication: Although the pump features sealed bearings, consult the user manual for any specific lubrication requirements ⚙️
4. Electrical Connections: Ensure all wiring is secure and free from corrosion. Regularly inspect the power supply for consistent voltage levels 🔌🔒
5. Storage: If the pump is not in use for extended periods, drain any residual water and store it in a dry, sheltered location to prevent rust and deterioration 🏠🌧️
6. Professional Servicing: Schedule routine maintenance checks with qualified technicians to address potential issues before they escalate 🛠️👨‍🔧

By adhering to these maintenance practices, the Aico Japan AKP80 centrifugal water booster pump will provide reliable and efficient service across its various applications. 🌟💪
