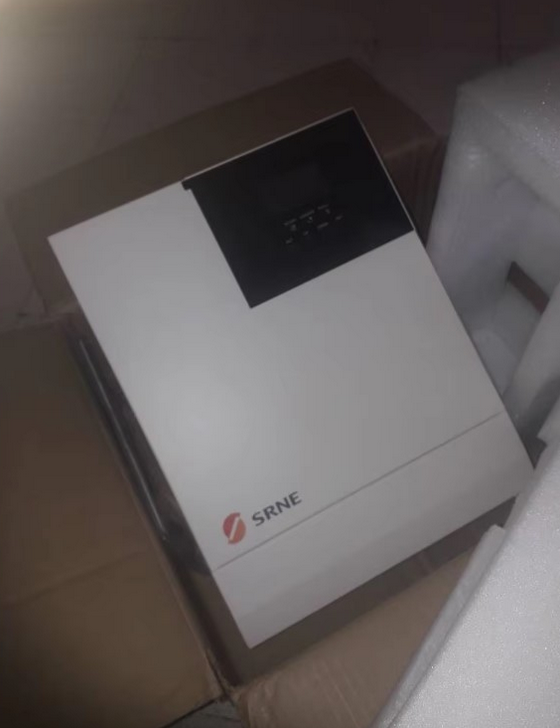

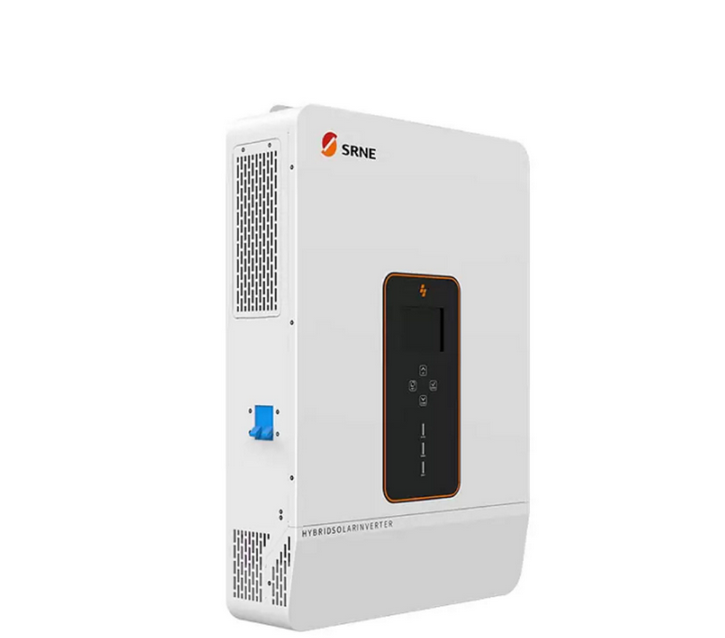

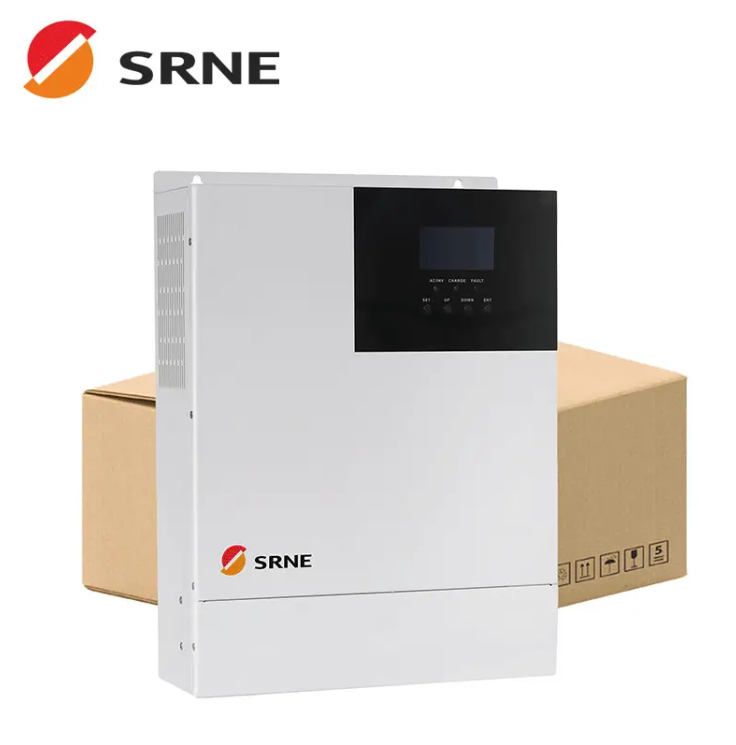

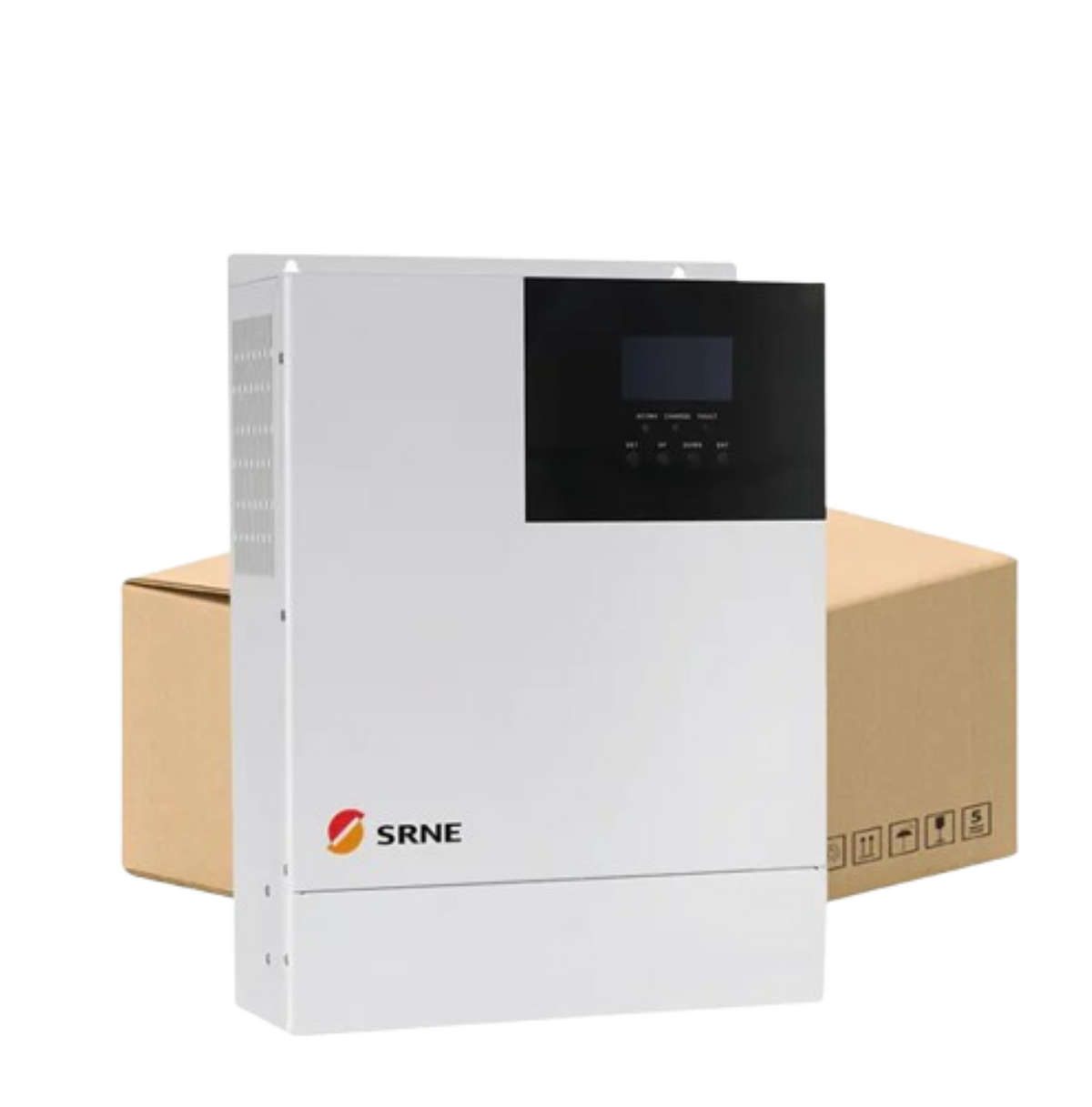

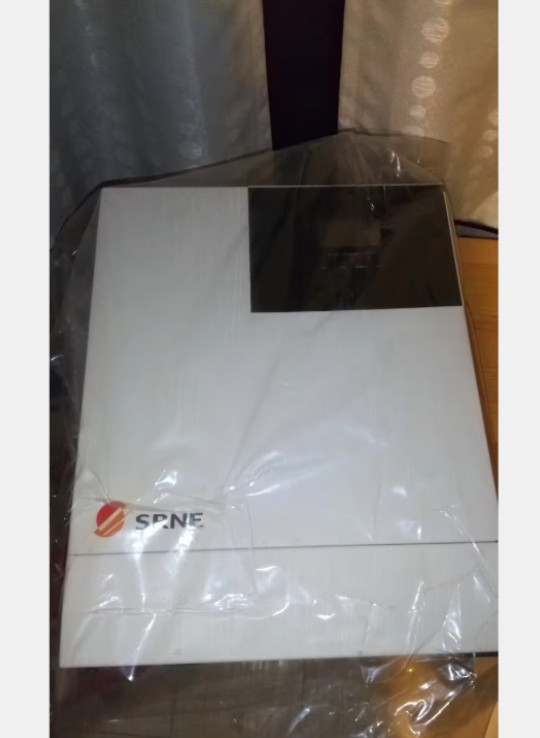

10kw SRNE On/Off Grid Solar Hybrid Inverter ASP48100S200-H

The SRNE ASP48100S200-H is a 10kW hybrid inverter built for efficient solar, battery, and grid integration in residential and commercial systems.

Key Highlights:

• 10kW continuous power, 20kW peak output
• Dual MPPT inputs (up to 500V DC) for high solar efficiency
• Supports 48V lithium-ion, lead-acid, and custom battery types
• Up to 200A hybrid charging current
• Pure sine wave 230V AC output (50/60Hz)
• Smart time-slot function for tariff optimization
• Multiple communication ports: RS485, CAN, USB, optional Wi-Fi/GPRS
• Robust protections against overload, short circuit, and overcurrent
• Compact indoor design (IP20) with quiet internal fan cooling
• Ideal for both on-grid and off-grid energy systems

A reliable and adaptable solution for comprehensive energy management.

The SRNE ASP48100S200-H is a 10kW hybrid solar inverter engineered for both on-grid and off-grid applications. It integrates solar energy, battery storage, and grid power to deliver a stable and efficient energy supply for residential or commercial use.

Key Features:

• High Power Output: Delivers 10,000W continuous power with a peak output of 20,000W, ideal for heavy household or commercial loads.

• Dual MPPT Technology: Two MPPT inputs (up to 500V DC) maximize solar harvesting with up to 99.9% efficiency.

• Battery Compatibility: Supports lithium-ion, lead-acid, and user-defined batteries (48V DC) with up to 200A hybrid charging current.

• Pure Sine Wave Output: Stable 230V AC output at 50/60Hz for compatibility with various appliances.

• Smart Features: Time-slot function for energy cost optimization and real-time monitoring via RS485, CAN, USB, and optional Wi-Fi/GPRS.

• Robust Protection: Built-in safeguards against overloads, short circuits, and overcurrent ensure reliable operation.

Technical Specifications:

Inverter Output:

• Rated Power: 10,000W

• Peak Power: 20,000W

• Voltage: 230V AC (single-phase)

• Load Support: Up to 6HP motors

• Frequency: 50/60Hz

• Waveform: Pure sine wave

• Switch Time: ~10ms

Battery Parameters:

• Type: Lithium-ion, Lead-Acid, User-Defined

• Voltage: 48V DC (range: 40–60V)

• Max MPPT Charging: 200A

• Max Generator Charging: 120A

• Max Hybrid Charging: 200A

PV Input:

• MPPT Trackers: 2

• Max PV Power: 11,000W

• Max Input Current: 22A per tracker

• Max Voc: 500V DC

• MPPT Range: 125–425V DC

General:

• Dimensions: 620 x 435 x 130 mm

• Weight: 21 kg

• Protection: IP20 (indoor use)

• Operating Temp: -15°C to 55°C (derates above 45°C)

• Cooling: Internal fan

• Noise Level: <60dB

• Warranty: 2 years

The SRNE ASP48100S200-H is a smart, powerful, and flexible hybrid inverter suitable for diverse energy setups.
