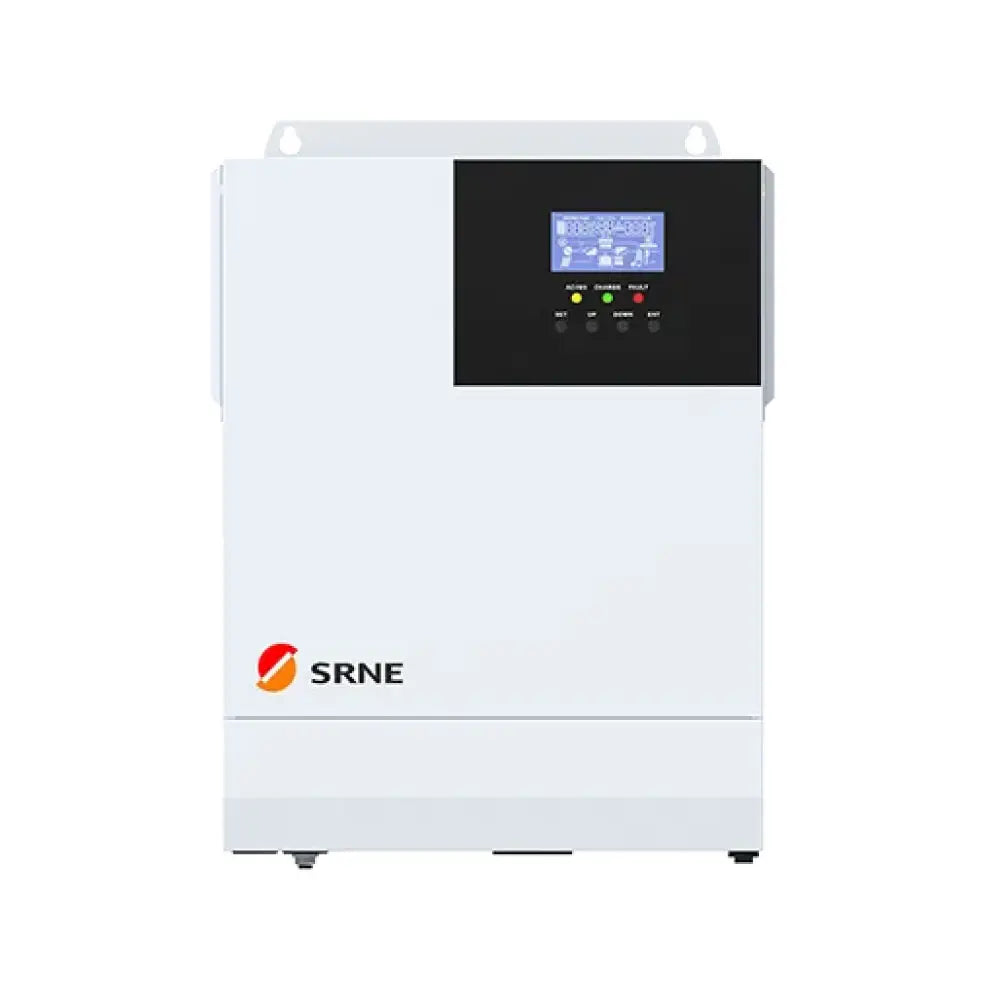

10kw SRNE On/Off Grid Solar Hybrid Inverter ASP48100S200-H

The SRNE ASP48100S200-H 10kW Hybrid Inverter 🔋⚡:

• 🔌 Power Output: Provides 10,000W continuous and 20,000W peak power with a pure sine wave output at 230V AC.

• 🔋 Battery Compatibility: Supports 48V lithium-ion & lead-acid batteries, with a maximum MPPT charging current of 200A.

• ☀️ Solar Input (MPPT): Features dual MPPT trackers, allowing up to 11,000W solar input, with a 125–425V DC MPPT voltage range.

• ⚡ Grid & Generator Support: Ensures seamless switching (approx. 10ms) between solar, battery, and grid power, with a 120A max generator/mains charging current.

• 📡 Smart Monitoring & Protection: Equipped with RS485, CAN, USB, and optional Wi-Fi/GPRS for remote monitoring, along with comprehensive safety protections 🛡️ against overload, short circuits, and voltage fluctuations.

---

🔋 SRNE ASP48100S200-H | 10kW On/Off-Grid Solar Hybrid Inverter ⚡

The SRNE ASP48100S200-H is a powerful 10kW hybrid inverter designed for on-grid and off-grid applications, seamlessly integrating solar energy ☀️, battery storage 🔋, and grid power ⚡ to ensure a reliable energy supply.

✨ Key Features:

✅ High Power Output: 10,000W continuous, 20,000W peak—suitable for homes 🏡 and businesses 🏢. ✅ Dual MPPT Technology 🎯: Two MPPT inputs (up to 500V DC), 99.9% efficiency, maximizing solar power harvesting. ✅ Battery Compatibility 🔋: Supports lithium-ion & lead-acid (48V), with up to 200A MPPT charging current and 120A generator charging. ✅ Pure Sine Wave Output 🔄: Delivers a stable 230V AC (50/60Hz), ensuring compatibility with sensitive electronics 🖥️📺. ✅ Seamless Power Transition ⚙️: Automatic switch time of ~10ms, ensuring uninterrupted power. ✅ Comprehensive Protection 🛡️: Overload, short circuit, over-current, and voltage protections for safe operation. ✅ Intelligent Cooling 🌬️: Built-in fan cooling system maintains optimal performance. ✅ Smart Connectivity 📡: Supports RS485, CAN, USB, dry contact; optional Wi-Fi & GPRS for remote monitoring 📲. ✅ User-Friendly Interface 📊: LCD for real-time system data, easy installation & operation.

📊 Technical Specifications:

🔹 Inverter Output: 🔸 Rated Power: 10,000W 🔸 Peak Power: 20,000W 🔸 Output Voltage: 230V AC (Single-phase) 🔸 Frequency: 50/60Hz 🔸 Waveform: Pure Sine Wave 🔸 Switch Time: ~10ms 🔹 Battery: 🔸 Type: Lithium-ion / Lead-Acid 🔸 Voltage: 48V DC (Range: 40–60V) 🔸 Max MPPT Charging Current: 200A 🔸 Max Generator Charging Current: 120A 🔹 Solar PV Input ☀️: 🔸 MPPT Trackers: 2 🔸 Max PV Power: 11,000W 🔸 Max Input Current: 22A per tracker 🔸 Max Open Circuit Voltage: 500V DC 🔸 MPPT Voltage Range: 125–425V DC 🔹 General: 🔸 Dimensions: 620 x 435 x 130 mm 📏 🔸 Weight: 21 kg ⚖️ 🔸 Protection Degree: IP20 (Indoor Use) 🔸 Operating Temp: -15°C to 55°C 🌡️ 🔸 Noise Level: <60dB 🔇 🔸 Cooling: Internal Fan 🌬️ The SRNE ASP48100S200-H is an efficient, reliable, and smart energy solution for homes and businesses, ensuring seamless power management in various applications. 🚀🔋⚡
