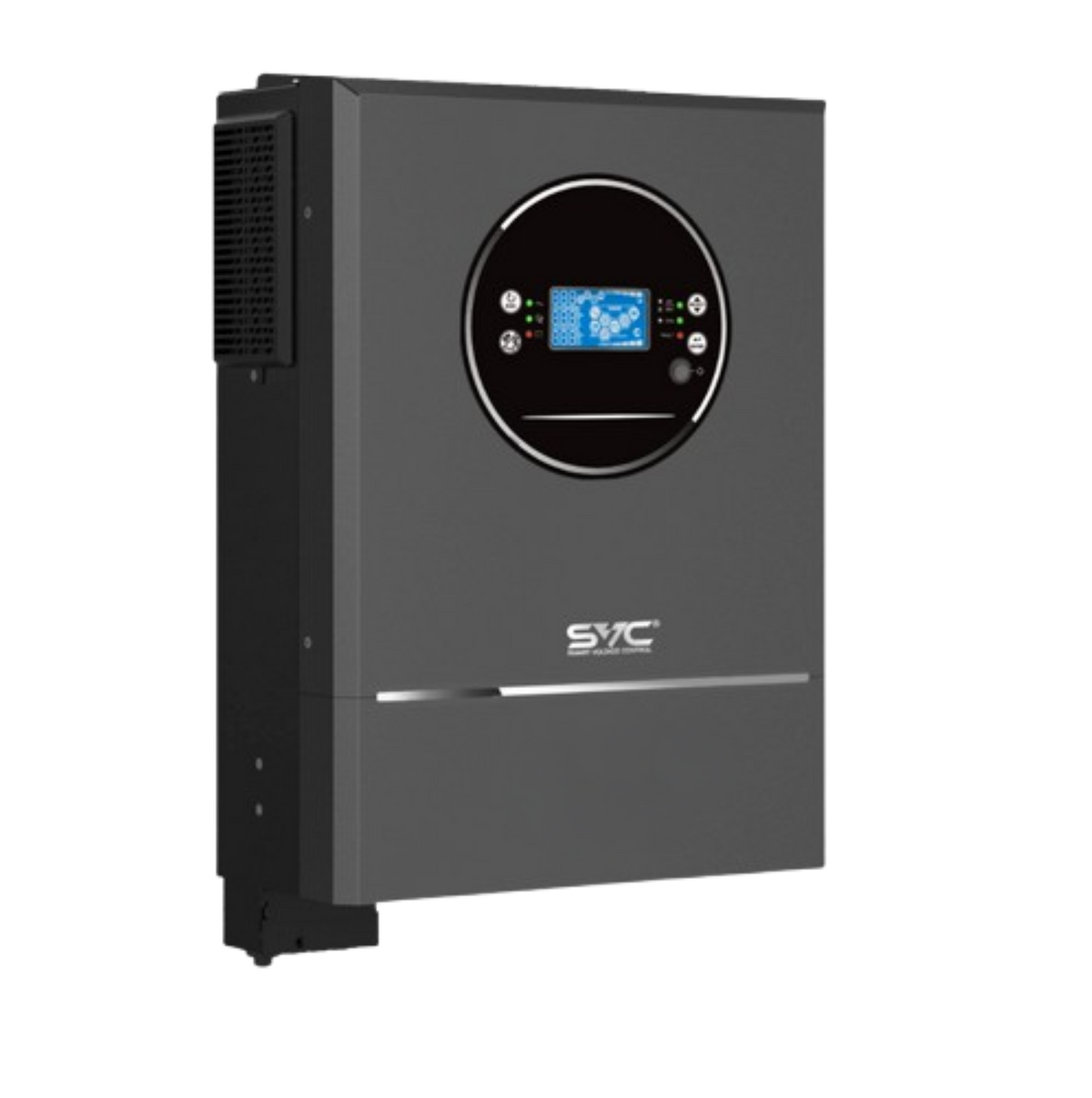

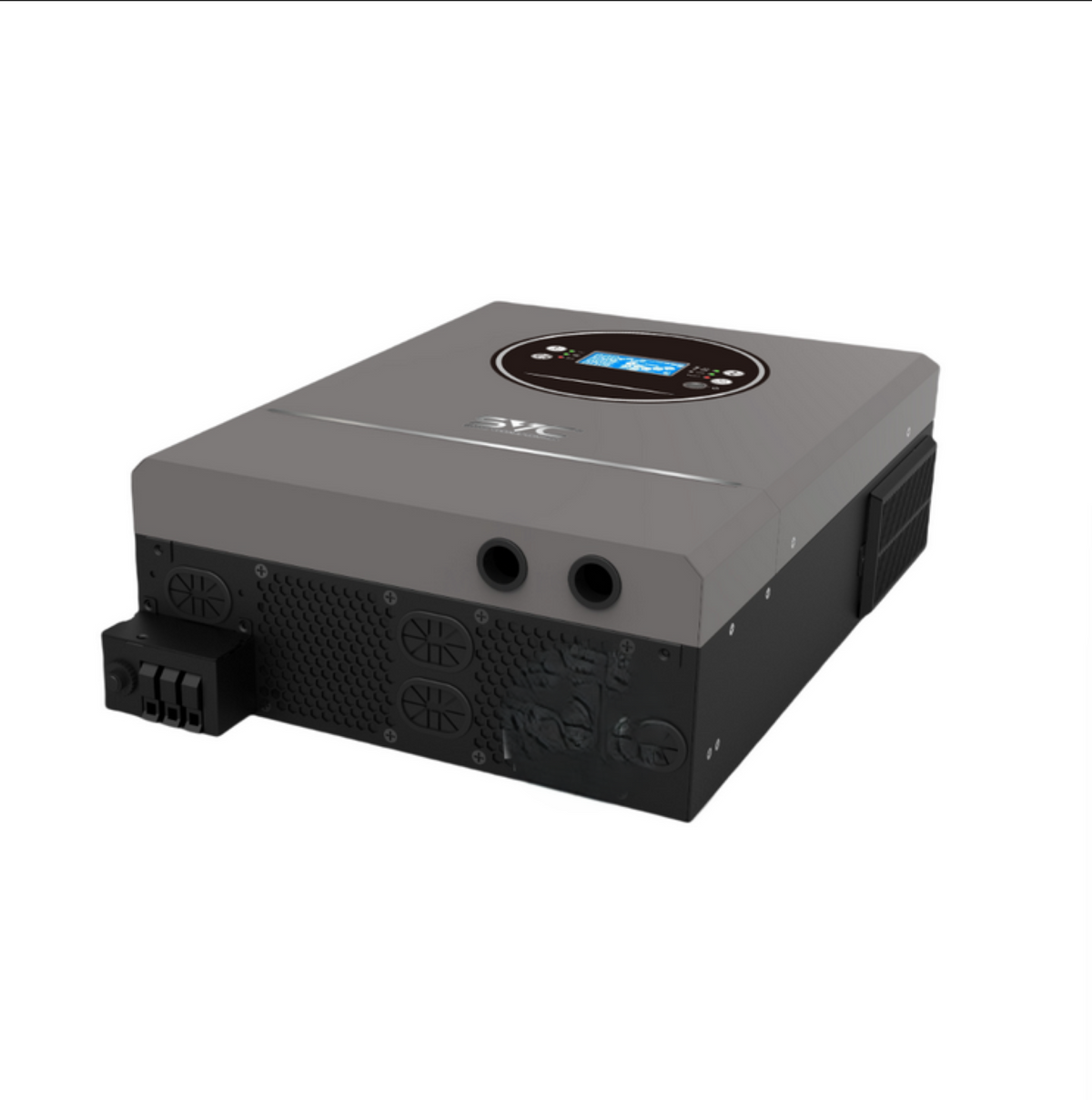

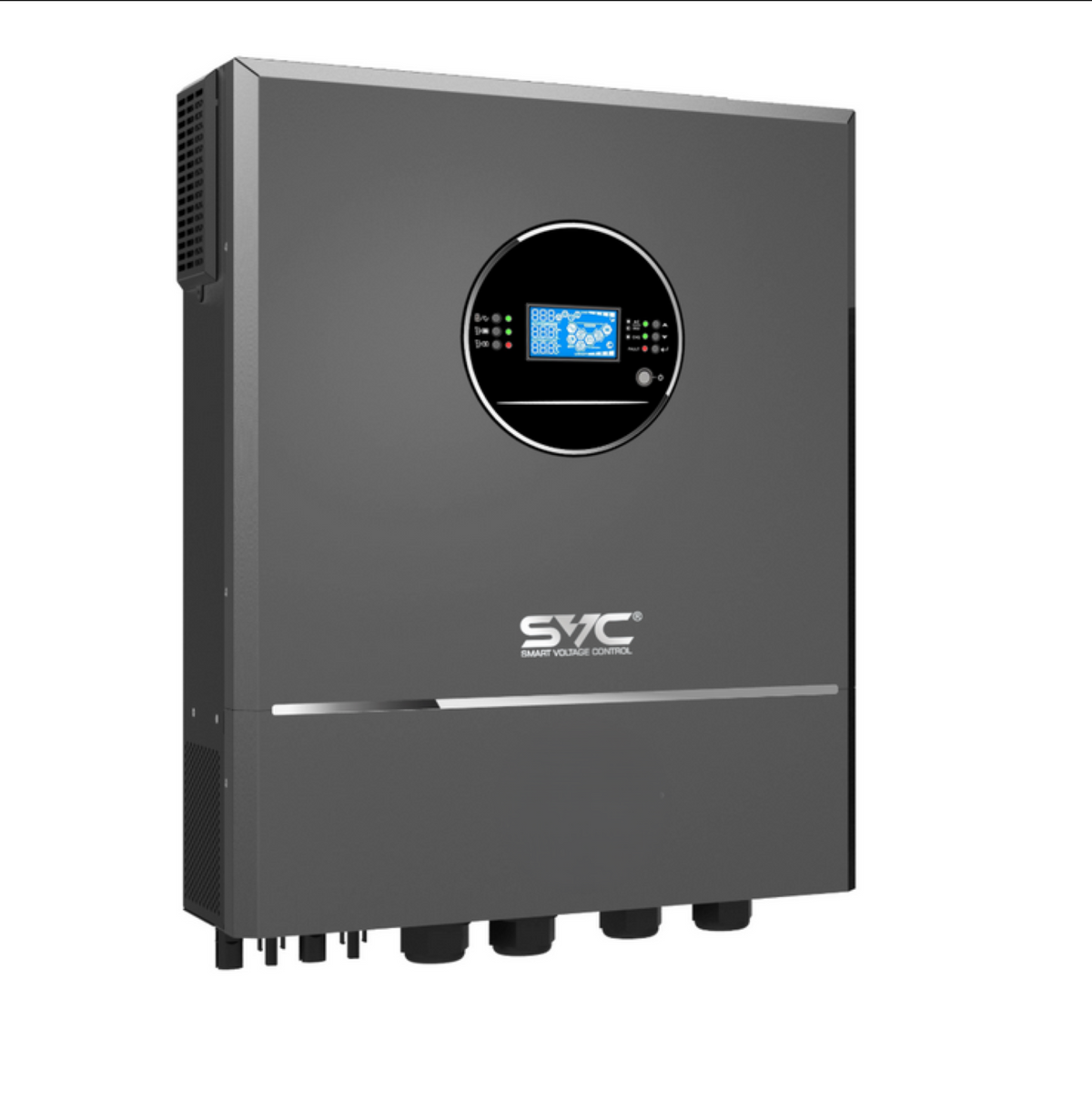

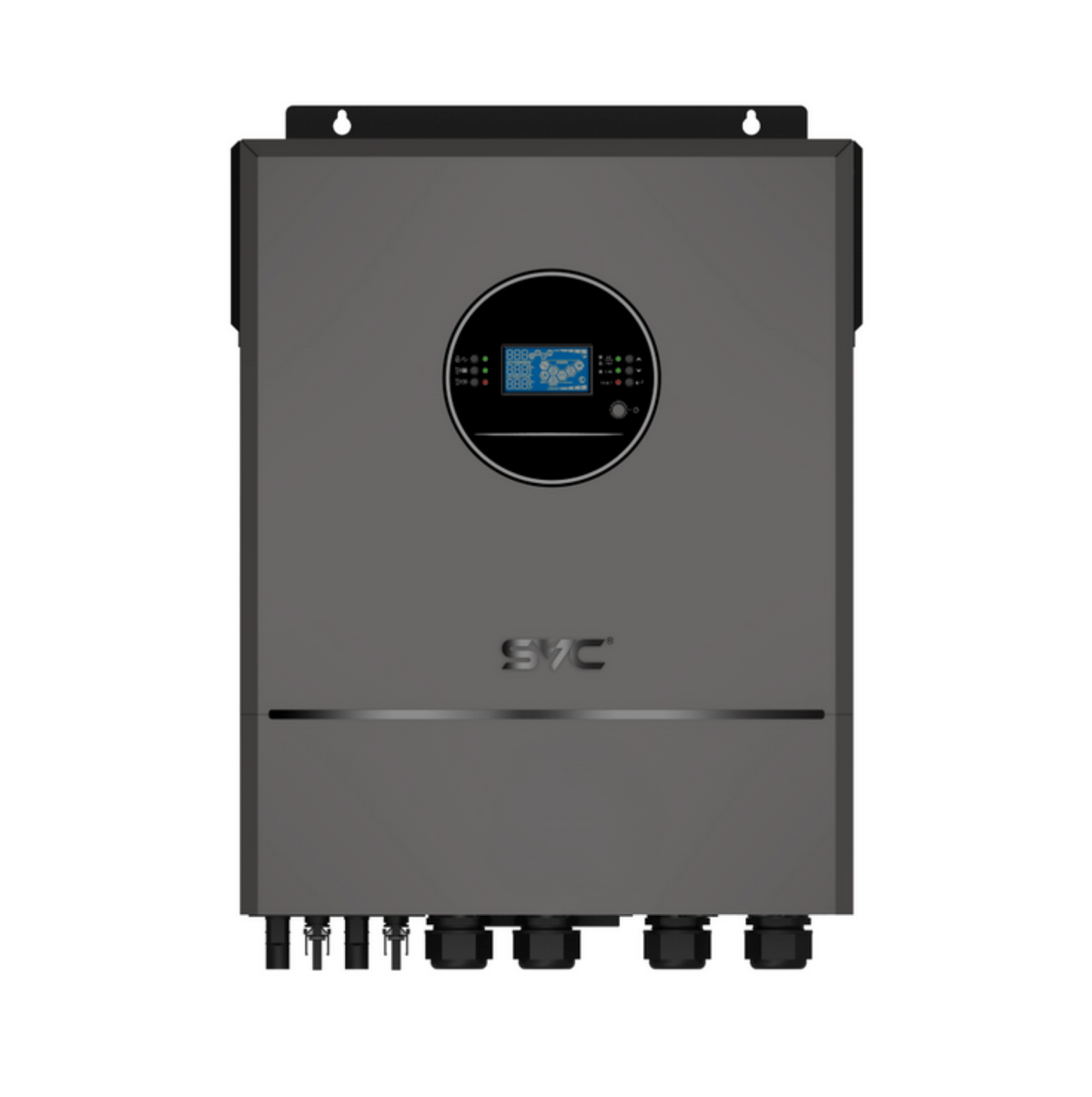

11kw 48v SVC Hybrid Solar Inverter - 1100w 150A MPPT - Versatile Battery Compatibility

🔋 11kW 48V SVC Hybrid Solar Inverter - 1100W 150A MPPT - Versatile Battery Compatibility ⚡

🔎 Overview

The 11kW 48V SVC Hybrid Solar Inverter is a high-performance energy solution designed for 🏡 residential, 🏢 commercial, and 🏭 industrial applications. It seamlessly integrates ☀️ solar, 🔋 battery, and ⚡ grid power for maximum efficiency and reliability.

Equipped with a 1100W MPPT solar charge controller and a 150A MPPT current, it ensures 🔄 optimal power conversion and 🔌 fast battery charging. It supports various battery technologies, including 🔋 lithium-ion, lead-acid (AGM, Gel, Flooded), and more, making it a versatile choice for hybrid and off-grid setups.

🛠️ Technical Specifications

⚡ General Specifications:

✅ Rated Power Output: 11kW (11,000W)
✅ DC Input Voltage: 48V
✅ Waveform: 🔄 Pure sine wave
✅ Operating Mode: 🔁 Hybrid (solar + battery + grid)

☀️ Solar Charging:

✅ Maximum PV Input Power: 11,000W
✅ MPPT Charge Controller: 1100W MPPT
✅ MPPT Charging Current: 🔋 150A
✅ PV Input Voltage Range: 120V - 500V DC
✅ Efficiency: ⚡ ≥98%

🔋 Battery Compatibility & Charging:

✅ Battery Voltage: 48V
✅ Battery Types Supported: 🔋 Lithium-ion, Lead-Acid (AGM, Gel, Flooded), and more
✅ Maximum Charging Current: 150A
✅ Battery Management: Smart BMS support for lithium-ion batteries

⚡ AC Output:

✅ Nominal AC Voltage: 220V/230V/240V (single-phase) or 380V (three-phase, depending on model)
✅ Output Frequency: 50Hz / 60Hz (auto-detect)
✅ Surge Power: 🚀 22kW (for peak loads)
✅ Efficiency: 🔥 ≥96%
✅ Overload Protection: ✅ Yes

🔗 Grid & Generator Integration:

✅ Grid Input Voltage Range: 170V - 280V AC
✅ Generator Compatibility: 🔄 Yes, with auto-start function
✅ Grid Charging Current: 🔌 0 - 100A (programmable)
✅ Transfer Time: ⚡ <10ms (UPS mode), <20ms (Normal mode)

📡 Monitoring & Connectivity:

✅ LCD Display: 📊 Multi-function real-time monitoring
✅ Remote Monitoring: 📶 Wi-Fi / GPRS / RS485 / Bluetooth (optional modules)
✅ Communication Ports: 🔌 USB, RS232, CAN Bus (for BMS integration)

🔒 Protections & Safety Features:

✅ Over-voltage / under-voltage protection ⚡
✅ Over-temperature protection 🔥
✅ Overload & short-circuit protection ⚠️
✅ Reverse polarity protection 🔄
✅ Anti-islanding protection 🏠

🚀 Applications

The 11kW 48V SVC Hybrid Solar Inverter is ideal for:

🏡 Residential Solar Systems – Power backup for homes, reducing grid dependency.
🏢 Commercial & Industrial Installations – Reliable, sustainable energy for businesses.
🌍 Off-Grid Systems – Perfect for remote locations without grid access.
🔄 Hybrid Power Solutions – Works with solar, grid, and generators for uninterrupted power.
🚗 EV Charging Stations – Provides sustainable energy for electric vehicle charging.

🛠️ Maintenance & Best Practices

To ensure optimal performance and longevity, follow these maintenance steps:

1️⃣ Cleaning & Inspection

• 🧼 Keep the inverter clean and free from dust.
• 🔎 Inspect for loose connections or signs of wear.

2️⃣ Battery Maintenance

• 🔋 Monitor battery voltage levels and ensure proper charging.
• ⚠️ Maintain lithium-ion batteries as per manufacturer guidelines.
• 🛠️ Perform periodic equalization for lead-acid batteries if required.

3️⃣ Firmware Updates & Monitoring

• 📥 Keep firmware updated for performance improvements.
• 📊 Use remote monitoring for tracking performance.

4️⃣ Cooling & Ventilation

• ❄️ Ensure proper airflow to prevent overheating.
• 🚫 Avoid placing the inverter in direct sunlight or enclosed spaces.

5️⃣ Safety Checks

• ⚡ Inspect surge protection & circuit breakers.
• 🛠️ Ensure proper grounding and compliance with electrical standards.

The 11kW 48V SVC Hybrid Solar Inverter is a powerful, efficient, and versatile solution for solar energy systems. With its 🌞 high-efficiency MPPT technology, 🔋 broad battery compatibility, and ⚡ smart hybrid operation, it provides a reliable and sustainable power solution for a wide range of applications.

✅ Regular maintenance and proper installation ensure long-term performance & energy savings! 🌱♻️
