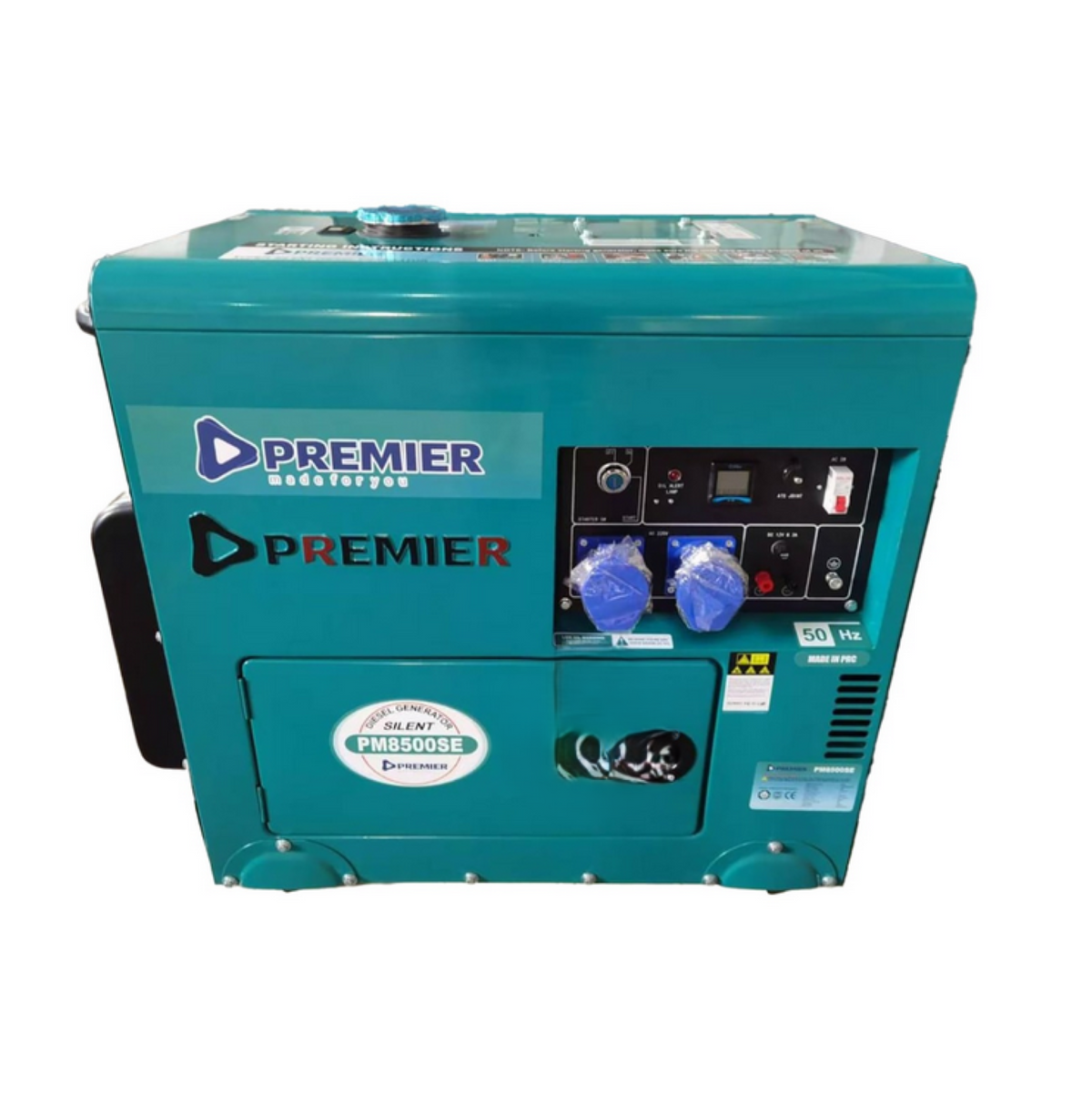

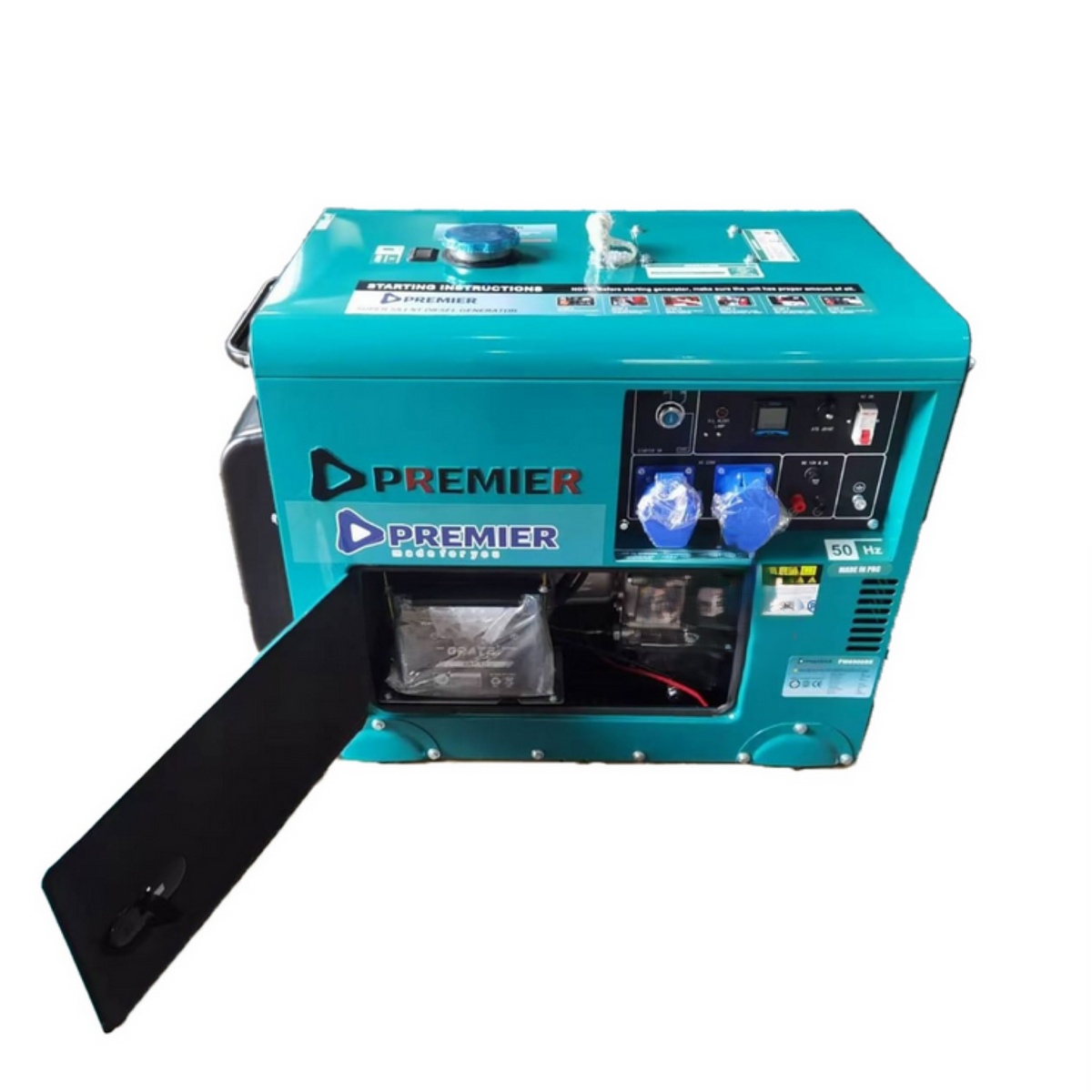

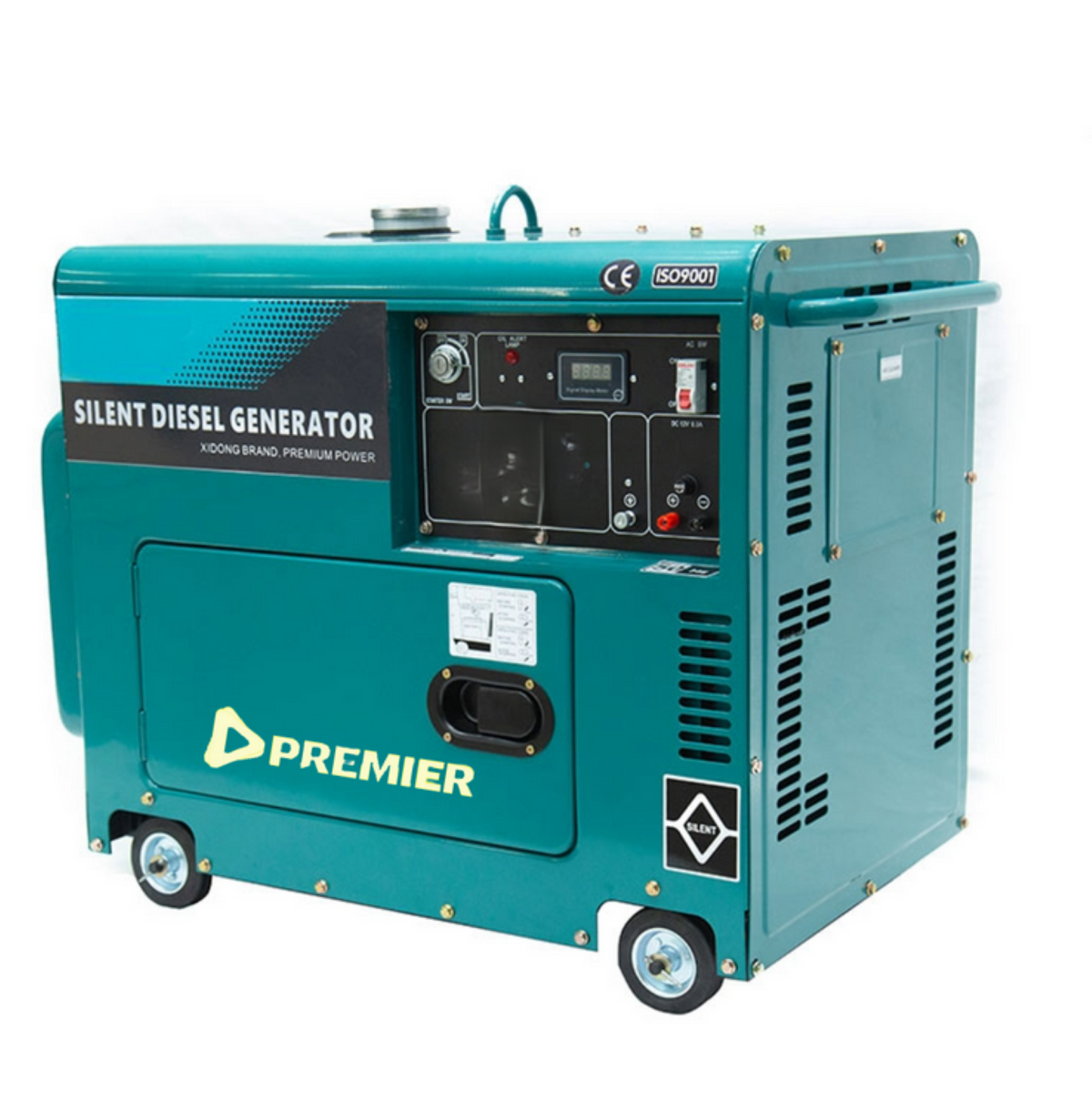

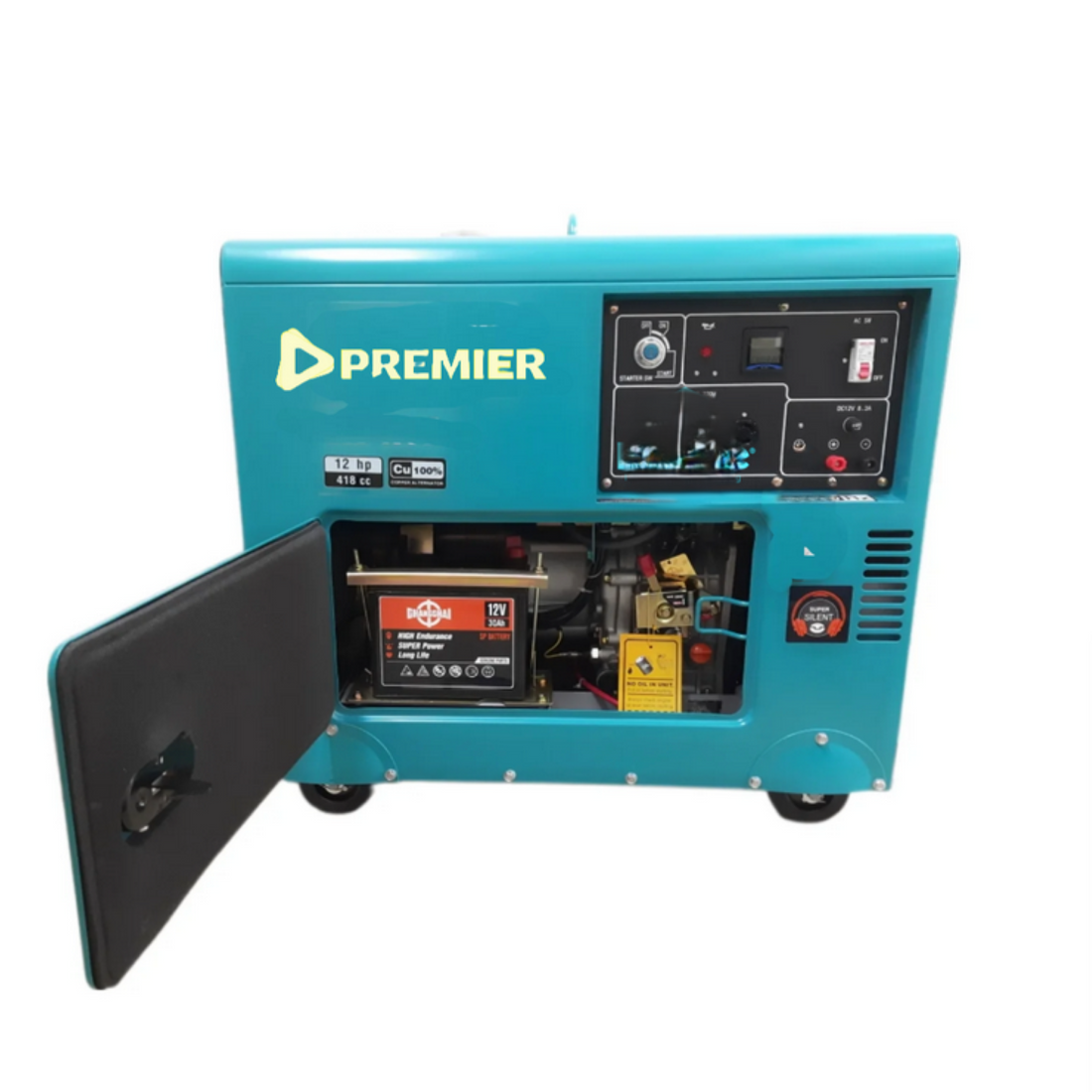

12.5kva 1ph Silent Diesel Generator With ATS Heavy Duty Premier

🔋 12.5kVA 1-Phase Silent Diesel Generator

⚡ Power Output: 12.5kVA (10kW) – Reliable backup power for homes and businesses.

🚜 Engine Type: 4-stroke diesel – Water-cooled generator, direct-injection engine for efficiency and durability.

🔋 Voltage: 230V AC – Single-phase stable power supply for essential electrical appliances.

⛽ Fuel Capacity: 30-50L – Large tank ensures extended operation with minimal refueling.

🔇 Noise Level: ≤65dB(A) – Ultra-quiet performance for residential and commercial environments.

🖥️ ATS Functionality: Automatic switching – Seamlessly transitions power during outages for convenience.

🔋 12.5kVA 1-Phase Silent Diesel Generator with ATS – Heavy Duty Premier ⚡

🔍 Overview

The 12.5kVA 1-Phase Silent Diesel Generator with ATS (Automatic Transfer Switch) - Heavy Duty Premier is a high-performance backup power solution designed for both residential and commercial applications. It is built for durability 🏗️, fuel efficiency ⛽, and quiet operation 🔇, making it ideal for environments where noise reduction is essential.

⚙️ Technical Specifications

🛠️ Engine & Performance:

• 🔌 Power Output: 12.5kVA (10kW)
• 🔄 Phase: Single Phase
• 🚜 Engine Type: 4-stroke, water-cooled, direct-injection diesel engine
• 📏 Displacement: Approximately 1.5L (varies by manufacturer)
• ⚡ Rated Speed: 1500 RPM / 3000 RPM (depending on model)
• ⛽ Fuel Type: Diesel
• 🛢️ Fuel Tank Capacity: 30-50 liters (approximate, varies by model)
• ⚙️ Fuel Consumption: ~2.5L per hour at 75% load
• 🌊 Cooling System: Water-cooled radiator system
• 🔑 Starting System: Electric start with battery
• 🔇 Noise Level: ≤65 dB(A) at 7 meters

⚡ Alternator & Electrical System:

• 🔋 Voltage: 230V AC (Single Phase)
• 🔄 Frequency: 50Hz / 60Hz (depending on configuration)
• 🔣 Power Factor: 1.0 (Single Phase)
• 🛡️ Voltage Regulation: AVR (Automatic Voltage Regulator)
• 🔧 Insulation Class: H Class

🖥️ Automatic Transfer Switch (ATS):

• ⚙️ ATS Functionality: Automatically detects power failure and switches between main power and generator supply
• ⏳ Response Time: Fast switching within seconds of power failure
• 📊 Control Panel: Digital controller with LCD/LED display for voltage, frequency, and engine monitoring
• 🛑 Protection Features: Overload protection, low oil pressure shutdown, high temperature shutdown, short-circuit protection

🏗️ Physical & Structural Details:

• 🛠️ Canopy Type: Soundproof, weather-resistant, and corrosion-resistant enclosure
• 🔩 Frame: Heavy-duty steel frame with vibration-dampening mounts
• 📏 Dimensions (L×W×H): Approx. 1500mm × 800mm × 1000mm (varies by brand)
• ⚖️ Weight: 350-450 kg (approximate)
• 💨 Exhaust System: Low-emission muffler for reduced noise and fumes

🏡 Applications

The 12.5kVA Silent Diesel Generator with ATS is ideal for various applications, including:

✔ 🏠 Residential Backup Power: Ensures uninterrupted power supply during outages.
✔ 🏢 Small Businesses & Offices: Powers essential equipment such as computers, lights, and security systems.
✔ 🛒 Retail & Commercial Spaces: Supports refrigerators, POS systems, and communication devices.
✔ 🏥 Healthcare & Clinics: Provides reliable power for medical equipment and lighting.
✔ 🚜 Agriculture & Farms: Runs irrigation pumps, lighting, and farm machinery.
✔ 🏗️ Construction Sites: Powers tools, lighting, and temporary site offices.
✔ 🎉 Outdoor Events: Provides silent and efficient power for lighting, sound systems, and catering setups.

🛠️ Maintenance & Service

Regular maintenance ensures optimal performance and longevity of the generator. Below are key maintenance activities:

🗓️ Daily Checks:

• ✅ Inspect fuel and oil levels before operation.
• ✅ Check for any leaks or loose connections.
• ✅ Ensure the battery is charged and terminals are clean.

🔄 Periodic Maintenance (Every 50-100 Hours):

• 🔄 Change engine oil and oil filter.
• 🔄 Clean or replace the air filter.
• 🔄 Check and tighten bolts, nuts, and fittings.

🛠️ Quarterly Maintenance (Every 200-250 Hours):

• 🛠️ Replace fuel filters and coolant if necessary.
• 🛠️ Inspect belts and hoses for wear and tear.
• 🛠️ Check the alternator and electrical connections.

🛢️ Annual Maintenance (Every 500-1000 Hours):

• 🔧 Perform a complete engine overhaul if required.
• 🔧 Test the ATS functionality and recalibrate voltage settings.
• 🔧 Check exhaust system and muffler for clogging or damage.

By following this maintenance schedule 📅, the generator will operate efficiently and reliably for many years.

The 12.5kVA 1-Phase Silent Diesel Generator with ATS – Heavy Duty Premier is a robust 🏗️, fuel-efficient ⛽, and low-noise 🔇 power backup solution suitable for various industries. With its automatic power switching ⚡, durable engine 🛠️, and soundproof design 🔕, it provides uninterrupted electricity with minimal maintenance requirements.

Whether for residential 🏡, commercial 🏢, or industrial 🏭 use, this generator ensures a stable power supply even during extended outages. 🔋⚡
