12.5kva 1phase Pyramid Silent Diesel Generator With ATS

⚡ Power Output: 12.5kVA Prime / 12.0kVA Standby for reliable electricity supply.

🔄 Phase & Voltage: Supports Single & Three Phase with 230V (Single) / 380V-415V (Three Phase).

⛽ Fuel System: Runs on Diesel with a 30-liter fuel tank for extended operation.

🔊 Noise Level: Silent operation with 96 dB at 1m and 70 dB at 7m, ideal for noise-sensitive areas.

❄️ Cooling System: Air-cooled mechanism to prevent overheating and ensure durability.

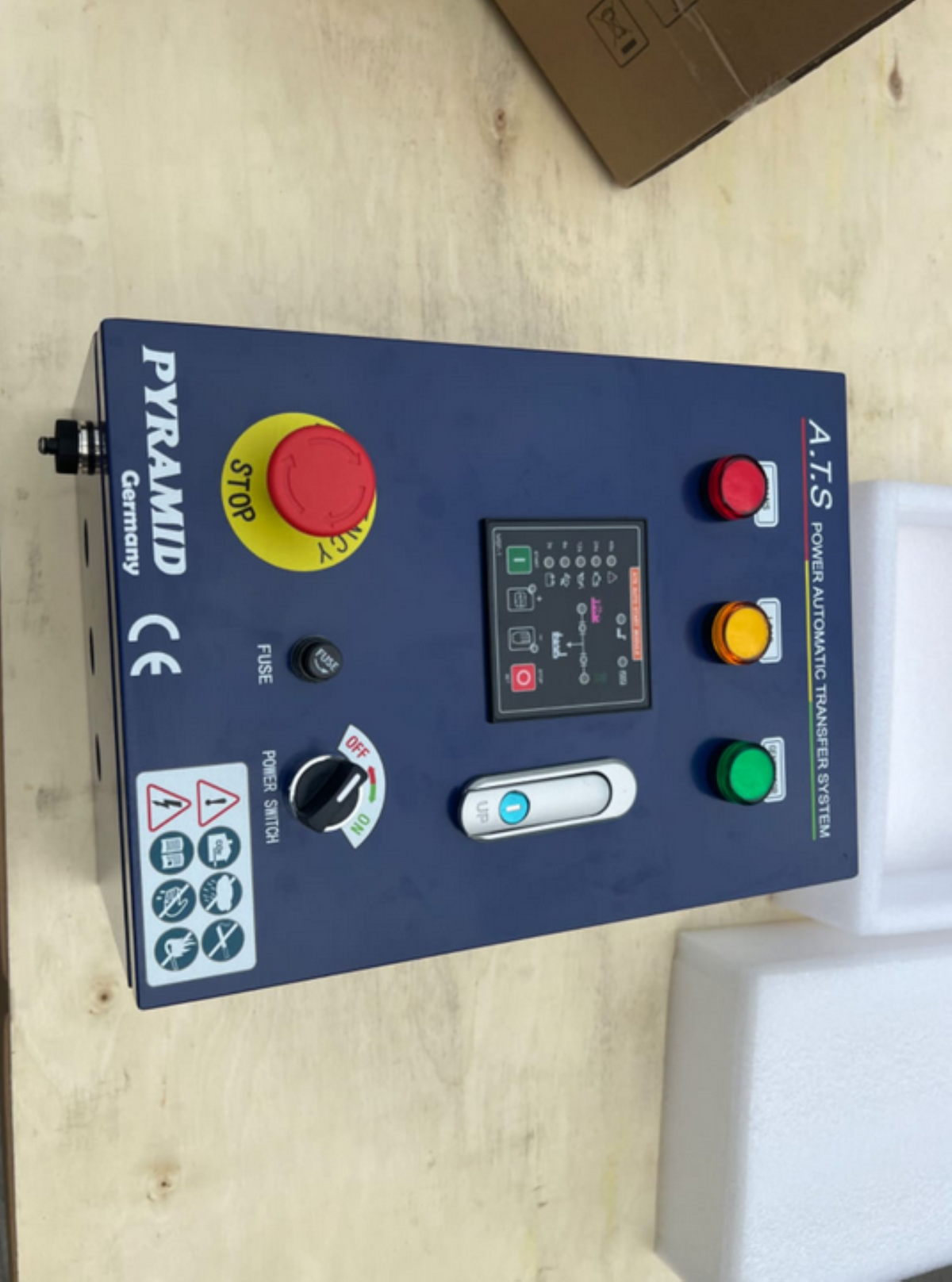

🔄 Automatic Transfer Switch (ATS): Enables seamless switching between mains and generator power.

---

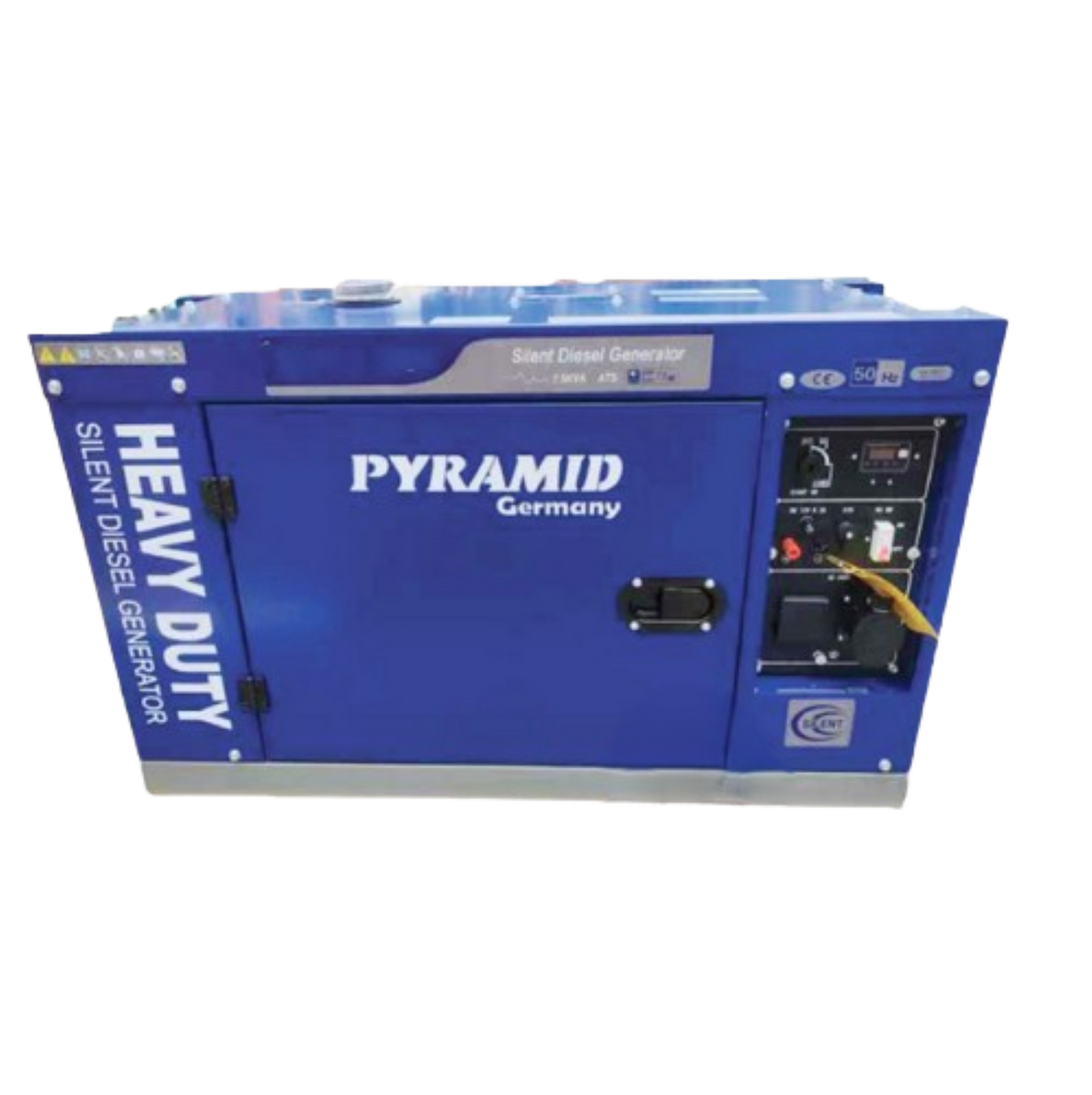

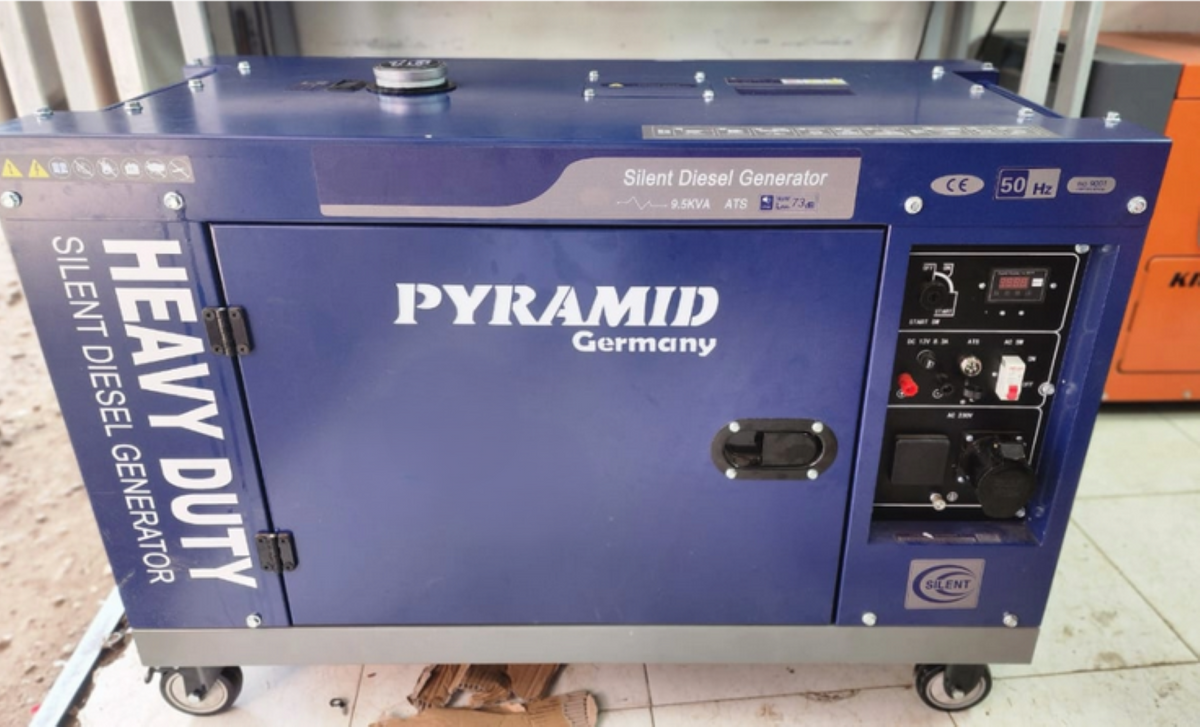

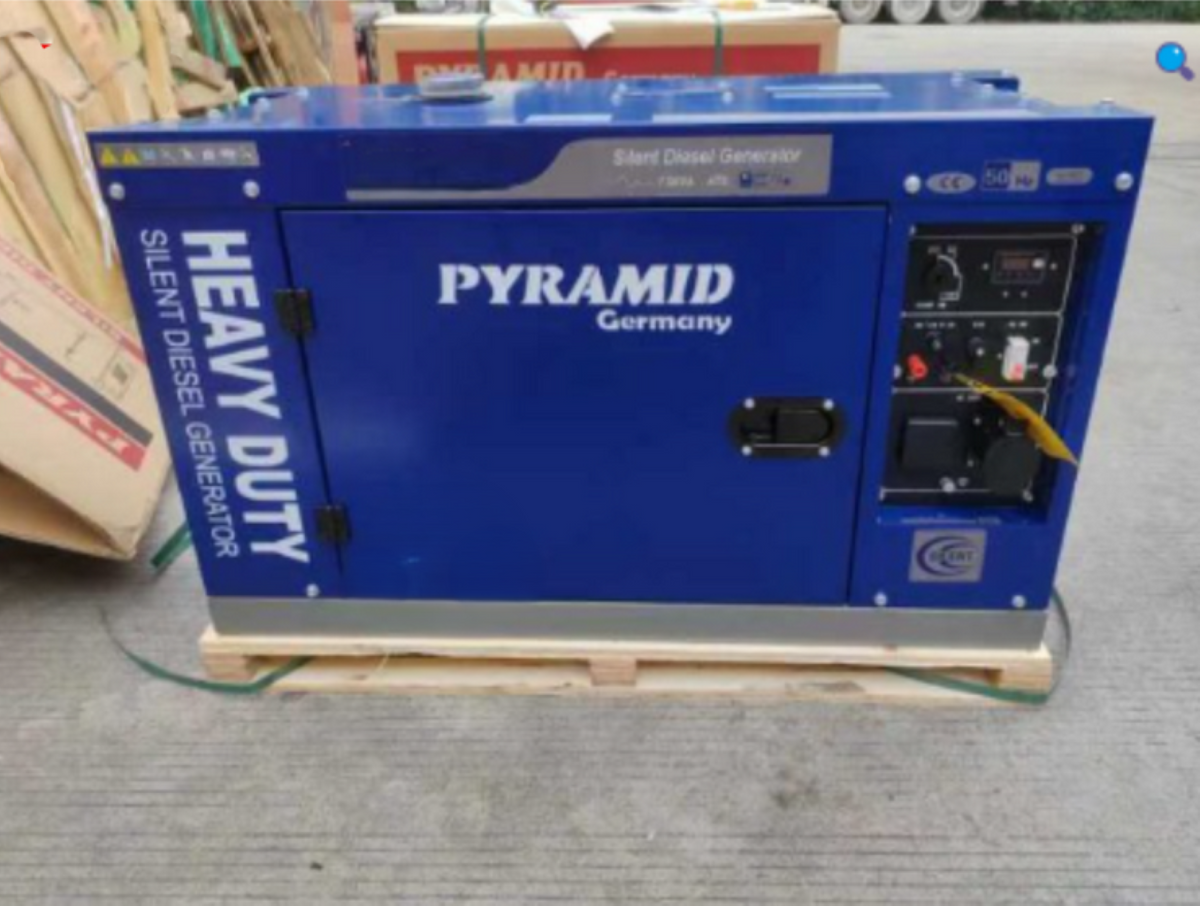

The Pyramid Germany 12.5kVA Silent Diesel Generator with Automatic Transfer Switch (ATS) is a robust and efficient power solution designed for both residential and commercial applications.

🔹 Technical Specifications:

🔌 Power Output:

• ⚡ Rated/Prime Power: 12.5kVA
• 🔋 Max/Standby Power: 12.0kVA

🔄 Phase Options:

• 🔲 Single Phase & Three Phase

🔧 Voltage & Frequency:

• ⚙️ Voltage: 230V (Single Phase) / 380V-415V (Three Phase)
• ⏳ Frequency: 50 Hz
• 🚀 Speed: 3000 RPM

🔢 Power Factor: 1️⃣.0

⛽ Fuel System:

• 🛢️ Fuel Type: Diesel
• ⛽ Fuel Tank Capacity: 30 liters

🔊 Noise Level:

• 📏 96 dB at 1 meter (75% load)
• 📏 70 dB at 7 meters (75% load)

💨 Cooling System:

• ❄️ Air-Cooled

⚡ Voltage Regulation:

• 🔄 Automatic Voltage Regulator (AVR)

🔋 Battery:

• ⚡ 12V 36Ah

🔄 ATS (Automatic Transfer Switch) Compatibility: ✅ Yes

🛡️ Warranty: 2️⃣ years

---

📏 Dimensions & Weight:

📐 Size (L x W x H): 1180 x 700 x 1030 mm
⚖️ Net Weight: 320 kg
⚖️ Gross Weight: 300 kg

---

🛠️ Maintenance Tips:

🛢️ Oil Changes: Regularly check and replace engine oil to ensure smooth operation.
🌬️ Air Filter Cleaning: Keep air filters clean to prevent clogging and improve efficiency.
⛽ Fuel System Check: Inspect fuel lines and tank to avoid leaks and contamination.
🔋 Battery Maintenance: Keep the battery charged and connections tight for reliable starts.
❄️ Cooling System: Ensure the air-cooling system is unobstructed to prevent overheating.

✅ Follow the manufacturer’s maintenance schedule for optimal performance!

---

🌍 Applications & Uses:

🏡 Residential Backup Power – Keep essential home appliances running during blackouts.
🏢 Commercial & Business Use – Reliable power for small to medium enterprises.
🚧 Construction Sites – Power tools and equipment in off-grid locations.
🎉 Events & Outdoor Activities – Supply electricity for lighting, sound systems, and equipment.

🔇 Silent Operation & ATS make it perfect for noise-sensitive environments!
