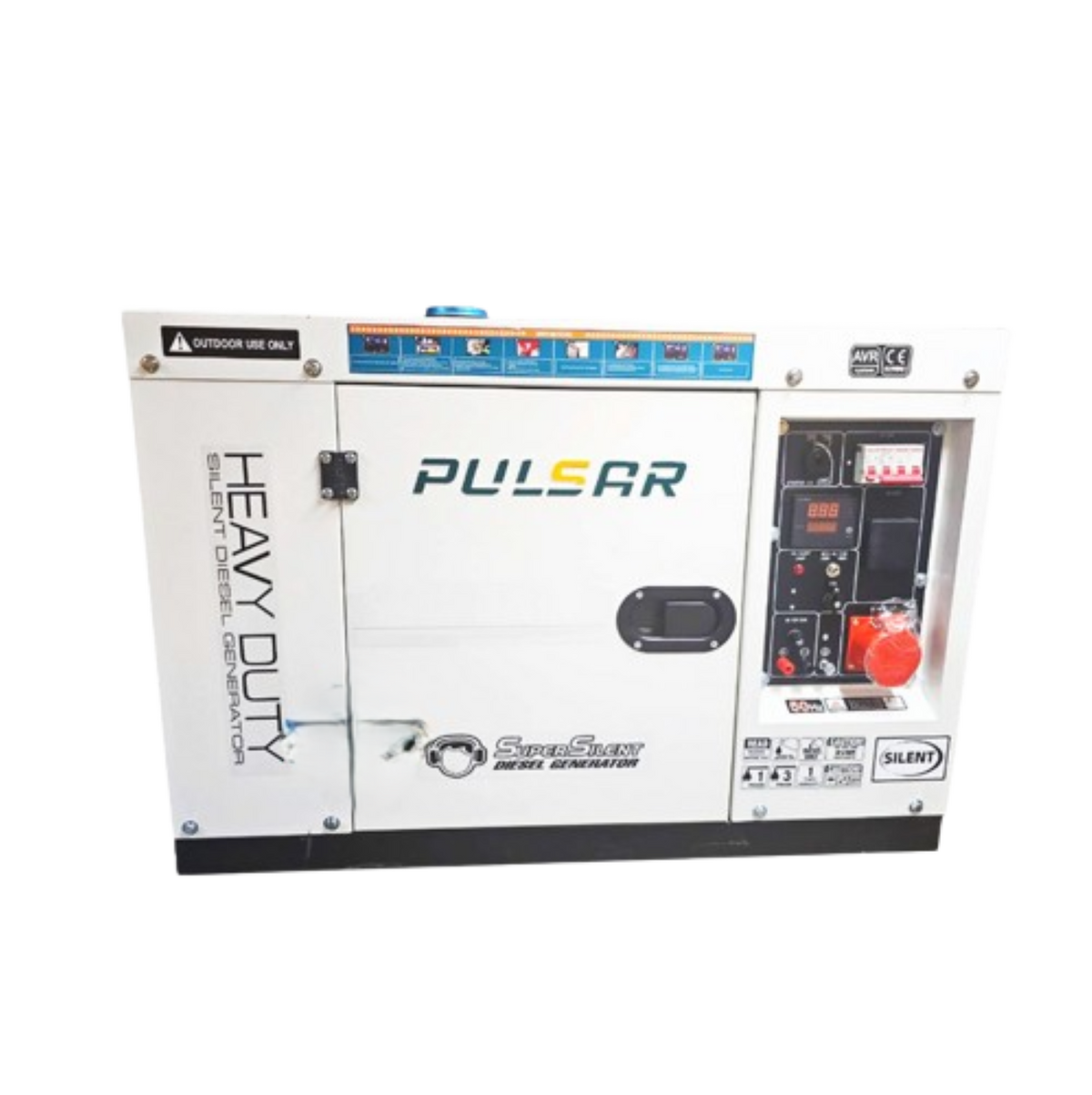

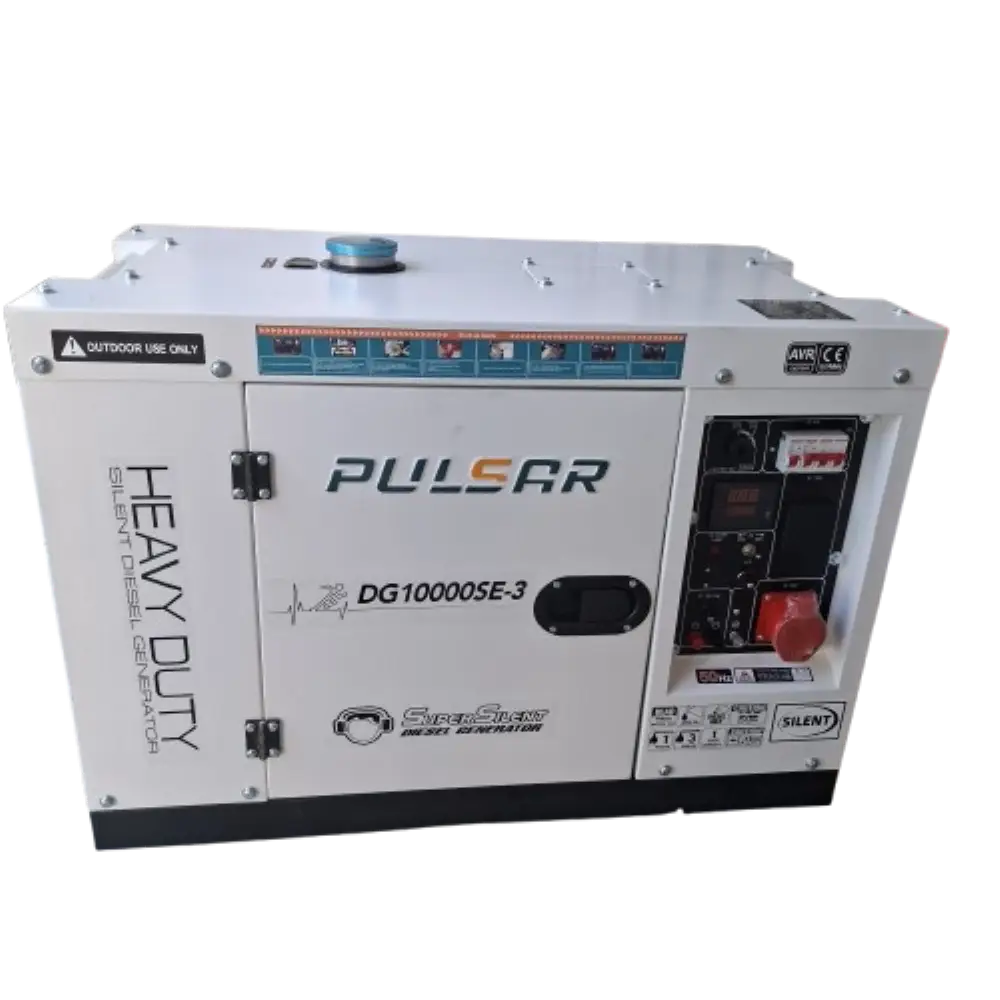

12.5kva 3ph Pulsar Diesel Silent Generator With ATS Heavy Duty

🔌 Power Output: 12.5 kVA/ 10KW for reliable backup power.

⚡ Voltage & Frequency: 400V (3-Phase) / 230V (Single Phase), 50Hz / 60Hz.

🚜 Engine of the Generator: 4-stroke, water-cooled diesel engine with electric start.

⛽ Fuel & Runtime: Diesel-powered with a 30-50L tank, running 8-12 hours.

🔇 Noise Level: Silent enclosure reduces noise to ~65-75 dB(A) @ 7m.

🛡️ Protection: ATS, AVR, low oil shutdown, overload protection, and circuit breaker.

 12.5 kVA 3-Phase Pulsar Diesel Silent Generator with ATS (Heavy Duty)

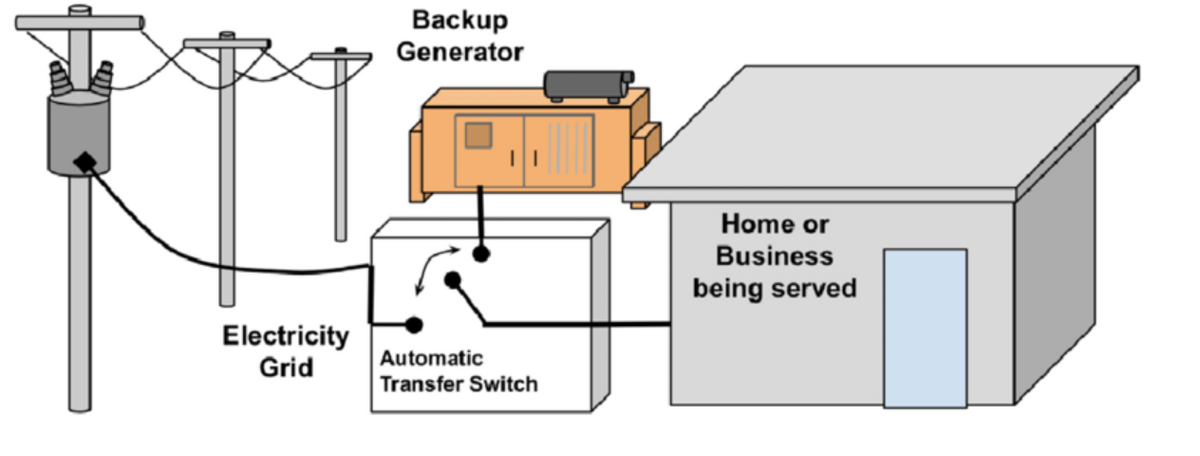

The 12.5 kVA 3-Phase Pulsar Diesel Silent Generator is a powerful, fuel-efficient, and low-noise backup solution designed for commercial and industrial applications. With an Automatic Transfer Switch (ATS), it ensures seamless switching between mains power and backup supply. The silent enclosure significantly reduces noise, making it ideal for noise-sensitive environments.

Technical Specifications:

• 🔌 Power Output: 12.5 kVA / 10 kW
• ⚡ Voltage: 400V (3-Phase) / 230V (Single Phase)
• 🔁 Frequency: 50Hz / 60Hz (Depending on model)
• 🚜 Engine Type: 4-stroke, water-cooled, diesel engine
• 🔑 Starting System: Electric Start with ATS (Automatic Transfer Switch)
• ⛽ Fuel Type: Diesel
• ⏳ Fuel Tank Capacity: Typically between 30-50 liters
• 🕒 Running Time: Approx. 8-12 hours (depending on load)
• 🔇 Noise Level: ~65-75 dB(A) @ 7 meters
• ⚙️ Alternator Type: Brushless, AVR (Automatic Voltage Regulation)
• 🖥️ Control Panel: Digital control panel with real-time monitoring
• ❄️ Cooling System: Water-cooled
• 🛡️ Protection Features: Low oil shutdown, overload protection, circuit breaker

📏 Weight & Dimensions:

• ⚖️ Weight: Approx. 300-500 kg (varies by model)
• 📐 Dimensions (L x W x H): 1200mm x 700mm x 900mm (varies by model)

💡 Applications:

This generator is perfect for:

• 🏭 Industrial Use – Factories, warehouses, and production plants
• 🏢 Commercial Buildings – Office buildings, malls, and data centers
• 🚧 Construction Sites – Powering tools and heavy equipment
• 🏥 Hospitals & Healthcare – Reliable power for medical equipment
• 📡 Telecommunications – Network towers and IT infrastructure
• 🎉 Events & Outdoor Functions – Concerts, festivals, and exhibitions

🛠️ Maintenance Guidelines:

📅 Daily Checks:

✅ Inspect fuel and oil levels
✅ Check for leaks or loose connections
✅ Ensure battery is fully charged

📆 Weekly Maintenance:

✅ Run the generator under load for at least 30 minutes
✅ Clean air filters and remove dust buildup

📅 Monthly Maintenance:

✅ Check and tighten all electrical connections
✅ Inspect cooling system and radiator for blockages
✅ Test ATS functionality

🔧 Quarterly / Annual Maintenance:

✅ Change oil and fuel filters
✅ Inspect and replace belts if necessary
✅ Conduct a full system check and professional servicing

The 🔋 12.5 kVA Pulsar Diesel Silent Generator is a heavy-duty, efficient, and reliable power source with low noise levels 🔇 and ATS functionality. It is ideal for businesses, industries, and critical facilities requiring uninterrupted power. With proper maintenance, it ensures long-term performance and dependability.
