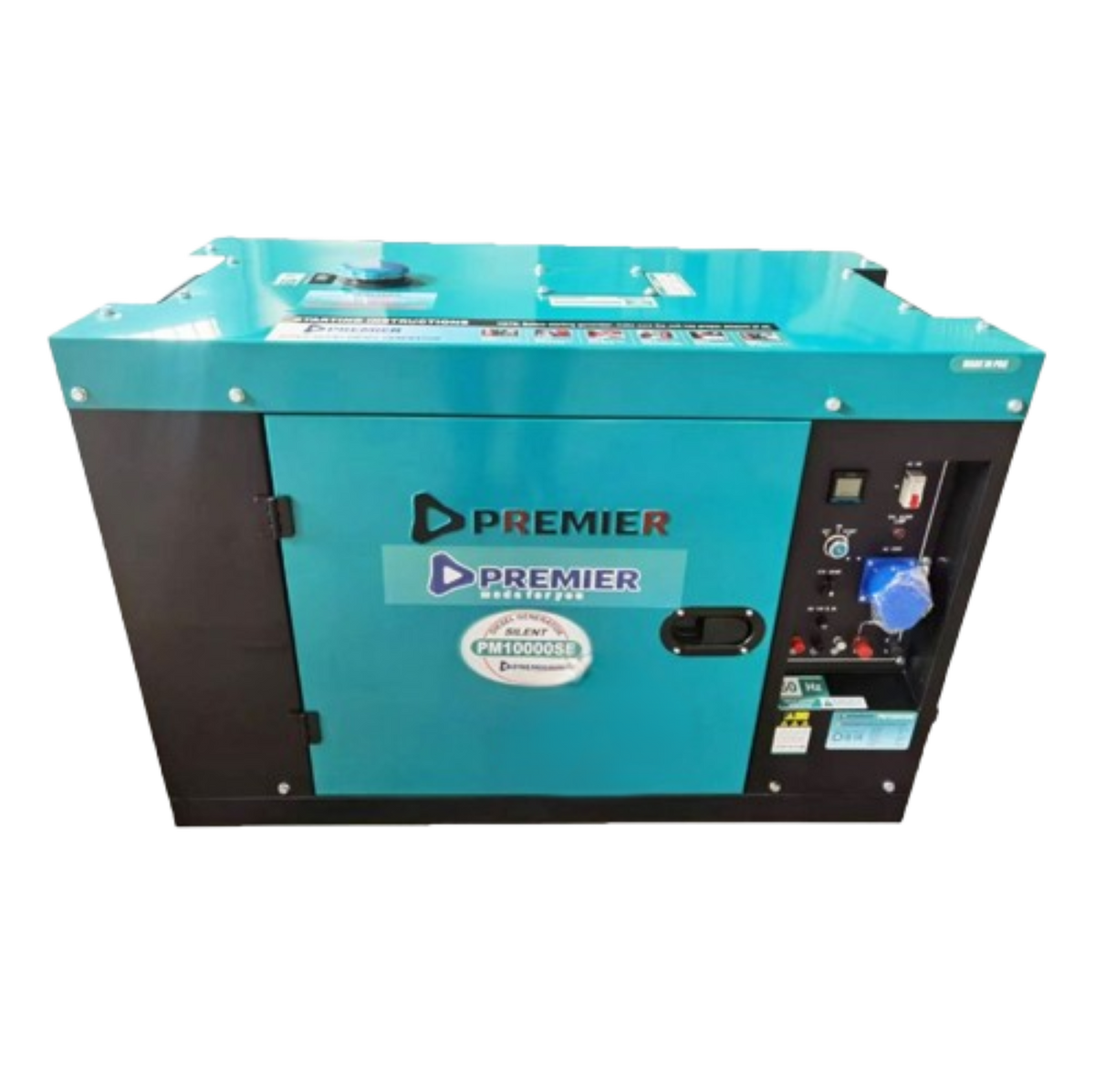

12kva 1ph Premier Silent Diesel Generator With ATS Heavy Duty

🔋 12kVA 1-Phase Premier Silent Diesel Generator with ATS (Heavy Duty) 🔋

🔹 Power Output ⚡ – Delivers 12kVA (9.6kW) rated power with a single-phase (1PH) supply, ensuring reliable backup for homes and businesses.

🔹 Engine & Fuel Efficiency ⛽ – 4-stroke, water-cooled diesel engine, with a ~40-50L fuel tank and consumption of ~2.5L/hour at 75% load, optimizing fuel efficiency.

🔹 Silent Operation 🔇 – Equipped with a soundproof canopy, keeping noise levels at ~60-70 dB at 7 meters, making it ideal for quiet environments.

🔹 Automatic Transfer Switch (ATS) 🔄 – Enables seamless automatic switching between mains power and generator, ensuring uninterrupted electricity supply.

🔹 Digital Control Panel 🖥️ – Features real-time monitoring, AVR for stable voltage, multiple safety protections, and optional remote monitoring for added convenience.

🔋 12kVA 1-Phase Premier Silent Diesel Generator with ATS (Heavy Duty) 🔋

🔧 Overview

The 12kVA 1-Phase Premier Silent Diesel Generator with ATS (Automatic Transfer Switch) Heavy Duty is a powerful and reliable backup power solution ⚡ designed for homes 🏠, businesses 🏢, and small industries 🏭. Built for efficiency, durability, and low noise 🎧, this generator ensures uninterrupted power supply during outages.

📌 Technical Specifications

• ⚡ Power Output:

  • 🔹 Rated Power: 12kVA (9.6kW)
  • 🔹 Maximum Power: 13.2kVA (10.5kW)
  • 🔹 Power Factor: 0.8
  • 🔹 Phase: Single-phase (1PH)

• 🛠️ Engine Specifications:

  • 🔹 Engine Type: 4-stroke, water-cooled diesel engine
  • 🔹 Fuel Type: Diesel ⛽
  • 🔹 Fuel Tank Capacity: ~40-50 Liters
  • 🔹 Fuel Consumption: ~2.5L per hour at 75% load
  • 🔹 Cooling System: Water-cooled with radiator ❄️
  • 🔹 Starting System: Electric Start 🔑
  • 🔹 Lubrication System: Full pressure lubrication with oil filter 🛢️

• ⚙️ Alternator Details:

  • 🔹 Type: Brushless, self-excited
  • 🔹 Voltage Regulation: Automatic Voltage Regulation (AVR) 🔌
  • 🔹 Frequency: 50Hz or 60Hz (model dependent)

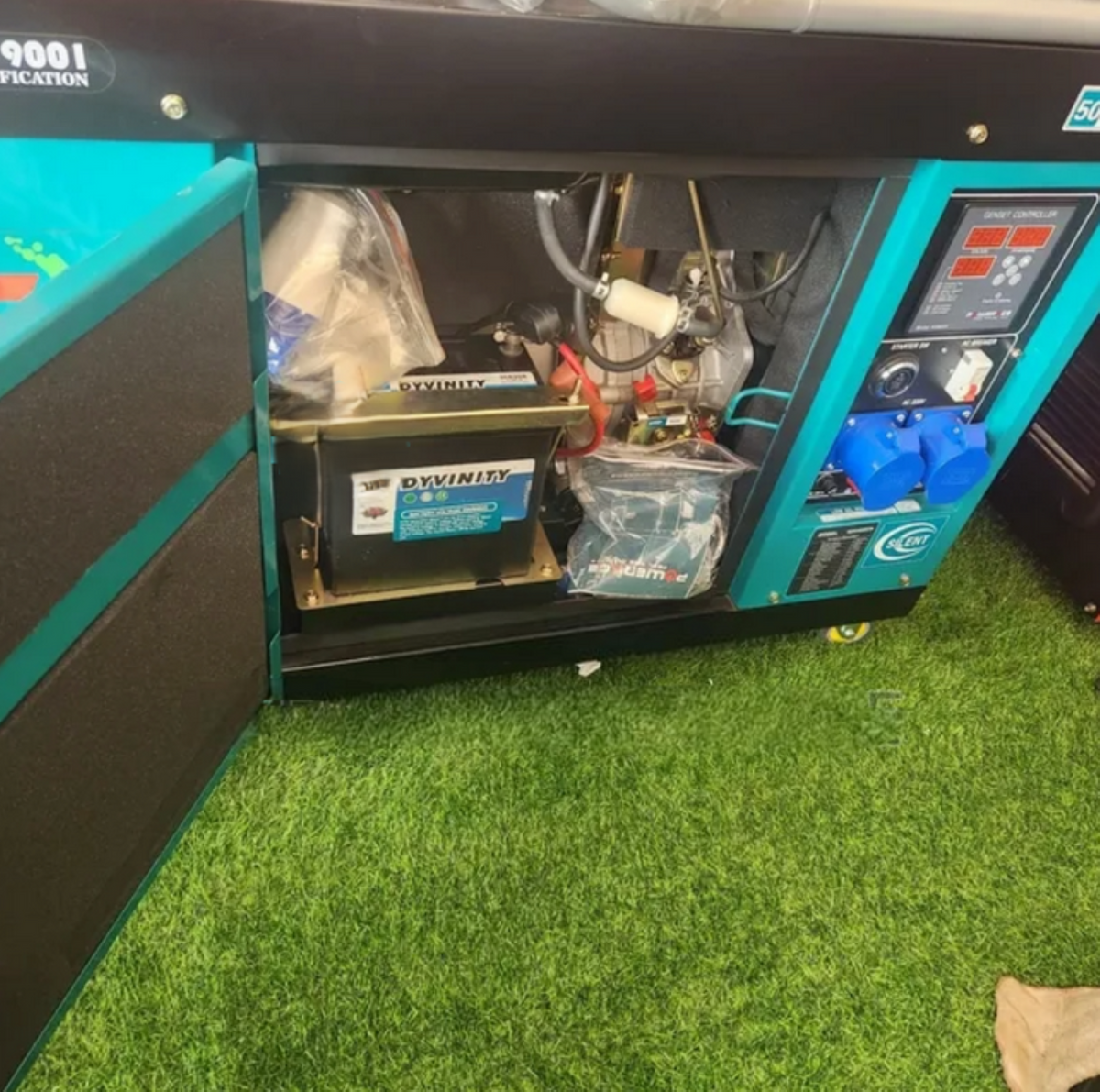

• 🖥️ Control Panel & ATS Features:

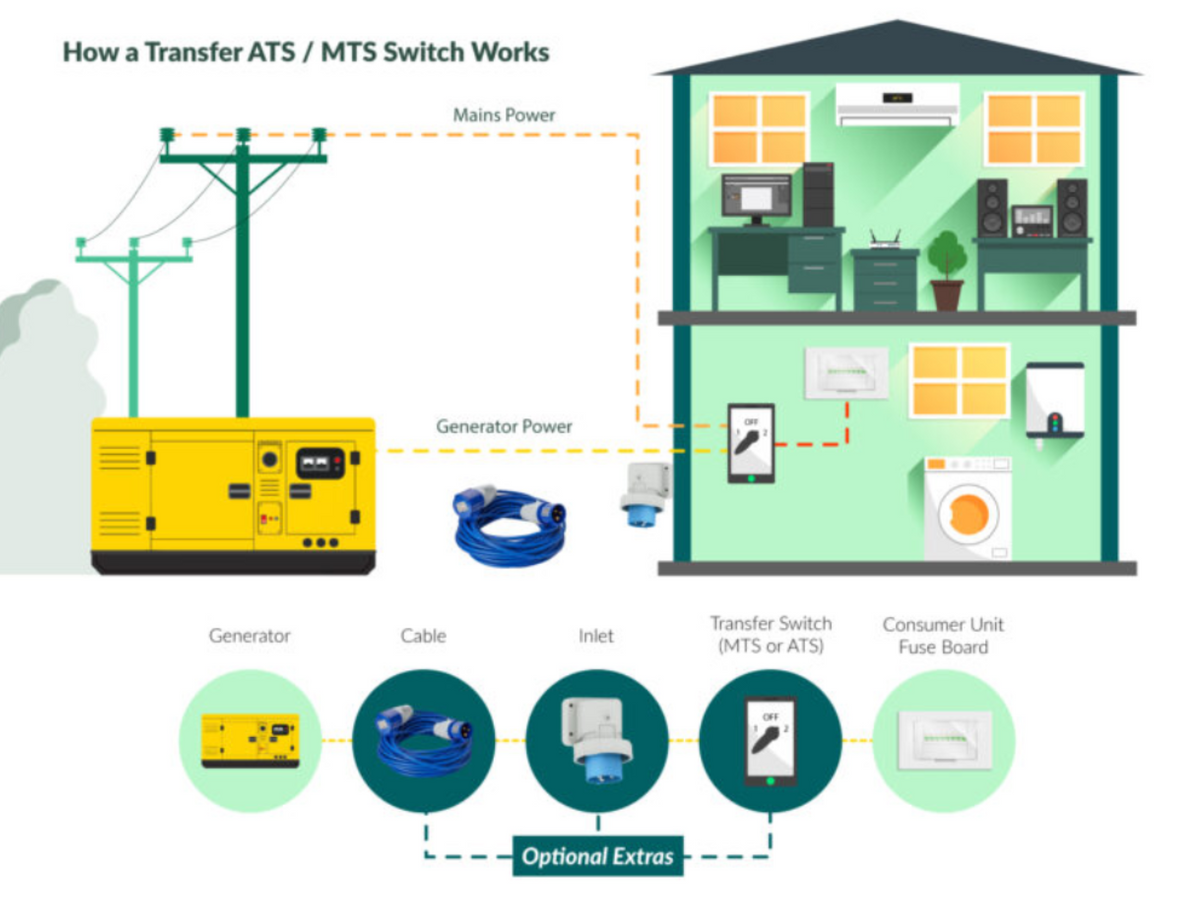

  • ✅ Automatic Transfer Switch (ATS) 🔄: Switches power between mains & generator automatically.
  • ✅ Digital Display 📊: Shows voltage, frequency, runtime, and alerts.
  • ✅ Protection Features 🛡️: Guards against low oil pressure, high temperature, overload & short circuit.
  • ✅ Remote Monitoring (optional) 📡: Some models allow remote access and control.

• 🔇 Noise Level:

  • 🔹 Silent Canopy 🎧: Designed to minimize noise pollution.
  • 🔹 Noise Level: ~60-70 dB at 7 meters.

• 📏 Dimensions & Weight:

  • 🔹 Size: Approx. 1500mm × 750mm × 1100mm
  • 🔹 Weight: 400-500kg

🌍 Applications

✔️ Residential Use 🏠: Ensures uninterrupted power during outages.
✔️ Commercial Use 🏢: Ideal for shops, offices, and small businesses.
✔️ Industrial Use 🏭: Suitable for small-scale industries & construction sites.
✔️ Telecommunications 📡: Provides stable power for telecom towers & IT infrastructure.
✔️ Medical & Emergency Services 🏥: Critical for clinics, hospitals & emergency response centers.

🛠️ Maintenance & Service

Regular maintenance extends the generator’s lifespan ⏳ and ensures optimal performance 🚀.

🗓️ Daily Maintenance

🔍 Check fuel & oil levels before operation.
🛢️ Inspect for leaks in fuel, oil, or coolant.
🔋 Ensure the battery is charged & connections are clean.

🗓️ Weekly Maintenance

⚡ Run the generator for 10-15 minutes under load.
🌀 Inspect air filters for dust accumulation.

🗓️ Monthly Maintenance

🌬️ Clean or replace air filters.
💦 Check coolant levels and top up if needed.
🔌 Inspect alternator wiring & connections.

🗓️ Quarterly Maintenance

🛢️ Replace engine oil & oil filter.
⛽ Clean or replace the fuel filter.
🔩 Inspect belts, hoses, and exhaust system.

🗓️ Annual Maintenance

🛠️ Full system diagnostic check.
📊 Load test the generator for performance assurance.
❄️ Replace coolant & inspect radiator condition.
🔄 Test ATS function to ensure smooth power switching.

The 12kVA 1-Phase Premier Silent Diesel Generator with ATS (Heavy Duty) ⚡ is an efficient, low-noise, and durable power backup solution. With its automatic transfer switch, protection features, and reliable performance, it’s perfect for homes, businesses, and small industries. Regular maintenance ensures long-term durability, making it a dependable choice ✅.
