1kw 1000watts 12v Solar Power System

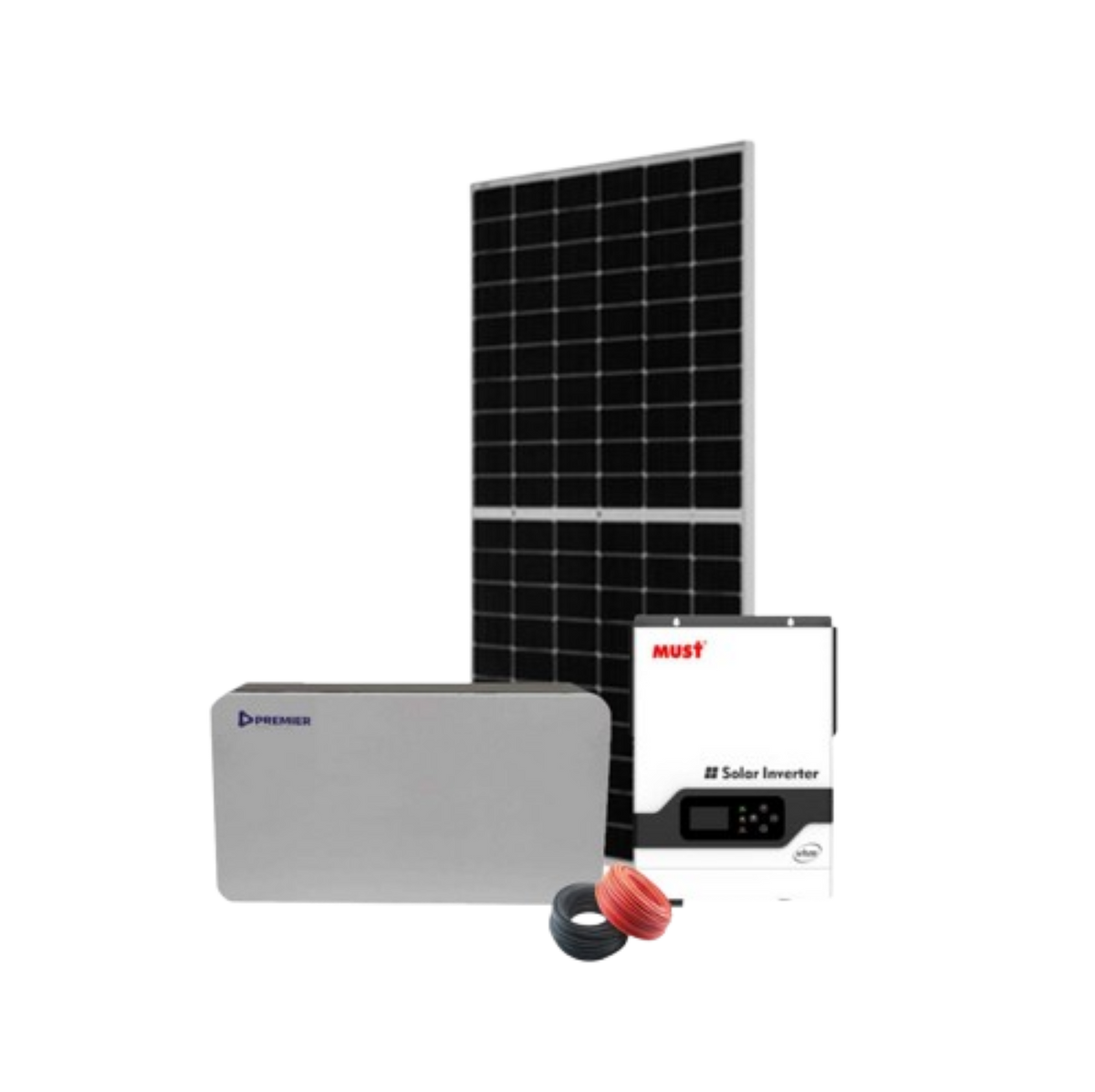

🔧 Main Components of 1kW (1000W) 12V Solar Power System

⚡ 1kVA Hybrid Inverter (Must Brand) – Converts DC from the battery into AC for appliances; manages solar, battery, and grid inputs.

🔋 2.56kWh 200Ah 12V Premier Battery – Stores energy for use when sunlight is unavailable; deep cycle for long-lasting performance.

☀️ 470W Monocrystalline Solar Panel – Captures sunlight and converts it into DC electricity with high efficiency.

🔌 6mm² PV Cable – Heavy-duty solar cable for efficient power transmission from the panel to the inverter and battery.

🔋⚡ Solar Charge Controller (Built-in) – Regulates voltage and current from the solar panel to prevent battery overcharging.

---

🔋☀️ 1kW (1000W) 12V Solar Power System – Detailed Breakdown

This 1kW (1000W) solar power system is designed for small-scale off-grid or backup applications, perfect for homes, small businesses, or remote locations. Below is a detailed breakdown of its components and functionality.

---

🔧 System Components

1️⃣ 1kVA Hybrid Inverter (Must Brand) ⚡

• 🔹 Type: Hybrid inverter (combining solar, battery, and grid/generator input)
• 🔹 Capacity: 1kVA (1000VA)
• 🔹 Input Voltage: 12V DC (Battery)
• 🔹 Output Voltage: 220V/230V AC (Pure Sine Wave)
• 🔹 Solar Input: Supports direct solar panel input
• 🔹 Features:
  ✅ MPPT/PWM Solar Charge Controller (built-in)
  ✅ Automatic switching between solar, battery, and grid power
  ✅ LCD display for monitoring system performance
  ✅ Overload and short circuit protection
  ✅ Battery charging options from solar, grid, or generator

---

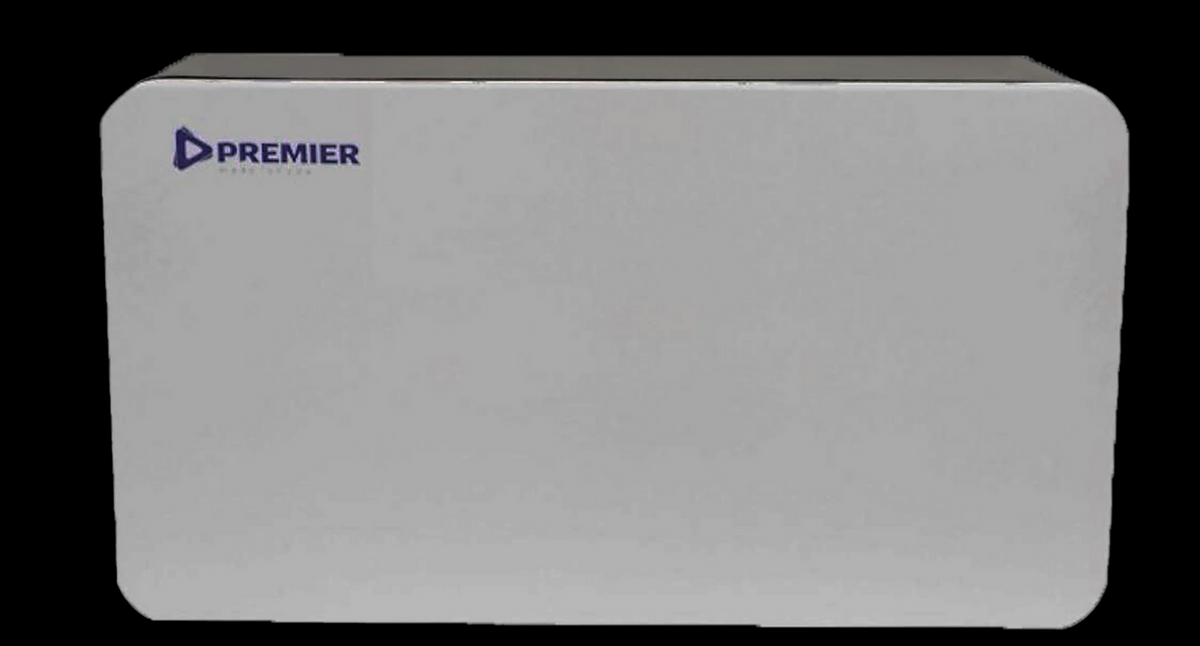

2️⃣ 2.56kWh 200Ah 12V Premier Battery 🔋

• 🔹 Type: Deep Cycle Lead-Acid or Lithium-ion (depending on selection)
• 🔹 Voltage: 12V DC
• 🔹 Capacity: 200Ah
• 🔹 Energy Storage: 2.56kWh (12V × 200Ah = 2,560Wh)
• 🔹 Features:
  ✅ Long lifespan with deep discharge cycles
  ✅ Low self-discharge rate
  ✅ Maintenance-free (if lithium or sealed lead-acid)
  ✅ Suitable for off-grid and backup power applications

---

3️⃣ 470W Monocrystalline Solar Panel ☀️

• 🔹 Type: Monocrystalline (High Efficiency)
• 🔹 Power Output: 470W
• 🔹 Voltage at Maximum Power (Vmp): ~39-42V
• 🔹 Current at Maximum Power (Imp): ~10-12A
• 🔹 Open Circuit Voltage (Voc): ~48-50V
• 🔹 Short Circuit Current (Isc): ~11-13A
• 🔹 Efficiency: ~20-22%
• 🔹 Dimensions: Typically around 2.1m x 1.1m
• 🔹 Weight: ~23-25kg
• 🔹 Features:
  ✅ High energy conversion efficiency
  ✅ Durable, weather-resistant design
  ✅ Tempered glass and aluminum frame for long-lasting performance

---

📊 System Performance & Expected Output

• 🔆 Daily Solar Power Generation:

  • 470W panel × ~5 hours of peak sunlight = ~2.35kWh/day
  • ⚠️ Actual power depends on location, sunlight conditions, and efficiency losses.

• 🔋 Battery Storage Capacity:

  • 2.56kWh total storage
  • Can power small appliances like lights, fans, TVs, and small refrigerators for a few hours.

• 🕒 Backup Power Duration:

  • If fully charged, the battery can provide 1000W (1kW) for ~2.5 hours
  • If loads are reduced (e.g., 500W), it can last ~5 hours

---

✅ Applications & Use Cases

🏡 Home backup power for essential appliances (lights, TV, router, phone charging)
🏕️ Off-grid power for small cabins, RVs, or remote locations
🛍️ Small business backup power (POS systems, CCTV, small fans)
🎪 Portable power setup for camping or outdoor events

---

🔝 Potential Upgrades & Recommendations

🛠 Add More Solar Panels: One 470W panel may not be enough for continuous power. Adding at least one more panel will improve performance.
🔋 Increase Battery Capacity: A larger battery bank (adding another 200Ah battery) will allow longer backup power.
💡 Use Energy-Efficient Appliances: LED bulbs, DC fans, and inverter fridges help maximize battery life.
