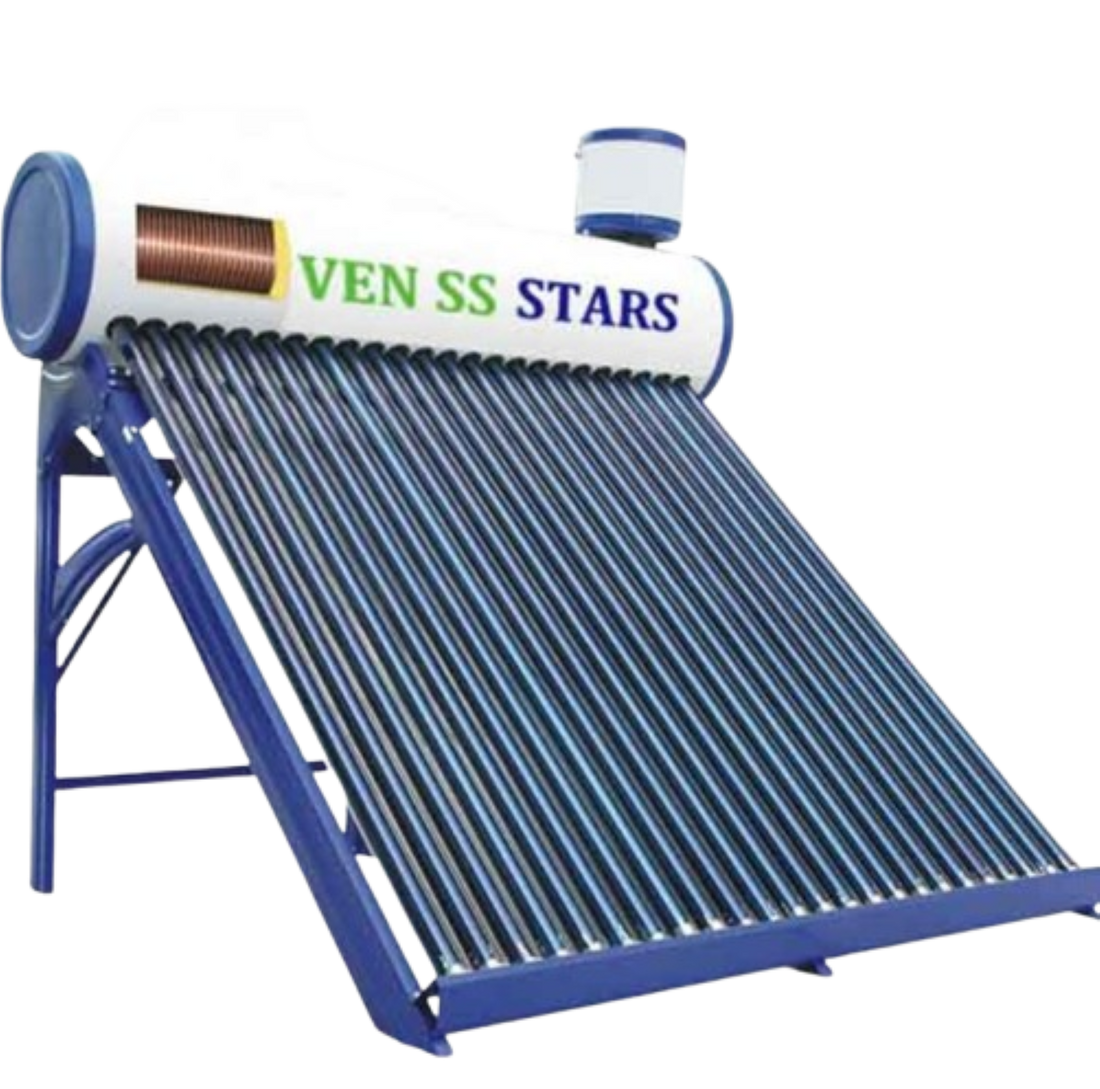

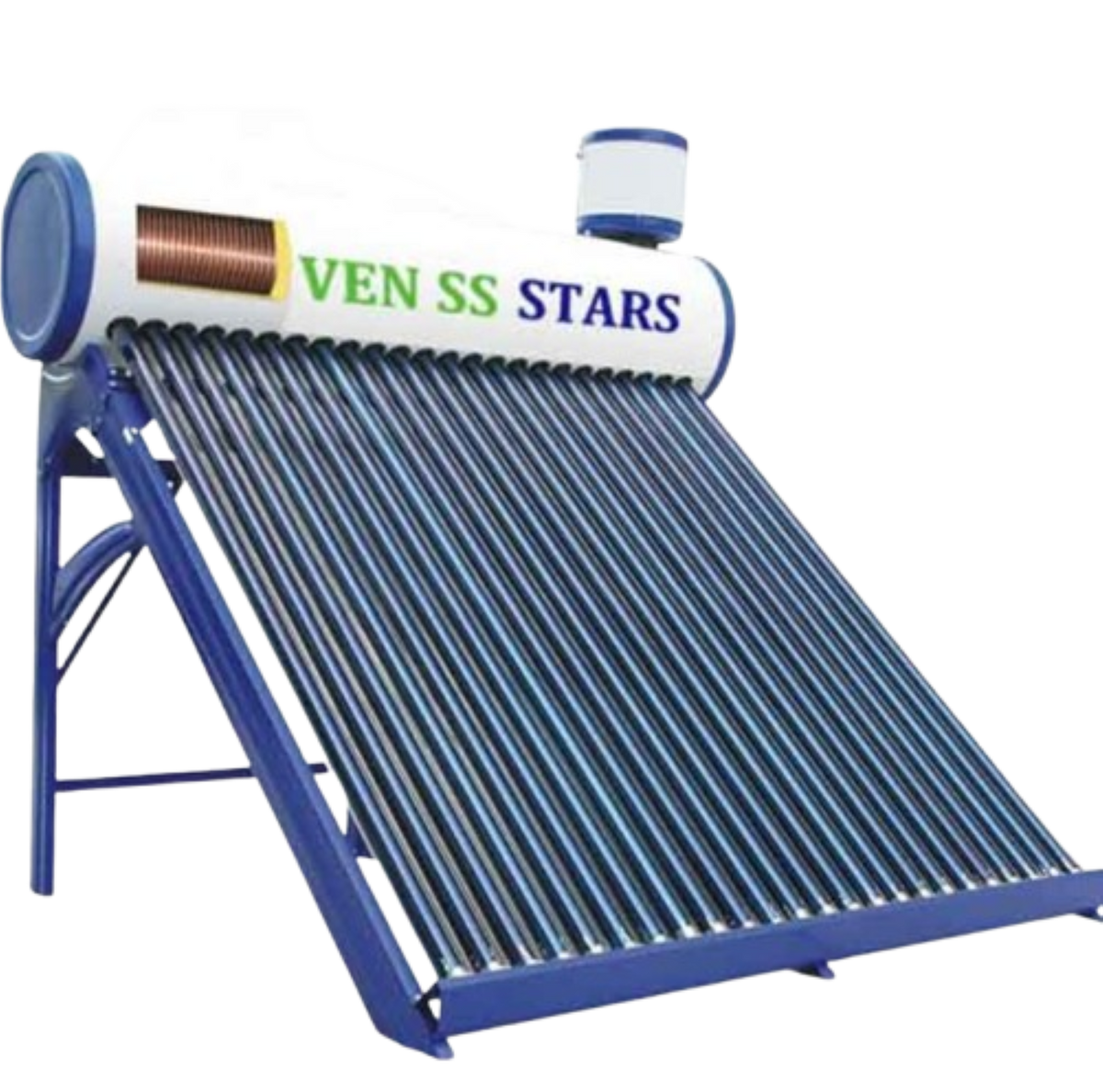

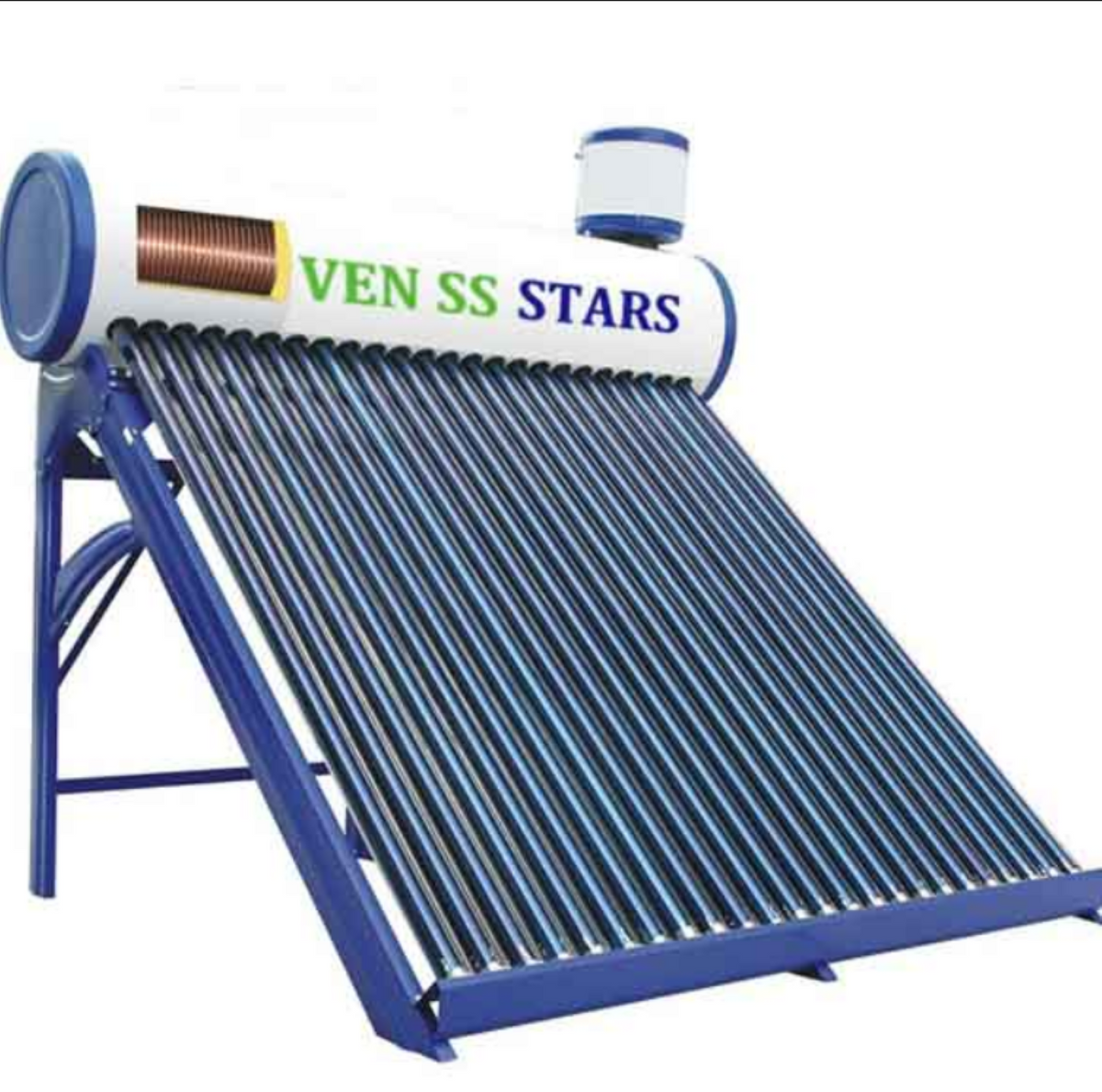

200L Solar Water Heater Non Pressurized Seven SS

200L non-pressurized solar heater with SS tank, PU insulation, 58×1800mm tubes (18–20), 92–96% efficiency, 50–90°C, adjustable frame, 15–20yr life.

---

🔆 200L Solar Water Heater Non-Pressurized Seven SS 🔆

📌 Description

The 200L Solar Water Heater Non-Pressurized Seven SS is an eco-friendly and energy-efficient water heating system that harnesses solar power to provide hot water. It operates on a thermosiphon principle, meaning hot water naturally rises without the need for a pump. This non-pressurized model is ideal for domestic and light commercial use. Built with high-quality stainless steel, it ensures durability, corrosion resistance, and long service life.

---

⚙️ Technical Specifications

🔹 Capacity: 200 Liters
🔹 Type: Non-Pressurized (Open Loop)
🔹 Inner Tank Material: Food-grade Stainless Steel (SS 304/316)
🔹 Outer Tank Material: Stainless Steel or Coated Galvanized Steel
🔹 Insulation: High-Density Polyurethane (PU) Foam, 50-60mm thick
🔹 Solar Collector Type:

• Vacuum Tube (Glass Tube) Solar Collector
• Material: High Borosilicate Glass with a Selective Absorptive Coating
• Number of Tubes: Typically 18–20 (depending on size)
  🔹 Tube Size: 58mm diameter, 1800mm length
  🔹 Frame Material: Galvanized Steel or Stainless Steel
  🔹 Heat Absorption Efficiency: 92–96% ☀️
  🔹 Working Temperature: 50°C–90°C 🔥
  🔹 Operation Mode: Thermosiphon ♨️
  🔹 Auxiliary Heating Option: Electric Heating Element (Optional) ⚡

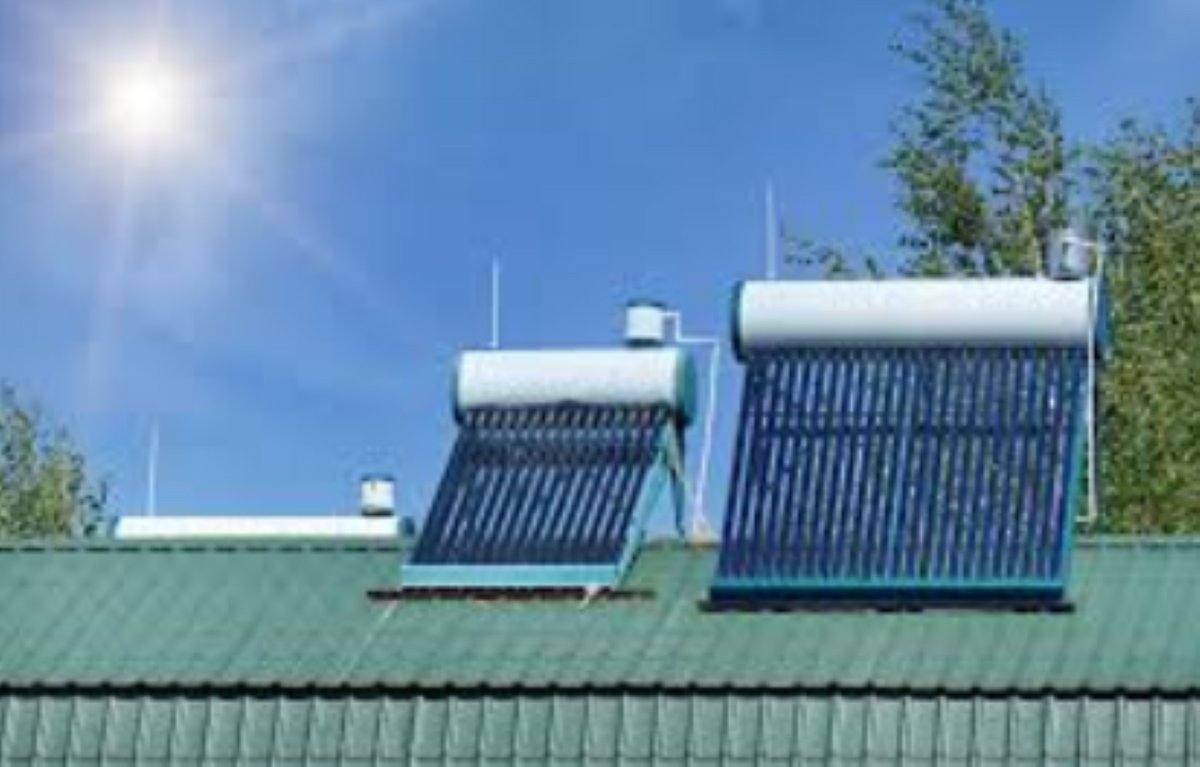

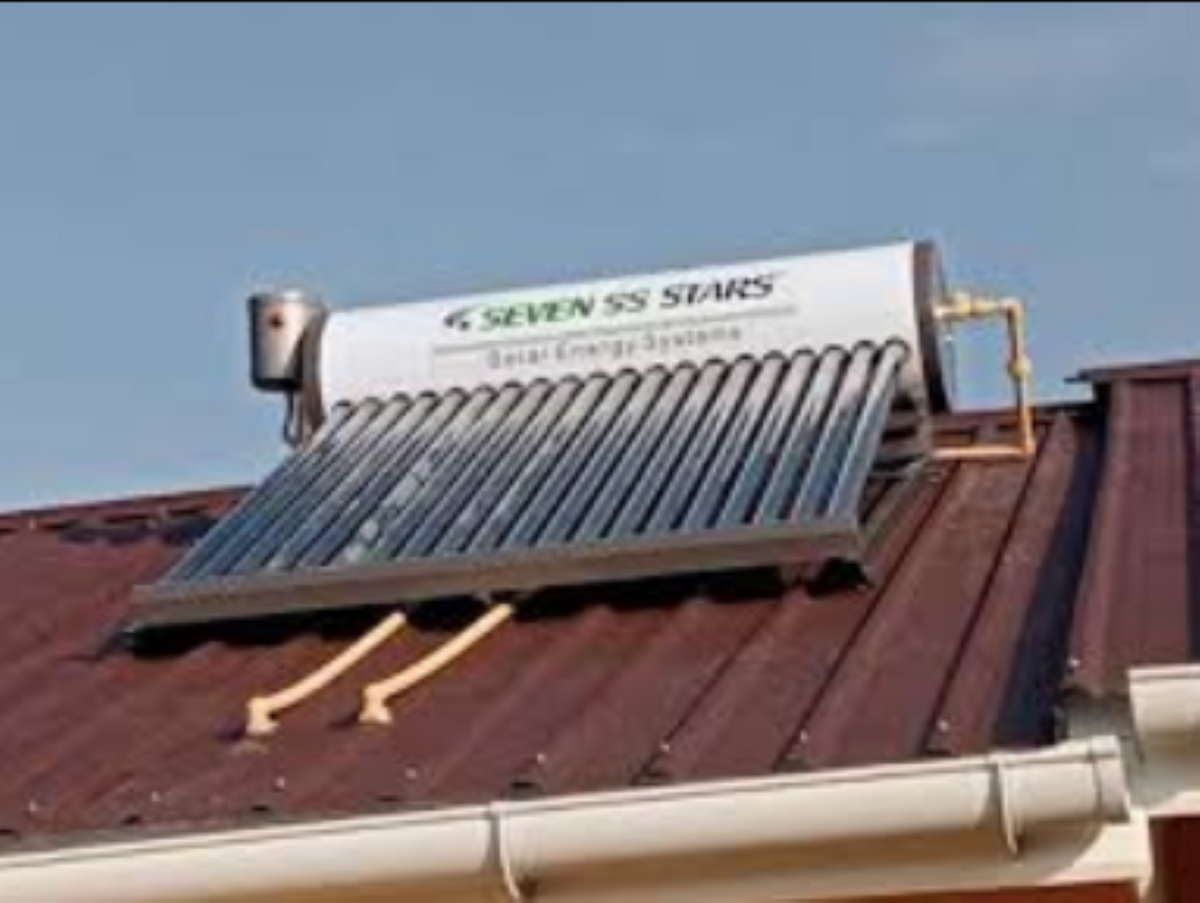

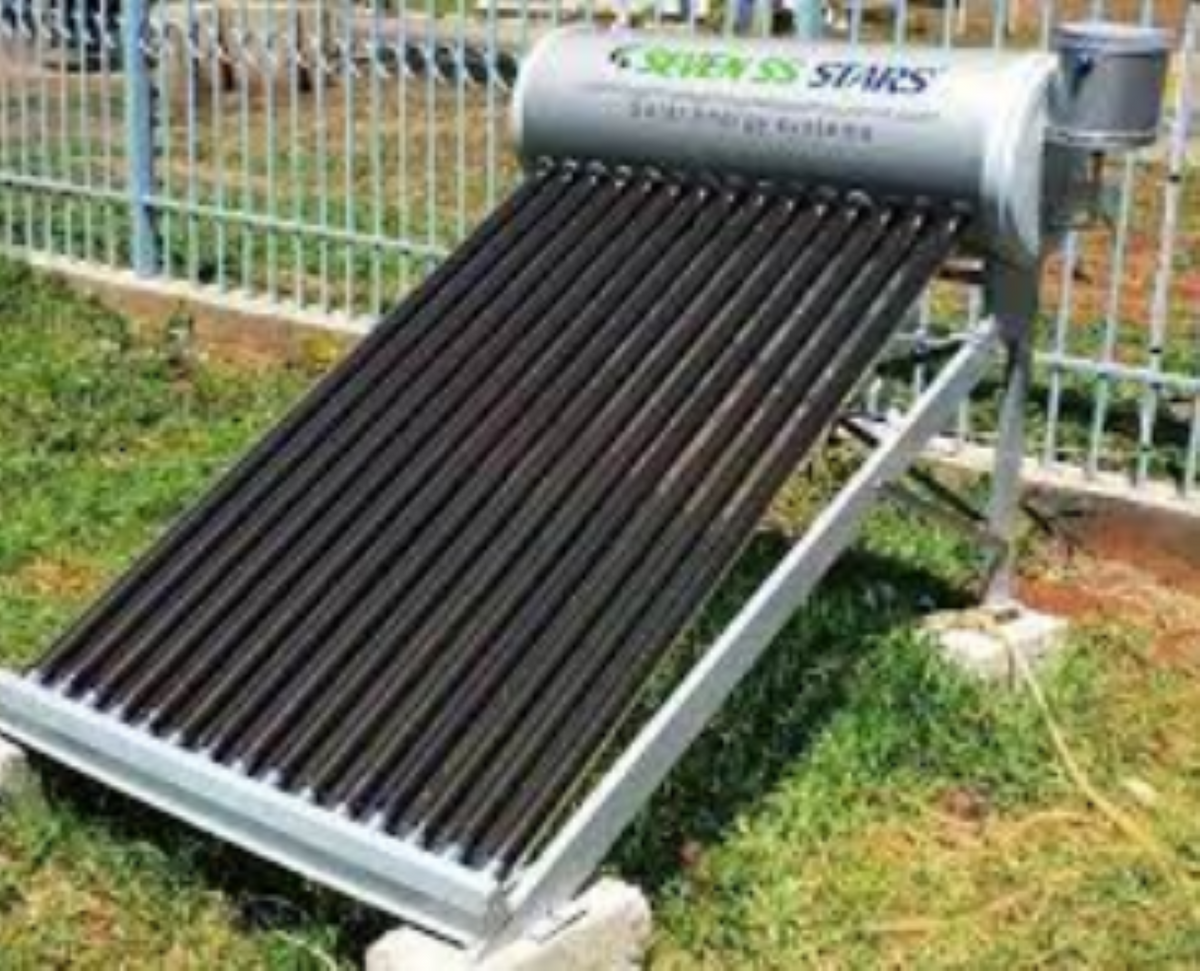

  🔹 Mounting: Roof or Ground Installation 🏠
  🔹 Tilt Angle: 20°–45° (Adjustable as per location)
  🔹 Lifespan: 15–20 years with proper maintenance ⏳

---

🏡 Applications

✅ Residential Use

• Homes, Villas, Apartments 🏡
• Hot water for bathing, washing, and kitchen use 🚿

✅ Commercial Use

• Hotels, Lodges, and Resorts 🏨
• Restaurants and Cafeterias 🍽️
• Hospitals and Healthcare Facilities 🏥

✅ Industrial Use

• Small Factories needing hot water 🏭
• Dairy Farms and Food Processing Units 🥛

✅ Educational & Community Centers

• Schools, Hostels, and Religious Places 🏫

---

🌟 Advantages

✔️ Energy Savings: Uses free solar energy, reducing electricity bills 💰
✔️ Eco-Friendly: Zero carbon emissions, sustainable 🌍
✔️ Low Maintenance: Simple design with minimal moving parts 🔧
✔️ Durability: Stainless steel prevents corrosion and leakage 🛡️
✔️ Independent Operation: No electricity or gas required ⚡🚫
✔️ Scalability: Can be connected in series for larger capacity needs 🔄

---

🛠️ Maintenance & Care

🧼 Regular Cleaning

• Keep vacuum tubes free from dust and debris 🌫️
• Ensure collector surface is not obstructed by leaves or dirt 🍂

💧 Water Quality Check

• Use soft water to prevent scaling inside tubes & tank 🚰
• Add a descaling solution annually if hard water is used ⚗️

🔍 Leakage Inspection

• Check tank & pipe connections for leaks or corrosion 🔎

🔄 Vacuum Tube Check

• Look for cracks or damage in the glass tubes 🏺
• Replace any damaged tubes immediately 🛠️

🛡️ Insulation & Frame Check

• Ensure PU foam insulation is intact to prevent heat loss ❄️
• Tighten loose bolts or screws in the mounting frame 🔩

❄️ Winter Care (For Cold Regions)

• Drain the system to prevent freezing in subzero temperatures 🌡️
• Install an anti-freeze mechanism or heating rod if needed 🔥

📅 Annual Professional Servicing

• Schedule a technician visit once a year for efficiency check 🔧
