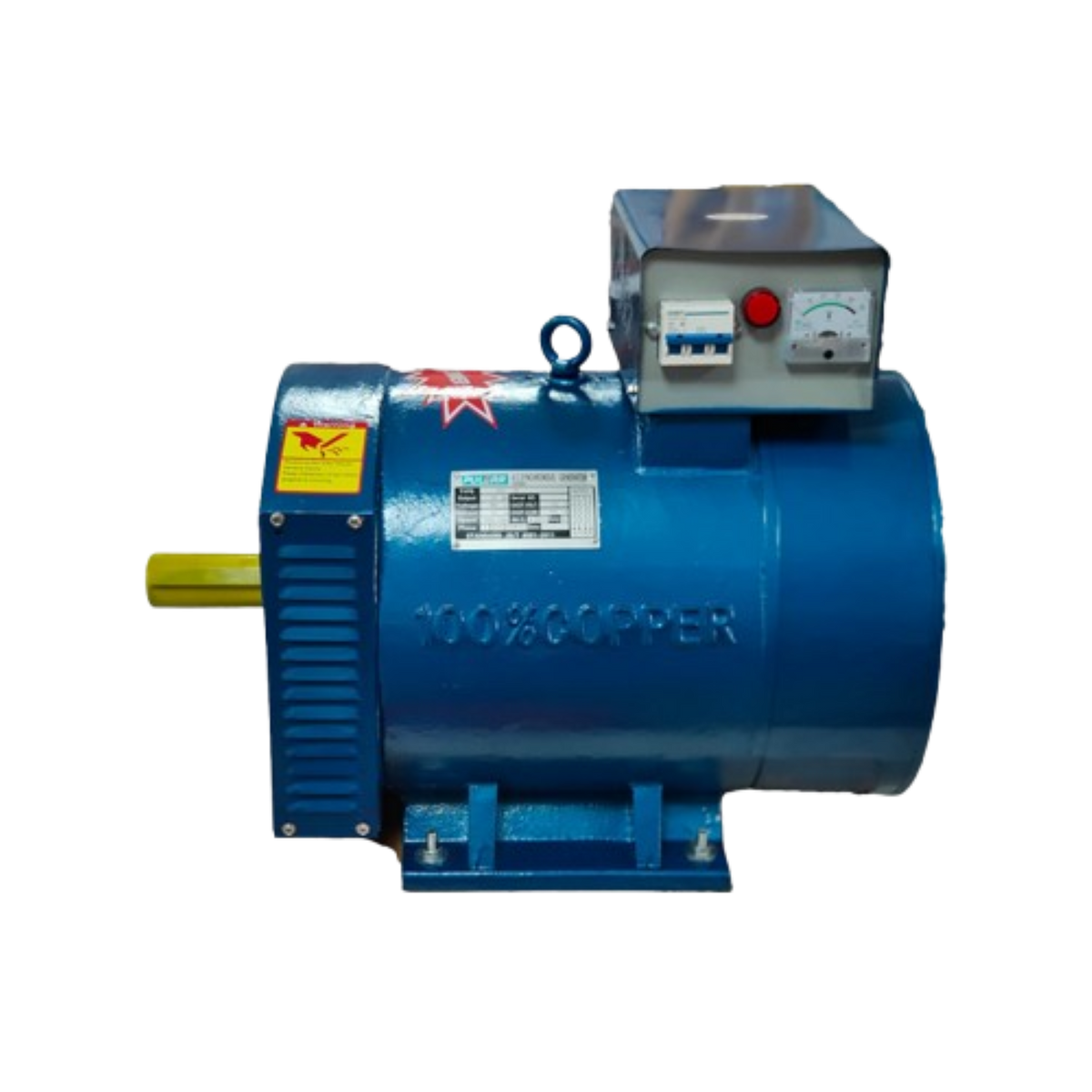

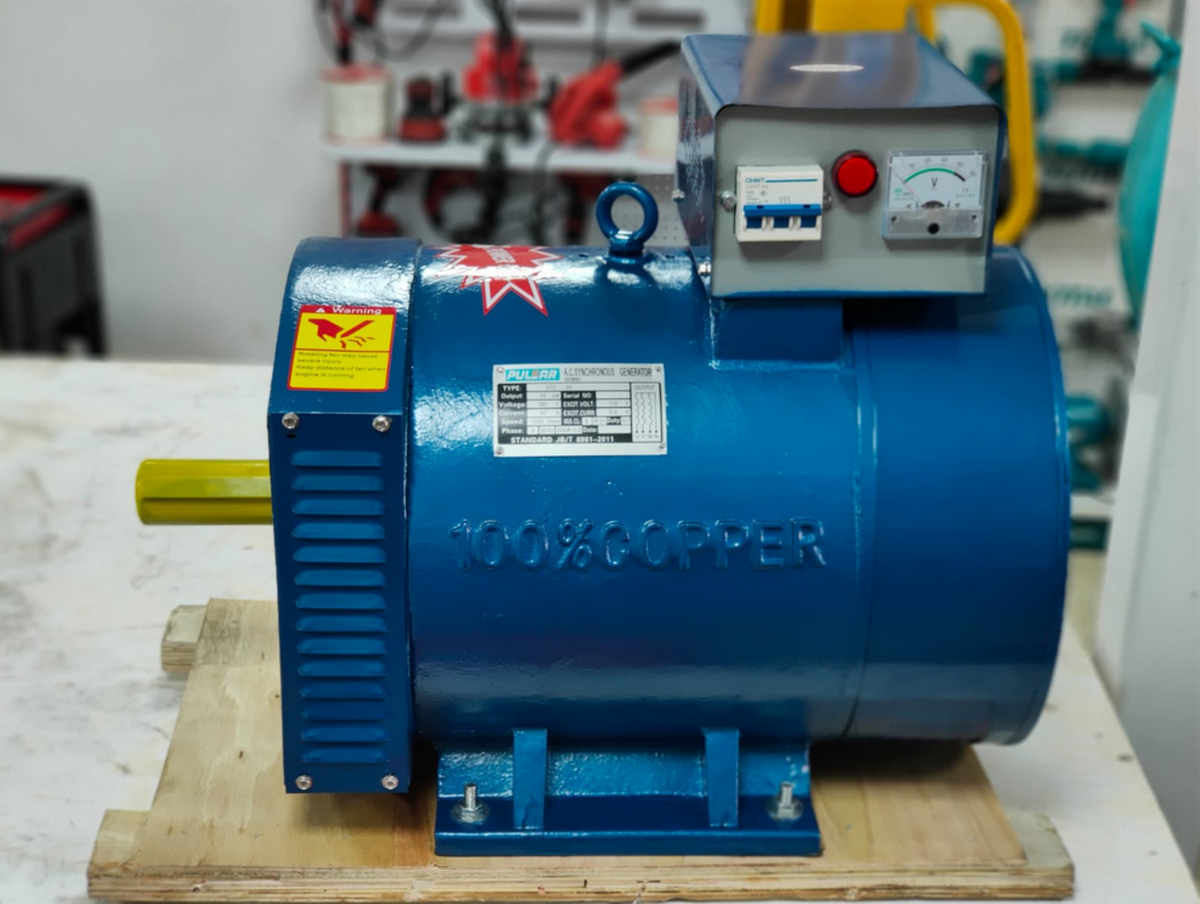

20kw 3ph Pulsar Alternator

🔹 Key Features of a 20kW 3-Phase Pulsar Alternator

1. Power Output 🔋 – 20kW (20,000 watts), ideal for medium-scale power applications.
2. Voltage Range 🔌 – Typically 400V to 480V, depending on the setup.
3. Frequency ⏳ – Designed for 50Hz or 60Hz operation.
4. Phase Type ⚡ – Three-phase for stable and efficient power distribution.
5. Cooling Mechanism ❄️ – Either air-cooled or liquid-cooled, based on the model.
6. Thermal Resistance 🏗️ – Insulation class H or F, ensuring durability in high-temperature conditions.
7. Voltage Control 📊 – Features an Automatic Voltage Regulator (AVR) for consistent power output.
8. Rotational Speed ⚙️ – Runs at 1500 RPM (for 50Hz) or 1800 RPM (for 60Hz).
9. Energy Efficiency 🔄 – Operates at 85-95% efficiency, minimizing energy losses.
10. Protection Rating 🛡️ – Typically IP23 to IP54, offering resistance to dust and moisture.

---

20kW 3-Phase Pulsar Alternator: Detailed Overview, Maintenance, and Applications ⚡🔧🏭

A 20kW 3-phase Pulsar alternator is a powerful electrical generator designed to convert mechanical energy into electrical power with high efficiency. It is commonly used in industrial, commercial, and backup power applications. Below is a detailed breakdown of its specifications, maintenance requirements, and applications.

---

🔹 Specifications of a 20kW 3-Phase Pulsar Alternator

1. Power Output 🔋 – 20kW (20,000 watts), suitable for medium-scale power needs.
2. Voltage 🔌 – Typically 400V to 480V (depending on the configuration).
3. Frequency ⏳ – Operates at either 50Hz or 60Hz, depending on the region.
4. Phases ⚡ – 3-phase power ensures smooth, stable, and efficient operation for heavy loads.
5. Cooling System ❄️ – Either air-cooled or liquid-cooled, depending on the model.
6. Insulation Class 🏗️ – Usually Class H or F, allowing high thermal resistance.
7. Regulation System 📊 – Uses an Automatic Voltage Regulator (AVR) for stable output.
8. Rotational Speed ⚙️ – Generally 1500 RPM (50Hz) or 1800 RPM (60Hz).
9. Efficiency 🔄 – High efficiency (~85-95%) for reduced energy loss.
10. Enclosure Rating 🛡️ – Typically IP23 to IP54, offering protection against dust and moisture.

---

🔧 Maintenance of a 20kW 3-Phase Pulsar Alternator

Regular maintenance is crucial to ensure the alternator functions reliably over time. Here are the key maintenance steps:

1️⃣ Daily/Before Use Checks

✅ Inspect for any loose connections or damages.
✅ Ensure proper ventilation to prevent overheating.
✅ Check for unusual noises or vibrations.

2️⃣ Weekly Maintenance

🛢️ Check the oil and coolant levels (if applicable).
🔋 Inspect battery condition (for self-starting models).
🔌 Ensure all electrical terminals are tight and clean.

3️⃣ Monthly Maintenance

🌀 Clean the stator and rotor windings to remove dust buildup.
📊 Test the voltage and frequency output using a multimeter.
🌡️ Monitor temperature readings to prevent overheating.

4️⃣ Quarterly/Semi-Annual Maintenance

⚙️ Grease the bearings if they are not sealed for life.
🔄 Check and replace worn-out belts or pulleys.
🔧 Perform a load test to ensure the alternator can handle the required capacity.

5️⃣ Annual Maintenance

🛠️ Conduct a full inspection of all mechanical and electrical parts.
🌀 Inspect the AVR and excitation system for proper function.
💡 Replace worn-out insulation and cables to prevent short circuits.

---

🏭 Applications of a 20kW 3-Phase Pulsar Alternator

This alternator is widely used in various industries due to its reliability and efficiency. Some key applications include:

1. 🔋 Backup Power for Businesses – Provides power during outages in offices, data centers, and retail stores.
2. 🏗️ Construction Sites – Powers heavy machinery, cranes, and lighting equipment.
3. 🚜 Agricultural Use – Operates irrigation systems, grain dryers, and farm machinery.
4. 🏢 Industrial Manufacturing – Supplies stable power for motors, conveyor belts, and production lines.
5. 🚢 Marine Applications – Used in ships and offshore platforms for auxiliary power.
6. 🏥 Hospitals & Emergency Centers – Ensures critical medical equipment stays operational.
7. 🏠 Residential Backup – Can be used for large homes or multiple units in case of grid failures.
8. 🎡 Entertainment & Events – Powers lighting, sound systems, and catering equipment at large events.
9. 🌍 Renewable Energy Integration – Works as a component in hybrid systems with solar or wind energy.
10. ⛽ Oil & Gas Industry – Supports drilling, refining, and pipeline operations in remote areas.
