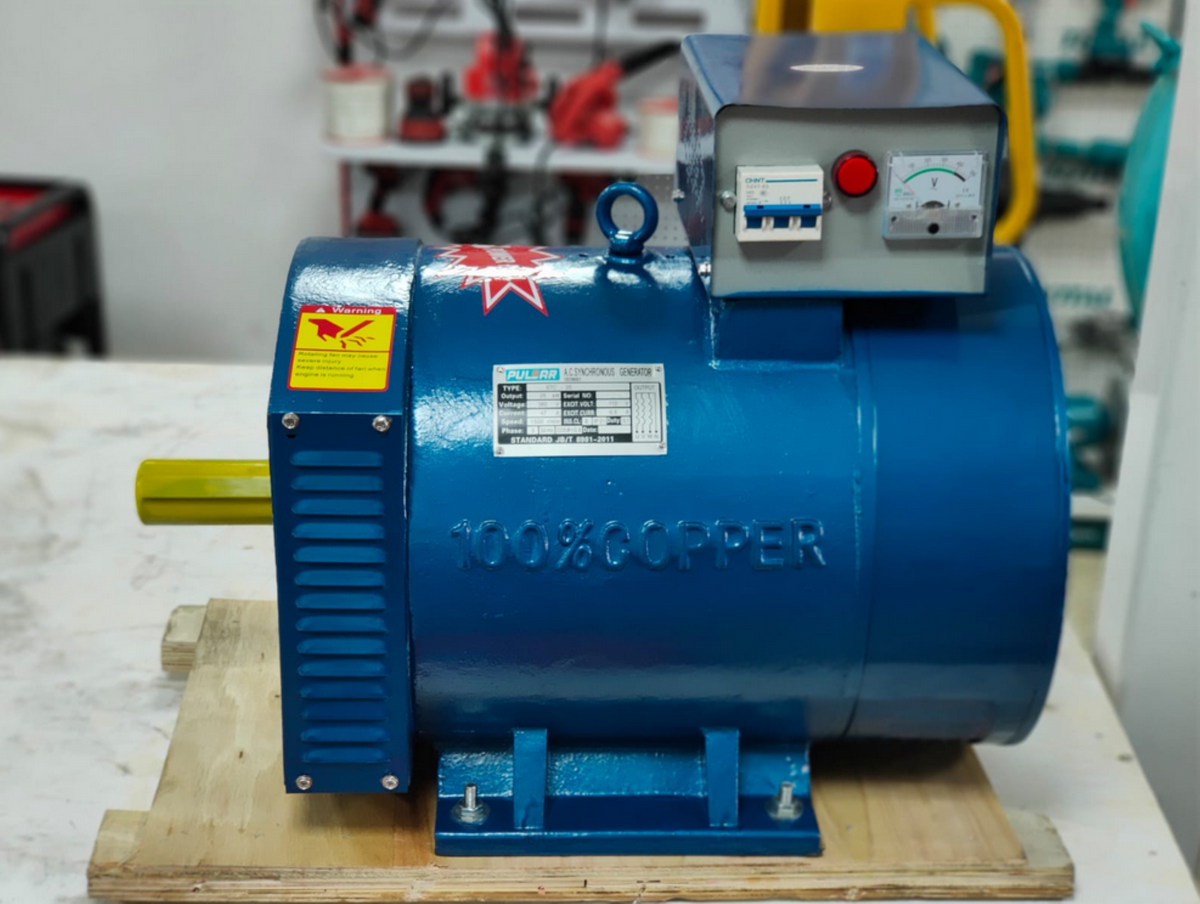

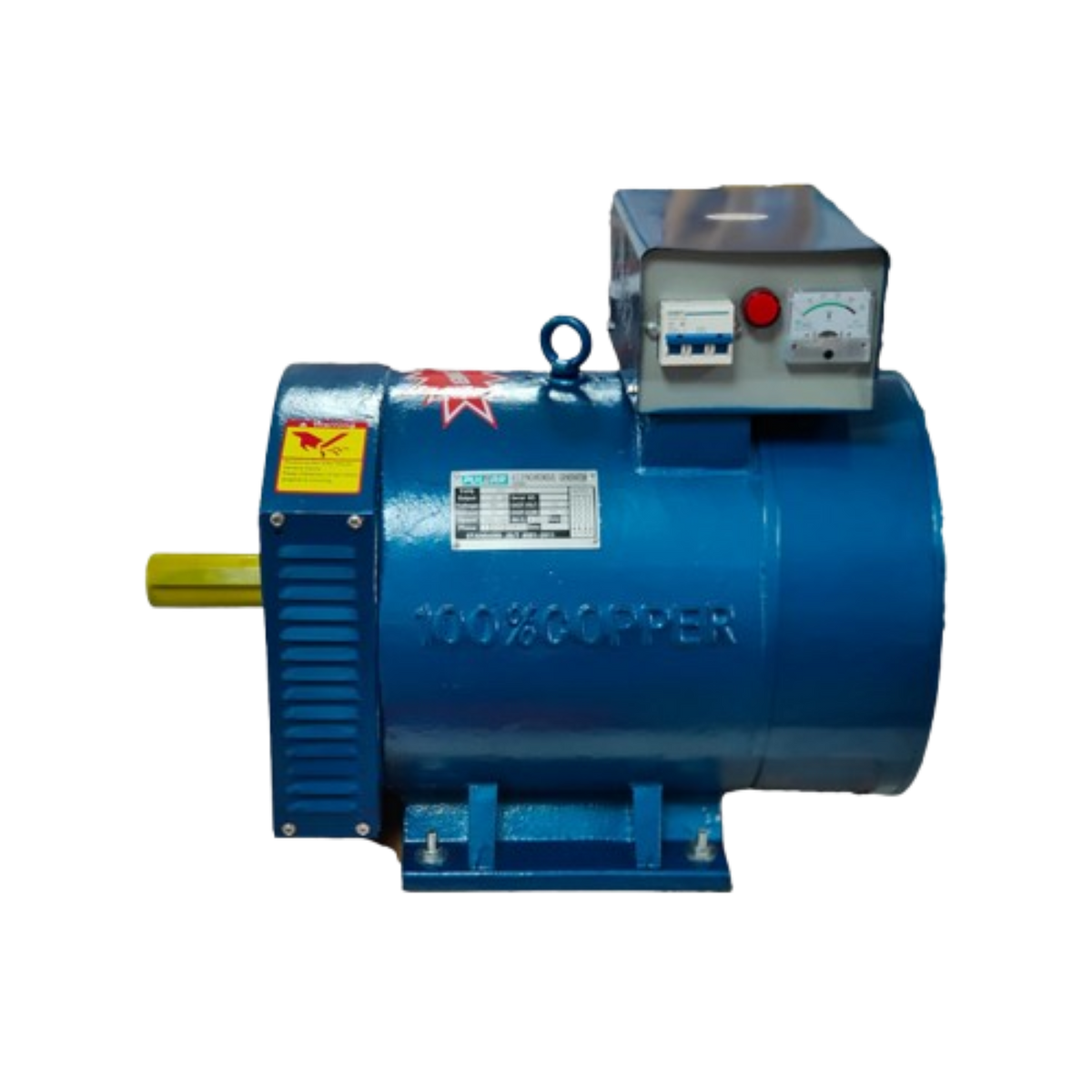

25kw 3ph Pulsar Alternator

⚙️ Key Features & Details

🔹 Power Output: ⚡ 25kW (Kilowatts)
🔹 Phases: 🔄 3-Phase (Three-phase)
🔹 Voltage: ⚡ 400V/230V (customizable per requirement)
🔹 Frequency: 🎚 50Hz or 60Hz
🔹 Excitation: ⚙️ Brushless or Brush-type
🔹 Cooling: 🌬 Air-cooled / 💦 Liquid-cooled
🔹 Thermal Resistance: 🔥 Class F or H Insulation
🔹 Efficiency: ⚡ 85%-95%
🔹 Power Factor: 📊 0.8 (Typical)
🔹 Speed: 🚀 1500 RPM (50Hz) / 1800 RPM (60Hz)
🔹 Bearings: ⚙️ Sealed ball type
🔹 Mounting: 🔩 Foot or Flange-mounted
🔹 Protection Rating: 🛡 IP23 – IP55
🔹 Weight: ⚖️ 250-350 kg (approx.)
🔹 Compatible Fuel (if generator set): ⛽ Diesel / 🌿 Natural Gas / 🔋 Hybrid

---

🔌 25kW 3-Phase Pulsar Alternator: Detailed Overview

A 25kW 3-phase Pulsar alternator is a powerful ⚡ electrical generator used in industrial, commercial, and backup power applications 🏭🏠. It efficiently converts mechanical energy 🔄 into electrical energy, providing a stable 3-phase AC power supply ⚡🔋. Below is a detailed breakdown of its technical specifications, maintenance requirements, and applications.

⚙️ Technical Specifications

🔹 Power Output: ⚡ 25kW (Kilowatts) 🔹 Phases: 🔄 3-Phase (Three-phase) 🔹 Voltage Output: ⚡ 400V/230V (or customizable per requirement) 🔹 Frequency: 🎚 50Hz or 60Hz (depending on the region) 🔹 Excitation System: ⚙️ Brushless or Brush-type (varies by model) 🔹 Cooling System: 🌬 Air-cooled or 💦 Liquid-cooled 🔹 Insulation Class: 🔥 F or H (ensures high thermal resistance) 🔹 Efficiency: ⚡ 85%-95% (depending on load and design) 🔹 Power Factor: 📊 0.8 (typical for industrial use) 🔹 RPM (Speed): 🚀 1500 RPM (50Hz) / 1800 RPM (60Hz) 🔹 Bearing Type: ⚙️ Sealed ball bearings for extended durability 🔹 Mounting Type: 🔩 Foot or Flange mounted 🔹 Protection Rating: 🛡 IP23 – IP55 (depends on environment and model) 🔹 Weight: ⚖️ Approx. 250-350 kg (varies with design) 🔹 Fuel Source (if part of a generator set): ⛽ Diesel, 🌿 Natural Gas, or 🔋 Hybrid

🛠️ Maintenance Requirements

Proper maintenance ensures the longevity, efficiency, and reliability of the alternator. Here’s what to focus on:

✅ Daily/Before Operation

🔍 Inspect for loose connections and signs of wear. ⚡ Check voltage and frequency output for stability. 👂 Listen for unusual noises indicating bearing wear.

📆 Weekly Maintenance

🔧 Clean dust, dirt, and debris from ventilation areas. 🔩 Inspect electrical terminals for corrosion or overheating. 💧 Check for any fluid leaks (if part of an engine generator set).

🔄 Monthly Maintenance

🛠 Lubricate bearings (if required, based on the alternator type). ⚡ Test insulation resistance using a megger to ensure no electrical leakage. 🌬 Verify cooling system efficiency (air vents clear or coolant level maintained).

🛡 Annual/Long-Term Maintenance

🔋 Perform a full-load test to ensure proper performance. ⚙️ Inspect and possibly replace bearings if wear is detected. 🔌 Check and recondition voltage regulators or diodes (if applicable). 🔄 Perform alignment checks between the alternator and the prime mover (engine or turbine).

🏭 Applications of a 25kW 3-Phase Pulsar Alternator

The 25kW Pulsar alternator is widely used in various sectors, including:

🔋 Backup Power & Standby Generators

🏥 Emergency power supply for hospitals, data centres, and commercial buildings. 🏠 Backup power for homes and small industries.

🏗 Industrial & Commercial Use

⚡ Powers machinery in factories, workshops, and production lines. 🚜 Used in agriculture for irrigation systems and farm equipment. ❄️ Powers large HVAC systems, compressors, and pumps.

🚢 Marine & Transport

🚢 Used in ships, boats, and offshore platforms for auxiliary power. 🚛 Installed mobile generator units for construction and remote work sites.

🌿 Renewable & Hybrid Power Systems

☀ Works with solar and wind power systems for hybrid energy setups. 🔄 Used in microgrids for rural electrification projects.

🏆 Why Choose a 25kW Pulsar Alternator?

✔ Reliable & Efficient – Delivers stable power output with minimal losses. ⚡🔋 ✔ Durable – Designed with high-quality materials for long operational life. 🔩⚙️ ✔ Versatile Applications – Suitable for various industries and backup power solutions. 🏭🏠🚢 ✔ Low Maintenance – Requires minimal servicing with proper care. 🛠️

The 25kW Pulsar Alternator is an excellent choice for industrial, commercial, and backup power needs, ensuring continuous and efficient operation. ⚡🔥
