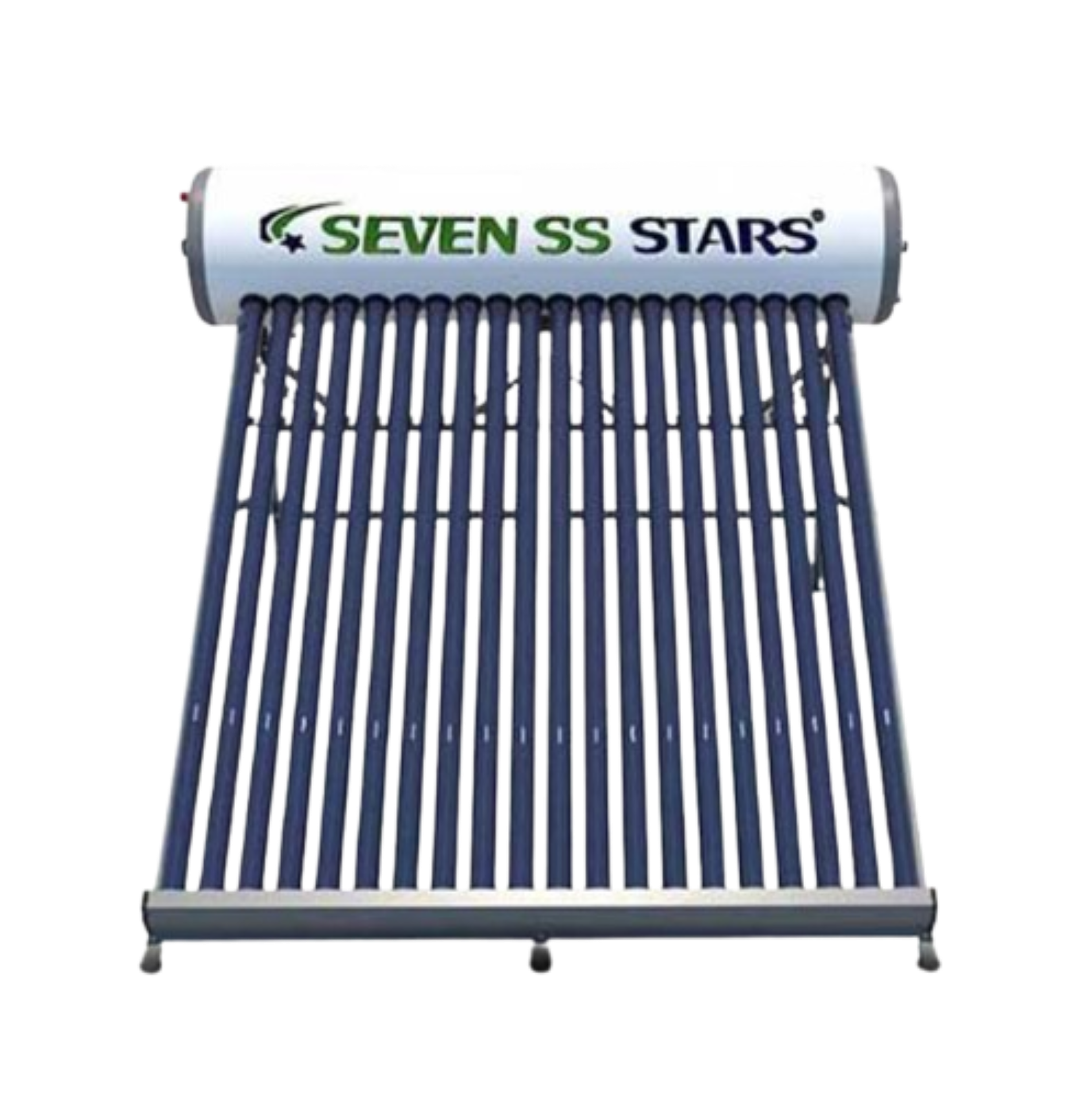

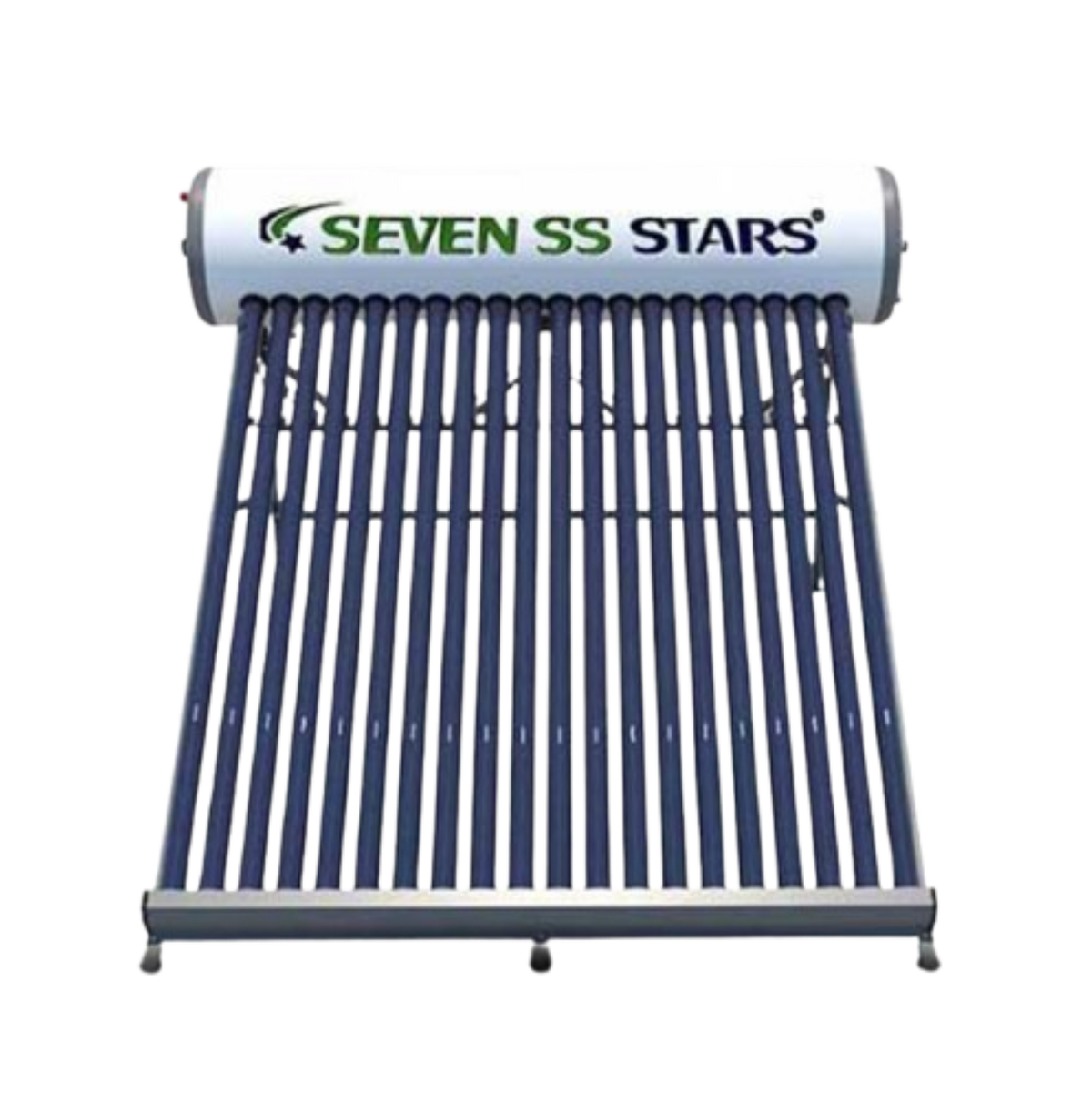

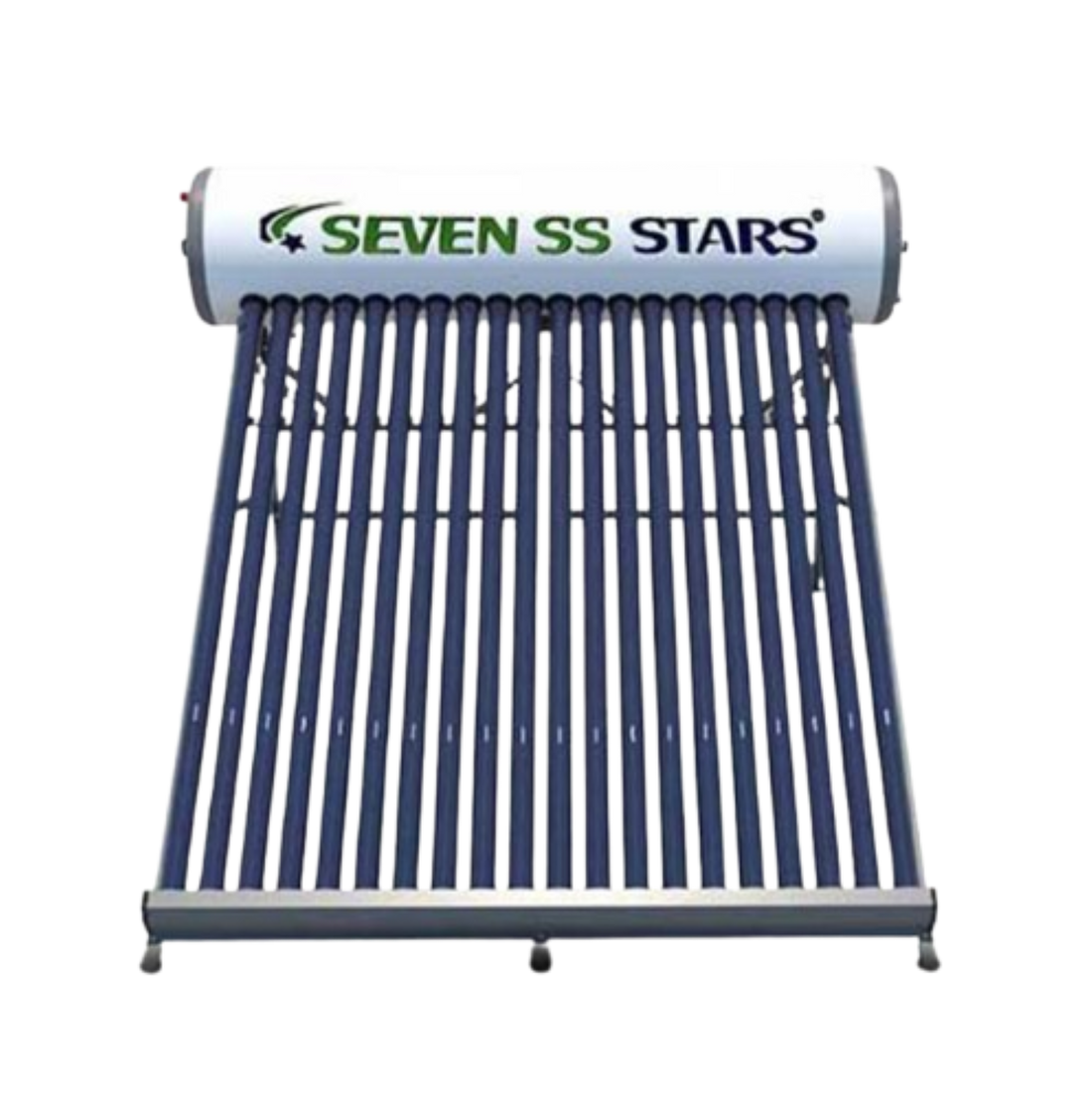

250L Pressurized Solar Water Heater Galvanized Seven SS

🔥 250L Pressurized Solar Water Heater (Galvanized + Seven SS) 🌞

📌 Description

The 250L Pressurized Solar Water Heater (Galvanized + Seven SS) is a high-efficiency and durable water heating system designed for homes 🏡, hotels 🏨, restaurants 🍽️, and industries 🏭. It uses solar energy 🌞 to heat water, significantly reducing electricity costs ⚡💰. The system is pressurized, ensuring strong water flow 🚿 and efficient heat transfer. The outer tank is galvanized steel (rust-resistant 🛡️), and the inner tank has seven layers of stainless steel for durability and hygiene. This eco-friendly system is perfect for areas with high solar radiation 🌍.

⚙️ Technical Specifications

• Capacity: 250 Liters 💧
• Type: Pressurized Solar Water Heater 🌡️
• Inner Tank: Seven-layer Stainless Steel (SS) 🏗️
• Outer Tank: Galvanized Steel (Rust-Proof) 🛡️
• Tank Insulation: High-Density Polyurethane Foam (50-60mm thickness) 🔥
• Collector Type: Vacuum Tube / Heat Pipe 🏺
• Tube Material: Borosilicate Glass (Double-layer) 🌐
• Number of Tubes: 20–25 (Model Dependent) 🔄
• Tube Diameter: 47mm – 58mm 📏
• Tube Length: 1.8m – 2.1m 📐
• Working Pressure: Up to 6 bar ⚖️
• Support Structure: Galvanized Steel (Corrosion-resistant) 🏗️
• Temperature Range: 35°C – 95°C 🌡️
• Backup Heating: Optional Electric Heater (1.5kW – 3kW) ⚡
• Inlet/Outlet Connection: ¾” or 1” 🔗
• Heat Retention: Up to 72 Hours ⏳
• Lifespan: 15–20 Years 🕰️

📍 Applications

✅ Residential Homes 🏠 – Provides hot water for daily use (shower 🚿, washing 🧼, cooking 🍲).
✅ Hotels & Resorts 🏨 – Supplies hot water to multiple rooms efficiently.
✅ Hospitals & Clinics 🏥 – Ensures a reliable hot water supply for hygiene and sanitation.
✅ Restaurants & Cafeterias 🍽️ – Supports dishwashing and food preparation.
✅ Industrial Use 🏭 – Suitable for small-scale industries requiring hot water.

🛠️ Maintenance Guidelines

To keep your solar water heater in top condition, follow these essential maintenance tips:

🔹 Clean the Vacuum Tubes (Every 3–6 months) 🧽

• Remove dust, dirt, or debris to maximize sunlight absorption 🌞.
• Use a soft cloth with mild detergent.

🔹 Check for Leaks (Regularly) 🔍

• Inspect pipe connections for any leakage.
• Replace rubber seals or connectors if needed.

🔹 Flush the Tank (Every 6–12 months) 🚰

• Drain & flush to remove mineral buildup and sediments.

🔹 Pressure Check (Ensure Stable Flow) 🏁

• System pressure should not exceed 6 bar.
• Install a pressure relief valve if required.

🔹 Inspect Insulation (Prevent Heat Loss) 🏗️

• Ensure insulation around tanks & pipes is intact.

🔹 Backup Heater Check (If Installed) ⚡

• Test the electric heating element periodically.

🔹 Support Structure Inspection 🏗️

• Ensure the frame & brackets are secure and rust-free.

🌟 Conclusion

The 250L Pressurized Solar Water Heater (Galvanized + Seven SS) 🌞 is a smart, eco-friendly, and cost-effective solution for hot water needs. Its robust design, high-pressure tolerance, and excellent insulation make it a long-term investment 💰 for homes, hotels, hospitals, and industries. With proper maintenance 🛠️, it provides efficient and reliable hot water for up to 20 years.

♻️ Save Energy, Save Money, and Go Green! 🌿🌍
