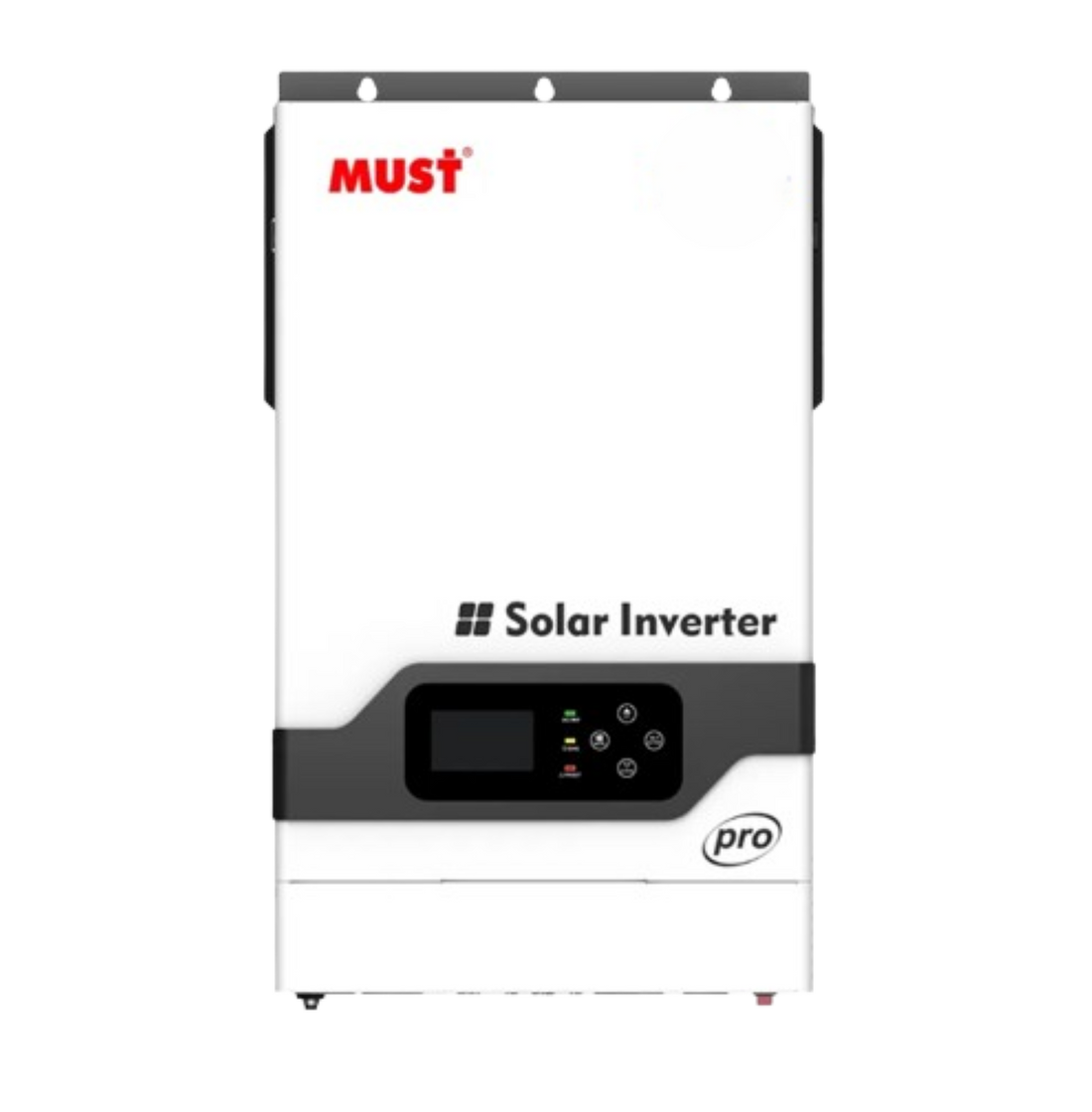

3.2kw 24v Must Hybrid Solar Inverter 3200w 60a PV1800

⚙ 3.2kw Must Hybrid Inverter

• • 🔋 Rated Power: 3200W (3.2kW)
  • 💥 Surge Power: 6000VA
  • 🔌 Battery Voltage: 24VDC
  • ⚡ Maximum PV Open Circuit Voltage: 145VDC
  • 🔆 MPPT Voltage Range: 30-120VDC
  • ☀️ Maximum Solar Charge Current: 60A
  • ⚡ Maximum AC Charge Current: 20A or 30A
  • ⚡ Inverter Efficiency (Peak): Up to 93%
  • 🔄 Transfer Time: 10ms (UPS) / 20ms (APL)
  • ⚡ AC Input Voltage Range:
    • 🔋 UPS Mode: 170-280V
    • 🔄 APL Mode: 90-280V
    • 🔌 VDE Mode: 184-253V
  • 🌡️ Operating Temperature: -10°C to 50°C
  • 📏 Dimensions: 288 x 331 x 90 mm
  • ⚖️ Net Weight: 6.5 kg

  ---

  This powerful and efficient inverter is designed for reliable energy management, ensuring seamless solar and battery operation ⚡🔋. Let me know if you need any additional details! 😊

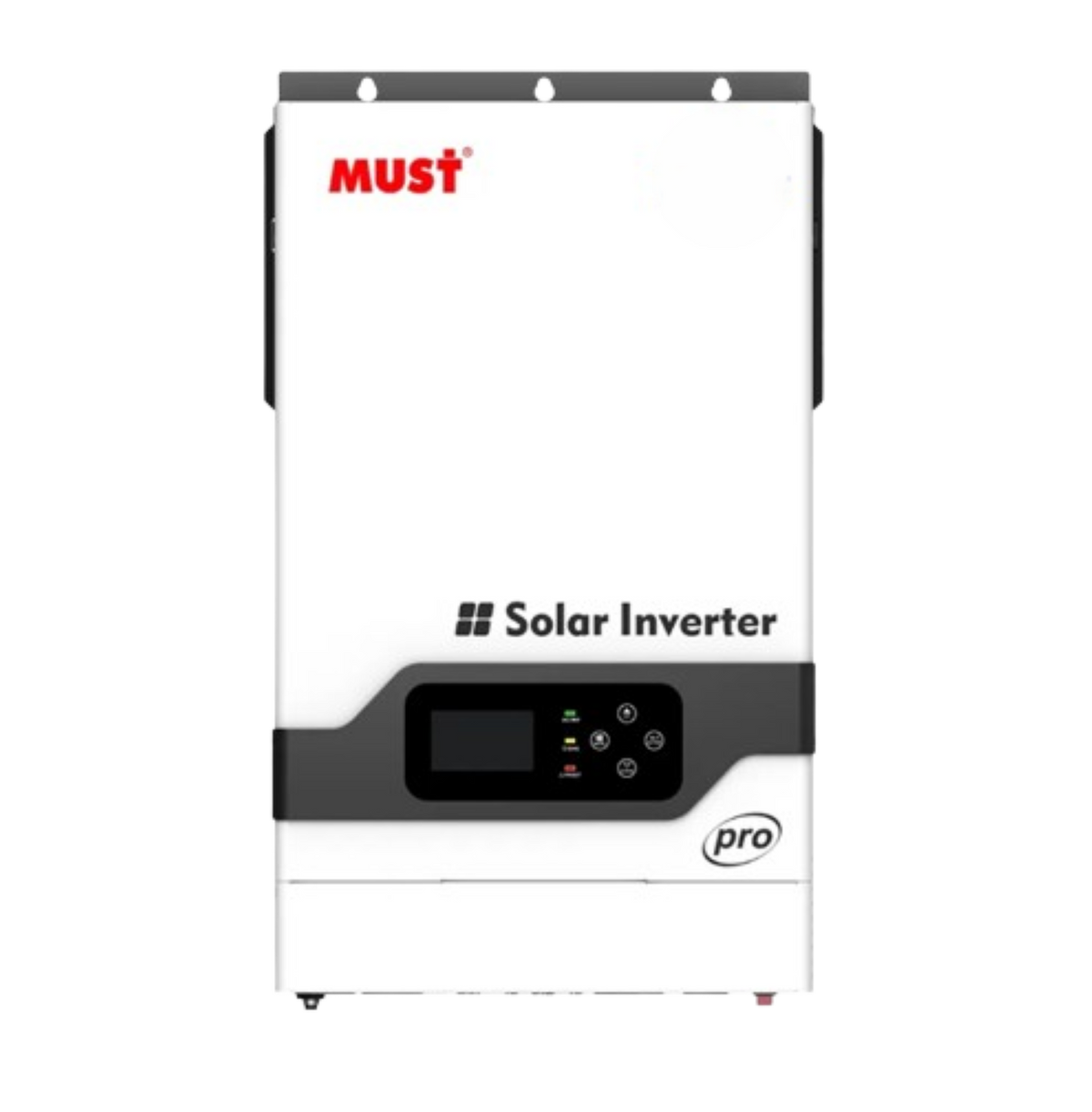

🔋 3.2kW MUST Hybrid Solar Inverter (Model: PV18-3224 VPM II)

The MUST PV18-3224 VPM II Hybrid Solar Inverter is a powerful, efficient, and intelligent energy solution designed for home, business, and off-grid applications. 🌞⚡ It ensures seamless power management, maximizing solar energy efficiency while reducing dependency on grid electricity.

⭐ Key Features:

✅ 🔌 Pure Sine Wave Output: Provides clean, stable electricity, ensuring appliance safety and longevity.
✅ 🔆 60A MPPT Solar Charge Controller: Maximizes solar power efficiency 🌞📈.
✅ 📊 Smart LCD Display: Real-time monitoring of input voltage, output power, and battery status.
✅ 🛡️ Advanced Protection: Overload, short circuit, overcharge, and deep discharge protection.
✅ ⚡ Cold Start Function: Starts directly from battery power when the grid is unavailable.
✅ 📡 WiFi Remote Monitoring (Optional): Manage your system anytime, anywhere via a mobile app.
✅ 🔄 Generator Compatibility: Seamlessly integrates with backup generators.
✅ 🔀 Automatic PV/AC Switching: Balances solar and grid power for optimal efficiency.

⚙ Technical Specifications:

• 🔋 Rated Power: 3200W (3.2kW)
• 💥 Surge Power: 6000VA
• 🔌 Battery Voltage: 24VDC
• ⚡ Maximum PV Open Circuit Voltage: 145VDC
• 🔆 MPPT Voltage Range: 30-120VDC
• ☀️ Maximum Solar Charge Current: 60A
• ⚡ Maximum AC Charge Current: 20A or 30A
• ⚡ Inverter Efficiency (Peak): Up to 93%
• 🔄 Transfer Time: 10ms (UPS) / 20ms (APL)
• ⚡ AC Input Voltage Range:
  • 🔋 UPS Mode: 170-280V
  • 🔄 APL Mode: 90-280V
  • 🔌 VDE Mode: 184-253V
• 🌡️ Operating Temperature: -10°C to 50°C
• 📏 Dimensions: Varies by model
• ⚖️ Weight: Varies by model

🏠 Applications:

🏡 Home Use: Keeps essential appliances running while reducing electricity bills.
🏢 Small Businesses: Ensures stable power for critical operations.
⛰️ Off-Grid Locations: Ideal for remote areas where grid power is unreliable.
🛶 Boats & RVs: Portable, clean energy for off-grid travel.
