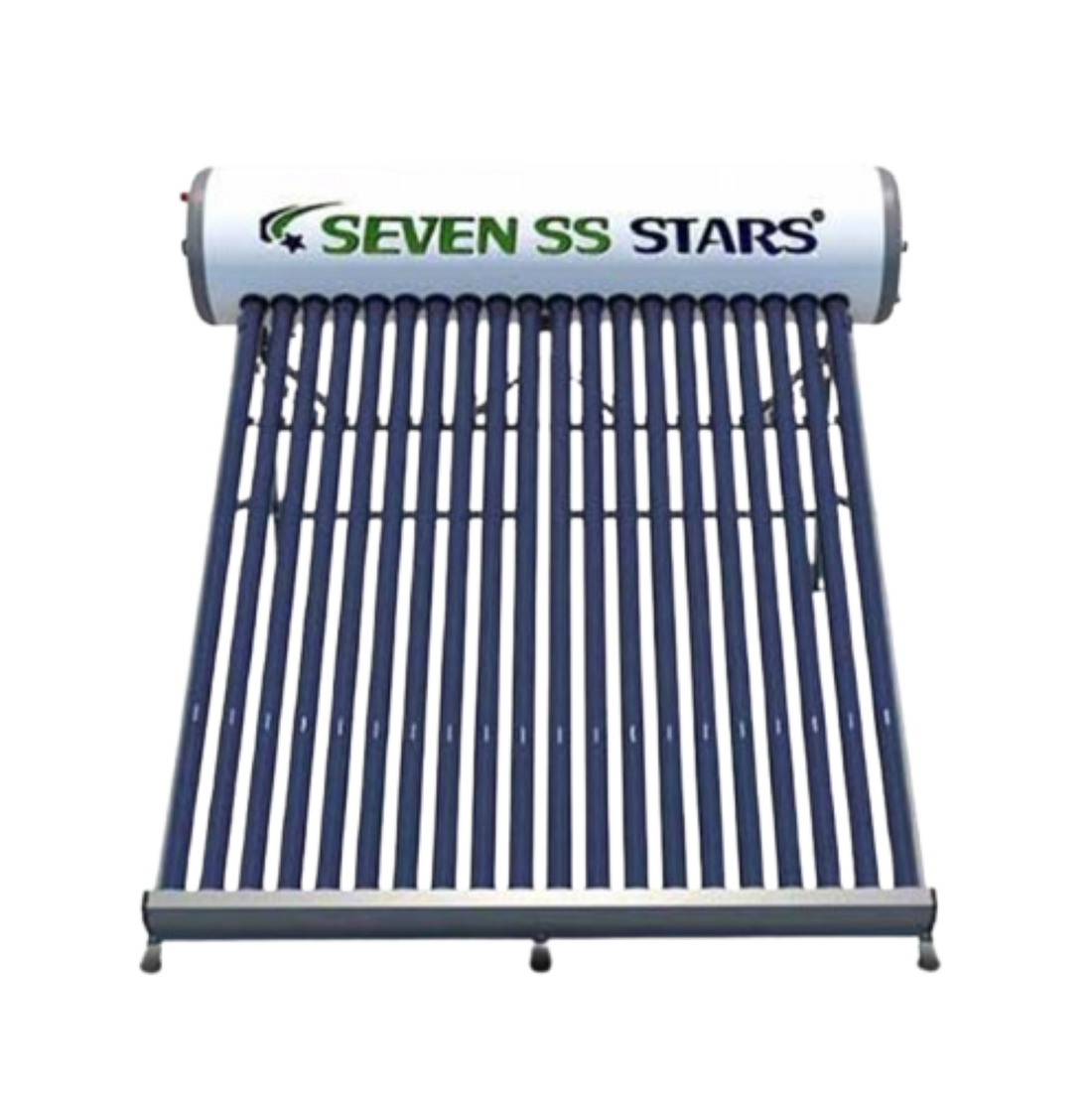

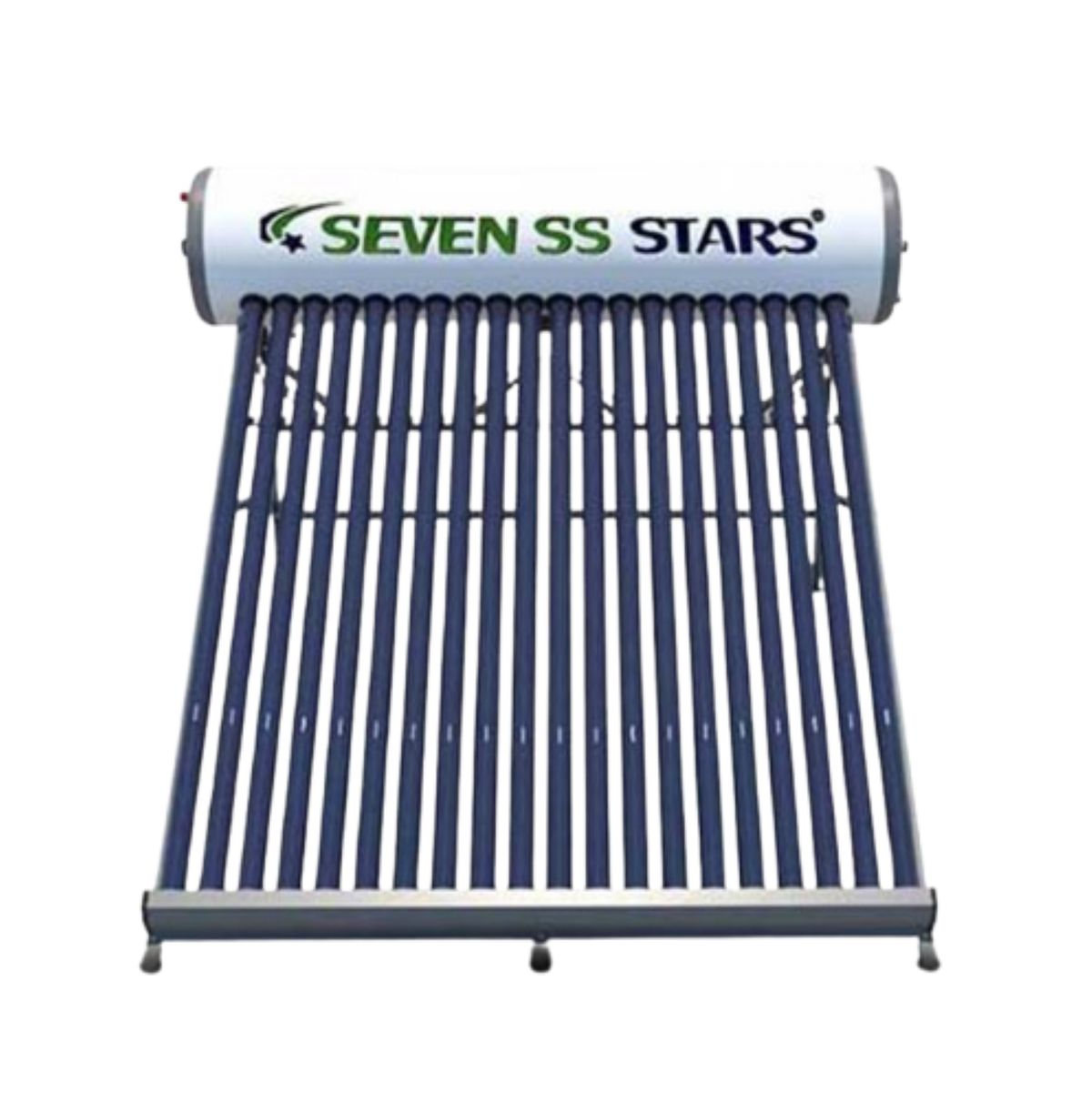

300L Solar Water Heater Non Pressurized Seven SS

300L Solar Water Heater Non-Pressurized Seven SS with emojis:

⚙️ Main Specifications

• 🌊 Type: Non-pressurized, Thermosiphon
• 💧 Capacity: 300 liters
• 🔵 Number of Vacuum Tubes: 30–36 tubes
• 🔬 Tube Material: Borosilicate glass
• 📏 Tube Size: 58mm diameter, 1800mm length
• 🛢️ Inner Tank Material: Stainless Steel (SS 304 or SS 316)
• 🛡️ Outer Tank Material: Stainless Steel / Galvanized Steel (powder coated)
• 🧊 Insulation: 50mm Polyurethane foam (PUF)
• ⚡ Backup Heater (Optional): 1.5-2 kW electric heating element
• 🌡️ Hot Water Temperature: Up to 60-80°C on sunny days
• 🚰 Water Inlet Pressure: Atmospheric (gravity-fed)
• 🛠️ Frame Material: Stainless steel or aluminum alloy

🔆 Description

The 300L Solar Water Heater Non-Pressurized Seven SS is a solar-powered water heating system designed for homes 🏡, businesses 🏢, and industries 🏭. It utilizes solar energy ☀️ to heat water, reducing electricity ⚡ or gas 🔥 consumption.

This system operates on the thermosiphon principle 🌊, meaning it relies on natural convection rather than pumps to circulate water.

It is non-pressurized, working at atmospheric pressure 🌬️, making it ideal for gravity-fed water supply systems. The Seven SS model features a stainless steel (SS) inner tank 🛢️, ensuring durability and resistance to corrosion.

⚙️ Technical Specifications

🔹 General Details:

• Capacity: 300 liters 🚰
• Type: Non-pressurized, Thermosiphon 🌊
• Number of Vacuum Tubes: Typically 30–36 tubes 🔵
• Material of Inner Tank: Stainless Steel (SS 304 or SS 316) 🛢️
• Material of Outer Tank: Stainless Steel / Galvanized Steel with powder coating
• Tank Insulation: Polyurethane foam (PUF) 🏗️, usually 50mm thick
• Vacuum Tube Specifications:
  • Material: Borosilicate glass 🔬
  • Diameter: 58mm
  • Length: 1800mm
  • Coating: Three-layer selective coating for high efficiency 🌞
• Frame Material: Stainless steel or aluminum alloy ⚙️
• Inlet Water Pressure: Atmospheric pressure 🌬️
• Heat Transfer Principle: Direct heating through vacuum tubes 🔥
• Hot Water Outlet Temperature: Up to 60-80°C 🌡️ on sunny days
• Cold Water Inlet: Gravity-fed or elevated tank supply
• Backup Heating Element (Optional): 1.5-2 kW electric heater ⚡

🏠 Applications

Residential Use 🏡

• Perfect for families (4-6 members) 👨‍👩‍👧‍👦
• Used for bathrooms 🛁, kitchens 🍽️, and laundry 🧺
• Ideal for areas with good sunlight ☀️

Commercial Use 🏢

• Small hotels 🏨, guest houses 🏕️, hostels 🏫
• Cafeterias and canteens 🍽️
• Farmhouses and rural homes 🌿

Industrial Use 🏭

• Pre-heating applications for industries 🏗️
• Boiler feed water pre-heating 🔥
• Washing and cleaning purposes 🧼

🛠️ Maintenance

🔹 Regular Maintenance Tips:

1. Vacuum Tube Cleaning 🧽

   • Clean every 3–6 months to remove dust for optimal heat absorption.
   • Use a soft cloth and water to avoid scratches.

2. Tank Maintenance 🔍

   • Check for leaks or corrosion in the stainless steel tank.
   • Flush the tank once a year to remove sediment buildup.

3. Insulation Check ❄️

   • Ensure the insulation layer remains intact to prevent heat loss.
   • Replace if necessary.

4. Pipe & Connection Check 🚰

   • Inspect pipes and joints for leaks.
   • Use anti-scale treatment in areas with hard water.

5. Backup Heater Maintenance (If Installed) ⚡

   • Test and inspect periodically.
   • Avoid overuse—solar heating should be the primary method.

6. Cold Climate Protection ❄️

   • In freezing conditions, add antifreeze protection or insulate the pipes.
   • Drain the system if not in use during winter.

✅ Advantages of the 300L Non-Pressurized Solar Water Heater Seven SS

✔️ Eco-friendly & Energy-saving 🌍 – Uses solar energy, reducing electricity/gas bills.
✔️ Durable Stainless Steel Tank 🏗️ – Corrosion-resistant, ensuring long life.
✔️ Simple Installation & Low Maintenance 🔧 – No complex moving parts.
✔️ Reliable Performance 🔥 – Works effectively in sunny climates.
✔️ Cost-effective Solution 💰 – One-time investment with long-term savings.

The 300L Solar Water Heater Non-Pressurized Seven SS is an efficient, durable, and cost-effective solution for residential, commercial, and industrial hot water needs. With its stainless steel construction 🛢️, thermosiphon operation 🌊, and low maintenance requirements 🛠️, it is a long-term investment 💰 for areas with abundant sunlight ☀️ and a gravity-fed water system 🚰.
