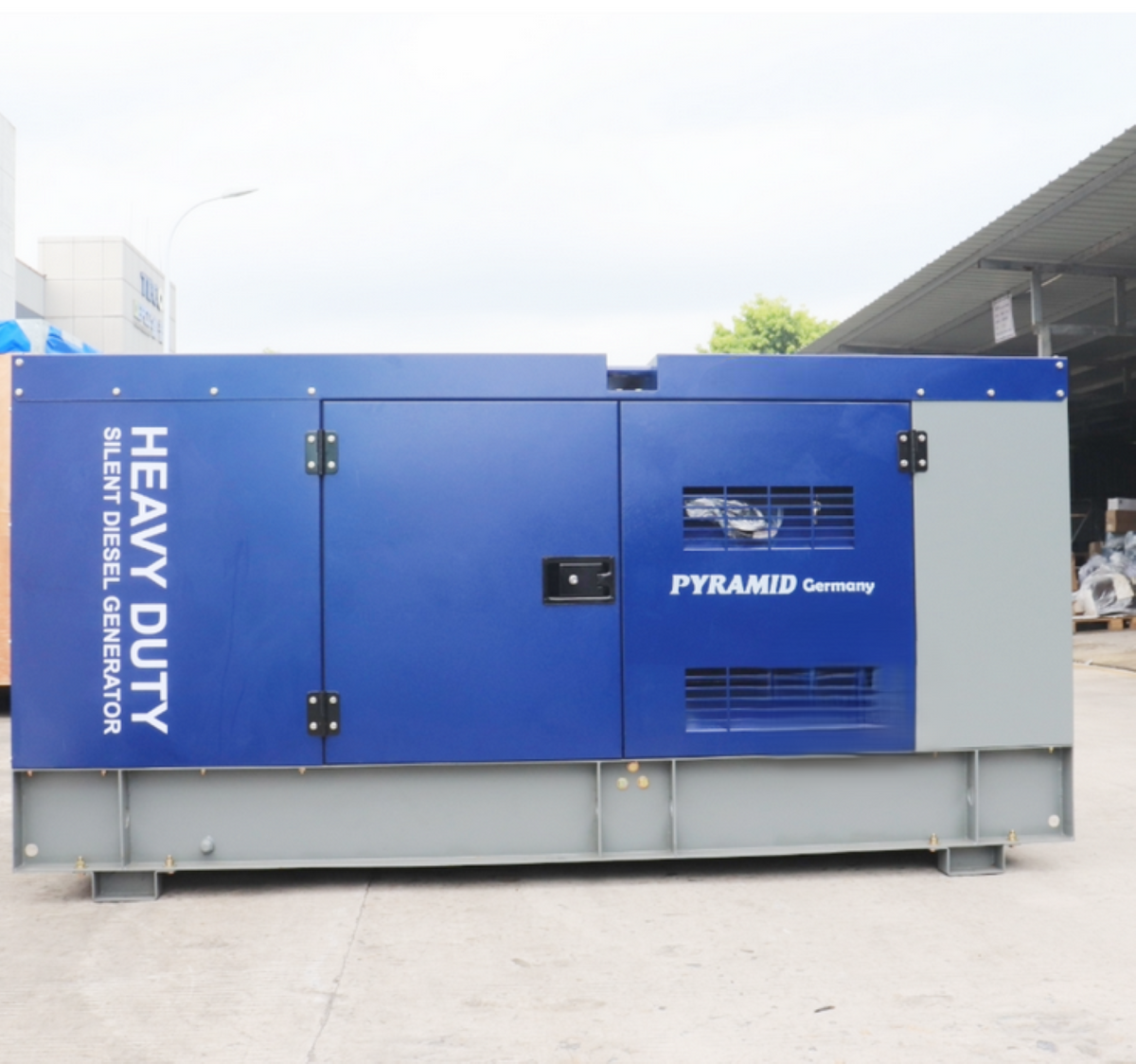

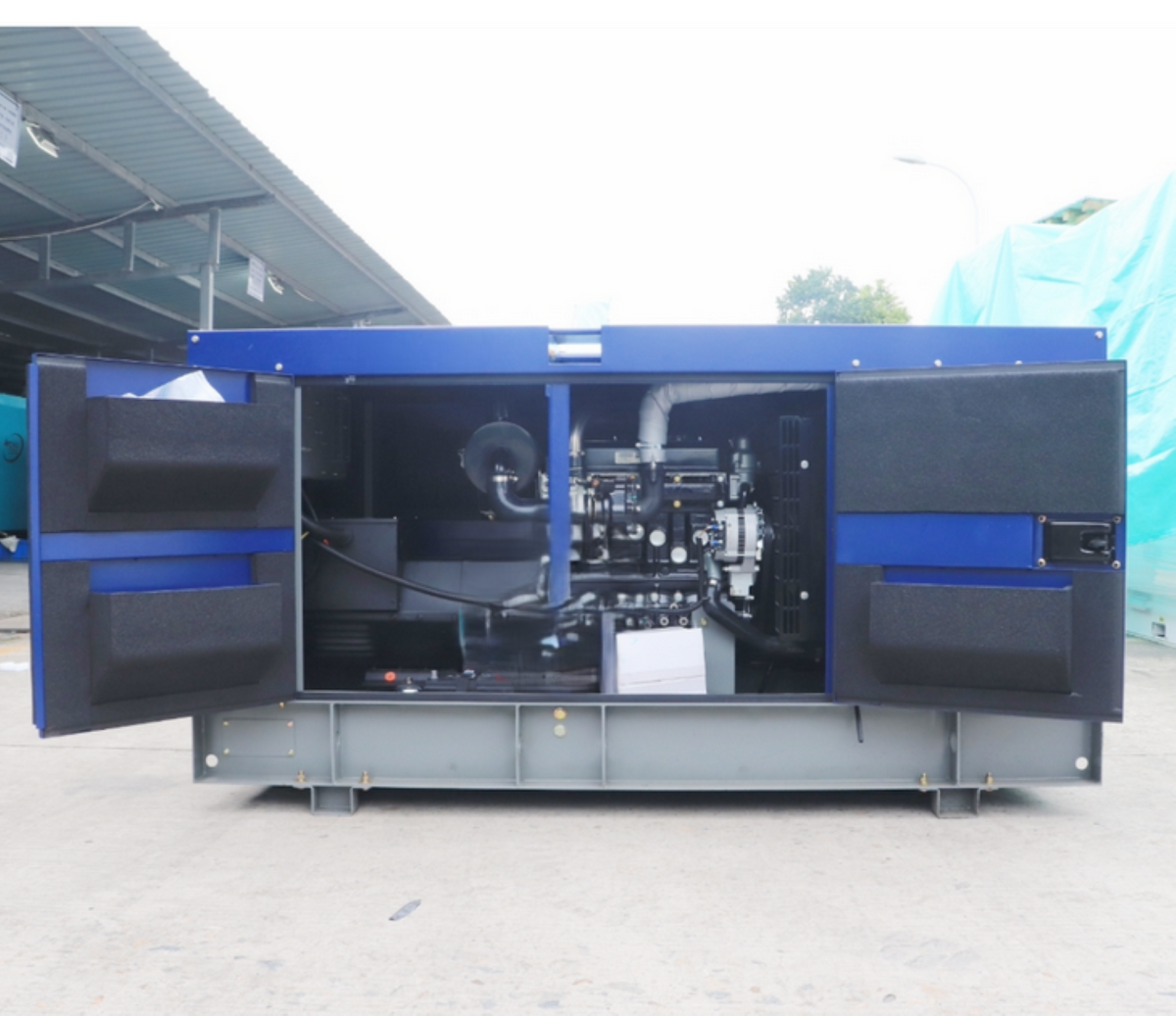

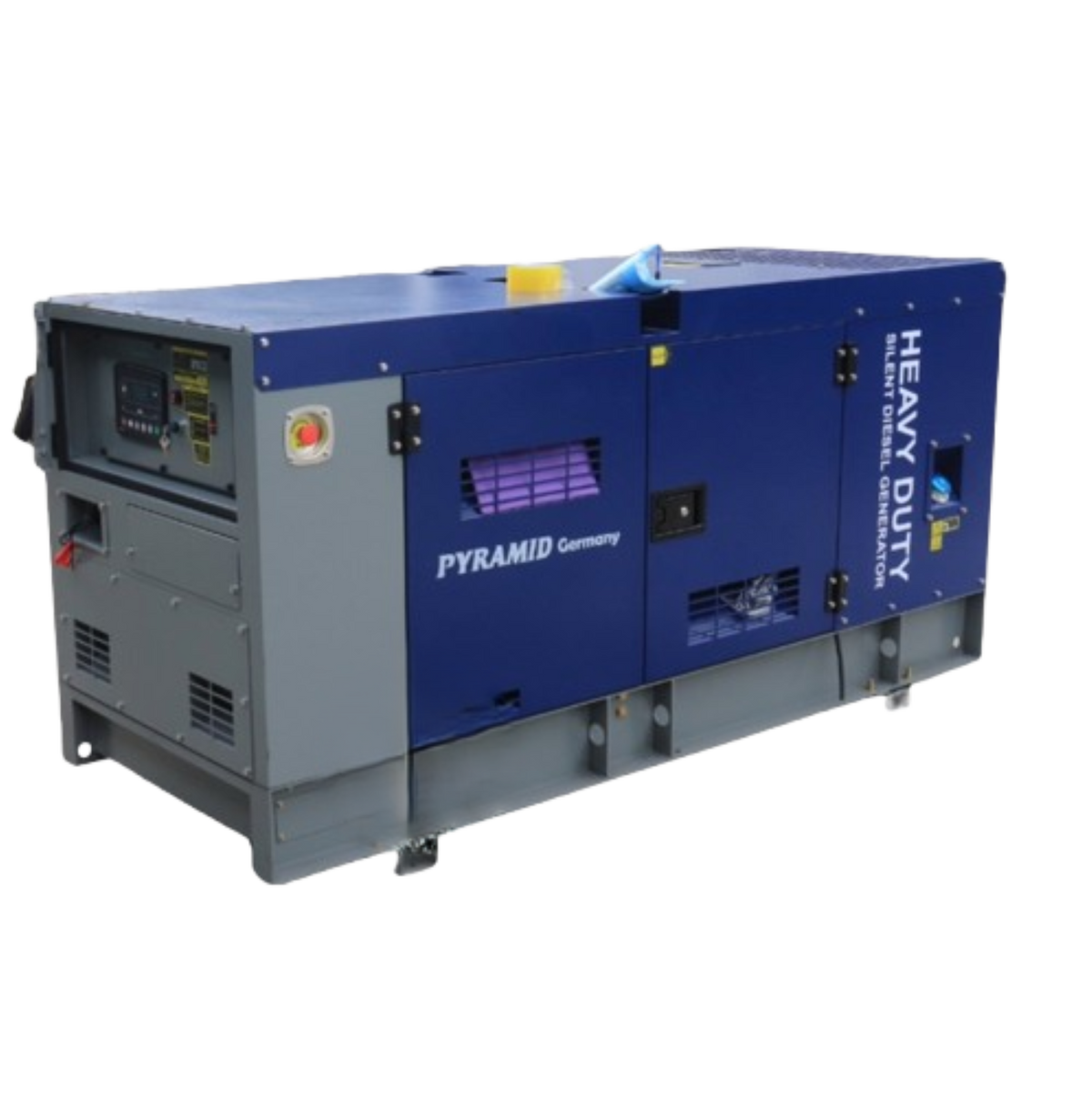

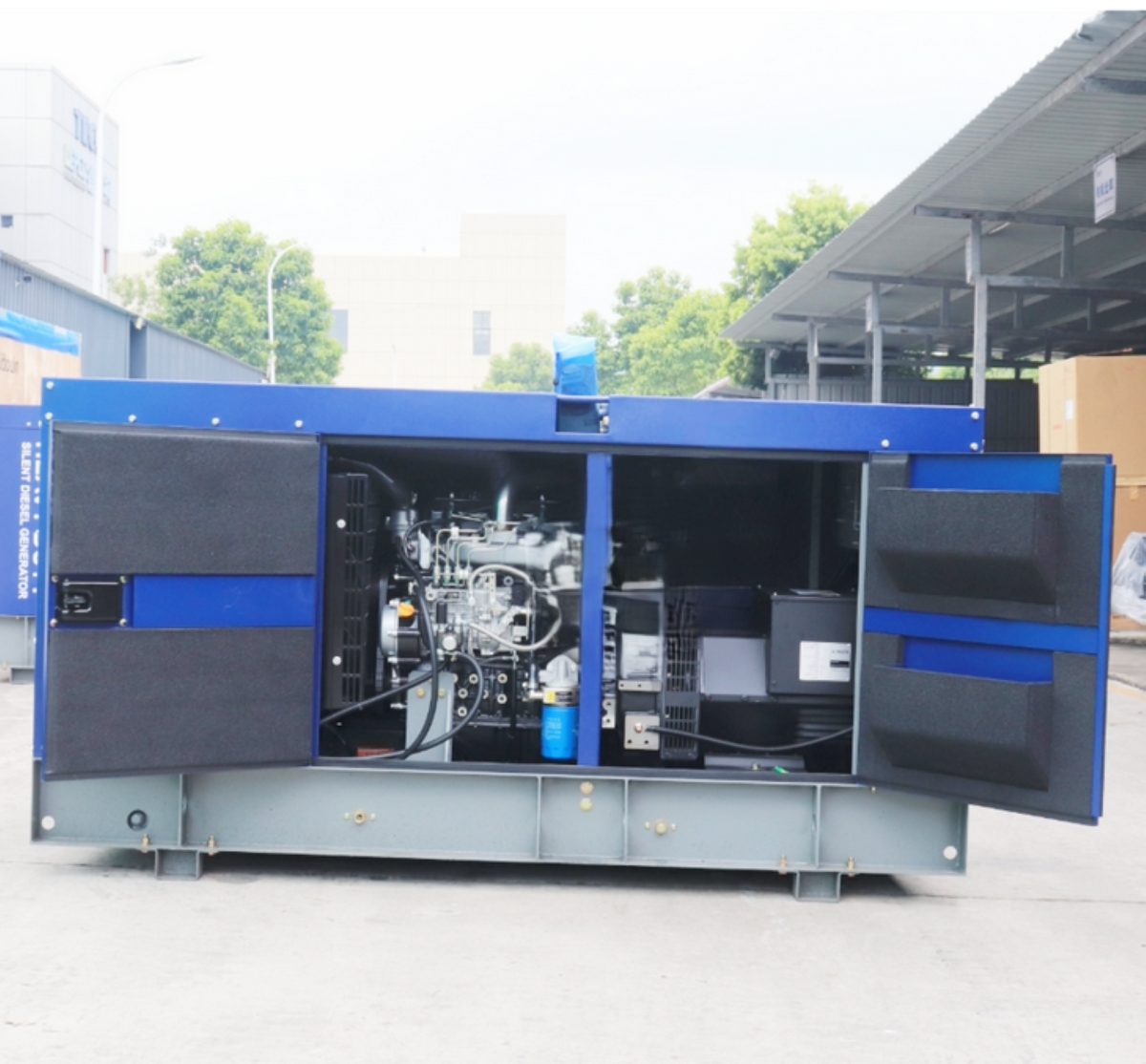

33kva 3Ph Pyramid Water Cooled Silent Diesel Generator With ATS

🔋 Power Output: 33kVA (Standby) | 30kVA (Prime) ⚡

🚛 Engine: Perkins 1103A-33G, 3-cylinder, water-cooled diesel, 1500 rpm

⚙️ Alternator: Leroy Somer, brushless, self-exciting with automatic voltage regulation (AVR)

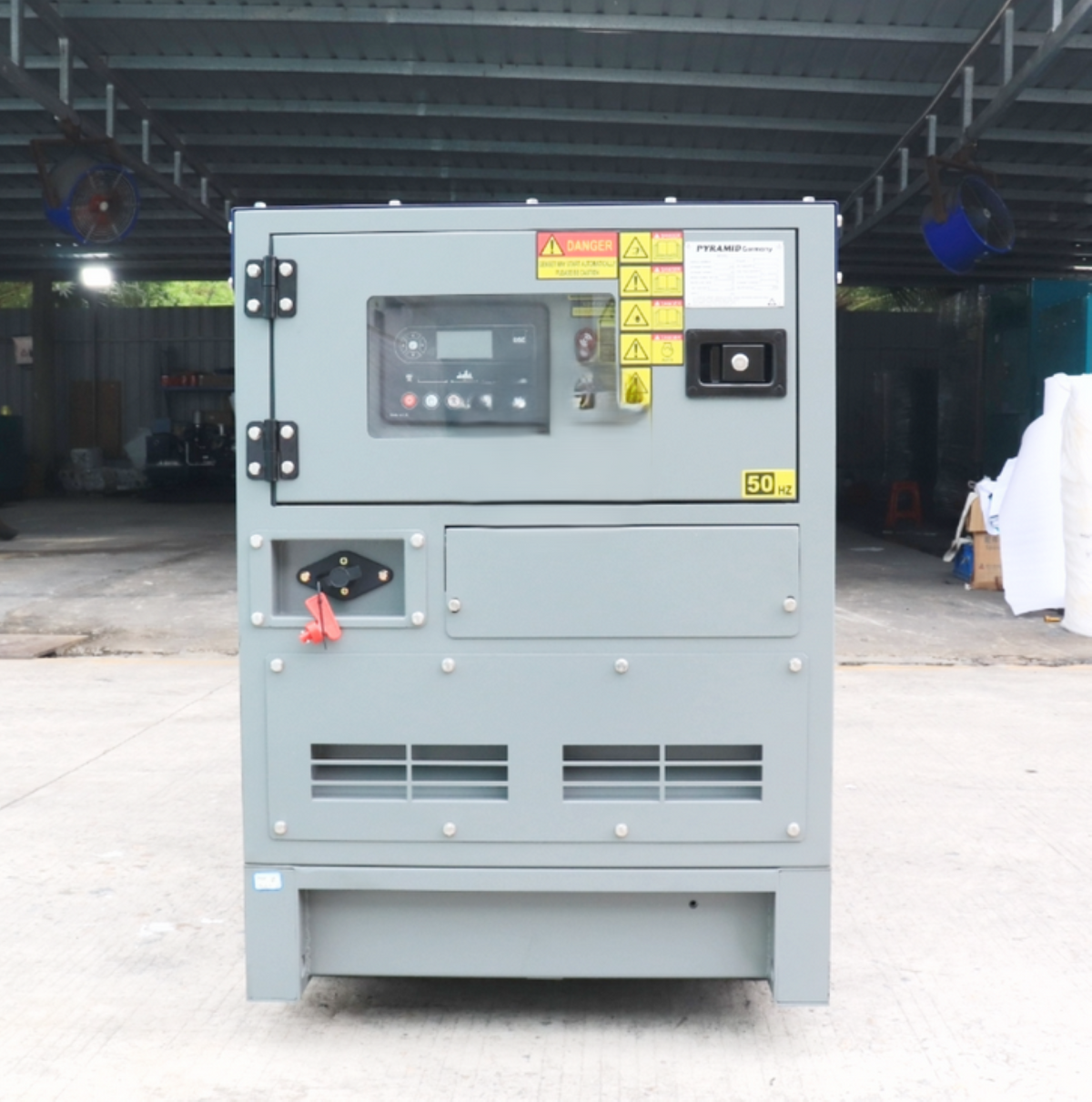

🖥️ Control Panel: Deep Sea DSE7320, offering full monitoring & protection

🔇 Noise Level: 64 dB(A) at 7 meters for silent operation

🔌 33kVA 3-Phase Pyramid Water-Cooled Silent Diesel Generator with ATS 🔌

The 33kVA 3-Phase Pyramid Water-Cooled Silent Diesel Generator with Automatic Transfer Switch (ATS) is a high-performance, durable, and quiet power solution. It is ideal for industrial, commercial, and residential applications, ensuring an uninterrupted power supply ⚡ during outages.

🛠️ Technical Specifications 📊

• 🔋 Power Output: 33kVA (Standby), 30kVA (Prime)
• ⚡ Voltage: 400V
• 🔄 Frequency: 50Hz
• 🚛 Engine: Perkins 1103A-33G, 3-cylinder, water-cooled diesel engine at 1500 rpm
• ⚙️ Alternator: Leroy Somer, brushless, self-exciting with automatic voltage regulation (AVR)
• 🖥️ Control Panel: Deep Sea DSE7320, providing full monitoring and protection features
• ⛽ Fuel Tank Capacity: 90 liters
• ⏳ Fuel Consumption: 7.1 liters per hour at 100% load
• 🔇 Noise Level: 64 dB(A) at 7 meters

📐 Dimensions & Weight ⚖️

• 📏 Length: 2200 mm
• 📏 Width: 950 mm
• 📏 Height: 1450 mm
• ⚖️ Dry Weight: 986 kg

🌟 Key Features 🌟

✅ Water-Cooled Engine – Efficient cooling for a longer engine lifespan 🚰
✅ Silent Operation – Low noise design, ideal for urban & residential use 🔇🏡
✅ Automatic Transfer Switch (ATS) – Seamless power switching during outages 🔄⚡
✅ Heavy-Duty Alternator – Provides stable & clean power output 💡
✅ Digital Control Panel – Easy monitoring of voltage, frequency, & engine metrics 📊🖥️
✅ Enhanced Safety – Low oil pressure shutdown, high temp protection, overload protection ⚠️🔥

🔧 Maintenance Tips 🛠️

Regular maintenance ensures optimal performance & longevity. Key tasks include:

🔍 Routine Inspections – Check for leaks, inspect belts, and secure connections 🔦
🛢️ Oil & Filter Changes – Replace engine oil & filters as per manufacturer’s schedule 🏎️
🌊 Cooling System Maintenance – Keep coolant levels optimal & radiator clean 🚰
⛽ Fuel System Checks – Inspect fuel lines, replace filters, and keep fuel clean 🛢️
🔋 Battery Maintenance – Ensure the battery is charged & clean 🔌🔎
🔥 Exhaust System Inspection – Check for blockages & corrosion 🚨

⏳ Following the maintenance schedule will prevent failures & extend generator life ⏳🔧

🏢 Applications 🏠

🔹 Industrial Operations – Provides power for heavy machinery 🏭🔩
🔹 Commercial Establishments – Keeps businesses running smoothly 🏬💼
🔹 Healthcare Facilities – Ensures continuous power for hospitals & clinics 🏥⚕️
🔹 Hospitality Industry – Supports hotels & restaurants 🍽️🏨
🔹 Residential Backup – Protects home appliances from power outages 🏡⚡
🔹 Agriculture & Farming – Powers irrigation & borehole pumps 🚜💦

The 33kVA 3-Phase Pyramid Water-Cooled Silent Diesel Generator with ATS is a powerful, efficient, and reliable energy solution, ensuring seamless operation in all conditions ⚡🔋.
