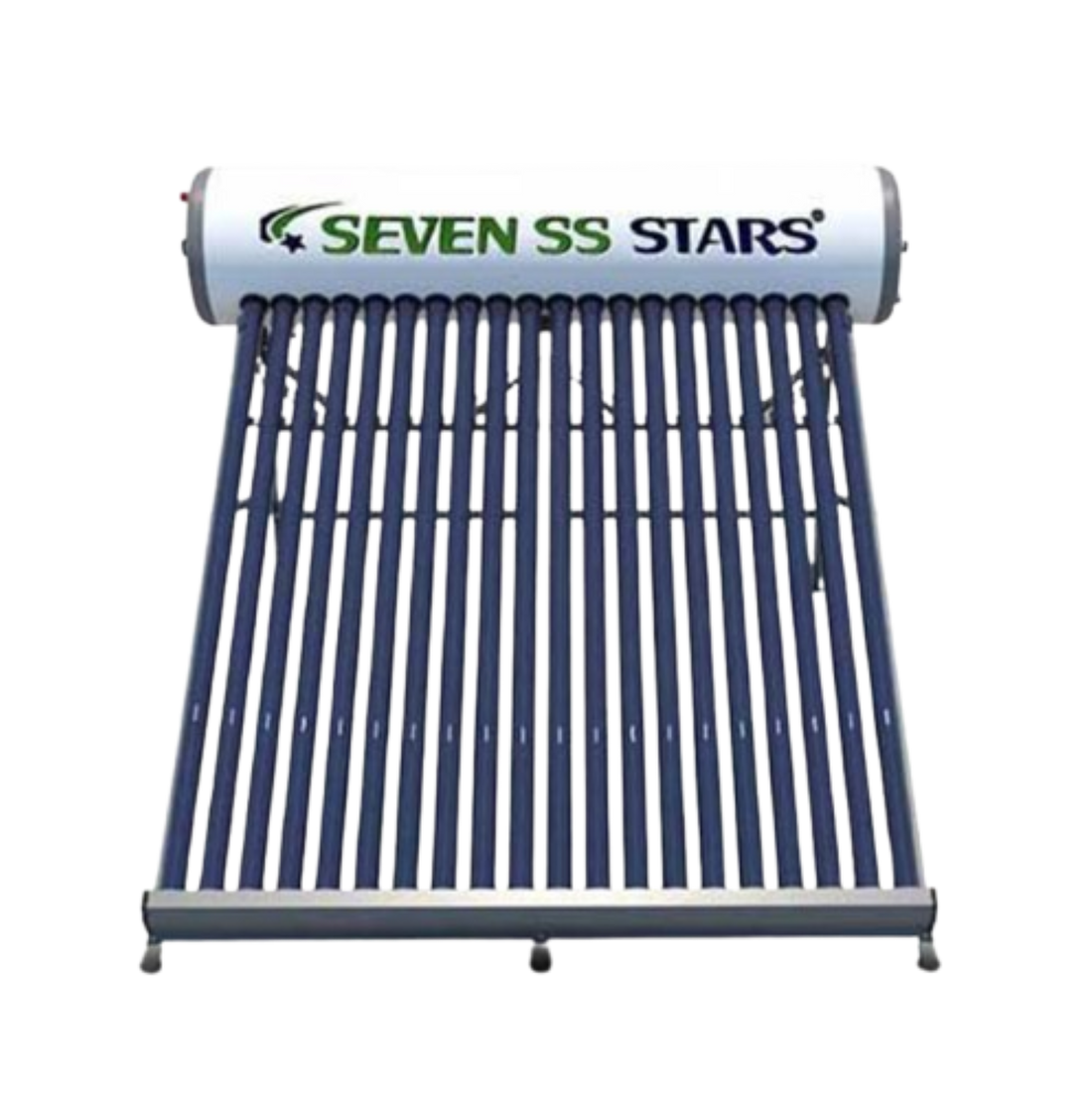

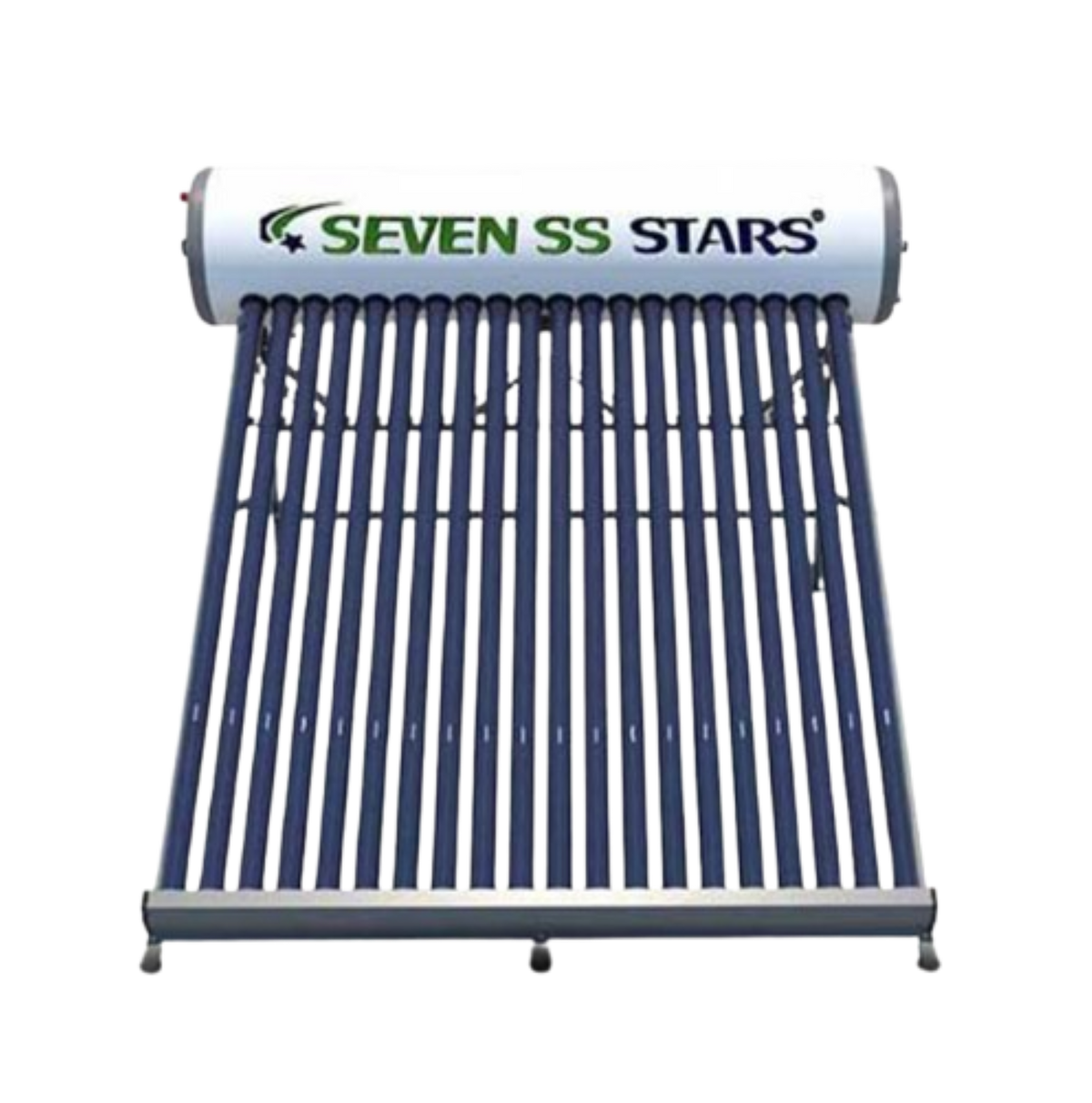

350L Galvanized Solar Water Heater Pressurized Seven SS

🔥350L Galvanized Solar Water Heater (Pressurized Seven SS) 🔥

📦 Tank Capacity: 350 Liters
🛡 Tank Material: Galvanized Steel (Outer) + Stainless Steel SS 304/316 (Inner)
🔥 Insulation: Polyurethane Foam (PUF) for High Thermal Retention
🌞 Collector Type: High-Efficiency Vacuum Tube Solar Collector
🔬 Collector Tubes:

• Material: Borosilicate Glass with Selective Coating
• Tube Diameter: 47mm - 58mm
• Tube Length: 1.5m - 2.1m
• Number of Tubes: 30 - 36 tubes
  💦 Heat Transfer System: Direct or Indirect (with Heat Exchanger)
  ⚙ Working Pressure: 0.6 MPa (6 Bar) Maximum
  🔌 Backup Heating Element: Electric Heater (1.5kW - 3kW) for Cloudy Days ☁️⚡
  🛠 Frame Material: Galvanized Steel or Aluminum (Corrosion-Resistant)
  📏 Installation Angle: Adjustable (25° - 45°) for Optimal Solar Exposure
  🚰 Inlet/Outlet Diameter: ½ inch or ¾ inch (Varies by Model)
  ❄ Anti-Freezing System: Available in Some Models for Cold Climates

🔥 350L Galvanized Solar Water Heater - Pressurized Seven SS 🔥

📌 Description

The 350L Galvanized Solar Water Heater - Pressurized Seven SS is a high-capacity, energy-efficient solar heating system designed for residential, commercial, and industrial applications. 🌞🔋 Built with galvanized steel and stainless steel (SS 304/316), it offers superior durability, corrosion resistance, and high thermal retention. 💪💦

This pressurized system ensures a constant flow of hot water, making it ideal for multi-story buildings. 🏠🏢 It consists of a high-efficiency solar collector, a pressurized insulated tank, and an optional electric backup heater for uninterrupted service. 🚀

📊 Technical Specifications

📦 Tank Capacity: 350 Liters
🛡 Tank Material: Galvanized steel exterior + Stainless Steel (SS 304/316) inner lining for anti-corrosion protection
🔥 Insulation: Polyurethane foam (PUF) insulation for superior heat retention
🌞 Collector Type: High-efficiency vacuum tube solar collector
🔬 Collector Tubes:

• Material: Borosilicate glass with selective coating
• Tube Diameter: 47mm - 58mm
• Tube Length: 1.5m - 2.1m (varies by model)
• Number of Tubes: 30 - 36 tubes for a 350L system
  💦 Heat Transfer System: Direct or Indirect (with heat exchanger) model options
  ⚙ Working Pressure: 0.6 MPa (6 Bar) max
  🔌 Backup Heating Element: Electric heater (1.5kW - 3kW) for cloudy days ☁️⚡
  🛠 Frame Material: Galvanized steel or aluminum (corrosion-resistant)
  📏 Installation Angle: Adjustable (25° - 45°) for optimal solar exposure
  🚰 Inlet/Outlet Diameter: ½ inch or ¾ inch (varies by model)
  ❄ Anti-Freezing System: Available in some models for cold climates

📌 Applications

✅ 🏡 Residential Homes: Hot water for bathing, washing, and kitchen use
✅ 🏨 Hotels & Resorts: Ensures a continuous hot water supply for guests
✅ 🏥 Hospitals & Clinics: Supports sterilization & hygiene applications
✅ 🏢 Commercial Buildings: Offices, schools, and dormitories
✅ 🏭 Industrial Use: Small-scale industries requiring warm water
✅ 🏊‍♂️ Swimming Pools: Helps in pool water heating

🛠 Maintenance & Care

To keep your solar water heater running efficiently, follow these maintenance tips:

🔹 🧽 Clean the Collector Tubes: Wipe dust, dirt, and bird droppings every 3-6 months for maximum heat absorption. 🌞✨
🔹 🚰 Check for Leaks: Inspect pipes and joints for leaks or loose connections. 💧🔎
🔹 🛁 Flush the Tank: Drain and flush every 6-12 months to remove sediment buildup. 🧼
🔹 ❄ Winter Care: In freezing conditions, use an anti-freezing solution or install a heat exchanger. ⛄🛠
🔹 ⚙ Inspect Pressure Valves: Check and clean the pressure relief valve regularly. 🔧
🔹 🔌 Backup Heating Element Check: Ensure the electric heater functions properly. ⚡

This 350L Galvanized Solar Water Heater - Pressurized Seven SS is an eco-friendly, cost-saving solution for your hot water needs! 🌱🔥♻
