3kw Hybrid Solar Inverter 80A 24V Premier

Solar Inverters

3kw Hybrid Solar Inverter 80A 24V Premier

Name: 3kw Hybrid Solar Inverter 80A 24V Premier
Brand: Ruevan
Price: 33890.00 KES
Availability: InStock

KSh33,890.00 ~~KSh53,700.00~~

Product details

⚡ Power Output: 3kW rated power with 6kW surge capacity for high-performance energy conversion.

🔋 Battery & Voltage: Operates on a 24V DC system with an 80A MPPT charge controller for efficient solar charging.

☀️ Solar Input: Supports up to 3000W PV input with a wide voltage range of 55-450V DC for maximum solar energy utilization.

🌊 Pure Sine Wave Output: Ensures stable and clean electricity, ideal for sensitive electronics and appliances.

📡 Smart Connectivity: Equipped with RS232, Wi-Fi, GPRS, and lithium battery communication for remote monitoring and control.

3kW Hybrid Solar Inverter 80A 24V Premier ⚡☀️

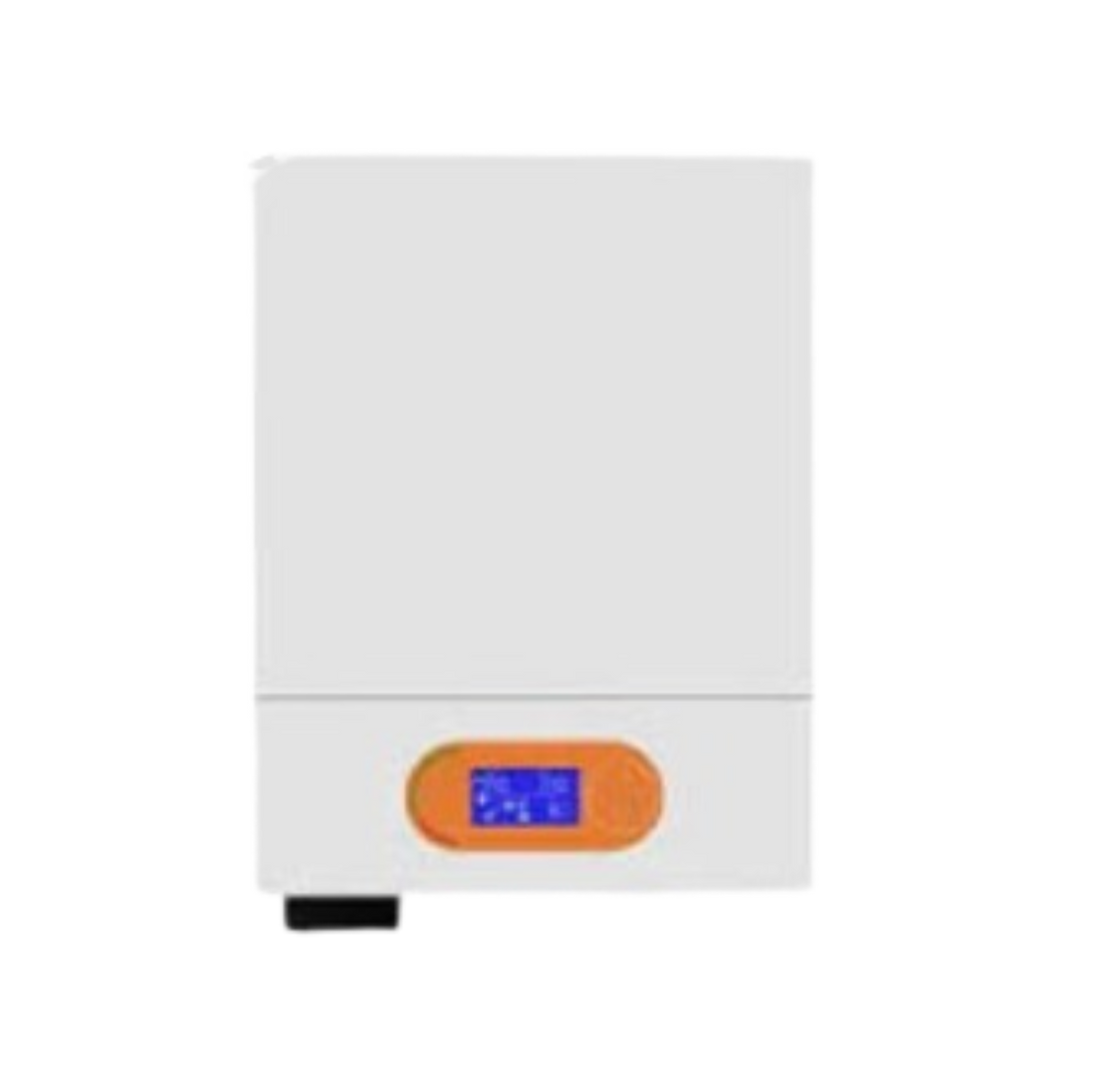

This 3kW Hybrid Solar Inverter is designed to efficiently convert solar energy into usable AC power for residential and commercial applications. It comes with an 80A MPPT charge controller and operates on 24V DC, making it a reliable choice for off-grid and backup power solutions.

🔧 Technical Specifications:

🔋 Rated Power: 3000W (3kW)
⚡ Surge Capacity: 6000W
🔌 DC Input Voltage: 24V DC
🏡 AC Output Voltage: 220/230/240V AC (Single Phase)
🌊 Output Waveform: Pure Sine Wave
🔆 MPPT Charge Controller:
- Maximum PV Input Power: 3000W ☀️
- Voltage Range: 55-450V DC ⚡
- Maximum PV Input VOC: 450V DC
- Starting Voltage: >60V DC
- Maximum Charging Current: 80A
🔄 Charging Modes:
✅ PV Priority
✅ Utility Priority
✅ Hybrid Charging
✅ Only Solar Charging
🔁 Output Modes:
✅ Mains Bypass
✅ Inverter Output
⏳ Transfer Time: 10ms for PCs, 20ms for home appliances
🚀 Efficiency: Up to 98% conversion efficiency
📡 Communication Interface: RS232, Wi-Fi, GPRS, Lithium Battery Communication

📏 Weight and Dimensions:

📐 Dimensions: 100 x 300 x 440 mm
⚖️ Weight: 10 kg

💡 Applications:

This hybrid solar inverter is suitable for various uses, including:

🏠 Residential Use – Powers lights, fans, refrigerators, air-conditioning units, and other household appliances.
🏕️ Off-Grid Systems – Supplies electricity in remote areas without a power grid connection.
🔋 Backup Power – Works as a UPS (Uninterruptible Power Supply) during power outages.
🏢 Commercial Use – Supports small offices, shops, and retail establishments.

🛠️ Maintenance Tips:

🔍 Regular Inspections – Check for dust, loose connections, and signs of wear regularly.
❄️ Cooling System – Ensure that air vents are clear for proper heat dissipation.
📲 Firmware Updates – Keep software up to date for the latest improvements.
🔋 Battery Maintenance – If using batteries, follow manufacturer guidelines for proper care.
👨‍🔧 Professional Servicing – Schedule annual checkups with a technician to ensure smooth operation.

By following these maintenance tips, you can maximize the efficiency and lifespan of your 3kW hybrid solar inverter system! ⚡☀️🔋
