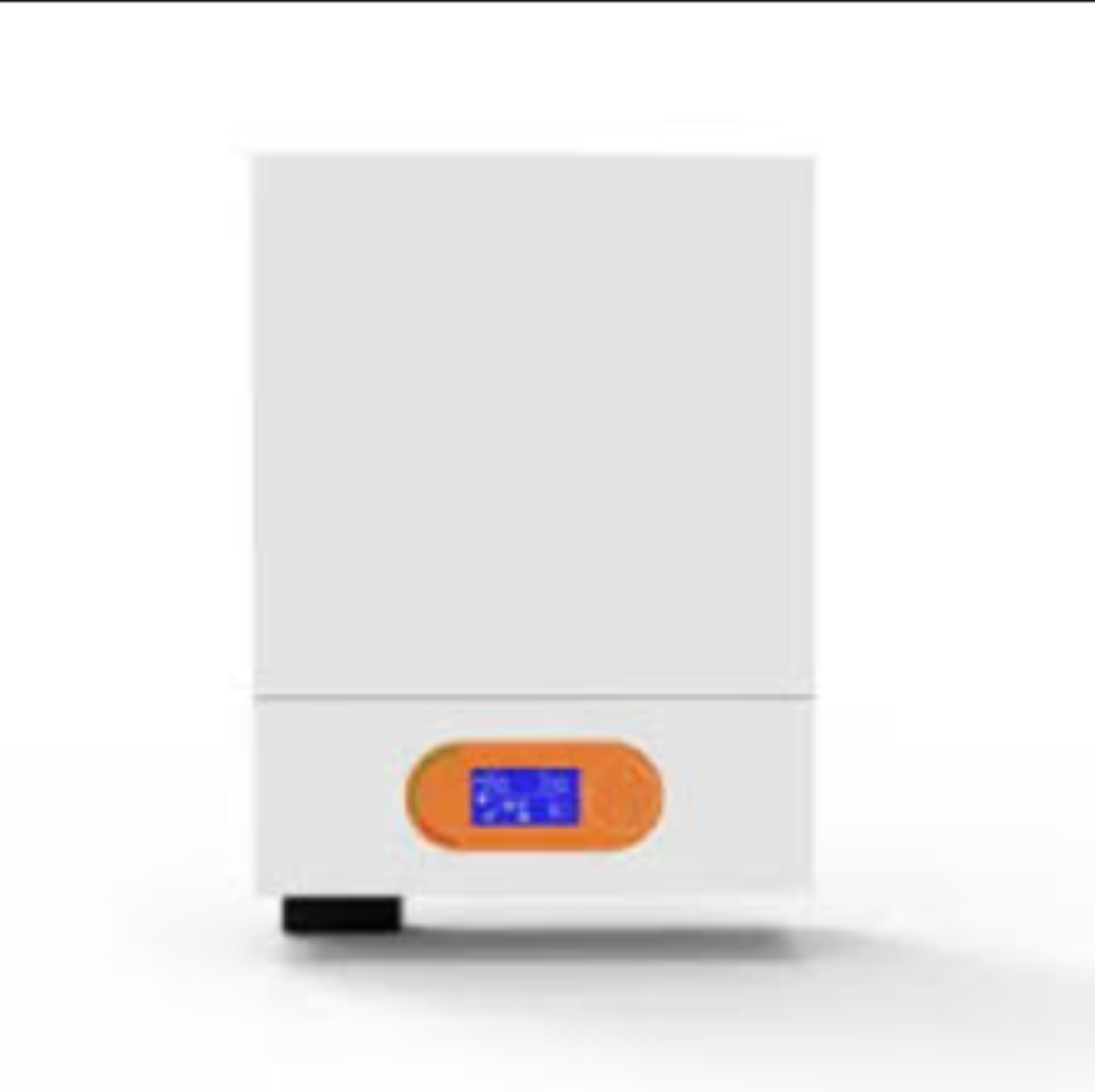

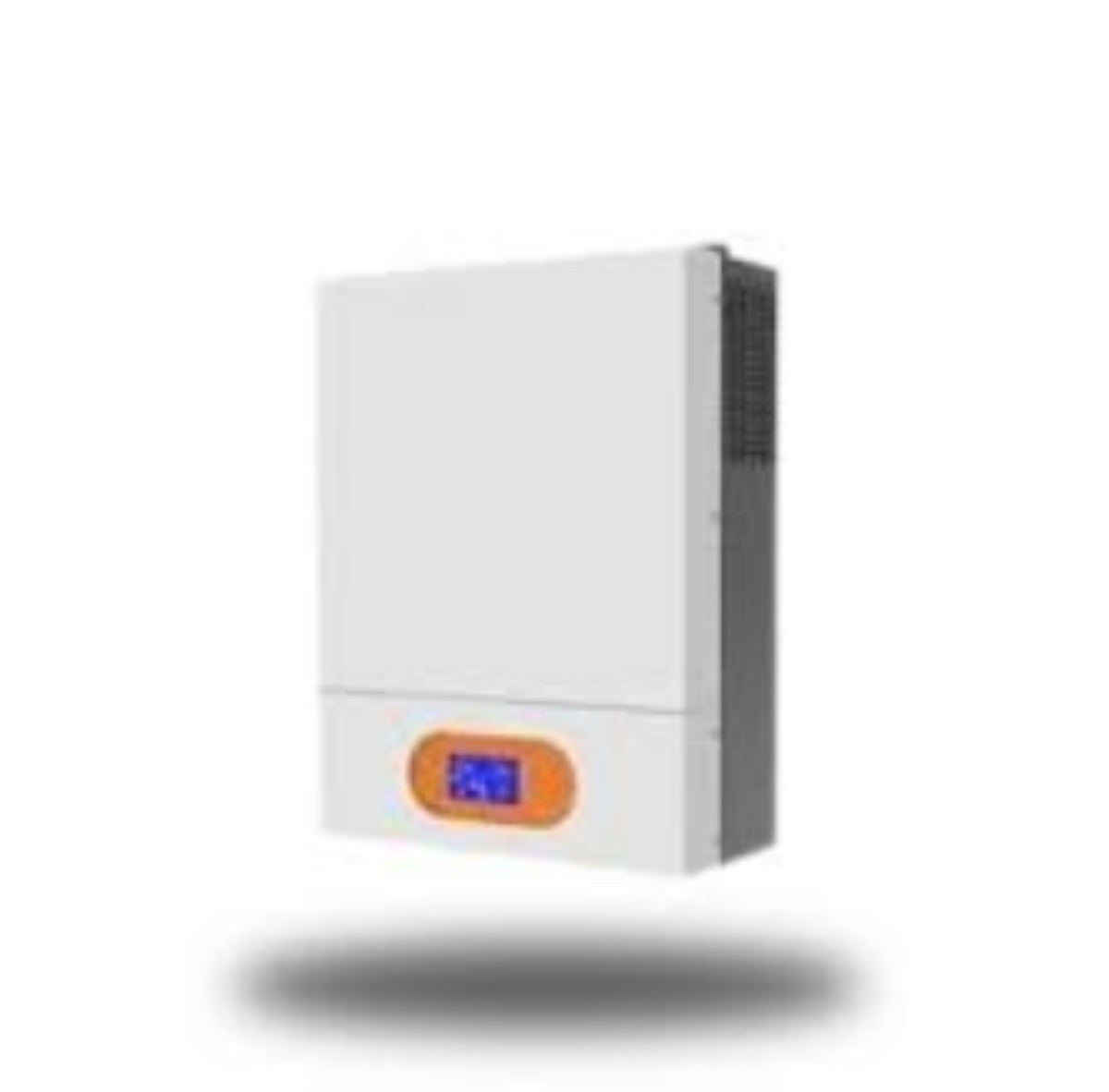

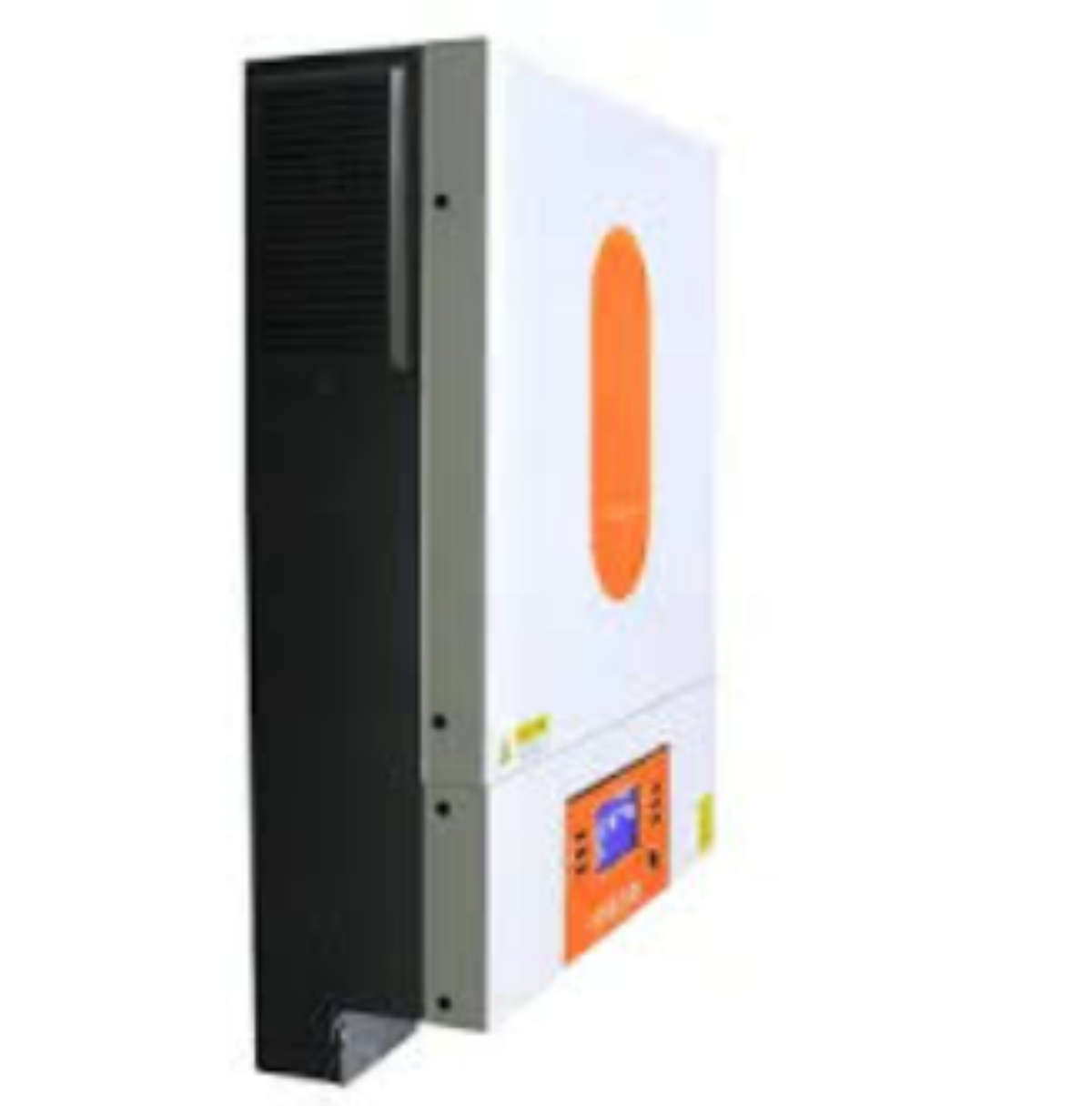

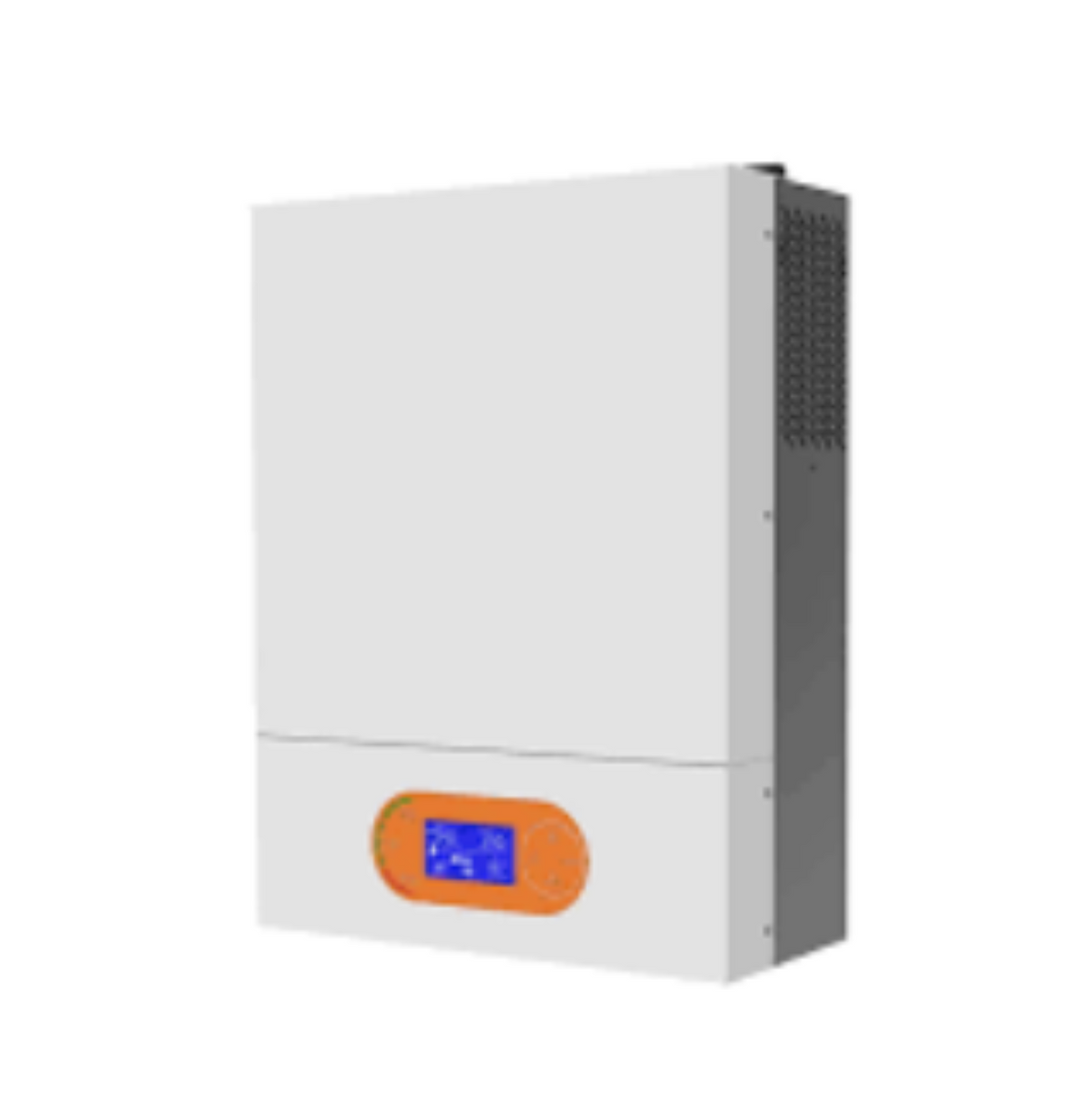

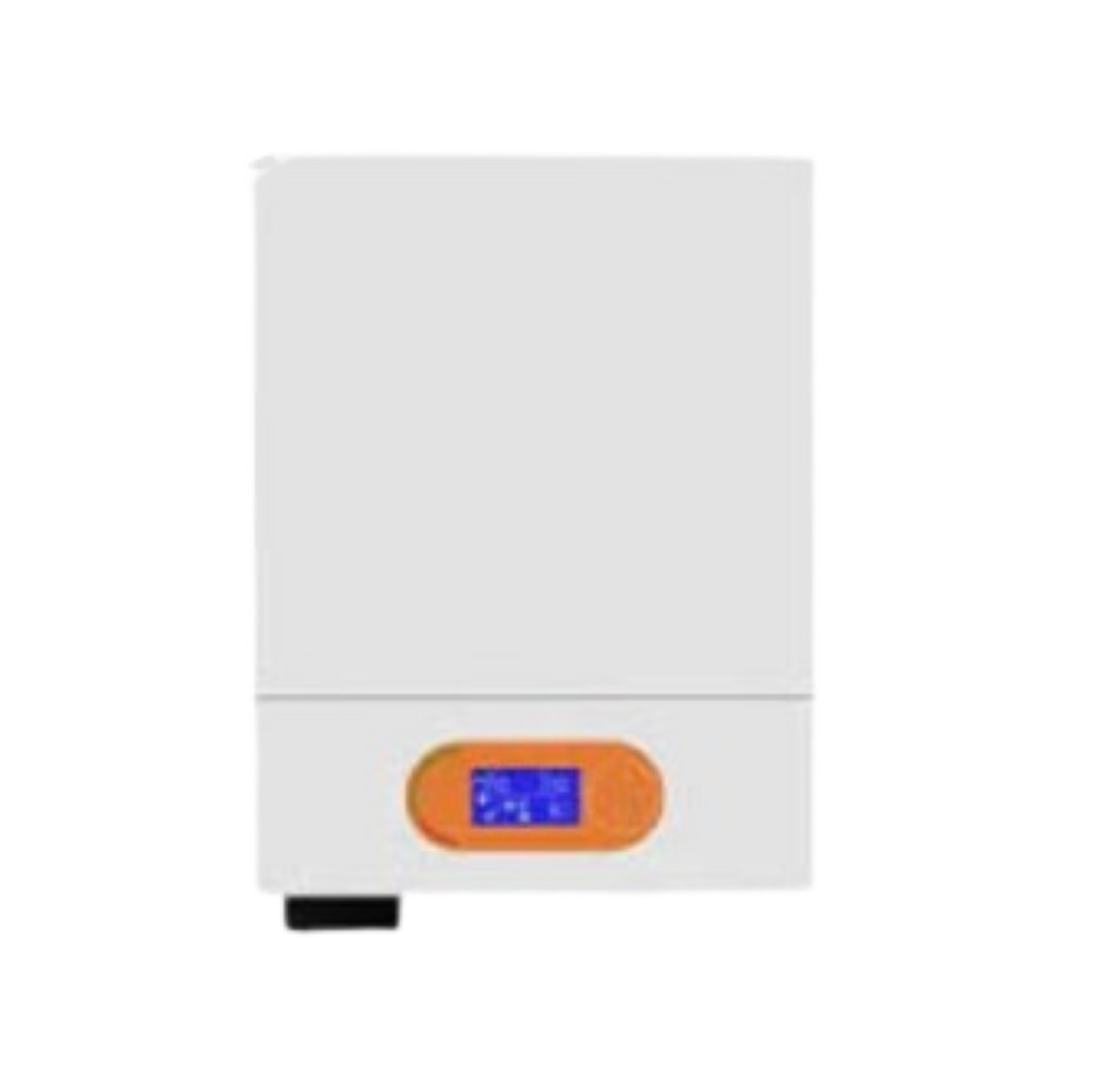

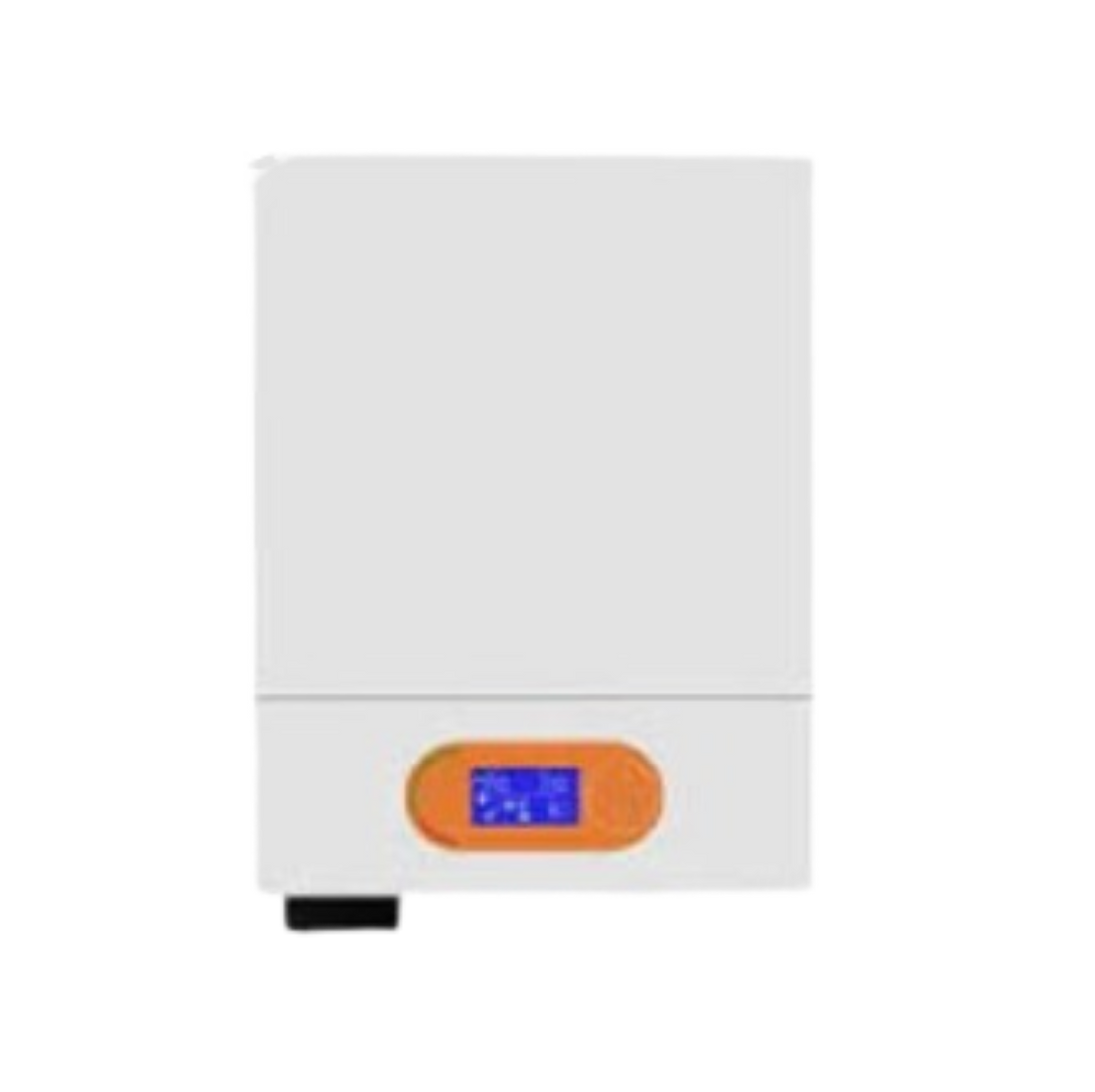

6kw 48v Hybrid Inverter 100A Smart Monitoring & Display Premier

The 6kW 48V Hybrid Inverter 100A with Smart Monitoring & Display (Premier) is a high-performance inverter designed for residential 🏡, commercial 🏢, and off-grid 🌞 applications. Below is a detailed breakdown of its specifications, weight and dimensions, applications, and maintenance guidelines.

🔧 Technical Specifications:

• ⚡ Rated Power: 6,000W (Pure Sine Wave Output)
• 🔋 Battery Voltage: 48V DC
• ☀️ Maximum Solar Input Power: 12,000W
• 🔎 MPPT Voltage Range: 120V–400V DC
• 🔌 Maximum PV Charging Current: 100A
• 🔄 AC Input Voltage Range: 90V–140V AC
• ⏳ Output Frequency: 50Hz/60Hz (Auto-detect)
• 📈 Efficiency: >90% (dependent on load conditions)
• 💡 Output Waveform: Pure sine wave for stable and efficient power supply
• 📊 Display: LCD touchscreen or LED panel for real-time monitoring
• 📡 Connectivity: RS485, Wi-Fi, or Bluetooth for remote monitoring and control
• 🛡️ Protection Features: Overload, short circuit, over-temperature, under-voltage, over-voltage, and reverse polarity protection
• 🔄 Operation Modes: Grid-tie, off-grid, and hybrid mode for flexible energy management
• 🌀 Cooling System: Smart fan-based cooling for optimal heat dissipation

📏 Weight & Dimensions:

• 📦 Approximate Dimensions: 570mm x 310mm x 154mm
• ⚖️ Weight: Around 29 kg

(Specifications may slightly vary based on the manufacturer and model.)

🏠 Applications:

1. Residential Power Backup 🏡 – Provides uninterrupted electricity for essential household appliances such as lights 💡, refrigerators ❄️, and televisions 📺.
2. Commercial Use 🏢 – Supports office setups, small businesses, and commercial spaces requiring stable power for computers 💻, networking devices 🌐, and printers 🖨️.
3. Off-Grid Solar Systems 🌞 – Ideal for remote locations without grid access, storing and distributing solar energy efficiently.
4. Hybrid Energy Systems ⚡🔋 – Works with both solar panels and utility power to optimize energy use and reduce electricity bills.
5. Industrial Use 🏭 – Can power small industrial machines and equipment at remote work sites.

🛠️ Maintenance Guidelines:

To ensure long-lasting performance and reliability, follow these maintenance steps:

• 🧹 Regular Cleaning: Keep the inverter’s surface dust-free to prevent overheating.
• 🔍 Connection Inspection: Periodically check and tighten all electrical connections to avoid power losses.
• 🔋 Battery Health Monitoring: Ensure battery terminals are clean ⚙️ and free of corrosion; replace old or damaged batteries as needed.
• 📲 Firmware Updates: Keep the inverter firmware updated for the latest features and efficiency improvements.
• 🌬️ Cooling System Maintenance: Ensure the cooling fans are functioning properly and clean any accumulated dust.
• 🌡️ Environmental Protection: Install the inverter in a dry, well-ventilated space away from moisture and extreme heat.

By following these best practices, the inverter will operate efficiently ⚙️ and provide a stable power supply for years to come ⏳🔋.
