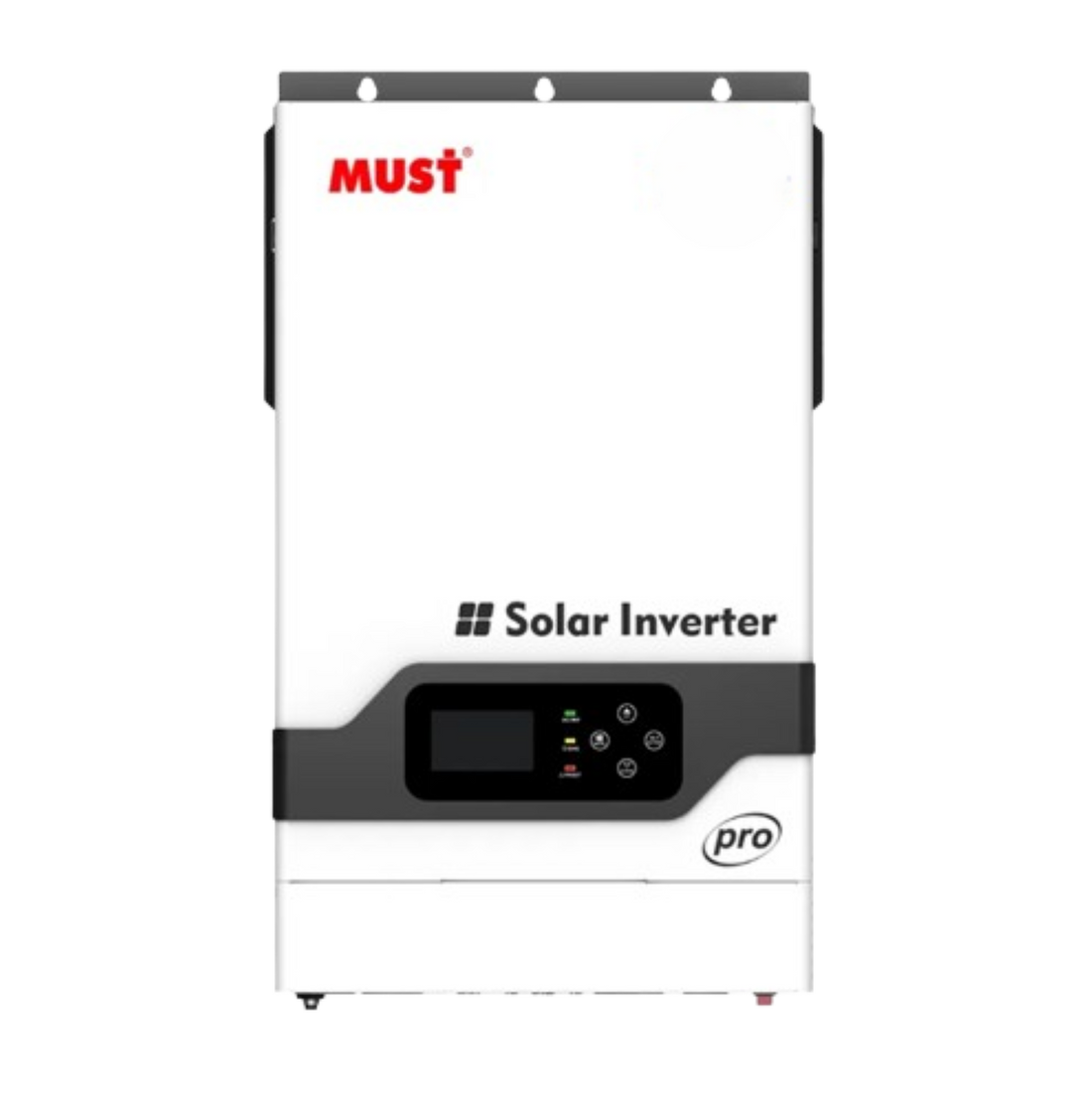

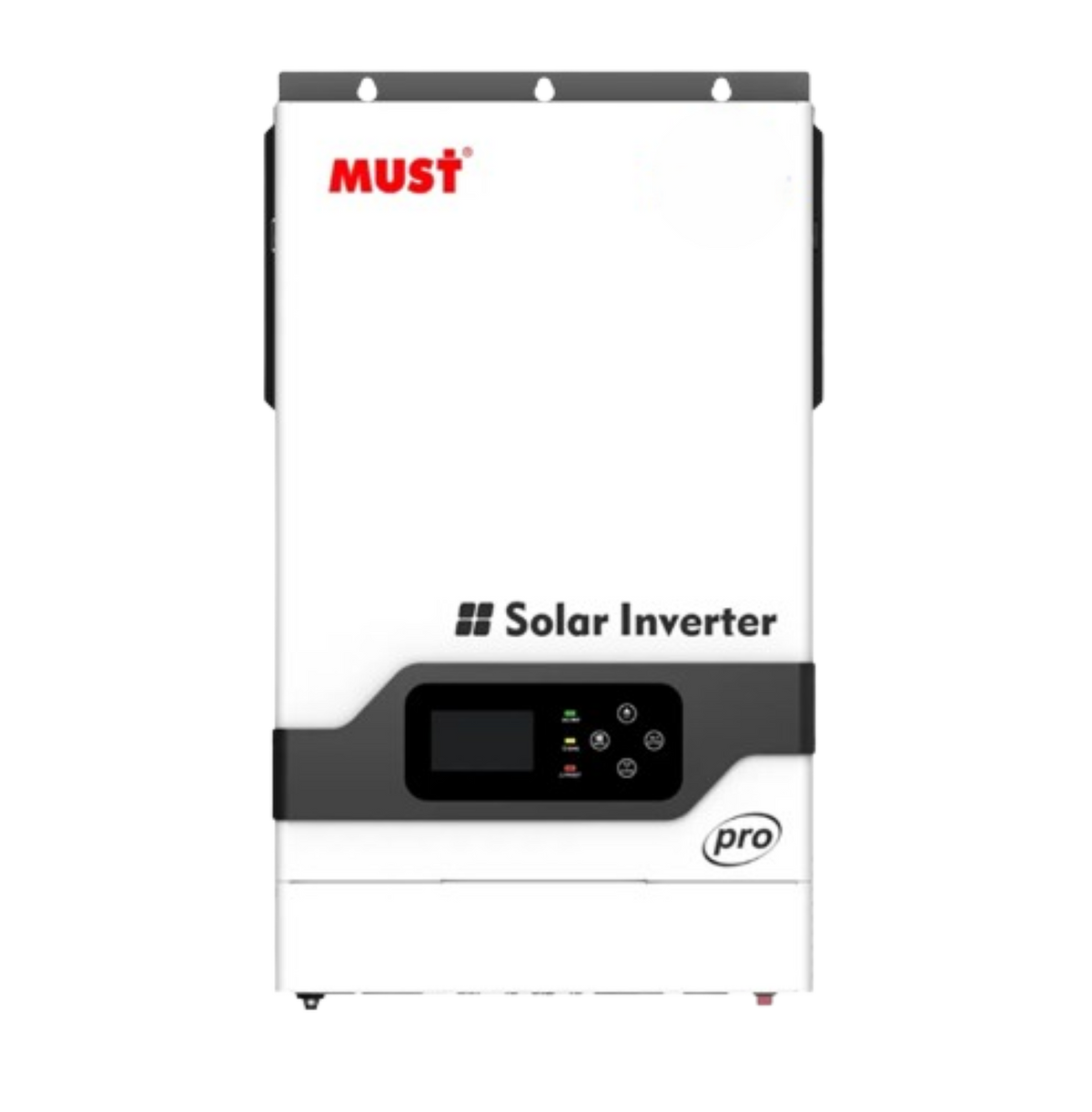

6kw 48v Low Frequency Inverter Must 80A MPPT PV3000 VHM

🔹 Pure Sine Wave Output – Ensures stable and clean electricity for sensitive electronics and appliances ⚡🔌

🔹 80A MPPT Solar Charger – Maximizes solar energy conversion efficiency for optimal battery charging ☀️🔋

🔹 Low-Frequency Transformer – Provides high surge power capacity and reliable long-term performance 🔄🏋️

🔹 Multiple Protection Features – Built-in safeguards against overload, short circuit, overvoltage, and overheating 🛡️🚨

🔹 Hybrid Functionality – Supports solar, battery, and grid input for flexible power management 🔆🔄⚡

🔹 Smart LCD Display & Remote Monitoring – Easy-to-read status updates and optional remote control 📊📡

🔋 6kW 48V Low-Frequency Inverter – MUST PV3000 VHM (80A MPPT)

⚙️ Technical Specifications

• Model: PV3000 VHM
• Rated Power: 6000W (6kW)
• DC Input Voltage: 48V
• Inverter Type: Low-Frequency Pure Sine Wave
• PV Controller: 80A MPPT (Maximum Power Point Tracking)
• PV Input Voltage Range: 60V – 145V DC
• Battery Type: Compatible with Lead-Acid & Lithium Batteries
• Output Voltage: 220V/230V AC ±5%
• Waveform: Pure Sine Wave
• Efficiency: ≥ 90%
• Transfer Time: ≤ 10ms (UPS mode), ≤ 20ms (Inverter mode)
• Frequency: 50Hz/60Hz (Auto-Sensing)
• Cooling System: Intelligent Fan Cooling
• Display: LCD + LED indicators
• Protection Features: Overload, Overvoltage, Overtemperature, Short Circuit, and Battery Low Voltage Protection

🏡 Applications

✅ Off-Grid Solar Systems – Perfect for powering homes, cabins, and remote locations with solar energy. 🌞🏠
✅ Backup Power – Reliable UPS function for power backup during outages. ⚡🔌
✅ Industrial & Commercial Use – Ideal for running heavy-duty equipment, motors, and sensitive electronics. 🏭🔋
✅ RV & Marine Power Systems – Suitable for mobile applications in RVs, boats, and caravans. 🚐⛵
✅ Hybrid Solar Solutions – Works seamlessly with solar panels, batteries, and the grid. 🔆🔋⚡
✅ Farms & Agricultural Use – Powers irrigation pumps, lighting, and other essential farm equipment. 🚜🌾
