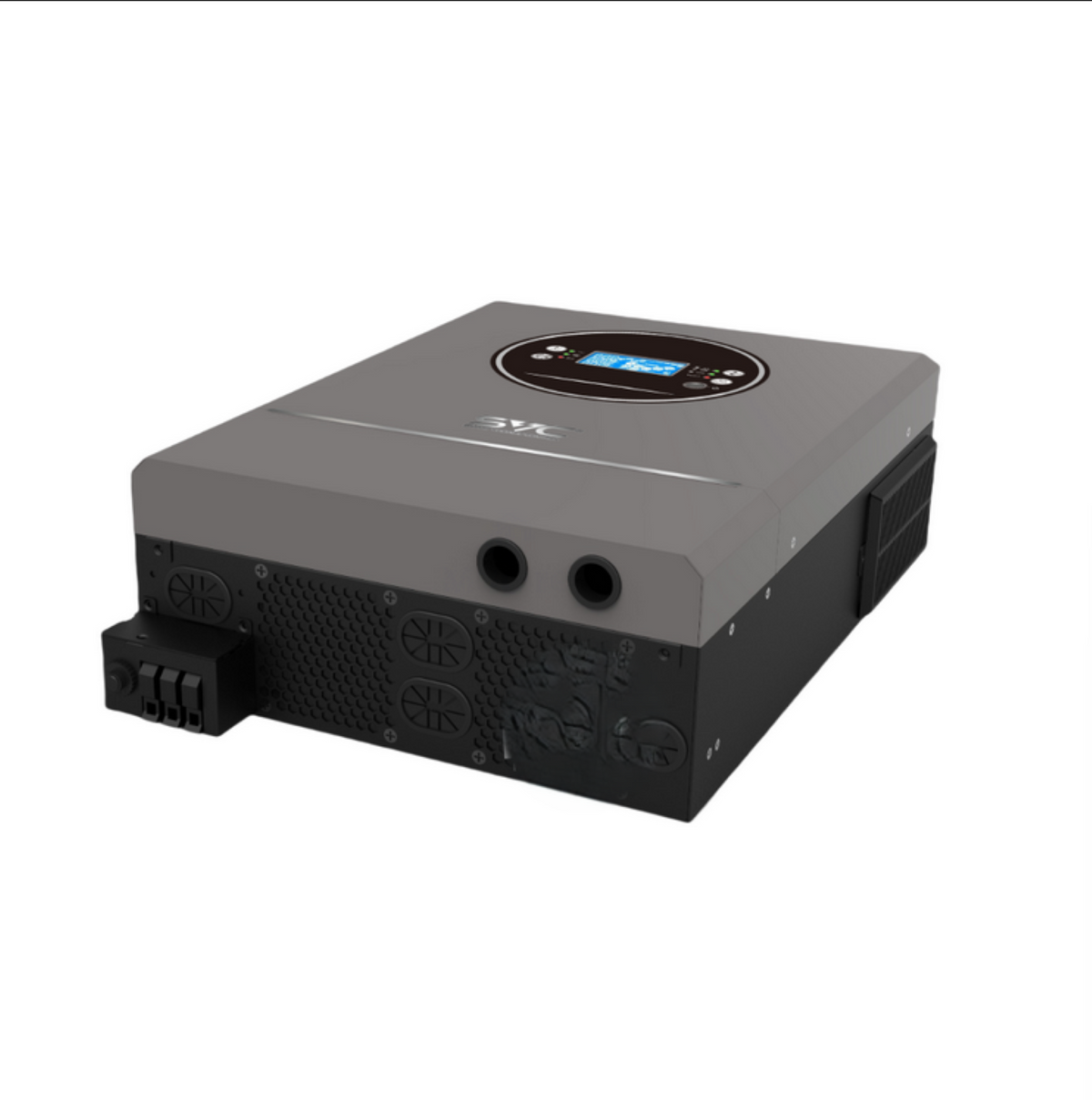

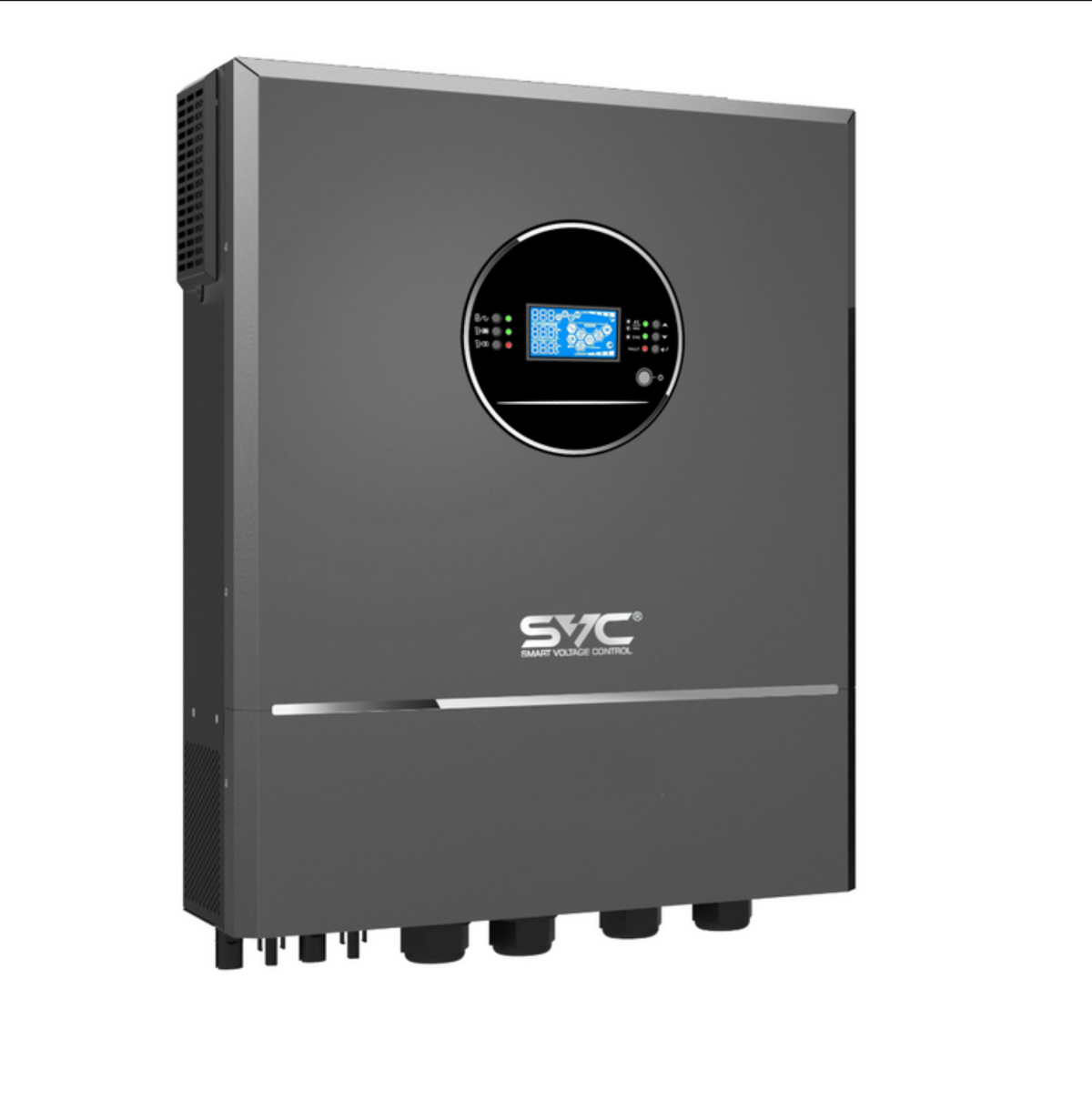

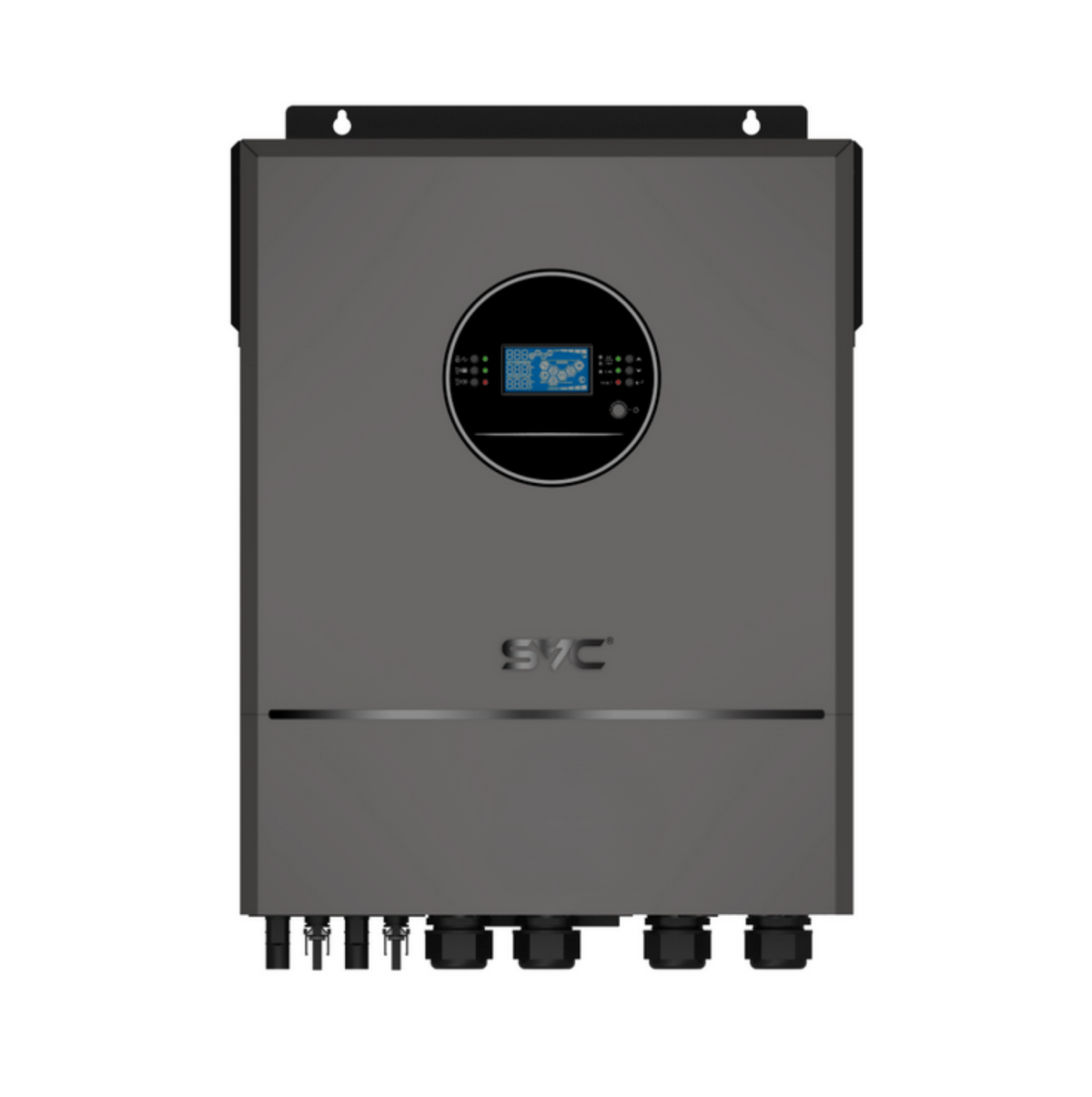

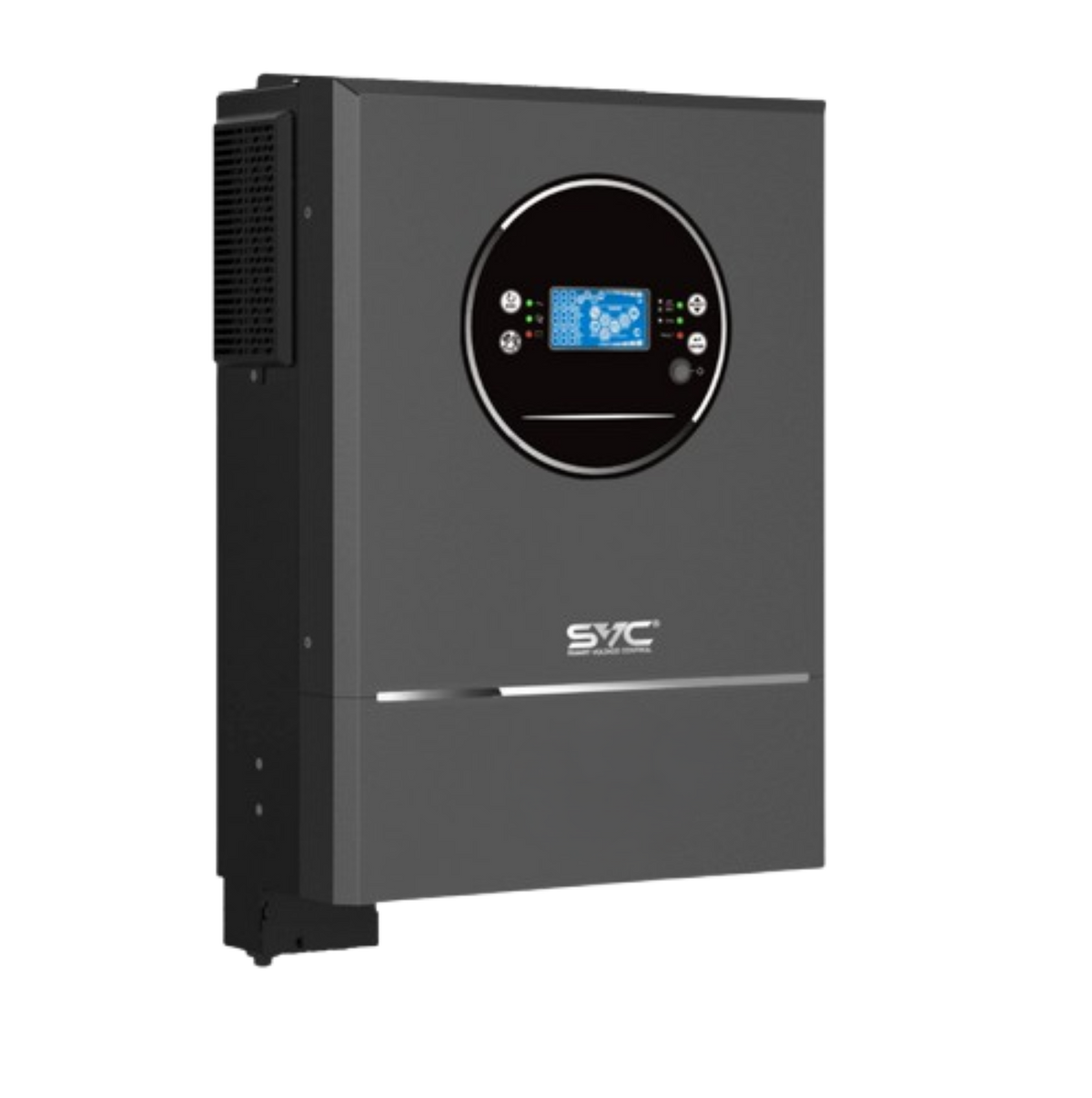

6kw 48v SVC Hybrid Solar Inverter - 6000w 100A MPPT - Versatile Battery Compatibility

🔋 Powerful Performance – 6kW pure sine wave output with 48V battery support, ensuring stable and efficient energy conversion.

🌞 100A MPPT Solar Charge Controller – Maximizes solar power harvesting with 98%+ efficiency, optimizing energy usage from solar panels.

⚡ Hybrid Functionality – Seamlessly integrates solar, battery, and grid power, supporting off-grid, grid-tie, and backup power modes.

🔄 Versatile Battery Compatibility – Supports Lithium-ion, LiFePO4, AGM, Gel, and Lead-acid batteries for flexible energy storage.

🛡️ Advanced Protection Features – Equipped with overload, short circuit, over-temperature, and battery protection to enhance safety and longevity.

🔋 6kW 48V SVC Hybrid Solar Inverter - 6000W 100A MPPT 🌞

🔹 Overview

The 6kW 48V SVC Hybrid Solar Inverter is a powerful and versatile solution designed for residential and commercial solar power systems. With its intelligent hybrid functionality, this inverter efficiently manages power sources, seamlessly integrating solar panels ☀️, batteries 🔋, and the grid ⚡ to optimize energy consumption. It features a high-capacity 100A Maximum Power Point Tracking (MPPT) charge controller, ensuring maximum efficiency when harvesting solar energy.

📊 Technical Specifications

⚙️ General Features:

• 🔋 Rated Power: 6kW (6000W)
• 🔌 Battery Voltage: 48V DC
• 🌞 MPPT Charge Controller: 100A
• ⚡ Inverter Type: Pure sine wave
• 🔄 Hybrid Functionality: Supports grid-tie, off-grid, and battery backup modes
• 🔌 Input Voltage Range: 170V - 280V AC (Grid) / 60V - 145V DC (Solar)
• 📈 Peak Efficiency: > 98% (MPPT) / > 93% (Inverter)
• 🕒 Frequency: 50Hz / 60Hz (Auto-sensing)
• ❄️ Cooling: Smart cooling fan with temperature control
• 📡 Communication Ports: RS232 / USB / Wi-Fi / GPRS (Optional)

🔆 Solar Input & MPPT:

• ⚡ Maximum Solar Power Input: 6000W
• 🔌 Maximum PV Open Circuit Voltage: 500V DC
• 🔍 MPPT Voltage Range: 60V - 145V DC
• 🔄 Number of MPPT Trackers: 1 (supports multiple PV arrays)

🔋 Battery & Charging:

• 🔗 Battery Type Compatibility: Lithium-ion, LiFePO4, AGM, Gel, Flooded Lead-acid
• ⚡ Maximum Charging Current: 100A
• ⚠️ Battery Low Voltage Protection: Yes
• 🛡️ Battery Overcharge Protection: Yes

⚡ AC Output & Grid Support:

• 🔌 Output Voltage: 230V ± 5% AC
• ⚡ Surge Power: 12kW (2x rated power)
• 🕒 Transfer Time: ≤ 10ms (UPS Mode)
• 🔌 Grid Input Voltage Range: 170V - 280V AC
• 🔄 Bypass Function: Automatic switch to grid or generator when battery is low

🛡️ Protection Features:

• ✅ Overload Protection
• ✅ Short Circuit Protection
• ✅ Over-Temperature Shutdown
• ✅ Battery Reverse Polarity Protection
• ✅ Anti-Islanding Protection (Grid-tie mode)

🔧 Applications

The 6kW SVC Hybrid Solar Inverter is ideal for various applications, including:

1. 🏡 Residential Solar Power Systems – Provides reliable backup power and optimizes solar energy use, reducing electricity bills.
2. 🏢 Commercial & Small Business Use – Powers essential equipment in offices, shops, and small industries.
3. 🏕️ Off-Grid and Remote Locations – Suitable for rural areas with limited or no grid access.
4. 🔄 Hybrid Grid-Tied Systems – Functions with both solar and grid power, reducing dependency on the utility.
5. 🔌 UPS Backup Systems – Ensures continuous power supply for critical loads such as servers and medical equipment.
6. 🚗 EV Charging Stations – Can be integrated into renewable energy-based EV charging infrastructure.

🛠️ Maintenance & Best Practices

✅ Regular Inspections:

• 🔍 Check for loose connections and inspect terminals for corrosion.
• ❄️ Ensure proper ventilation around the inverter to prevent overheating.

✅ Cleaning:

• 🧼 Wipe dust off the inverter casing to prevent dirt accumulation.
• 💨 Keep the cooling fans and vents free from debris to ensure efficient cooling.

✅ Battery Maintenance:

• 🔋 Regularly monitor battery voltage levels and charge status.
• 💦 If using lead-acid batteries, check electrolyte levels periodically.
• ⚖️ Ensure the battery bank is properly balanced and not over-discharged.

✅ Firmware & Software Updates:

• 📥 Update the inverter firmware when available to improve performance and compatibility.
• 📊 Use manufacturer-provided monitoring tools to track system performance.

✅ Protection Measures:

• ⚡ Install appropriate surge protectors to safeguard against voltage spikes.
• ⚙️ Ensure the inverter is properly grounded to prevent electrical faults.

✅ Environmental Considerations:

• 🌡️ Keep the inverter in a cool, dry, and shaded area to extend its lifespan.
• 🌧️ Avoid placing the unit near direct sunlight or high-humidity areas.

With proper installation and maintenance, the 6kW 48V SVC Hybrid Solar Inverter can provide reliable, long-lasting power 🔋⚡ for various energy needs.
