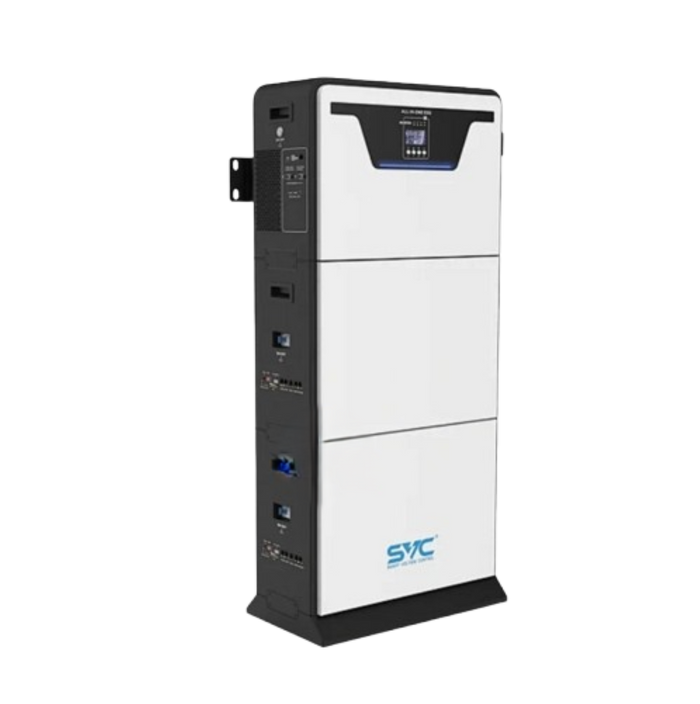

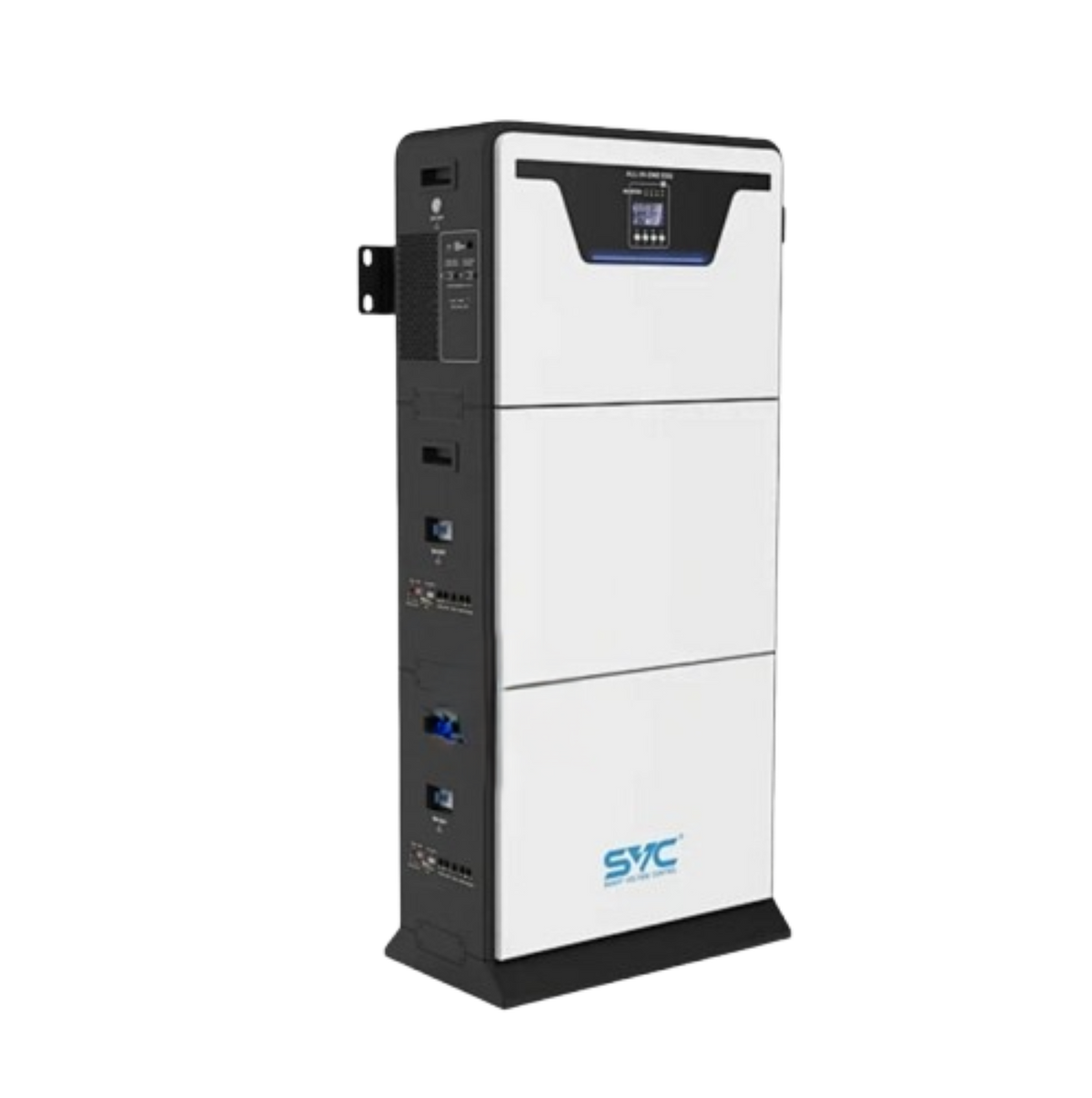

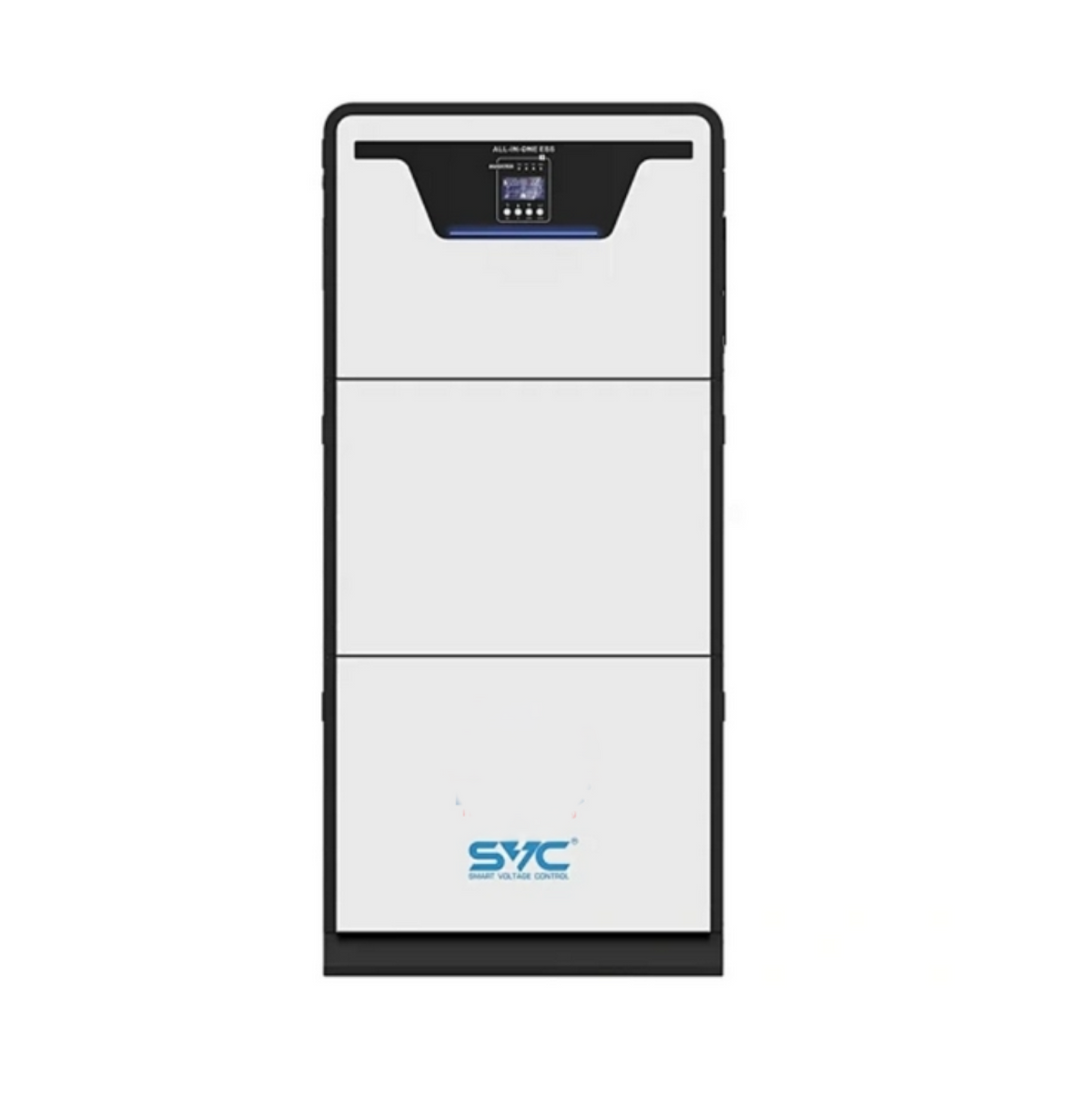

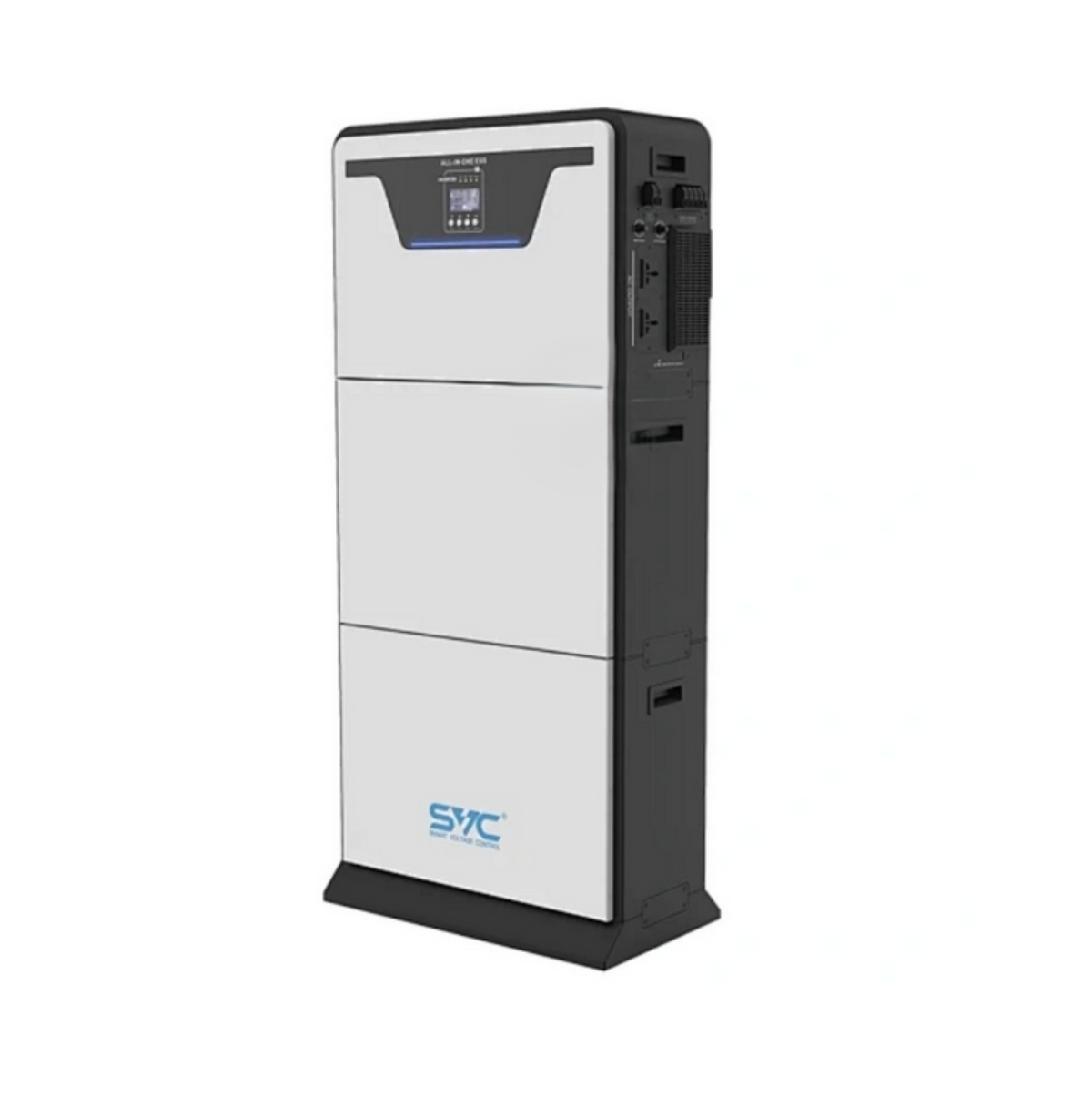

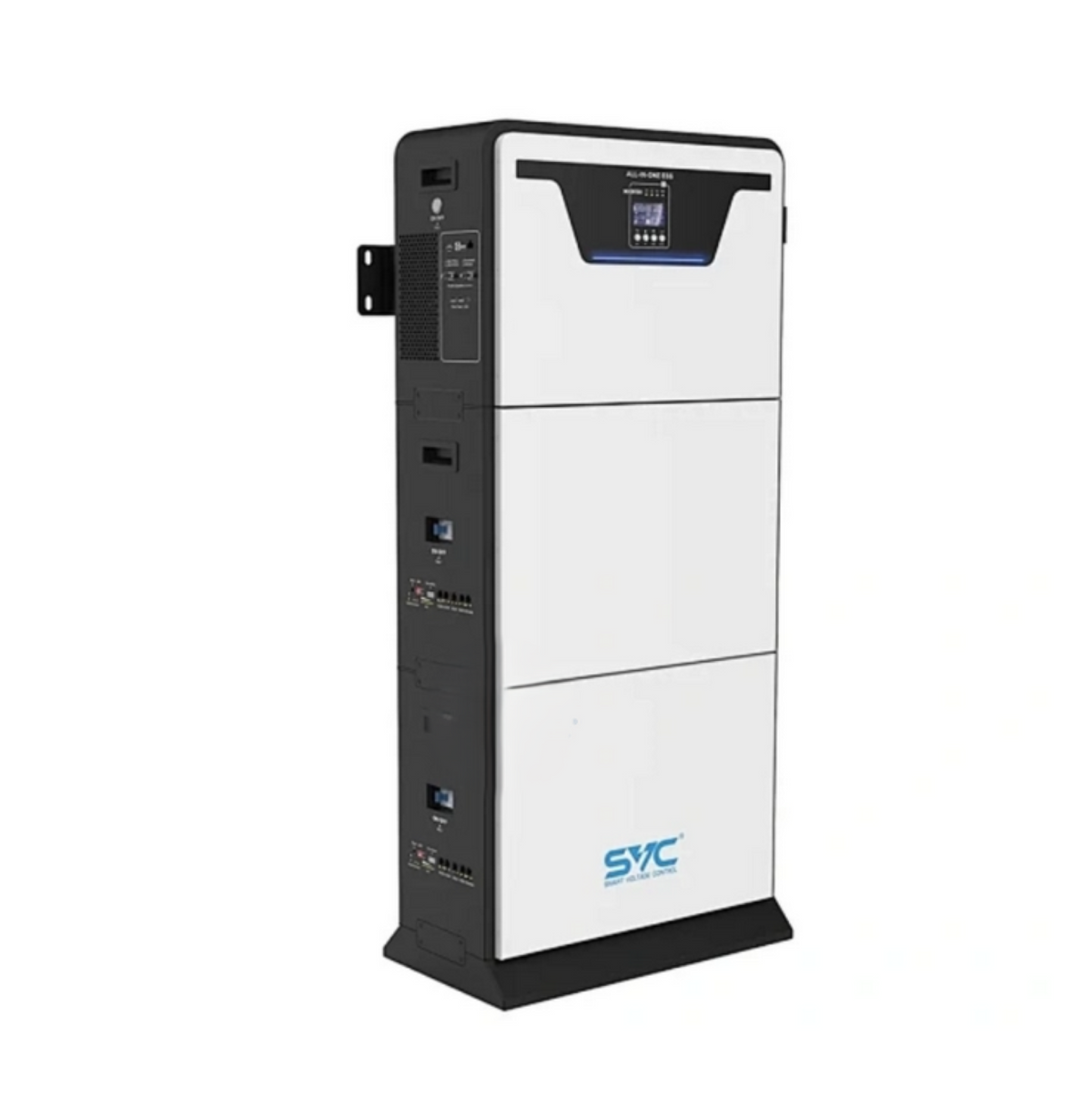

5kw SVC Solar All-in-One ESS System - 10.24kwh Lithium + 5kw Hybrid Inverter

⚡ 5kW SVC Solar All-in-One ESS System 🌞🔋

🔋 10.24kWh LiFePO₄ Battery – 6000+ cycles, 90% DoD
⚡ 5kW Hybrid Inverter – ≥95% efficiency, MPPT tracking
☀️ Solar Input – Up to 6,500W, 120V-500V DC
🔌 Grid & Off-Grid – Works standalone or with the grid
📡 Smart Monitoring – WiFi/GPRS, real-time tracking
🛡️ Advanced BMS – Protection, cell balancing, long lifespan

⚡ 5kW SVC Solar All-in-One ESS System - 10.24kWh Lithium + 5kW Hybrid Inverter 🌞🔋

The 5kW SVC Solar All-in-One Energy Storage System (ESS) is a high-performance, integrated power solution designed for homes 🏡, businesses 🏢, and off-grid applications 🌍. It combines a 5kW hybrid inverter with a 10.24kWh lithium battery, providing reliable and efficient energy management. This system allows users to store solar energy ☀️, reduce dependency on the grid ⚡, and ensure backup power during outages 🔌.

🛠️ Technical Specifications

1️⃣ Hybrid Inverter (5kW)

• Type: Hybrid inverter (grid-tied + off-grid) 🔄
• Rated Power Output: 5,000W (5kW) ⚡
• Max PV Input Power: ~ 6,000W – 6,500W ☀️
• MPPT Efficiency: ≥99.5% 🎯
• PV Input Voltage Range: 120V – 500V DC
• Battery Voltage Range: 48V DC 🔋
• AC Output Voltage: 220V/230V (Single-phase) or 380V (Three-phase) ⚡
• AC Output Frequency: 50Hz/60Hz 🔄
• Max AC Charging Current: 60A ⚡
• Conversion Efficiency: ≥95% ✅
• Communication Ports: RS485, CAN, WiFi/GPRS 📡 (optional for remote monitoring)

2️⃣ Lithium Battery (10.24kWh)

• Battery Type: Lithium Iron Phosphate (LiFePO₄) 🔋
• Nominal Capacity: 10.24kWh ⚡
• Nominal Voltage: 51.2V 🔌
• Depth of Discharge (DoD): 90% – 95% ✅
• Battery Cycle Life: 6000+ cycles 🔄 (at 80% DoD)
• Charge/Discharge Rate: 0.5C – 1C ⚡
• Battery Management System (BMS): Smart BMS for protection 🛡️
• Operating Temperature: -10°C to 50°C 🌡️

3️⃣ System Features

• Smart Energy Management 🤖: Supports time-of-use (TOU) scheduling, peak shaving, and grid support.
• Off-Grid & Grid-Tied Capabilities 🔄: Operates standalone or with the grid.
• Solar Priority Mode ☀️: Uses solar power before grid electricity.
• Backup Power (UPS Function) 🔌: Automatic switchover during outages.
• Remote Monitoring 📡: Via mobile app/web dashboard.
• Scalability 📈: Expandable battery modules for more storage.

📌 Applications

1️⃣ Residential Homes 🏡
✅ Power backup for essential appliances.
✅ Reduces electricity bills by storing excess solar energy.
✅ Ensures energy security during blackouts.

2️⃣ Small Businesses & Offices 🏢
✅ Keeps computers, lights, and equipment running.
✅ Saves on energy costs by using stored solar power.

3️⃣ Off-Grid Cabins & Remote Areas 🏕️
✅ Provides electricity where grid power is unavailable.
✅ Eco-friendly and sustainable alternative to generators.

4️⃣ Farms & Agriculture 🌾
✅ Powers irrigation, lighting, and equipment.
✅ Reduces diesel generator dependency.

5️⃣ Critical Infrastructure (Hospitals, Clinics, Data Centers) 🏥💾
✅ Ensures uninterrupted power for essential services.
✅ Ideal for disaster-prone areas with frequent outages.

🛠️ Maintenance & Care

🔋 Battery Maintenance

✔️ Monitor charge levels to avoid deep discharges.
✔️ Keep terminals clean and check for loose connections.
✔️ Avoid extreme temperatures to prolong lifespan.
✔️ Update BMS firmware for improved performance.

⚙️ Inverter Maintenance

✔️ Ensure proper ventilation to prevent overheating.
✔️ Inspect wiring connections for signs of wear or damage.
✔️ Monitor performance via LCD screen or app.

☀️ Solar Panel Maintenance (If Used with PV System)

✔️ Clean panels regularly to remove dust & debris.
✔️ Check for shading issues from trees or buildings.
✔️ Inspect wiring & grounding for optimal performance.

The 5kW SVC Solar All-in-One ESS System 🌞🔋 is a smart, scalable, and highly efficient energy storage solution for homeowners, businesses, and off-grid users. With intelligent battery management 🛡️, hybrid functionality ⚡, and remote monitoring 📡, it ensures uninterrupted power and maximum solar energy utilization. 🌍🔌
