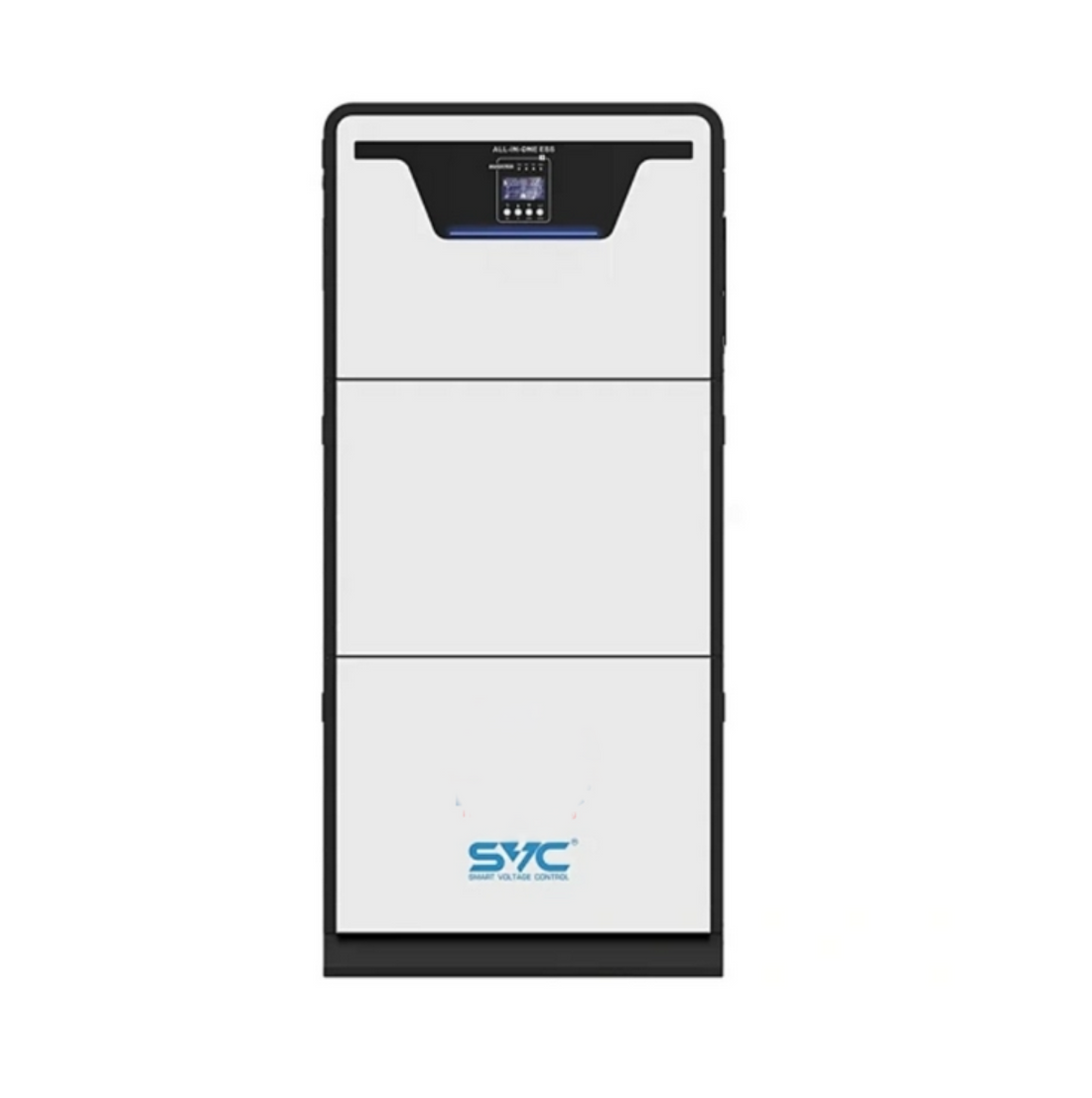

5kw SVC Solar All-in-One ESS System - 15.36kwh Lithium + 5kw Hybrid Inverter

🌞 5kW SVC Solar All-in-One ESS System – 15.36kWh Lithium + 5kW Hybrid Inverter ⚡

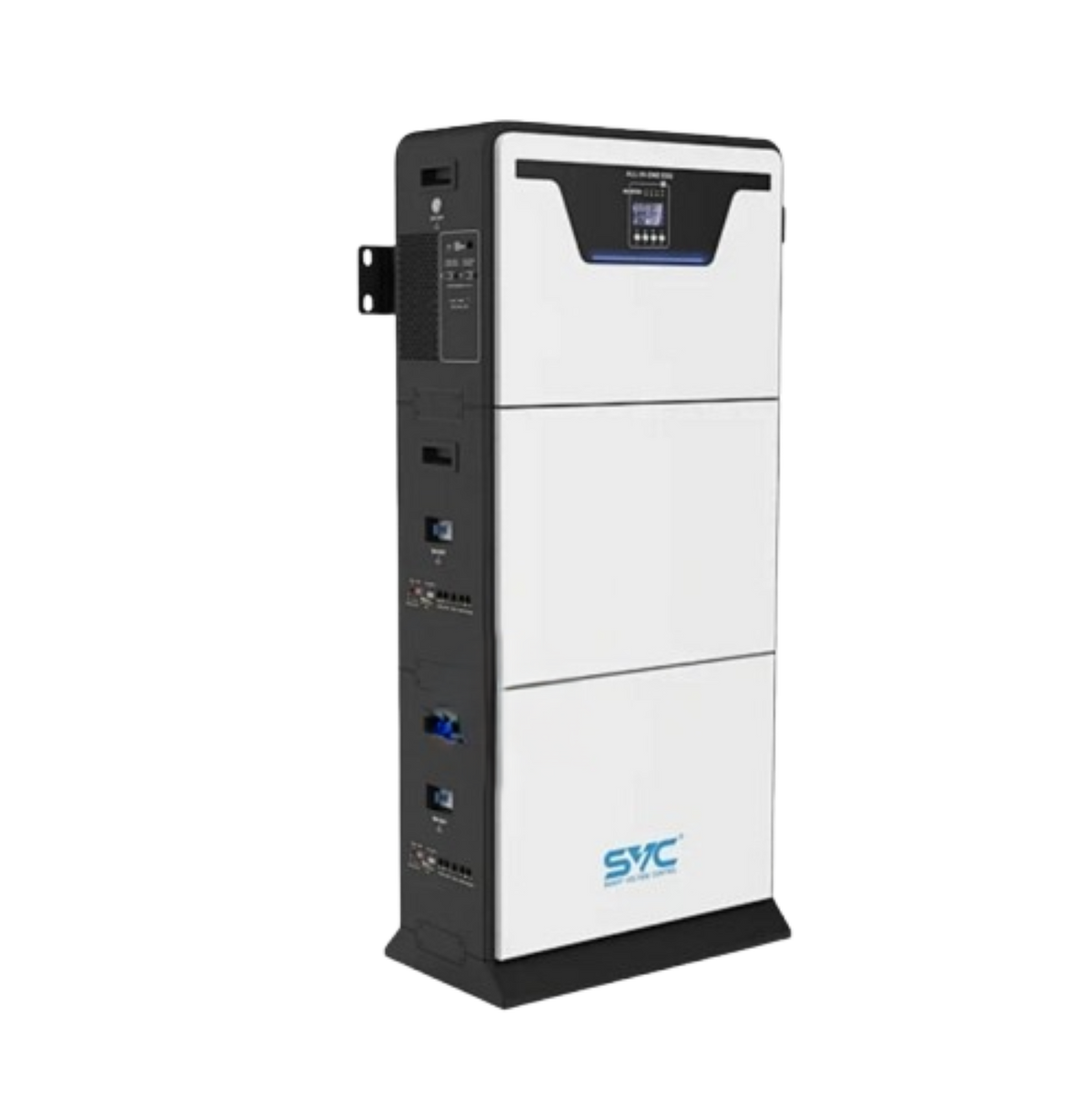

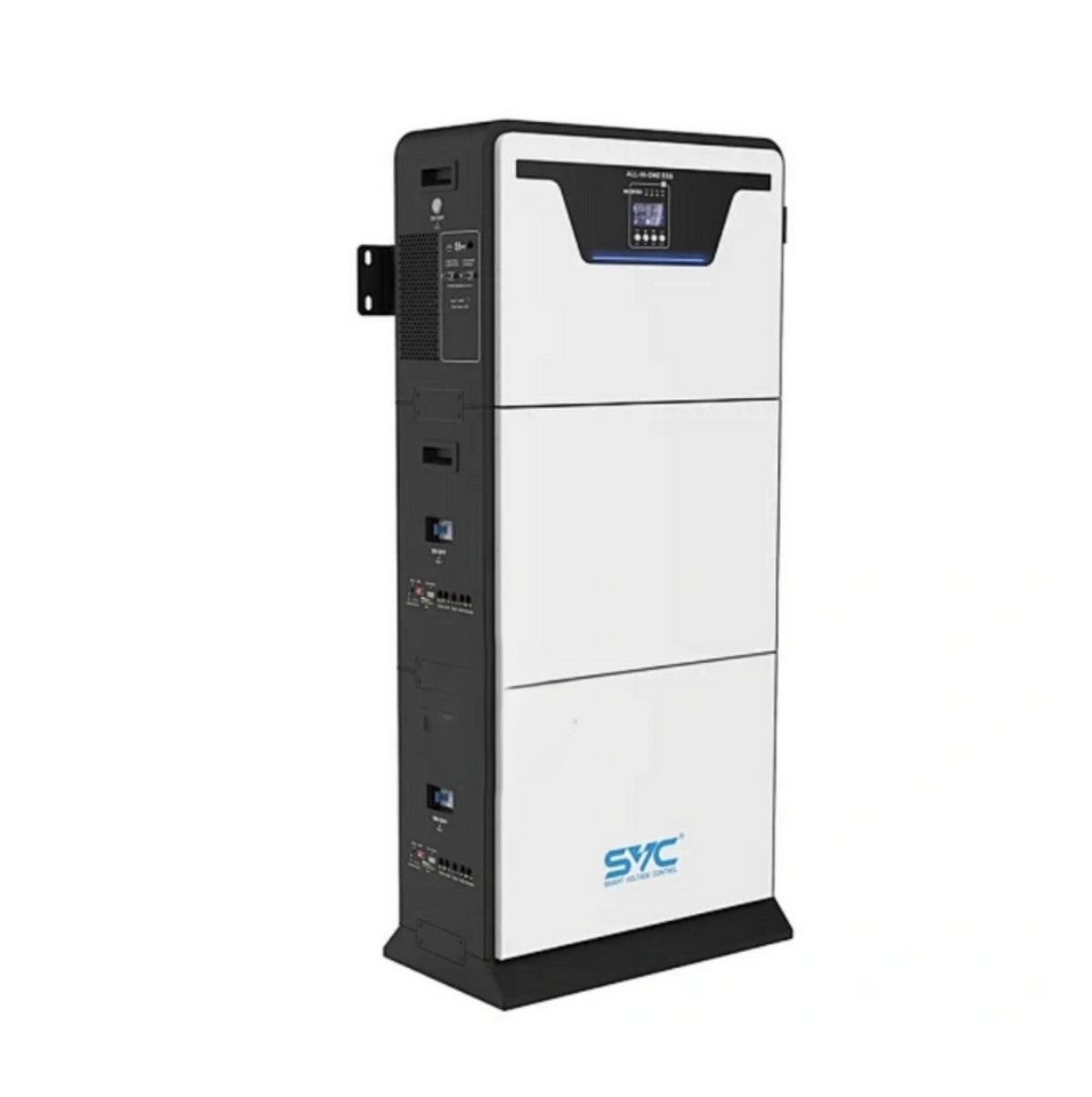

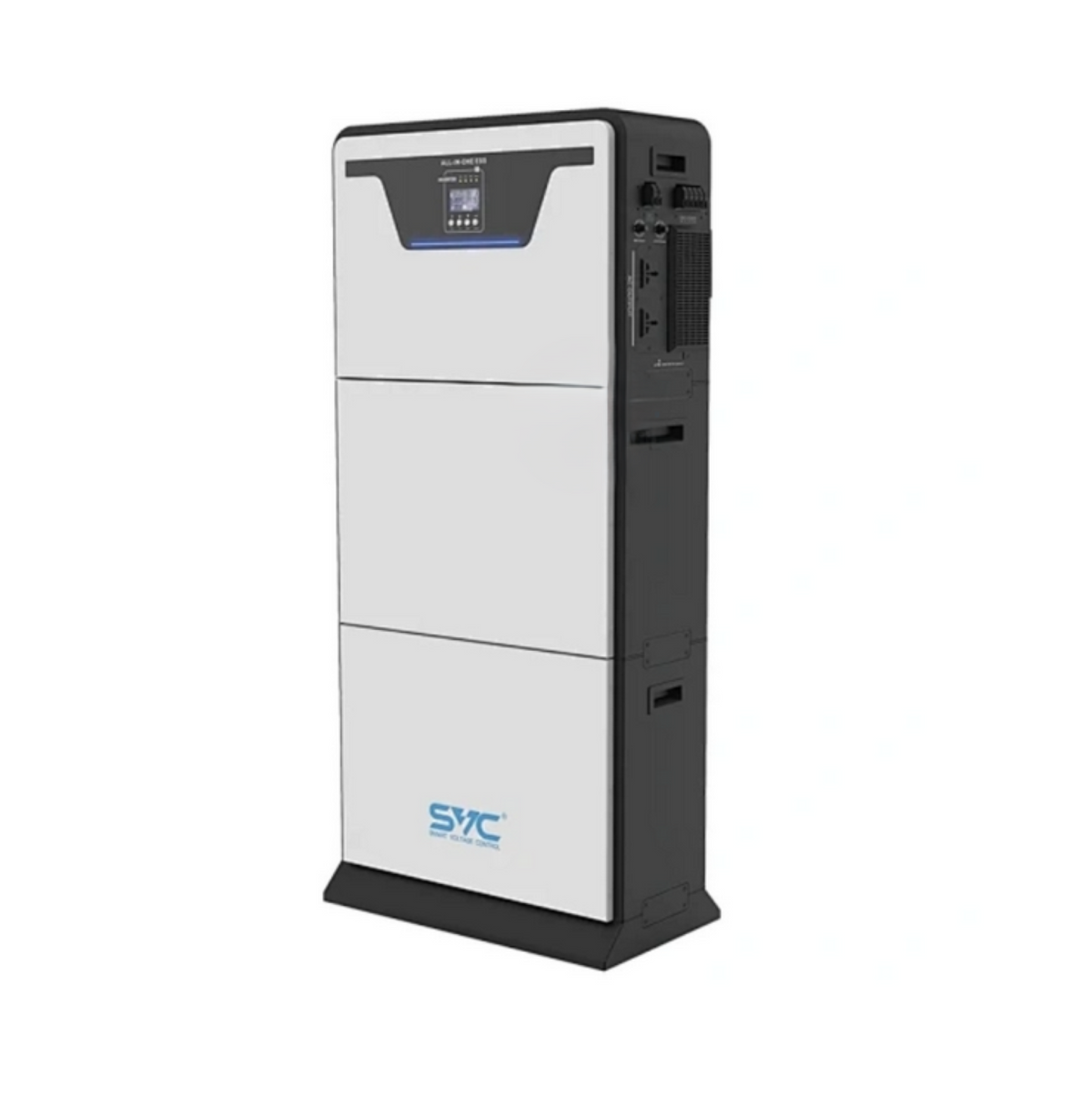

The 5kW SVC Solar All-in-One Energy Storage System (ESS) is a cutting-edge solar power solution designed for 🏡 residential and 🏢 small commercial applications. It integrates a high-capacity 🔋 15.36kWh lithium battery with a ⚙️ 5kW hybrid inverter, ensuring reliable and efficient energy management.

🛠️ Technical Specifications

🔌 1. Hybrid Inverter (5kW)

• 🔋 Type: Pure Sine Wave Hybrid Inverter
• ⚡ Output Power: 5,000W (5kW)
• 🔆 PV Input Voltage Range: 120V - 500V DC
• 🔄 MPPT Charge Controller:
  • ☀️ Max PV Input Power: 6,500W
  • ⚙️ MPPT Voltage Range: 120V - 450V
  • 📈 Efficiency: ≥ 98%
• 🔋 Battery Voltage: 48V
• 🔌 AC Output Voltage: 230V ± 5% (Single-phase)
• 🔁 Frequency: 50Hz/60Hz (Auto-detection)
• 💥 Surge Power: 10,000W
• 📡 Communication Interfaces: RS485 / CAN / WiFi / Bluetooth
• ❄️ Cooling Method: Forced Air Cooling

🔋 2. Lithium Battery (15.36kWh)

• 🔋 Battery Type: LiFePO4 (Lithium Iron Phosphate)
• ⚡ Total Capacity: 15.36kWh
• ⚡ Nominal Voltage: 48V
• ✅ Usable Capacity: ≥ 90% of total capacity
• 📉 Depth of Discharge (DoD): 90%
• 🔄 Cycle Life: 6,000+ cycles (@ 80% DoD)
• ⚡ Charge/Discharge Efficiency: ≥ 95%
• 🌡️ Operating Temperature: -10°C to 50°C
• 🛡️ BMS (Battery Management System): Integrated with Overcharge, Over-discharge, Overcurrent, and Short-circuit protection

🖥️ 3. General System Features

• ⚙️ System Type: All-in-One Solar Energy Storage System
• ☀️ Solar Compatibility: Works with existing and new solar panel installations
• 🔋 Backup Mode: Supports Off-grid & On-grid with Backup Function
• 📡 Remote Monitoring: WiFi / Mobile App / Web Interface
• 🛠️ Installation Type: Floor-mounted / Wall-mounted
• 📏 Dimensions: Approx. 1000mm x 600mm x 250mm
• ⚖️ Weight: Approx. 120 kg

🌍 Applications

The 5kW SVC Solar ESS System is perfect for a variety of uses, including:

🏡 1. Residential Energy Storage

✅ Provides backup power during outages 🔌
✅ Reduces dependence on grid electricity 💡
✅ Maximizes self-consumption of solar energy ☀️

🏢 2. Small Commercial Use

✅ Supports small office loads 🖥️
✅ Reduces peak electricity costs 💰
✅ Ensures stable power for critical equipment ⚙️

🏕️ 3. Off-Grid and Remote Locations

✅ Ideal for rural homes, farms, and remote installations 🌾
✅ Operates independently of the main grid ⚡

🔄 4. Hybrid and Backup Power Solutions

✅ Works with the grid for seamless energy supply 🔄
✅ Supports generators as an additional backup source 🔋

🚗 5. EV Charging Support

✅ Integrates with home EV charging stations ⚡🚗

🔧 Maintenance

🛠️ 1. Regular Inspections

✔️ Check battery health and inverter status via the mobile app 📲
✔️ Inspect wiring and connections for wear or corrosion 🧐

🔋 2. Battery Maintenance

✔️ Keep the system within the recommended temperature range 🌡️
✔️ Avoid deep discharges to extend battery life 🔄
✔️ Ensure proper ventilation for the battery compartment 💨

⚙️ 3. Inverter Maintenance

✔️ Keep air vents free from dust and debris 🏠
✔️ Update firmware for performance improvements 🔄

☀️ 4. Solar Panel Maintenance (if applicable)

✔️ Clean panels periodically to remove dirt 🧼
✔️ Check for shading issues that might reduce efficiency 🌳

📡 5. Software and Monitoring

✔️ Monitor system performance through the app or web portal 📊
✔️ Set up alerts for any faults or maintenance reminders 🔔

The 5kW SVC Solar All-in-One ESS System is a powerful, scalable, and efficient solution for homeowners and businesses looking to harness solar energy. With a robust 🔋 15.36kWh LiFePO4 battery, an intelligent ⚡ 5kW hybrid inverter, and a comprehensive battery management system, this system ensures reliable backup power and optimal energy use. 💡🔆
