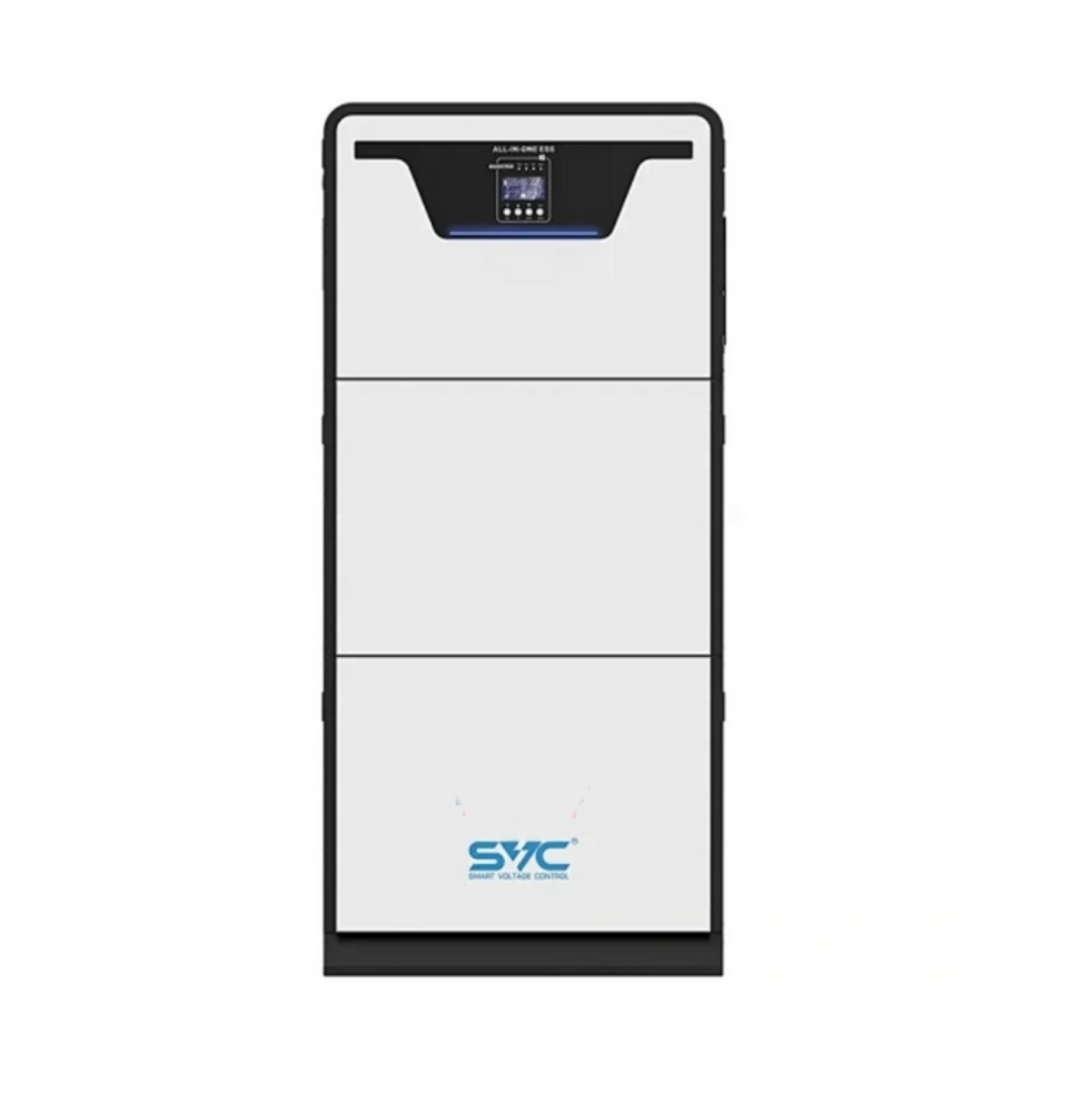

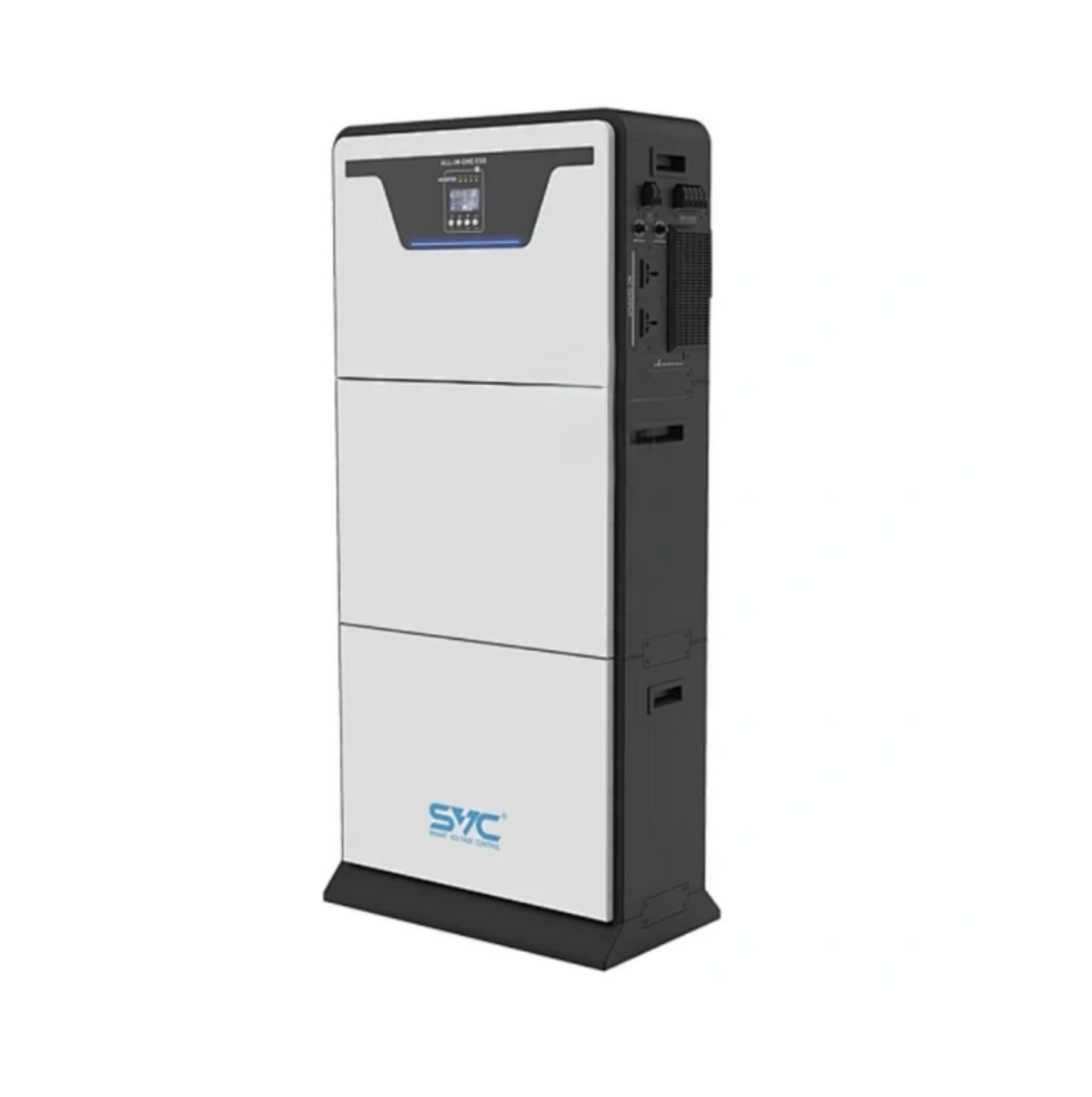

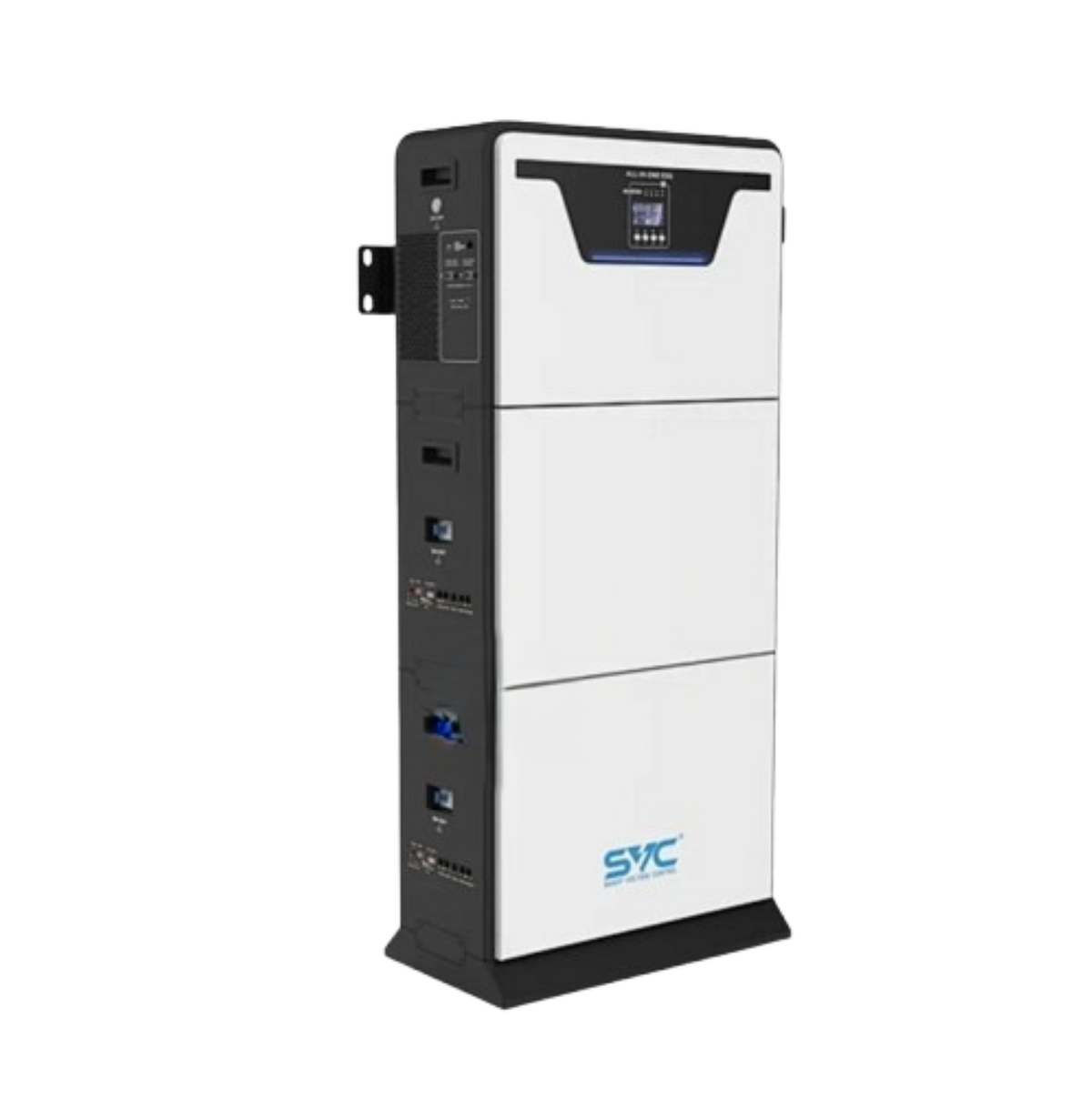

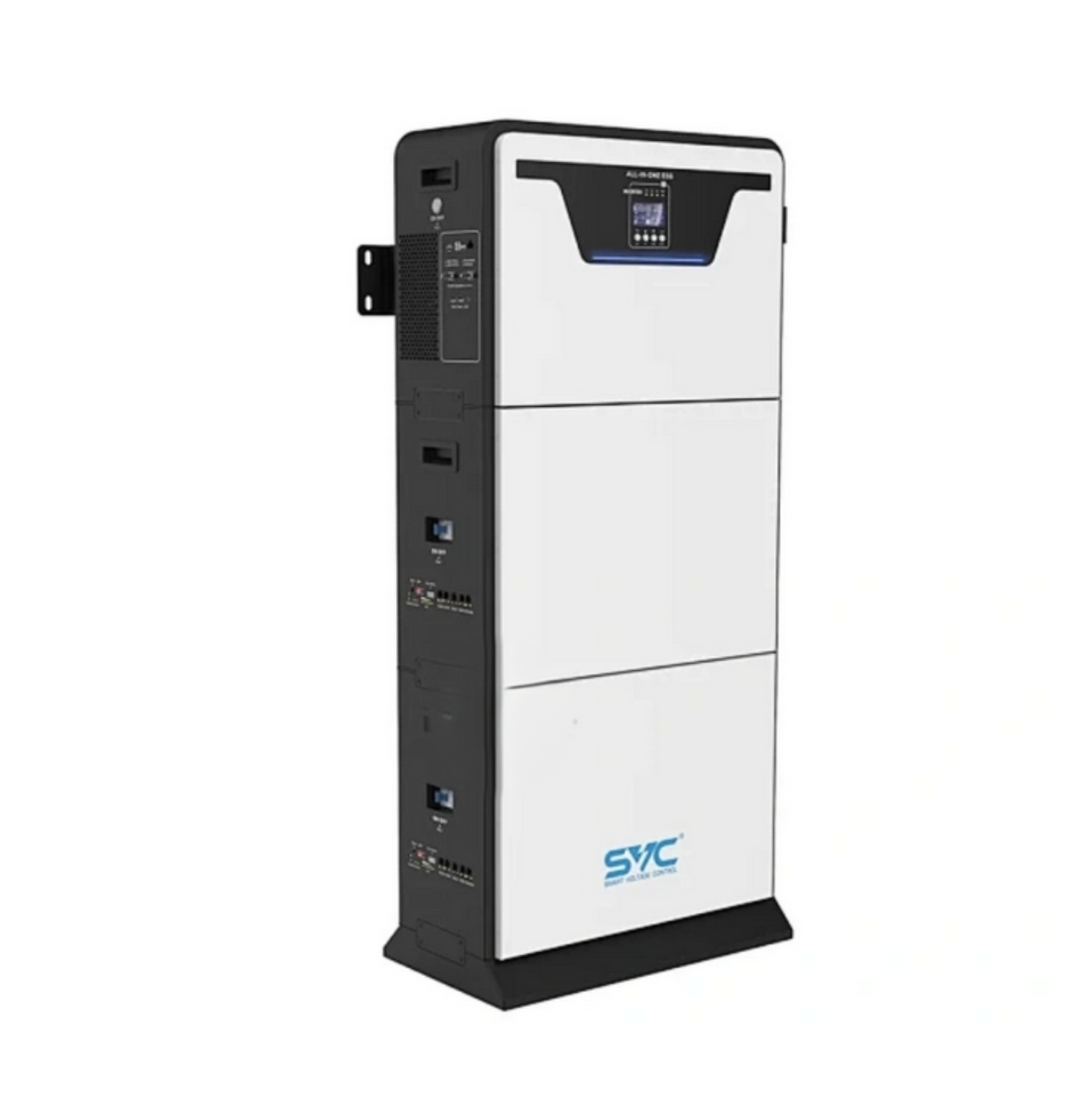

5kw SVC Solar All-in-One ESS System - 5.12kwh Lithium + 5kw Hybrid Inverter

🔋 High-Capacity Lithium Battery – 5.12kWh LiFePO4, 6000+ cycles, 90% DoD, BMS protection, reliable storage.

⚡ 5kW Hybrid Inverter – Pure sine wave, 98% efficiency, MPPT charging, grid/off-grid switching.

☀️ Solar-Optimized Performance – Supports 6.5kW PV, wide MPPT range, maximizes solar utilization.

📡 Smart Monitoring & Control – Wi-Fi/GPRS/App tracking, real-time management, remote firmware updates.

🏠 Versatile Applications – Homes, businesses, off-grid, backup power, stable electricity supply.

🛡️ Advanced Safety & Protection – Overcharge, short circuit, overload protection, IP65 durable enclosure.

⚡ 5kW SVC Solar All-in-One ESS System – 5.12kWh Lithium + 5kW Hybrid Inverter ☀️🔋

🌍 Overview

The 5kW SVC Solar All-in-One ESS System is a complete energy storage solution designed for homes 🏡 and small businesses 🏢. This system integrates a 5kW hybrid inverter ⚙️ with a 5.12kWh lithium battery 🔋, allowing for efficient energy conversion, storage, and management. It supports grid-tied, off-grid, and hybrid modes, making it a versatile and reliable power backup option.

📊 Technical Specifications

🔌 1. Hybrid Inverter (5kW)

• Rated Power Output: 5kW (5000W) ⚙️
• Input Voltage (PV): 120V – 500V DC ⚡
• MPPT Voltage Range: 150V – 450V DC 🌞
• Maximum PV Input Power: 6.5kW ☀️
• MPPT Efficiency: ≥99.5% ✅
• AC Output Voltage: 220V/230V (Single Phase) ⚡
• Output Frequency: 50Hz / 60Hz 🔄
• THD (Total Harmonic Distortion): ≤3% 🎛️
• Transfer Time: <10ms (UPS Mode) ⚡⏳
• Battery Voltage: 48V 🔋
• Charging Efficiency: >95% 🚀
• Communication Interfaces: RS485 / CAN / Wi-Fi / GPRS (optional) 📶
• Protection Features: Overvoltage, Undervoltage, Overload, Short Circuit, Reverse Polarity Protection, and Surge Protection 🛡️

🔋 2. Lithium Battery (5.12kWh)

• Battery Type: LiFePO4 (Lithium Iron Phosphate) 🏆
• Nominal Capacity: 5.12kWh ⚡
• Nominal Voltage: 48V 🔋
• Usable Capacity: ~4.6kWh (90% DOD) ✅
• Cycle Life: >6000 cycles at 80% DOD 🔄
• Charge/Discharge Current: 50A (Continuous) / 100A (Peak) ⚡
• Battery Management System (BMS): Integrated with cell balancing and protection against overcharging, over-discharging, over-temperature, and short circuits 🛡️
• Communication Protocols: RS485, CAN 📡
• Operating Temperature Range: -20°C to 55°C 🌡️
• Enclosure Protection: IP65 (Dustproof & Water-resistant) 🌊

🛠️ 3. System Features

• ✅ All-in-One Design: Inverter, battery, MPPT solar charge controller, and energy management system combined.
• 🔄 Hybrid Functionality: Works with solar, battery, and grid power with seamless switching.
• ⚙️ Smart Energy Management: Optimizes self-consumption, peak shaving, and backup power.
• 📡 Remote Monitoring & Control: Wi-Fi/GPRS for real-time performance tracking.
• 📈 Scalability: Expandable battery capacity for increased storage needs.

🔧 Applications

1. 🏠 Residential Power Backup – Ensures power during blackouts.
2. ☀️ Solar Self-Consumption – Stores excess solar energy for nighttime use.
3. 🌿 Off-Grid Homes & Cabins – Reliable power for remote areas.
4. 🏢 Commercial Energy Management – Reduces electricity costs by optimizing usage.
5. 🚗 EV Charging Support – Can be integrated with electric vehicle charging setups.

🛠️ Maintenance & Care

🔍 1. Routine Inspections

• ✅ Check battery health via monitoring software.
• ✅ Inspect wiring and connections for any wear.
• ✅ Ensure proper cooling and ventilation.

🔋 2. Battery Maintenance

• 🚫 Avoid deep discharges (keep above 80-90% DOD).
• ❄️ Store in a dry, temperature-controlled environment.
• 🔄 Keep firmware updated for better efficiency.

⚙️ 3. Inverter Care

• 🧹 Keep the inverter clean and dust-free.
• 🔄 Check for firmware updates regularly.
• ✅ Test system performance by simulating power failures.

🌦️ 4. Environmental Considerations

• 🌡️ Install in a well-ventilated area to prevent overheating.
• 🌧️ Protect from extreme weather conditions.
• 🚪 Ensure IP65-rated enclosures remain sealed to prevent moisture damage.

The 5kW SVC Solar All-in-One ESS System is an excellent energy solution for homes and small businesses looking to reduce reliance on the grid while ensuring reliable backup power. With its high-efficiency hybrid inverter ⚙️, long-lasting lithium battery 🔋, and smart energy management features 📡, it is a sustainable and cost-effective investment for energy independence. 🌞⚡
